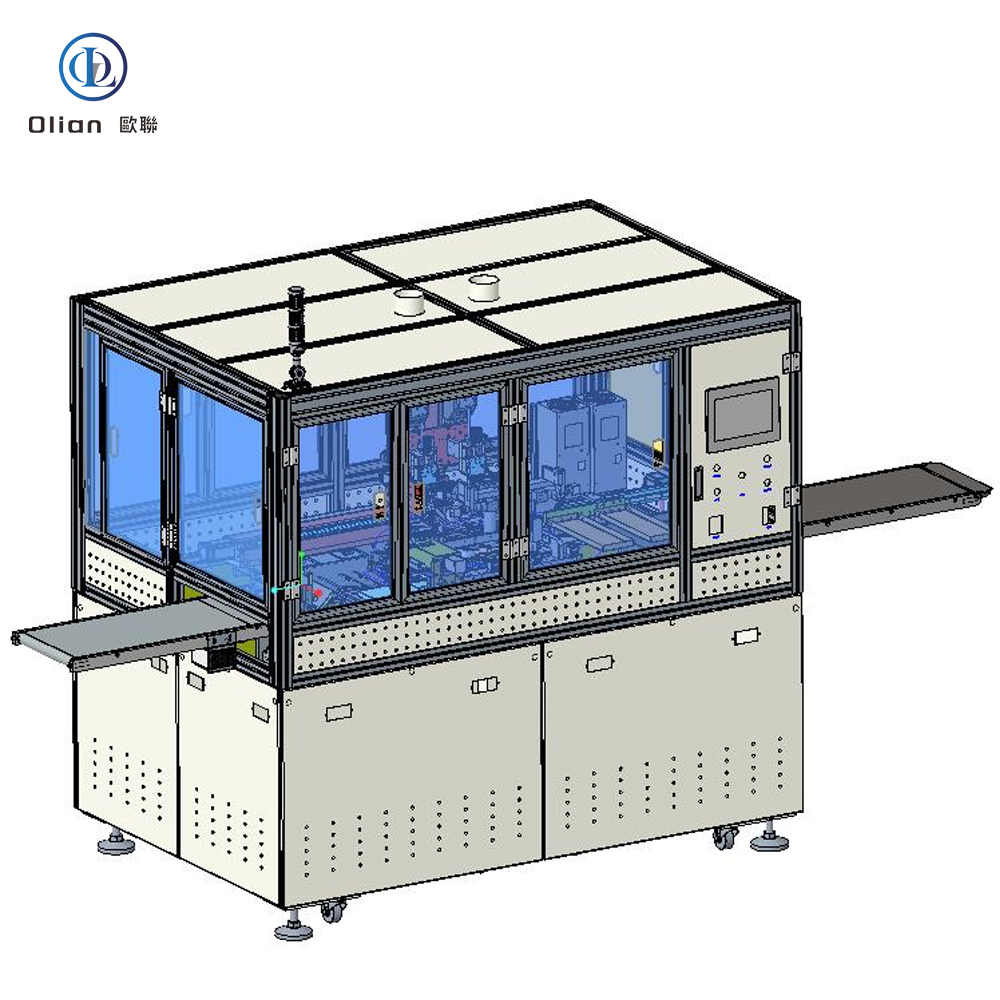

OL-THJ1000 Automatic FPC Soldering Machine: Precision for Small Displays
The OL-THJ1000 Automatic FPC Soldering Machine is engineered for high-precision soldering of small displays. This automatic equipment handles products from 3.0 to 8.0 inches with exceptional accuracy.
Manufactured by Olian Automatic in Shenzhen, China, the OL-THJ1000 delivers reliable performance for small-format FPC soldering. The machine combines manual loading with an automated vision correction and soldering process for optimal efficiency.
Why Choose the OL-THJ1000 Automatic FPC Soldering Machine?
The OL-THJ1000 Automatic FPC Soldering Machine excels in small-format display manufacturing. Its robust design ensures consistent soldering quality for high-precision products.
- Small Format Capability: Handles displays from 3.0 to 8.0 inches. Maximum product size reaches 180 x 100mm.
- High Precision: Achieves X and Y-axis accuracy of ≤±0.1mm. Ensures perfect alignment for each soldering job.
- Fast Cycle Time: Total cycle time is approximately 3.8 seconds. This is based on product size and operator skill.
- Excellent Yield Rate: Maintains a product qualification rate of ≥97%. This excludes human error and material defects.
- Quick Changeover: New model setup takes approximately 30 minutes. Returning models take only 15 minutes.
- Versatile Applications: Solders FPC from FOG to B/L (Backlight). Handles a wide range of product thicknesses.
- Wide Material Compatibility: Accepts B/L thickness from 0.5 to 5mm. Accepts FPC lengths up to 150mm.
- Fine Pitch Support: Suitable for products with L, Z, and vertical排线 shapes.
Advanced Soldering Technology
The OL-THJ1000 features precise temperature and pressure control for optimal soldering results. The system ensures uniform soldering across the entire contact area.
Soldering Parameters:
- Temperature Range: Room temperature to 599°C
- Control: High-frequency temperature control heating
- Programmable for different materials
Pressure Control:
- Control Method: Precision pneumatic control system
- Ensures uniform pressure application
Heating System:
- Heating Method: High-frequency temperature control
- Temperature Range: Room temperature to 599°C
- Precise temperature regulation
Vision System:
- Camera: 1.3MP camera for precise alignment
- Lens: High-quality lens for clear imaging
- System: Shimu image processing system
Soldering Process
The OL-THJ1000 simplifies the complex process of small-panel FPC soldering. The system relies on skilled operator loading for high-precision results.
The Optimized Workflow:
- Power On: Turn on the equipment and perform origin return.
- Component Loading: Manually place LCM on the input conveyor.
- Component Alignment: The equipment automatically corrects LCM position.
- FPC Positioning: The backlight FPC is positioned over the main FPC.
- Pre-soldering Alignment: FPC pads are pre-positioned for soldering.
- CCD Calibration: FPC pads are calibrated by the vision system.
- Soldering: The two FPCs are automatically soldered together.
- Unloading: The finished product is discharged to the output conveyor.
- Repeat: The process repeats for the next product soldering.
The entire process is controlled by a reliable Panasonic PLC system. The Weinview HMI provides intuitive operation and parameter setting.
Robust Engineering & Safety Features
Built for demanding production environments, the OL-THJ1000 incorporates high-quality components and comprehensive safety systems.
Key Technical Specifications:
- Platform Size: Customized for small format soldering
- Product Thickness: 0.5 to 5mm (B/L), FPC length <150mm
- Machine Dimensions: 2320 x 1320 x 1800mm (excluding FFU and lights)
- Working Height: 990±50mm
- Machine Weight: Approximately 2000kg
- Machine Color: White frame with chrome/anodized parts
Component Brands:
- PLC: Panasonic, Mitsubishi
- HMI: Weinview
- Cylinders: SMC, CKD, Airtac
- Servo Motors: INOVANCE, RUKING
- Guideways: TBI, HIWIN
- Sensors: Panasonic
Safety Systems: The machine includes interlock design with warning labels on hazardous areas. All high-temperature and mechanical hazard areas have clear warning labels. The EMO (emergency stop) cuts all power to servo drives. A three-color signal tower provides visual status alerts.
Environmental Requirements: The machine requires a clean, dust-free workshop. Operating temperature should be 22-27°C. Relative humidity should be 40-70%.
Power & Air Requirements:
- Power: 1Phase AC220V, 50Hz/60Hz, 10KW
- Compressed Air: 0.5-0.7MPa, approximately 200L/min
- Vacuum: Factory vacuum required, approximately 120L/min
Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].
Why Choose Olian Automatic for Your Soldering Needs?
Olian Automatic is a trusted manufacturer of display assembly equipment headquartered in Shenzhen, China. With over two decades of experience, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. Visit our [About Us] page for more information about our company. Explore our [Product Lines] for complete display assembly solutions.
Sustainability Commitment: The OL-THJ1000 is designed for energy efficiency. Its optimized soldering process reduces power consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.
FAQ
Q: What is an Automatic FPC Soldering Machine used for?
A: It solders FPC from FOG to B/L components for small displays up to 8.0 inches for display manufacturing.
Q: What products can the OL-THJ1000 handle?
A: The OL-THJ1000 handles FPC soldering for products from 3.0 to 8.0 inches with automatic soldering capabilities.
Q: What is the soldering precision of the OL-THJ1000?
A: The OL-THJ1000 achieves an accuracy of ≤±0.1mm on both X and Y axes.
Q: How long does the soldering process take?
A: The total cycle time is approximately 3.8 seconds per piece, depending on product size.
Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.
Q: How long does product changeover take?
A: New model setup takes approximately 30 minutes, while returning models take 15 minutes.
Q: What type of environment is required for the OL-THJ1000?
A: The machine requires a clean, dust-free workshop with temperature 22-27°C and humidity 40-70%.
Q: What is the maximum temperature of the soldering head?
A: The soldering head can reach temperatures up to 599°C with precise temperature control.
Upgrade your display assembly line with the OL-THJ1000, the Automatic FPC Soldering Machine that combines precision, versatility, and reliability.
