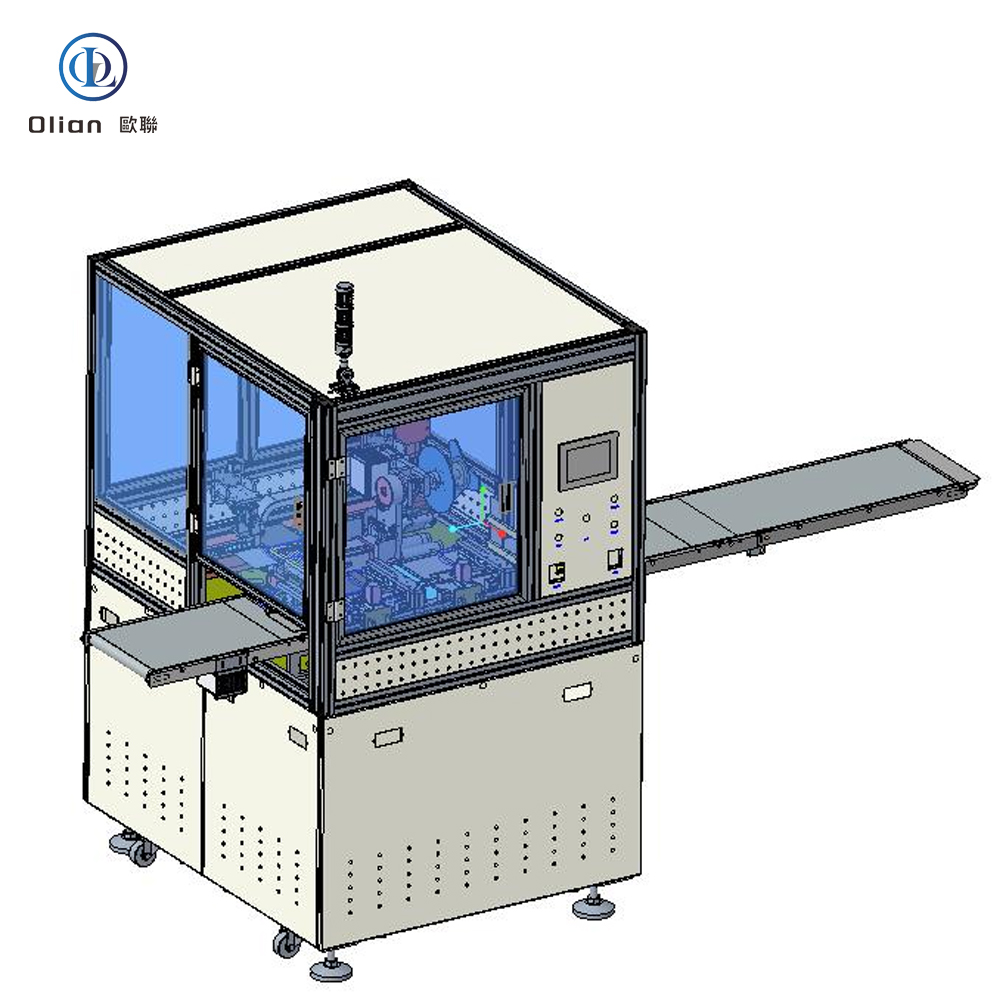

OL-TF800C Automatic Tape Applicator: High-Speed Tape Application

The OL-TF800C Automatic Tape Applicator is a specialized automation solution. It is designed for high-speed tape application on various products.

Manufactured by Olian Automatic in Shenzhen, China, this machine automates the entire process. It ensures reliable and efficient production for both circular and square products.

Why Choose the OL-TF800C Automatic Tape Applicator?

The OL-TF800C Automatic Tape Applicator streamlines your production line. It combines multiple critical steps into one seamless, automated process.

• High Automation: Automates product handling, alignment, and tape application.
• High-Speed Production: Achieves a cycle time of 3.5 seconds per piece.
• High Precision: Offers a tape application accuracy of ±0.5mm.
• Flexible Product Support: Handles 0.96-7″ square and Φ30-Φ60mm circular products.
• Easy Operation: Features a touch screen interface for easy control.
• Safe Operation: Includes safety interlocks and alarm systems for operator protection.
• System Integration: Can be connected with other machines for a full production line.

Technical Specifications of the OL-TF800C Automatic Tape Applicator

The OL-TF800C is engineered for demanding manufacturing environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• Square Product Size: 0.96″ to 7″.
• Circular Product Size: Φ30mm to Φ60mm.
• Product Dimensions (Max): 170mm (L) x 80mm (W).
• FPC Dimensions: <150mm (L) x <50mm (W).
• Tape Roll Width: <100mm.
• Tape Roll Outer Diameter: <Φ200mm.
• Tape Roll Inner Diameter: 76mm.

Performance Metrics:

• Cycle Time: 3.5 seconds per piece.
• Application Accuracy: ±0.5mm.
• Yield Rate: ≥99% (excluding incoming material defects).
• Model Changeover: 30 minutes for new models, 15 minutes for existing.

Machine Dimensions & Weight:

• Overall Dimensions: 1100mm (L) x 1300mm (W) x 1850mm (H).
• Machine Weight: Approximately 850kg.
• Power Supply: Single-phase, AC 220V / 50Hz / 60Hz.
• Power Consumption: Maximum power of 2.5KW.
• Compressed Air: 0.5-0.7 MPa, ≈120 L/min consumption.
• Vacuum System: Built-in vacuum pump supply.

Advanced Application Process of the OL-TF800C

The OL-TF800C features a sophisticated multi-stage application process. This ensures high-quality and reliable tape application.

Application Workflow:

• Loading: Products are loaded onto the machine via a conveyor belt.
• Alignment: A CCD camera corrects the product’s position for accuracy.
• Tape Application: The machine peels and applies the tape to the product.
• Flipping (Optional): An optional unit can flip the product.
• Unloading: The finished product is moved to the exit conveyor.

Key System Components:

• Handling Robots: Mechanical arms for precise product handling.
• CCD Correction: A 600W camera for visual alignment of products.
• Tape Supply: A stepper motor controls the tape feeding process.
• Control Unit: A Panasonic PLC with touch screens for system management.

Robust Engineering & Safety Features of the OL-TF800C

Built for reliability, the OL-TF800C uses quality industrial components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Servo Motors: Inovance/Xinje (China).
• PLC Controller: Panasonic (Japan).
• Pneumatics: SMC/CKD/AirTAC (Japan/Taiwan).
• Guides/Screws: HIWIN/TBI (Taiwan).
• CCD Cameras: Hikvision/Dahua (China).
• HMI: Weinview (Taiwan).
• Power Supply: Mean Well (Taiwan).
• Circuit Breakers: Chint (China).
• Image System: Shimu/Bosch (China).

Safety Systems: The machine features a safety interlock design. It has a buzzer that alarms for errors or reminders. The environment requires a clean, dust-free room.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Automation Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global manufacturing industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-TF800C is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic Tape Applicator?
A: It is a machine that applies tape to products automatically. It handles the entire process from loading to application.

Q: What is the production speed of the OL-TF800C?
A: The cycle time is 3.5 seconds per piece.

Q: What is the application precision?
A: The machine has an application accuracy of ±0.5mm.

Q: What size products can it process?
A: It handles 0.96-7″ square and Φ30-Φ60mm circular products.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Upgrade your production line with the OL-TF800C, the Automatic Tape Applicator. It combines speed, precision, and reliability for superior tape application.

---
