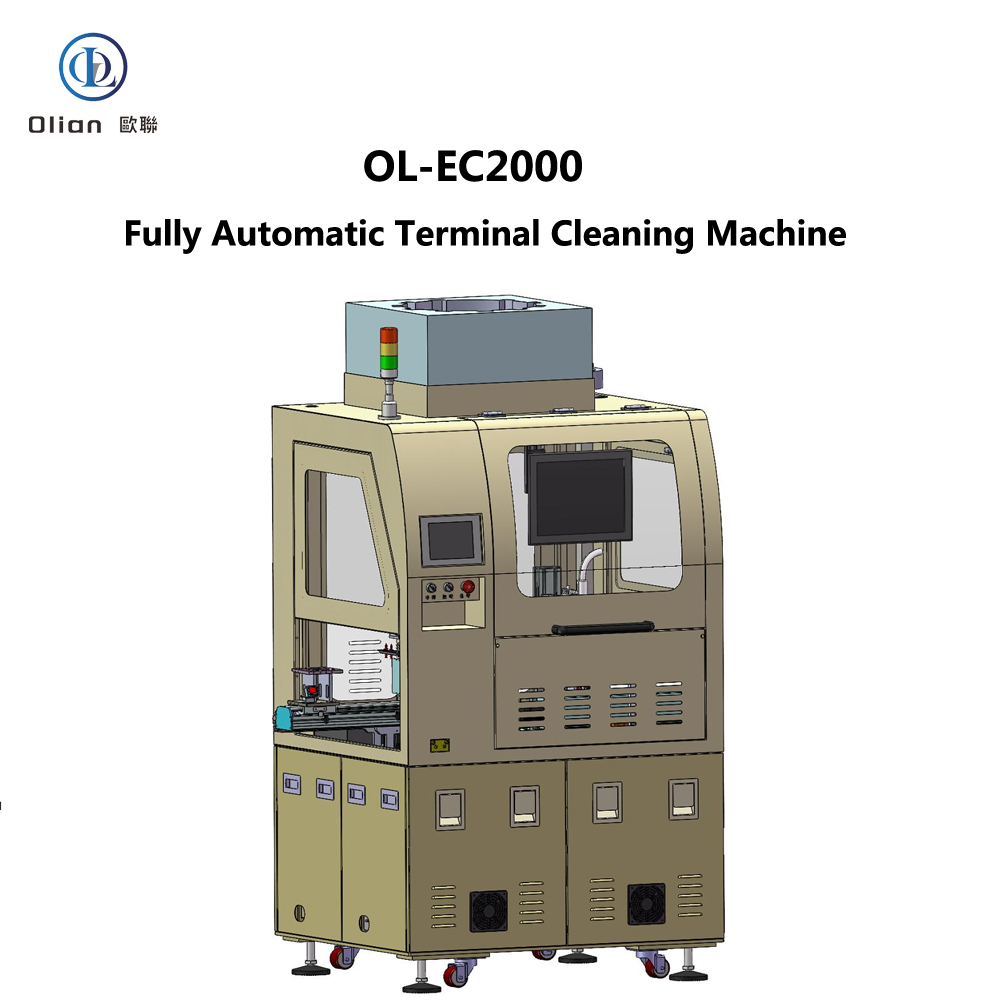

OL-EC2000 Automatic Terminal Cleaning Machine: Precision Cleaning for LCDs

The OL-EC2000 Automatic Terminal Cleaning Machine is a specialized system. It is designed for cleaning LCD terminals with high precision.

Manufactured by Olian Automatic in Shenzhen, China, this machine ensures superior product quality. It integrates wiping, plasma treatment, and CCD alignment into one process.

Why Choose the OL-EC2000 Automatic Terminal Cleaning Machine?

The OL-EC2000 Automatic Terminal Cleaning Machine delivers exceptional cleaning performance. Its automated process ensures consistent results for high-volume production.

• High-Speed Production: Achieves a fast cycle time of ≤3.5 seconds per piece.
• Superior Cleaning: Features wiping, plasma treatment, and optional ultrasonic cleaning.
• Automated Workflow: Handles the entire process from loading to unloading automatically.
• Wide Compatibility: Processes LCDs from 1 to 7 inches in size.
• Advanced Vision System: Uses a CCD camera for automatic product alignment and correction.
• Robust Construction: Built with high-quality components from Japan, China, and Germany.
• Flexible Integration: Can be connected with upstream and downstream production lines.

Technical Specifications of the OL-EC2000 Automatic Terminal Cleaning Machine

The OL-EC2000 is engineered for demanding manufacturing environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• LCD Size Range: 1 to 7 inches.
• Cleaning Type: Single-side terminal, double-side wiping.
• Wiping Cloth: Reel-to-reel format, max diameter 300mm.
• Control System: PLC control with a Chinese touch screen interface.
• Operation Modes: Supports both manual and automatic operation modes.

Performance Metrics:

• Cycle Time: ≤3.5 seconds per piece (wiping speed ≥60mm/s).
• Handling Accuracy: ±0.1mm precision for reliable product transfer.
• Water Drop Angle: ≤20 degrees, depending on actual conditions.
• Model Changeover: <30 minutes for new products.
• Model Recall: <15 minutes for previously produced products.
• Uptime Rate: High reliability for continuous operation.

Machine Dimensions & Weight:

• Overall Dimensions: 1100mm (L) x 950mm (W) x 1800mm (H). Excludes the 350mm signal tower.
• Machine Weight: Approximately 1000kg.
• Power Supply: Single-phase AC 220V.
• Power Consumption: Maximum power of 3KW.
• Compressed Air: 0.5-0.7 MPa, ≤220L/min consumption.
• Vacuum System: Built-in pump (200L/min) or external source. Vacuum ≥-70Kpa.

Advanced Cleaning Technology in the OL-EC2000

The OL-EC2000 features a multi-stage cleaning process. This ensures thorough removal of contaminants from LCD terminals.

Cleaning Process:

• Product Loading: An operator places the LCD on the input platform or conveyor.
• CCD Alignment: Robot arm #1 moves the LCD to the CCD camera for correction.
• Wiping: Robot arm #1 then moves the LCD to the wiping platform for cleaning.
• Plasma Treatment: The product undergoes low-temperature plasma treatment (approx. 100°C).
• Product Unloading: Robot arm #2 moves the cleaned LCD to the output station.

Key System Components:

• Solvent Supply: Controlled by a peristaltic dispenser for precise application.
• Wiping Cloth: Fed by a stepper motor and collected by a torque motor.
• Cleaning Jaws: Height is adjustable with a micrometer for different product thicknesses.
• Handling Robot: Uses servo motors for X-axis and a cylinder for Z-axis movement.
• Stage Platform: Made of aluminum with black hard oxidation, flatness ±0.02mm.

Robust Engineering & Safety Features of the OL-EC2000

Built for reliability, the OL-EC2000 uses industrial-grade components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Servo/Stepper Motors: Ruit (China) for reliable power.
• Modules: SKD (China) for linear motion.
• Pneumatics: CKD (Japan) / AirTac (China) for valves and cylinders.
• PLC Controller: Keyence (Japan) / Panasonic (Japan) for system logic.
• HMI: Proface (Japan) for an intuitive interface.
• Power Supply: Mean Well (Taiwan) for stable power.
• Circuit Breakers: Shihlin (Taiwan) / Schneider (France).
• Cable Carriers: Igus (Germany) for long-lasting performance.

Safety Systems: The machine features a three-color signal tower. It has an emergency stop button with a protective cover. An interlock design pauses the machine when doors are opened. A buzzer and touch screen provide alarm notifications.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Display Manufacturing Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global display industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-EC2000 is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic Terminal Cleaning Machine?
A: It is a system that cleans the terminals of LCD panels. It uses wiping, plasma, and solvents for thorough cleaning.

Q: What is the production speed of the OL-EC2000?
A: The cycle time is ≤3.5 seconds per piece. This ensures high-speed, continuous production.

Q: What LCD sizes can the OL-EC2000 handle?
A: It is compatible with LCDs ranging from 1 to 7 inches in size.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Q: Can the machine be integrated into a production line?
A: Yes, it can be connected with upstream and downstream equipment for automated production.

Upgrade your production line with the OL-EC2000, the Automatic Terminal Cleaning Machine. It combines speed, precision, and reliability for superior cleaning results.

---
