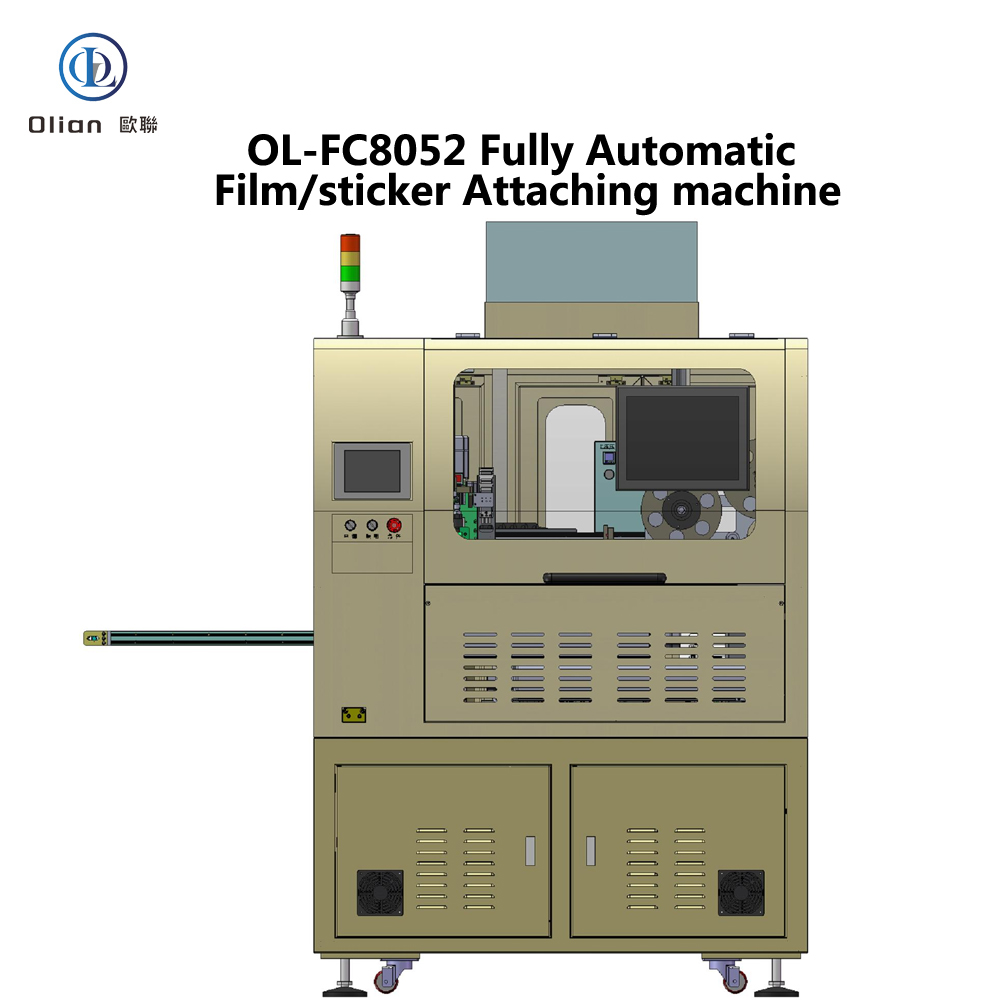

OL-FC8052 Automatic Film Laminating Machine: Precision Lamination for Wearables

The OL-FC8052 Automatic Film Laminating Machine is a specialized system. It is designed for high-precision film and Easy-Sticker lamination.

Manufactured by Olian Automatic in Shenzhen, China, this machine handles multiple lamination processes. It is built for wearable display products within a 45mm x 45mm size.

Why Choose the OL-FC8052 Automatic Film Laminating Machine?

The OL-FC8052 Automatic Film Laminating Machine delivers speed and accuracy. Its automated process ensures consistent quality for high-volume production.

• High-Speed Production: Achieves a fast cycle time of ≤4.5 seconds per piece.
• Superior Precision: Film lamination accuracy is ±0.1mm in X and Y axes.
• Automated Workflow: Handles Easy-Sticker and film lamination automatically.
• Wide Compatibility: Processes LCDs up to 45mm x 45mm and FPCs up to 70mm x 45mm.
• Advanced Vision System: Uses high-pixel CCD cameras for accurate product alignment.
• Robust Construction: Built with high-quality components from Japan, China, and Germany.
• Flexible Integration: Can be connected with upstream and downstream production lines.

Technical Specifications of the OL-FC8052 Automatic Film Laminating Machine

The OL-FC8052 is engineered for demanding manufacturing environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• LCD Size Range: Minimum 15mm x 15mm. Maximum 45mm x 45mm.
• FPC Size Range: Minimum 20mm x 10mm. Maximum 70mm x 45mm.
• Easy-Sticker Type: Reel-to-reel format.
• Film Type: Reel-to-reel format.
• Control System: PLC control for stable operation.

Performance Metrics:

• Cycle Time: ≤4.5 seconds per piece.
• Lamination Accuracy: Film: ±0.1mm (X, Y). Easy-Sticker: ±0.5mm (X, Y).
• Model Changeover: <40 minutes for new products.
• Model Recall: <20 minutes for previously produced products.
• Uptime Rate: High reliability for continuous operation.
• Yield Rate: Optimized for high first-pass yield.

Machine Dimensions & Weight:

• Overall Dimensions: 1350mm (L) x 1050mm (W) x 2000mm (H). Includes FFU and signal tower.
• Machine Weight: Approximately 800kg.
• Power Supply: AC 220V, 50/60Hz, 4KW max power.
• Compressed Air: 0.5-0.7 MPa, ≈80L/min consumption.
• Vacuum System: Built-in pump (200L/min) or external source. Vacuum ≥-70Kpa.

Advanced Lamination Technology in the OL-FC8052

The OL-FC8052 features a multi-stage lamination process. This ensures precise application of films and stickers.

Lamination Process:

• Product Loading: The product is fed into the machine from the input line.
• Easy-Sticker Lamination: The machine separates, picks, and attaches the Easy-Sticker.
• Film Lamination: The platform moves to the film station for attachment.
• Product Unloading: The finished product is moved to the output line.

Key Vision System Components:

• Product Inspection: Uses one 6MP CCD camera with coaxial LED light.
• Film Alignment: Uses two 12MP CCD cameras for precise Mark alignment.
• Field of View: 140mm x 100mm for product, 70mm x 50mm for film.
• Control Interface: Proface touch screen with Chinese interface. Stores 100 product types.

Robust Engineering & Safety Features of the OL-FC8052

Built for reliability, the OL-FC8052 uses industrial-grade components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Servo Motors: Ruit (China) for reliable power.
• Screws & Guides: HIWIN (China) for smooth, precise motion.
• Pneumatics: SMC (Japan) / AirTac (China) for valves and cylinders.
• PLC Controller: Panasonic (Japan) for system logic.
• HMI: Proface (Japan) for an intuitive interface.
• Power Supply: Mean Well (Taiwan) for stable power.
• Circuit Breakers: Schneider (France) / Shihlin (Taiwan).
• Cable Carriers: Igus (Germany) for long-lasting performance.

Safety Systems: The machine features a three-color signal tower. It has an emergency stop button with a protective cover. An interlock design pauses the machine when doors are opened. A buzzer and touch screen provide alarm notifications.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Display Manufacturing Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global display industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-FC8052 is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic Film Laminating Machine?
A: It is a system that automates the application of protective films and stickers. It applies layers to products with high precision.

Q: What is the production speed of the OL-FC8052?
A: The cycle time is ≤4.5 seconds per piece. This varies by product and material.

Q: What is the lamination accuracy?
A: The accuracy is ±0.1mm for film and ±0.5mm for Easy-Stickers.

Q: What product sizes can the OL-FC8052 process?
A: It handles LCDs up to 45mm x 45mm and FPCs up to 70mm x 45mm.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Upgrade your production line with the OL-FC8052, the Automatic Film Laminating Machine. It combines speed, precision, and reliability for superior lamination.

---
