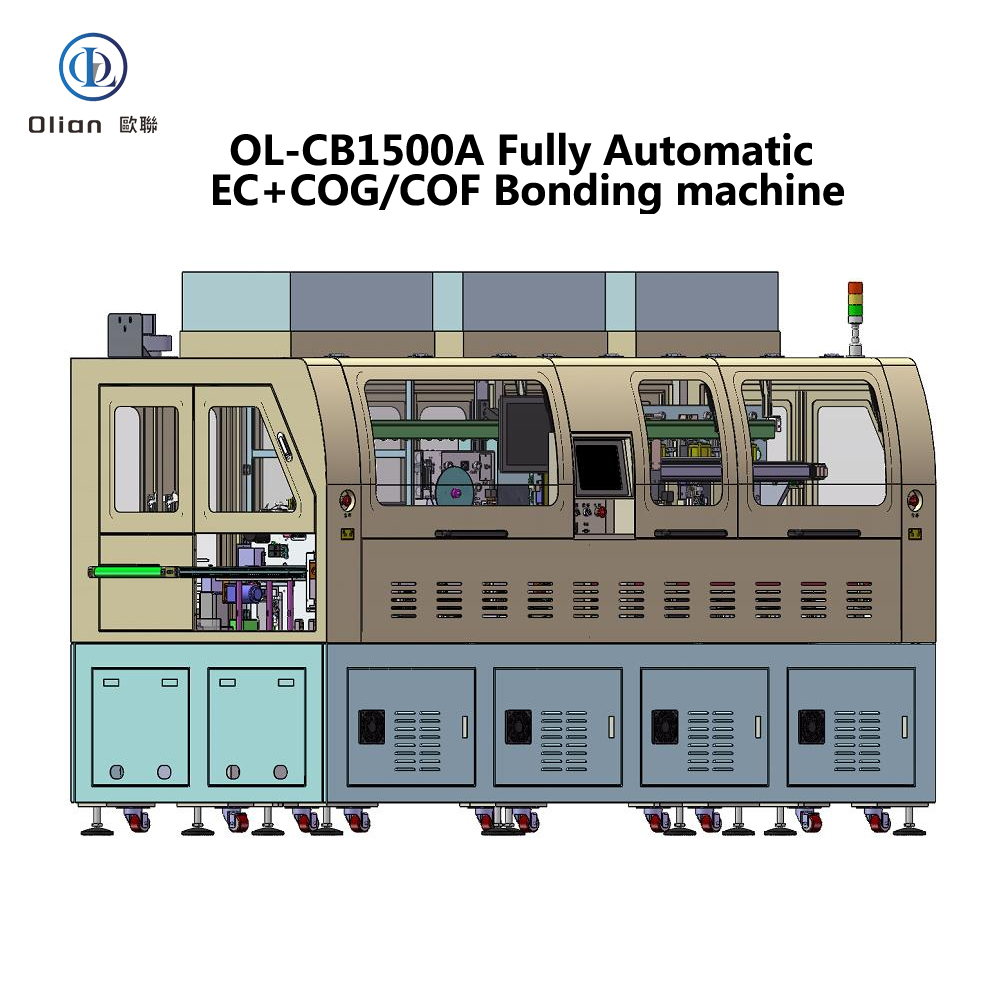

OL-CB1500A Automatic EC COG COF Bonding Machine: Integrated Display Assembly Solution

The OL-CB1500A Automatic EC COG COF Bonding Machine is a fully integrated system. It combines EC, COG, and COF processes into a single platform.

Manufactured by Olian Automatic in Shenzhen, China, the OL-CB1500A ensures high precision. It performs terminal cleaning, ACF attaching, pre-bonding, and main bonding automatically.

Why Choose the OL-CB1500A Automatic EC COG COF Bonding Machine?

The OL-CB1500A Automatic EC COG COF Bonding Machine streamlines display assembly production. Its all-in-one design reduces footprint and improves process consistency.

• Integrated Multi-Process: Combines EC, COG, and COF bonding seamlessly. Eliminates intermediate handling between stations.
• Complete ACF Processing: Performs ACF attaching, pre-bonding, and main bonding. Ensures reliable conductive connections.
• High Alignment Accuracy: Achieves ±3μm precision for pre-bonding. Main bonding accuracy is ±5μm.
• Fast Production Speed: Achieves a cycle time of 4.5 to 5 seconds per piece. Ensures high-volume production capability.
• Wide Panel Compatibility: Handles 1″ to 7″ vertical screen products efficiently. Supports various glass thicknesses from 0.15mm to 2.2mm.
• Precise Temperature Control: Maintains bonding temperature within ±5°C tolerance. Ensures proper ACF curing and connection quality.
• Consistent Pressure Application: Applies uniform bonding pressure with precise control. Prevents connection failures and component damage.
• Automated Material Handling: Handles IC, FPC, and panel feeding automatically. Reduces manual intervention and contamination risk.

Technical Specifications of the OL-CB1500A Automatic EC COG COF Bonding Machine

The OL-CB1500A delivers verified performance data for display manufacturing. All specifications below are extracted directly from the official product specification document.

Product Compatibility:

• LCD Size Range: Minimum 20mm x 20mm. Maximum 160mm x 112mm.
• Glass Thickness: 0.15mm to 2.2mm supported.
• IC/COF Pitch: Minimum terminal pitch is 30μm.
• ACF Width Range: 2mm to 15mm supported.
• ACF Reel Diameter: Maximum 200mm.

Performance Metrics:

• Tact Time: 4.5 to 5 seconds per piece average cycle time.
• Pre-Bonding Accuracy: ±3μm on X and Y axes.
• Main Bonding Accuracy: ±5μm on X and Y axes.
• ACF Attaching Accuracy: ±0.2mm on X-axis, ±0.15mm on Y-axis.
• Temperature Stability: ±5°C across the entire bonding head surface.
• Uptime Rate: ≥99.5% equipment availability target.
• Yield Rate: ≥99.5% first-pass yield achievable.

Machine Dimensions & Weight:

• Overall Dimensions: 3100mm (L) x 1500mm (W) x 1800mm (H).
• Machine Weight: Approximately 3000kg net weight.
• Working Height: 1000mm ergonomic operation height.
• Cleanroom Class: Class 1000 or better cleanroom environment required.

Advanced ACF Attaching Technology in the OL-CB1500A

The OL-CB1500A features precise ACF attaching for reliable conductive connections. This critical step ensures proper electrical and mechanical bonding.

ACF Attaching Process:

• ACF Feeding: ACF tape is fed from a reel automatically. Tension control ensures smooth material flow.
• Precision Cutting: ACF is cut to the exact length per specification. Minimizes material waste significantly.
• Accurate Placement: ACF is placed on the panel or component precisely. A vision system verifies the position before bonding.
• Pre-Bonding: Temporary bonding secures the ACF in position. Prepares the assembly for the main bonding stage.

Temperature & Pressure Control:

• Heating System: Precision heaters maintain a stable bonding temperature. Uniform heat distribution across the bonding area.
• Pressure System: Servo-controlled pressure application ensures consistency. Adjustable force profiles for different products.
• Curing Time: Programmable bonding duration for complete ACF cure. Optimized for throughput and quality.
• Cooling System: Controlled cooling prevents thermal stress on components. Maintains dimensional stability after bonding.

Precise COG and COF Bonding Capabilities

The OL-CB1500A performs both Chip-on-Glass and Chip-on-Film bonding. It handles multiple component types with high precision.

COG Bonding Features:

• IC Handling: Picks and places IC chips accurately. Vision alignment ensures correct orientation.
• Panel Positioning: The glass panel is positioned precisely for bonding. Fiducial recognition enables accurate alignment.
• Bonding Execution: Applies heat and pressure simultaneously. Creates reliable electrical connections through ACF.
• Post-Bond Inspection: Verifies bond quality after processing. Detects misalignment or connection issues.

COF Bonding Features:

• FPC Handling: Flexible printed circuits are fed and positioned. Tension control prevents deformation during handling.
• Alignment Verification: The vision system checks FPC-to-panel alignment. Corrects position errors before bonding.
• Thermocompression Bonding: Heat and pressure create conductive paths. Ensures durable mechanical attachment.
• Quality Assurance: Monitors bonding parameters in real-time. Rejects non-conforming assemblies automatically.

Robust Engineering & Safety Features of the OL-CB1500A

Built for demanding cleanroom environments, the OL-CB1500A incorporates industrial-grade components. Comprehensive safety systems protect operators and equipment.

Critical Component Brands:

• PLC Controller: Keyence (Japan) for reliable system control.
• Servo Motors: Yaskawa (Japan) / Inovance (China) for precise motion control.
• Linear Guides: THK (Japan) / Hiwin (China) for smooth axis movement.
• Pneumatics: SMC (Japan) / Airtac (China) for reliable actuation.
• Touch Screen: Proface (Japan) for intuitive operation.
• Sensors: Panasonic (Japan) for accurate detection.
• Power Supply: Mean Well (Taiwan) for stable power delivery.
• Circuit Breakers: Schneider (France) / Shihlin (Taiwan) for electrical safety.

Safety Systems: The machine includes safety interlocks on all access doors. Emergency stop buttons are strategically located for quick access. Light curtains protect operator access points during operation. Warning labels identify potential hazards clearly. A three-color signal tower provides visual status indication.

Utility Requirements:

• Power Supply: Single-phase AC 220V±10%, 50Hz, 8KW max consumption.
• Compressed Air: 0.5-0.7MPa, ≈150 L/min clean dry air required.
• Vacuum System: Built-in vacuum generator (200L/min), ≥-70Kpa suction capability.
• Exhaust Ventilation: Centralized exhaust connection required for fume extraction.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. Remote diagnostics and support are available for rapid issue resolution. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Display Bonding Equipment?

Olian Automatic is a trusted manufacturer of display manufacturing equipment. Headquartered in Shenzhen, China, we have extensive automation experience. We serve display manufacturers worldwide with high-quality equipment. Our machines operate in numerous countries across Asia, Europe, and North America. Visit our [About Us] page for more company information. Explore our [Product Lines] for complete display manufacturing solutions.

Sustainability Commitment: The OL-CB1500A is designed for energy efficiency. Optimized heating systems reduce power consumption during operation. The machine uses environmentally compliant materials throughout. Waste ACF and packaging are collected for proper disposal.

FAQ

Q: What is an Automatic EC COG COF Bonding Machine?
A: It is an integrated system that performs EC, COG, and COF bonding processes automatically.

Q: What panel sizes does the OL-CB1500A support?
A: The OL-CB1500A handles 1″ to 7″ vertical screen products. It supports glass thicknesses from 0.15mm to 2.2mm.

Q: What is the alignment accuracy of the OL-CB1500A?
A: The machine achieves ±3μm precision for pre-bonding. Main bonding accuracy is ±5μm.

Q: What is the production speed of the OL-CB1500A?
A: The tact time is 4.5 to 5 seconds per piece for high-volume production.

Q: How is bonding temperature controlled?
A: Precision heaters with closed-loop control maintain ±5°C temperature stability.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support.

Q: What cleanroom class is required?
A: The machine requires a Class 1000 or better cleanroom environment.

Q: Is operator training provided?
A: Yes, Olian Automatic provides comprehensive on-site installation and operator training.

Upgrade your display assembly with the OL-CB1500A, the Automatic EC COG COF Bonding Machine. It integrates ACF attaching, pre-bonding, and main bonding for superior results.

---
