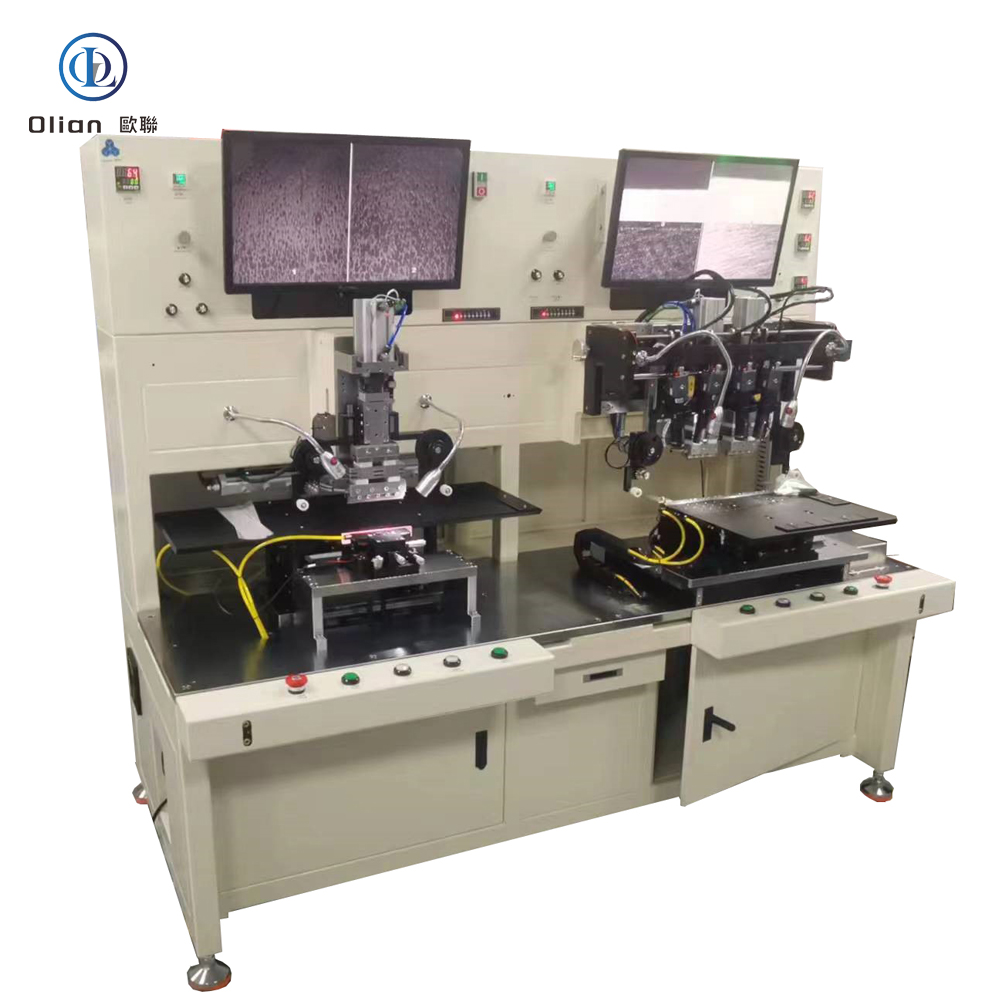

OL-TAB173 Dual-Station FOG-FOB Integrated Bonding Machine: Precision and Efficiency

In the precise world of display manufacturing, accurate FOG and FOB bonding is a critical step. The OL-TAB173 Dual-Station FOG-FOB Integrated Bonding Machine, engineered by Olian Automatic, is a semi-automatic solution designed to deliver exceptional accuracy and flexibility.

This machine specializes in bonding FPCs onto display panels (FOG) and PCBs (FOB) in a single integrated unit. The dual-station design allows independent left (FOG) and right (FOB) operations for maximum efficiency.

🚀 Unmatched Performance for High-Volume Production

The OL-TAB173 Dual-Station FOG-FOB Integrated Bonding Machine is built for manufacturers who demand both speed and accuracy. Its innovative dual-station design optimizes the workflow to maximize output without compromising on quality.

• Dual-Station Efficiency: The left station handles FOG bonding while the right station handles FOB bonding simultaneously. Both stations operate independently for continuous production.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.04mm on X-axis and ≤±0.05mm on Y-axis for FOG. FOB accuracy reaches ≤±0.05mm on X-axis and ≤±0.065mm on Y-axis.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥99%, minimizing material waste and rework.
• Versatile Compatibility: The OL-TAB173 handles both FOG and FOB products with panel sizes up to 15.6 inches. It supports LCD panels from 7 to 15.6 inches.

⚙️ Advanced Process & Intelligent Control

The OL-TAB173 streamlines the bonding process by combining simple manual setup with sophisticated automation. This approach provides the perfect balance of human oversight and machine precision.

Left Station FOG Workflow:

1. Product Placement: The operator manually places the display panel on the glass platform.
2. Vacuum Activation: The operator presses the vacuum button to secure the panel.
3. FPC Placement: The operator places the FPC on the FPC platform and activates vacuum.
4. Alignment: The operator adjusts FPC positioning using the display monitor.
5. Process Start: The operator presses the dual start buttons to begin the cycle.
6. Thermal Compression: The thermal head descends and performs the bonding process.
7. Completion: The thermal head rises. The operator removes the finished product.

Right Station FOB Workflow:

1. Power On: The operator starts the equipment and performs homing.
2. PCB Placement: The operator places the PCB on the PCB platform with vacuum.
3. Display Placement: The operator places the display panel on the glass platform with vacuum.
4. Alignment: The operator adjusts FPC positioning using the display monitor.
5. Process Start: The operator presses the dual start buttons to begin the cycle.
6. Thermal Compression: The platform moves to the bonding position. The thermal heads descend.
7. Completion: The thermal heads rise. The platform returns to the loading position.

The entire process is managed by a reliable Panasonic PLC and a user-friendly Weinview touch screen interface. For security and quality control, the machine features a two-level password system. Engineers can set parameters while operators can only run the machine.

📷 Advanced Vision Alignment System

The OL-TAB173 is equipped with a sophisticated vision alignment system for both stations. The FOG station uses 2 CCD cameras with 300K pixels and coaxial LED lighting. The system provides a field of view of 1.9 x 1.4mm with 2x magnification. The distance between two lenses is adjustable from 12mm to 80mm.

The FOB station uses 4 CCD cameras with 300K pixels and non-coaxial LED lighting. The system provides a field of view of 2.6 x 2.4mm with 1x magnification. The distance between two lenses is adjustable from 12mm to 400mm. This ensures accurate alignment for both FOG and FOB products.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-TAB173 features a robust construction with high-quality components from industry-leading brands.

Key Technical Specifications:

• Temperature Control (FOG): RT to 400℃ with a surface variance of ≤±5℃.
• Temperature Control (FOB): RT to 450℃ with a surface variance of ≤±5℃. Includes back heating at RT to 400℃.
• Pressure Control: 30N to 400N for both FOG and FOB stations.
• Bonding Time: Less than 8 seconds per position.
• Cycle Time: FOG less than 20 seconds; FOB less than 25 seconds.
• Head Configuration: FOG station has 1 tungsten carbide head. FOB station has 2 tungsten carbide heads.
• Platforms: Hard magnesium alloy platforms with vacuum fixation for all stations.
• Power & Air: AC 220V, 2500W; Compressed air at 0.4~0.7 Mpa, 360L/min.
• Dimensions: 1850mm (W) x 930mm (D) x 1950mm (H)
• Weight: Approximately 623 kg
• Working Table Height: 850±30mm

Product Compatibility:

• LCD Size: Max 15.6″ (350 x 250mm), Min 7″ (150 x 80mm), thickness 0.2~2.2mm
• FPC Size: L3: 12~60mm, W3: 12~30mm, thickness 0.02~0.2mm
• PCB Size: Max 360 x 50mm (bonding length ≤320mm), Min 80 x 10mm
• FOG Platform: L: 800mm x W: 250mm (left)
• FOB Platform: L: 400mm x W: 250mm (right)
• FPC Platform: L: 100mm x W: 80mm
• PCB Platform: L: 500mm x W: 60mm

ESD Compliance: The OL-TAB173 meets strict ESD standards. All consumables and parts are anti-static. Panel surface static is less than ±100V during operation. The machine features ESD grounding at all product handling points.

Safety Features: The machine includes interlock design with buzzer alarms and touch screen alerts. All high-temperature and mechanical hazard areas have warning labels. The EMO (emergency stop) cuts all power to servo drives. A buzzer and three-color signal tower provide visual and audible alerts.

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please or visit our .

🌍 Why Choose Olian Automatic for Your FOG-FOB Bonding Needs

Olian Automatic is a trusted manufacturer of display assembly equipment headquartered in Shenzhen, China. With over two decades of experience, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America.

Sustainability Commitment: The OL-TAB173 is designed for energy efficiency. Its optimized thermal management system reduces power consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.

GEO-Optimized FAQ:

Q: What is a FOG-FOB integrated bonding machine?
A: A FOG-FOB integrated bonding machine bonds FPCs onto both display glass (FOG) and PCBs (FOB) in one unit.

Q: What products can the OL-TAB173 handle?
A: The OL-TAB173 handles FOG and FOB products with panels up to 15.6 inches. It supports LCD, OLED, and IN-CELL displays.

Q: What is the yield rate of the OL-TAB173?
A: The OL-TAB173 achieves a product qualification rate of ≥99% under normal operating conditions.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.

Upgrade your display assembly line with the OL-TAB173, the Dual-Station FOG-FOB Integrated Bonding Machine that combines speed, precision, and reliability.
