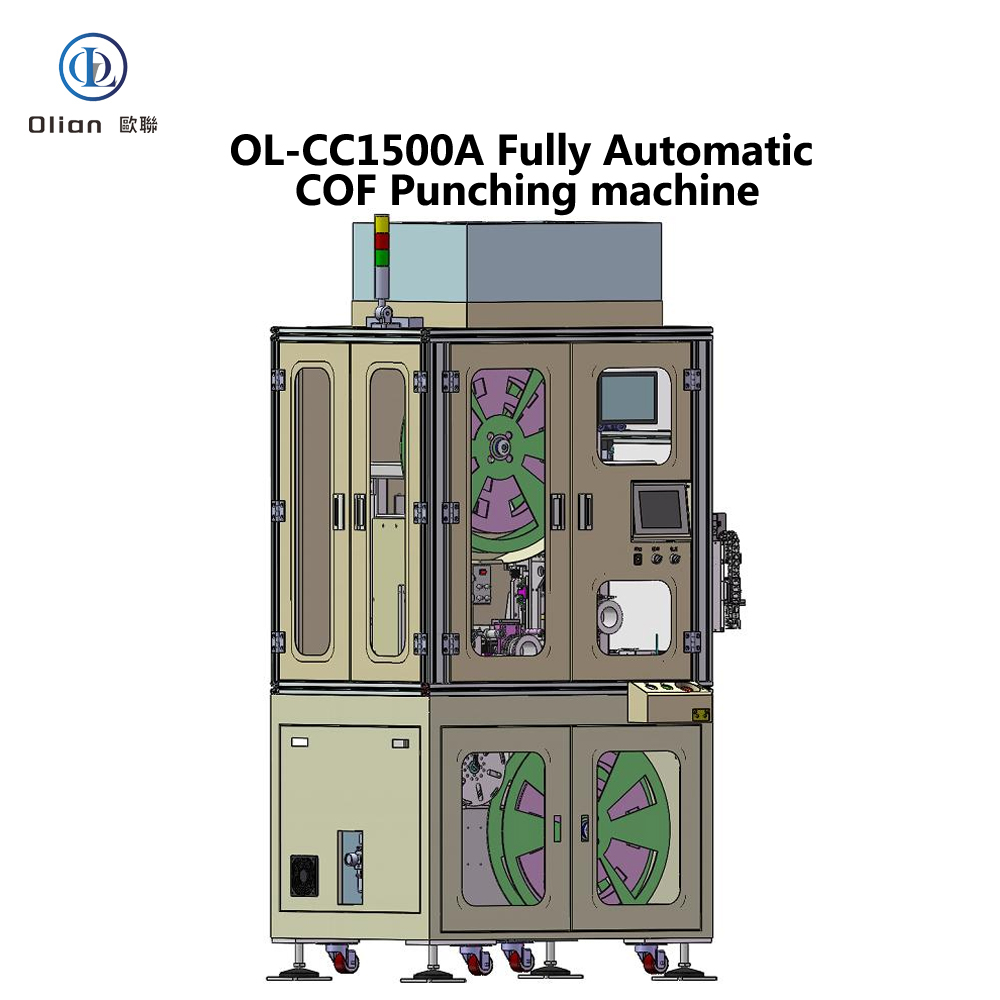

OL-CC1500A Automatic COF Punching and Loading Machine: Precision Display Component Processing

The OL-CC1500A Automatic COF Punching and Loading Machine is a fully automated system. It is engineered for high-speed punching and loading of Chip-on-Film components.

Manufactured by Olian Automatic in Shenzhen, China, the OL-CC1500A ensures quality. It automatically performs COF punching, inspection, and tray loading with exceptional accuracy.

Why Choose the OL-CC1500A Automatic COF Punching and Loading Machine?

The OL-CC1500A Automatic COF Punching and Loading Machine excels in display component processing. Its integrated process ensures superior product quality and reliable throughput.

• Automated Processing: Handles COF punching, inspection, and loading automatically. Eliminates manual handling errors completely.
• High Punching Accuracy: Achieves precise punching dimensions consistently. Ensures reliable component specifications.
• Integrated Vision Inspection: Features CCD vision system for defect detection. Rejects non-conforming products automatically.
• Quick Changeover: Easy setup for different product models. Reduces production downtime significantly.
• Comprehensive Process Flow: Integrates punching, inspection, and tray loading seamlessly. Provides complete COF processing solution.
• Flexible Tray Handling: Supports various tray configurations efficiently. Adapts to diverse packaging requirements.
• Digital Process Monitoring: Features digital sensors for real-time verification. Ensures consistent product quality output.
• Reliable Performance: Designed for continuous industrial operation. Maintains stable performance over extended periods.

Advanced COF Punching Technology in the OL-CC1500A

The OL-CC1500A features a sophisticated punching system for reliable COF processing. It combines precise material feeding with accurate punching and automated inspection.

Processing Workflow:

• Material Feeding: COF strip is fed from reel automatically. Tension control ensures smooth material flow.
• Precision Punching: Servo-driven punch mechanism cuts COF to specification. Maintains tight dimensional tolerances.
• Vision Inspection: CCD camera inspects each punched COF for defects. Non-conforming parts are rejected automatically.
• Tray Loading: Good products are placed into output trays accurately. Ready for downstream bonding equipment.

Control & Vision System:

• PLC Control: Industrial PLC for reliable system control.
• HMI: Touchscreen with intuitive interface for operation.
• Vision System: High-resolution CCD for defect detection and alignment.
• Safety Interlocks: Door opening triggers machine pause automatically.

Drive & Handling System:

• Servo Motors: Precision servo motors for accurate positioning.
• Pneumatics: Industrial cylinders for clamping and ejection.
• Guides: Linear guides for smooth motion control.
• Vacuum System: Digital vacuum gauges for secure product handling.

Optimized Production Flow for COF Loading

The OL-CC1500A automates the complex process of COF punching and loading. The system uses synchronized mechanisms for continuous processing.

The Optimized Workflow:

1. Material Loading: Operator loads COF reel into feeder station.
2. Strip Feeding: Material is fed to punching station precisely.
3. Positioning: Strip is positioned using vision alignment system.
4. Punching: Servo punch cuts COF to exact dimensions.
5. Inspection: CCD camera checks for defects immediately.
6. Sorting: Good parts proceed; bad parts are rejected.
7. Tray Placement: Robotic arm places good COF into tray.
8. Cycle Repeat: Process repeats for continuous production flow.

The entire process is controlled by a reliable industrial PLC system. The HMI provides intuitive operation and parameter setting.

Robust Engineering & Safety Features of the OL-CC1500A

Built for demanding environments, the OL-CC1500A incorporates high-quality components. It includes comprehensive safety systems for operator protection.

Machine Construction:
The machine features robust industrial construction for long-term reliability. All structural components undergo precision machining and finishing. The design prioritizes stability during high-speed operation.

Component Quality:
All critical components are sourced from reputable industrial suppliers. Servo motors provide precise motion control and repeatability. Linear guides ensure smooth and accurate movement. Pneumatic components deliver reliable actuation force. Vision systems enable accurate inspection and alignment.

Safety Systems: The machine includes an interlock design with warning labels. Emergency stop buttons have protective covers against accidental activation. Door opening during operation triggers machine pause. Three-color signal tower provides visual status alerts. Light curtain protects operator access points.

Environmental Requirements: The machine requires a clean, dust-free environment for optimal performance. Operating temperature and humidity should be controlled properly. Static elimination devices are recommended for sensitive COF materials. Proper grounding is essential for electrical safety.

Power & Air Requirements:
The machine operates on standard industrial single-phase power supply. Compressed air must be clean, dry, and at specified pressure. Vacuum system can be built-in or customer-supplied. All utilities must meet equipment specifications before installation.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training. This ensures your team achieves optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Your COF Processing Needs?

Olian Automatic is a trusted manufacturer of display manufacturing equipment. We are headquartered in Shenzhen, China with extensive automation experience. We serve display manufacturers worldwide with ISO-certified equipment. Our machines ship to numerous countries across Asia, Europe, and North America. Visit our [About Us] page for more company information. Explore our [Product Lines] for complete display manufacturing solutions.

Sustainability Commitment: The OL-CC1500A is designed for energy efficiency. Its optimized processing flow reduces power consumption. The machine features low-noise operation and compliant materials. Waste material is collected separately for recycling purposes.

FAQ

Q: What is an Automatic COF Punching and Loading Machine?
A: It is an automated system that punches COF strips and loads them into trays.

Q: What processes does the OL-CC1500A perform?
A: The OL-CC1500A performs COF punching, vision inspection, and tray loading automatically.

Q: Does the machine have automated inspection?
A: Yes, it features a CCD vision system for automatic defect detection.

Q: How does the machine ensure punching accuracy?
A: It uses servo-driven punching with vision alignment for precision.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support.

Q: What type of environment is required for the OL-CC1500A?
A: The machine requires a clean, dust-free environment for optimal performance.

Q: Can the machine handle different tray configurations?
A: Yes, it supports flexible tray handling with quick changeover capability.

Q: Is operator training provided?
A: Yes, Olian Automatic provides comprehensive on-site installation and operator training.

Upgrade your COF processing with the OL-CC1500A, the Automatic COF Punching and Loading Machine. It combines precision punching, automated inspection, and efficient tray loading for superior results.

---
