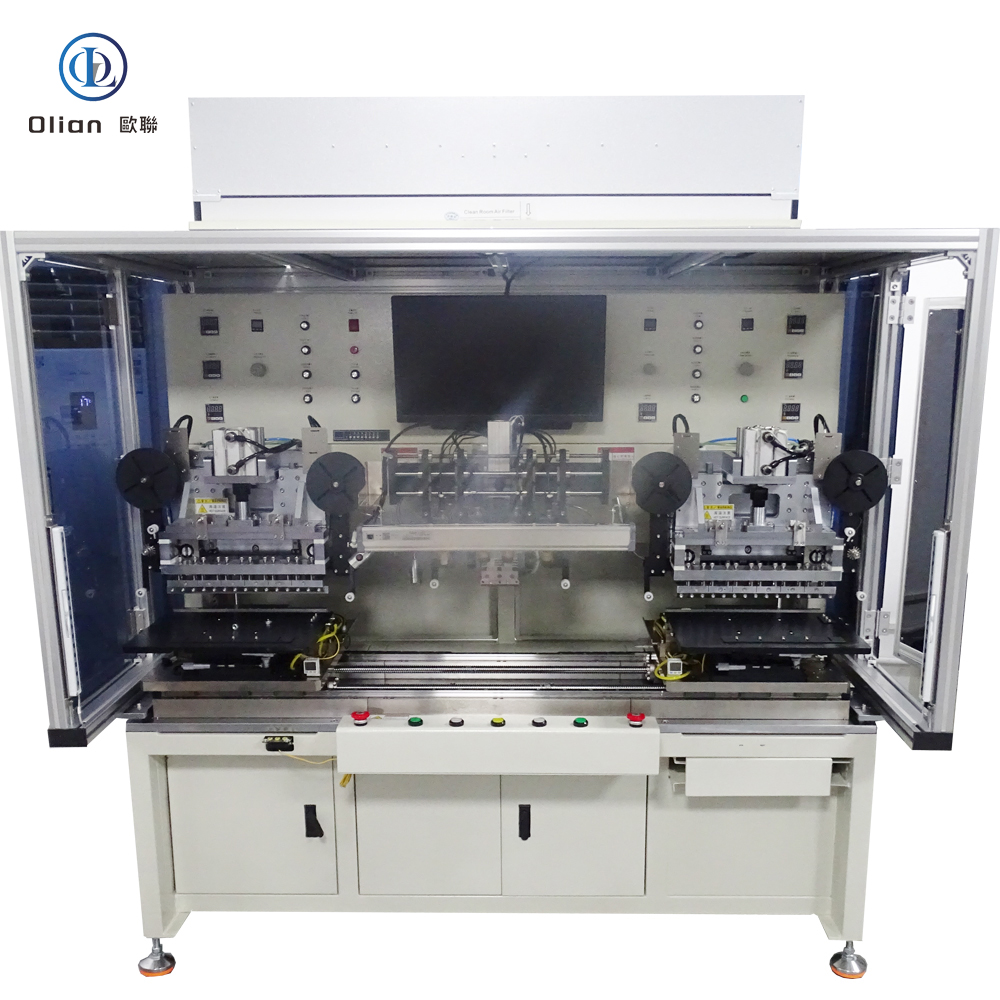

OL-FOB156S Semi-Automatic Single-Side Multi-Segment FOB Bonding Machine: Precision and Flexibility

In the precise world of display manufacturing, accurate FOB (Film on Board) bonding is a critical step. The OL-FOB156S Semi-Automatic Single-Side Multi-Segment FOB Bonding Machine, engineered by Olian Automatic, is a semi-automatic solution designed to deliver exceptional accuracy and flexibility.

This machine specializes in bonding FPCs onto PCBs that have already been attached with ACF (Anisotropic Conductive Film). The process is streamlined for efficiency, from manual product placement to automated alignment and thermal compression.

🚀 Unmatched Performance for High-Volume Production

The OL-FOB156S Semi-Automatic Single-Side Multi-Segment FOB Bonding Machine is built for manufacturers who demand both speed and accuracy. Its semi-automatic design optimizes the workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 120-200 PCS/H, with a main bonding time of less than 11 seconds.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.030mm for pre-bonding and ≤±0.040mm for main bonding.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-FOB156S handles a wide range of products, including medium-sized FOB and OGS products, with panel sizes up to 15.6 inches.

⚙️ Advanced Process & Intelligent Control

The OL-FOB156S streamlines the FOB bonding process by combining simple manual setup with sophisticated automation. This approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Product Placement: The operator manually places the PCB on the working platform.
2. Vacuum Activation: The operator presses the vacuum button to secure the product.
3. FPC Placement: The operator places the FPC on its designated platform for initial positioning.
4. Process Start: The operator presses the dual start buttons to begin the cycle.
5. Automated Bonding: The platform moves to the bonding position, and the thermal head descends.
6. Thermal Compression: The machine automatically performs the pre-bonding and main bonding processes.
7. Multi-Segment Process: The platform automatically moves to the next position and repeats the process.
8. Completion: The platform returns to the loading position, and the operator removes the finished product.

The entire process is managed by a reliable Panasonic PLC and a user-friendly Weinview touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-FOB156S features a robust construction with high-quality components from industry-leading brands like THK, HIWIN, SMC, and Airtac.

Key Technical Specifications:

• Temperature Control: RT to 400℃ with a surface variance of ≤±3℃.
• Pressure Control: Adjustable from 25N to 400N for both pre-bonding and main bonding.
• Power & Air: AC 220V, 3500W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 1950mm (W) x 900mm (D) x 1650mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-FOB156S, the Semi-Automatic Single-Side Multi-Segment FOB Bonding Machine that combines speed, precision, and reliability.
