OL-BLD2500 Automatic LCD Tray Loading Machine: Precision Handling

The OL-BLD2500 Automatic LCD Tray Loading Machine is a specialized automation solution. It is designed for the automated handling and loading of LCD panels.

Manufactured by Olian Automatic in Shenzhen, China, this machine streamlines the process. It ensures reliable and efficient production for various LCD sizes.

Why Choose the OL-BLD2500 Automatic LCD Tray Loading Machine?

The OL-BLD2500 Automatic LCD Tray Loading Machine enhances your production line. It combines multiple critical steps into one seamless, automated process.

• High Automation: Automates the entire loading process from start to finish.
• High-Speed Production: Achieves a cycle time of ≤3.5 seconds per piece.
• High Precision: Offers a motion accuracy of ±0.05mm.
• Flexible Product Support: Handles LCDs from 45x72mm to 95x160mm.
• Easy Operation: Features a Chinese touch screen interface for easy control.
• Safe Operation: Includes safety interlocks and alarm systems for operator protection.
• System Integration: Can be connected with other machines for a full production line.

Technical Specifications of the OL-BLD2500 Automatic LCD Tray Loading Machine

The OL-BLD2500 is engineered for demanding manufacturing environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• LCD Size (Max): 95mm (L) x 160mm (W).
• LCD Size (Min): 45mm (L) x 72mm (W).
• Tray Stacking Height: Maximum of 500mm.

Performance Metrics:

• Cycle Time: ≤3.5 seconds per piece.
• Motion Accuracy: ±0.05mm.
• Vacuum Level: ≥-70Kpa.

Machine Dimensions & Weight:

• Overall Dimensions: 1280mm (L) x 1500mm (W) x 1800mm (H).
• Machine Weight: Approximately 350kg.
• Power Supply: Single-phase, AC 220V±10%, 50 Hz.
• Power Consumption: Maximum power of 2000W.
• Compressed Air: 0.5-0.7 MPa, ≈100 L/min consumption.
• Vacuum Flow: Approximately 150 L/min.

Advanced Loading Process of the OL-BLD2500

The OL-BLD2500 features a sophisticated multi-stage loading process. This ensures high-quality and reliable handling of LCD panels.

Loading Workflow:

• Tray Placement: Operators manually place empty and full trays.
• CCD Correction: A panoramic CCD system corrects the tray position.
• LCD Handling: A robotic arm picks up a single LCD.
• Transfer: The LCD is moved to a transfer platform.
• Mechanical Correction: The LCD position is mechanically corrected.
• Tray Loading: The machine loads the LCD into the tray.
• Rotation: The LCD is rotated 90° for insertion.

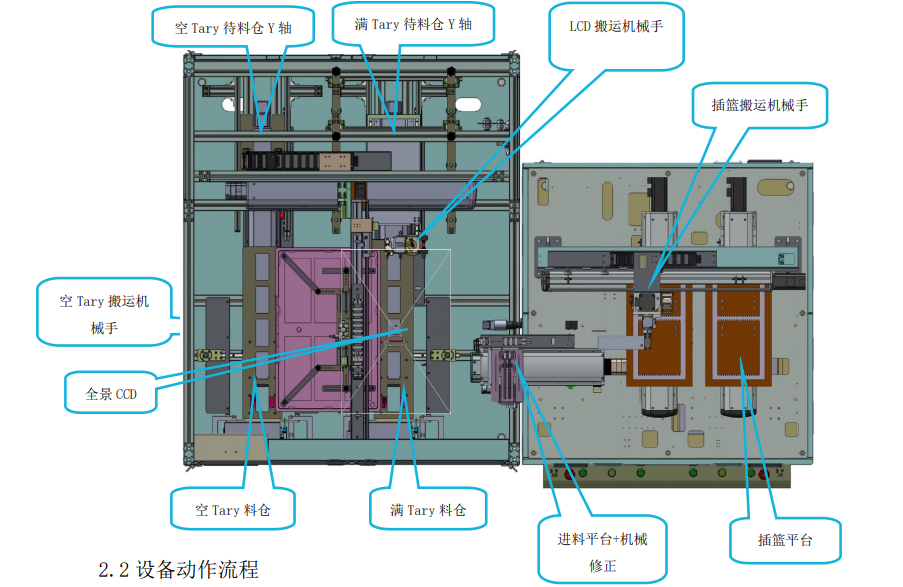

Key System Components:

• Handling Robots: Multiple mechanical arms for precise product handling.
• CCD Correction: A panoramic camera for visual alignment of trays.
• Tray Handling: Servo motors and ball screws for tray elevation.
• Control Unit: A PLC with touch screens for system management.

Robust Engineering & Safety Features of the OL-BLD2500

Built for reliability, the OL-BLD2500 uses quality industrial components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Servo/Stepper Motors: Ruit (China).
• PLC Controller: Panasonic (Japan).
• HMI: Proface (Japan).
• Pneumatics: AirTAC (China).
• Guides: HIWIN (China).
• Power Supply: Mingwei (China).
• Circuit Breakers: Shihlin (China).
• Cable Carriers: Igus (Germany).

Safety Systems: The machine features a safety interlock design. It has a buzzer that alarms for errors or reminders. The environment requires a clean, dust-free room.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Automation Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global manufacturing industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-BLD2500 is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic LCD Tray Loading Machine?
A: It is a machine that loads LCD panels into trays automatically. It handles the entire process from placement to loading.

Q: What is the production speed of the OL-BLD2500?
A: The cycle time is ≤3.5 seconds per piece.

Q: What is the motion precision?
A: The machine has a motion accuracy of ±0.05mm.

Q: What size LCDs can it process?
A: It handles LCDs from 45x72mm to 95x160mm.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Upgrade your production line with the OL-BLD2500, the Automatic LCD Tray Loading Machine. It combines speed, precision, and reliability for superior LCD handling.

---
