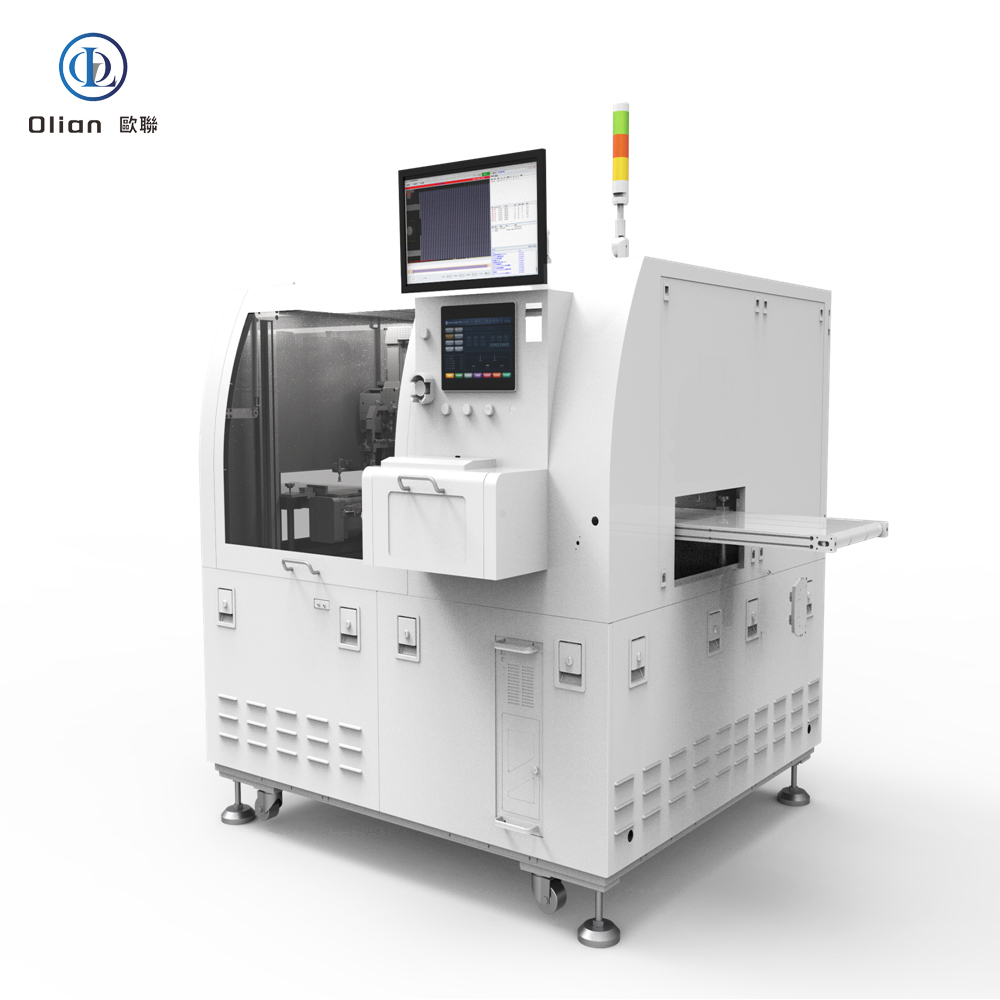

OL-3A20 Automatic Particle Indentation AOI: Precision Inspection for Display Panels
The OL-3A20 Automatic Particle Indentation AOI is an advanced in-line inspection system. It is engineered for high-precision analysis of conductive particles and bonding defects.
Manufactured by Olian Automatic in Shenzhen, China, the OL-3A20 ensures quality in display manufacturing. It automatically detects particle quantity, distribution, and various Bump defects with exceptional accuracy.
Why Choose the OL-3A20 Automatic Particle Indentation AOI?
The OL-3A20 Automatic Particle Indentation AOI excels in display panel quality control. Its robust design ensures consistent inspection results for high-precision products.
- Versatile Product Compatibility: Inspects TFT and non-flexible OLED panels. Handles products from 12x99mm to 21x178mm.
- High Inspection Precision: Achieves an offset detection accuracy of ±1.5um. Ensures reliable bonding quality assessment.
- Fast Inspection Speed: Total inspection time is ≤3.5 seconds. This is for a product with 1 IC and 1 FPC.
- Low False Rejection Rate: Maintains a false rejection rate of <1%. Ensures high production efficiency.
- Low Missed Detection Rate: Keeps the missed detection rate below 0.05%. Guarantees superior quality control.
- Quick Changeover: New model setup takes ≤60 minutes. Returning models take only ≤30 minutes.
- Comprehensive Defect Detection: Identifies cracks, foreign objects, and corrosion. Detects defects as small as 5*30um.
- Wide Material Compatibility: Inspects IC, FPC, and COF bonding. Handles product thickness from 0.2 to 1.1mm.
Advanced Inspection Technology
The OL-3A20 features a sophisticated vision system for detailed analysis. It uses high-resolution cameras to capture precise images of the bonding area.
Vision System:
- Line Scan Camera: One 3K resolution camera for particle inspection.
- Area Scan Cameras: Two 5MP monochrome cameras for pre-alignment.
- Pixel Size: 0.7um/pixel for the line scan camera.
- Focus: Automatic focus adjustment for consistent image quality.
Inspection Capabilities:
- Particle Analysis: Counts particles and measures distribution uniformity. Calculates particle offset with high precision.
- Defect Detection: Identifies cracks, chips, foreign objects, and scratches. Detects corrosion and IC surface damage.
- Dimple Detection: Can be configured to detect or filter dimples and dirt. This is an optional feature.
Inspection Process
The OL-3A20 automates the complex process of particle and defect inspection. The system uses robotic arms for precise product handling.
The Optimized Workflow:
- Power On: Turn on the equipment and perform origin return.
- Loading: An upstream process places the panel on the input platform.
- Transfer: A robotic arm moves the panel to the inspection platform.
- Alignment: A camera captures Mark points for position correction.
- Scanning: The line scan camera captures high-resolution images.
- Analysis: Software analyzes images to determine OK/NG status.
- Sorting: A robotic arm places the product on the correct conveyor.
- Output: OK products flow to the next process. NG products are separated.
The entire process is controlled by a reliable Mitsubishi PLC system. The Pro-face or Weinview HMI provides intuitive operation and parameter setting.
Robust Engineering & Safety Features
Built for demanding production environments, the OL-3A20 incorporates high-quality components and comprehensive safety systems.
Key Technical Specifications:
- Machine Dimensions: Approximately 2200 x 1600 x 2150mm (W x D x H).
- Machine Weight: Approximately 2000kg.
- Machine Color: Ivory white frame with orange acrylic observation window.
- Product Thickness: 0.2 to 1.1mm (excluding polarizer thickness).
Component Brands:
- PLC: Mitsubishi
- HMI: Pro-face, Weinview
- Linear Motor: TAI LAI, ZHIYING, HENGCHUAN
- Servo Motors: Mitsubishi, Panasonic, GOOGOL
- Guideways: THK, HIWIN
- Sensors: SMC, Airtac
Safety Systems: The machine includes an interlock design with warning labels on hazardous areas. All potential hazard areas have clear warning labels. The EMO (emergency stop) cuts power to all moving units. A three-color signal tower provides visual status alerts.
Environmental Requirements: The machine requires a clean, dust-free workshop. Operating temperature should be 25±5°C. Relative humidity should be 50-80%.
Power & Air Requirements:
- Power: 1Phase AC220V, 50Hz/60Hz, 4.5KW
- Compressed Air: 0.4-0.7MPa, approximately 300L/min
- Vacuum: Customer supply required, approximately 250L/min
Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].
Why Choose Olian Automatic for Your Inspection Needs?
Olian Automatic is a trusted manufacturer of display inspection equipment headquartered in Shenzhen, China. With over two decades of experience, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. Visit our [About Us] page for more information about our company. Explore our [Product Lines] for complete display inspection solutions.
Sustainability Commitment: The OL-3A20 is designed for energy efficiency. Its optimized inspection process reduces power consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.
FAQ
Q: What is an Automatic Particle Indentation AOI used for?
A: It inspects conductive particles and bonding defects for TFT and OLED display panels.
Q: What products can the OL-3A20 inspect?
A: The OL-3A20 inspects TFT and non-flexible OLED panels from 12x99mm to 21x178mm.
Q: What is the inspection accuracy of the OL-3A20?
A: The OL-3A20 achieves an offset detection accuracy of ±1.5um for precise measurement.
Q: How long does the inspection process take?
A: The total inspection time is ≤3.5 seconds for a product with 1 IC and 1 FPC.
Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.
Q: How long does product changeover take?
A: New model setup takes ≤60 minutes, while returning models take ≤30 minutes.
Q: What type of environment is required for the OL-3A20?
A: The machine requires a clean, dust-free workshop with temperature 25±5°C and humidity 50-80%.
Q: Does the machine require an external vacuum supply?
A: Yes, the equipment requires a customer-supplied vacuum source for product handling.
Upgrade your display inspection line with the OL-3A20, the Automatic Particle Indentation AOI that combines precision, speed, and reliability.
