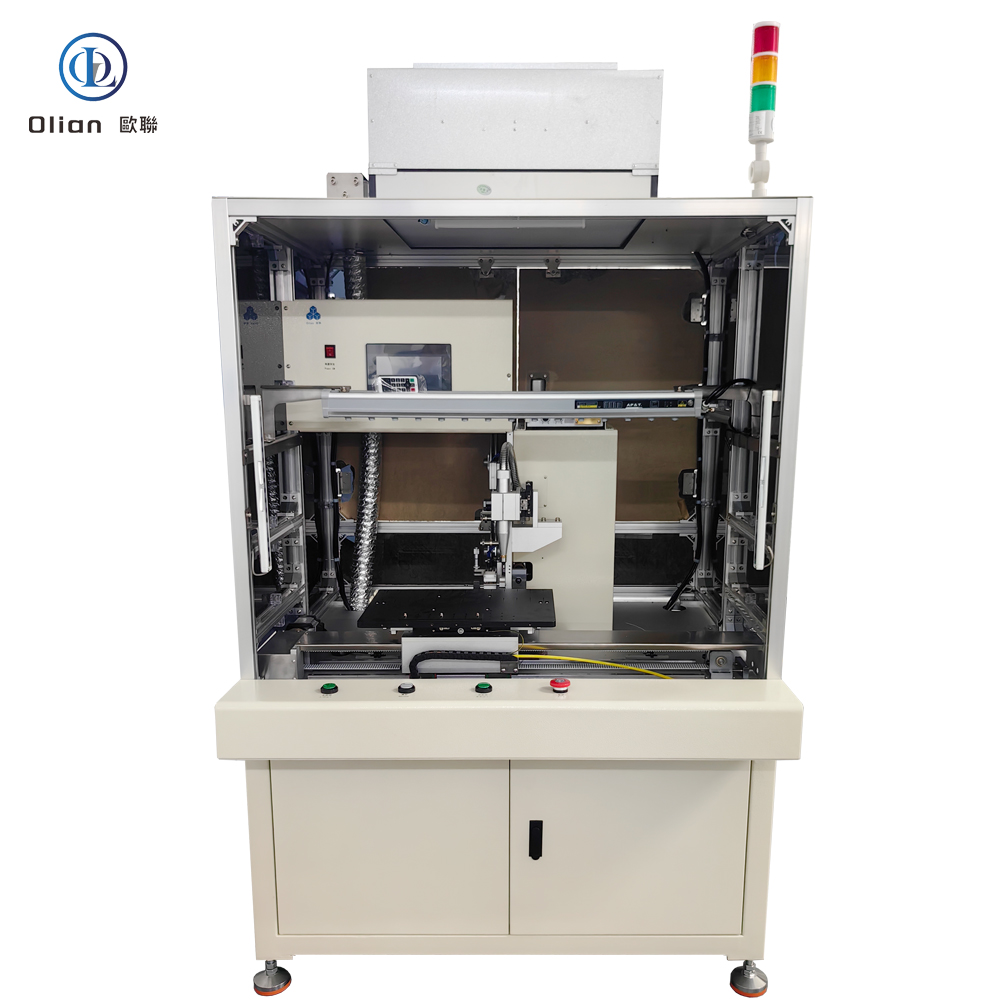

OL-QX17 Manual Single-Side EC Terminal Cleaning Machine: Precision and Efficiency

In the precise world of display manufacturing, accurate cleaning is a critical step. The OL-QX17 Manual Single-Side EC Terminal Cleaning Machine, engineered by Olian Automatic, is a manual solution designed to deliver exceptional accuracy and reliability.

This machine specializes in cleaning the ITO terminals of panels before ACF attachment. The process is streamlined for efficiency, from manual product placement to automated wiping and plasma cleaning.

🚀 Unmatched Performance for High-Volume Production

The OL-QX17 Manual Single-Side EC Terminal Cleaning Machine is built for manufacturers who demand both speed and accuracy. Its manual design optimizes the workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 150-400 PCS/H, with a cleaning speed greater than 200mm/s.
• Micron-Level Precision: Achieve flawless cleaning with remarkable accuracy. The machine maintains a precision of ≤±0.009mm/100mm on the platform.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-QX17 handles a wide range of products, including rigid glass displays, TFT, IPS, OLED, and flexible OLED panels.

⚙️ Advanced Process & Intelligent Control

The OL-QX17 streamlines the terminal cleaning process by combining simple manual setup with sophisticated automation. This approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Product Placement: The operator manually places the LCD panel onto the cleaning platform.
2. Process Start: The cleaning platform moves to the right, and the cleaning head descends.
3. Automated Wiping: The machine automatically wipes the LCD terminals with a lint-free cloth.
4. Plasma Cleaning: The machine automatically performs plasma cleaning on the terminals.
5. Process Completion: The cleaning head lifts, and the platform returns to the loading position.
6. Product Removal: The operator removes the cleaned LCD panel.

The entire process is managed by a reliable Panasonic PLC and a user-friendly Weinview touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-QX17 features a robust construction with high-quality components from industry-leading brands like THK, HIWIN, SMC, and Airtac.

Key Technical Specifications:

• Cleaning Method: Automatic wiping + automatic plasma cleaning.
• Cleanliness: Water drop angle less than 30 degrees.
• Power & Air: AC 220V, 1500W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 1150mm (W) x 1050mm (D) x 2000mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-QX17, the Manual Single-Side EC Terminal Cleaning Machine that combines speed, precision, and reliability.
