OL-FLD1000B Automatic FPC Loader: High-Speed Tray-to-Conveyor Feeding

The OL-FLD1000B Automatic FPC Loader is a fully automated feeding system. It is engineered for high-speed transfer of FPCs from trays to conveyors.

Manufactured by Olian Automatic in Shenzhen, China, the OL-FLD1000B ensures quality in display manufacturing. It automatically handles tray loading, product picking, and conveyor feeding with exceptional accuracy.

Why Choose the OL-FLD1000B Automatic FPC Loader?

The OL-FLD1000B Automatic FPC Loader excels in small to medium-sized FPC handling. Its integrated process ensures superior connection quality and high throughput.

• Wide Product Compatibility: Handles FPCs from 15x10mm to 100x175mm. Accommodates various flexible circuit sizes.
• Fast Production Speed: Achieves 4.5 seconds per piece tact time. Ensures high-volume production capability.
• Flexible Tray Handling: Supports trays from 250x220mm to 400x460mm. Maximum stack height is 500mm.
• High Positioning Accuracy: XYZ robotic arm achieves ±0.05mm precision. Ensures reliable product placement.
• Quick Changeover: Easy setup for different product models. Reduces production downtime significantly.
• Comprehensive Process: Integrates tray loading, product picking, and conveyor feeding. Provides complete loading solution.
• Automated Operation: Can be used in-line with other equipment. Requires no fixed operator for continuous production.
• Digital Vacuum Monitoring: Features digital vacuum gauges for suction pressure. Ensures reliable product handling.

Advanced Handling Technology

The OL-FLD1000B features a sophisticated robotic handling system for reliable FPC transfer. It combines precise tray management with accurate product picking and placement.

Handling Process:

• Tray Loading: Full trays are loaded into the input magazine. Empty trays are stacked in the output magazine.
• Product Picking: XYZ robotic arm picks FPCs from trays. Vacuum suction ensures secure product handling.
• Conveyor Feeding: Products are placed on output conveyor accurately. Ready for downstream processing equipment.

Vision & Control System:

• PLC Control: Panasonic PLC for reliable system control.
• HMI: Proface touchscreen with Chinese interface for operation.
• Vacuum Monitoring: Digital gauges display vacuum levels in real-time.
• Safety Interlocks: Door opening triggers machine pause automatically.

Handling System:

• Robotic Arms: XYZ servo-driven robotic arm for product handling. Tray handling uses dedicated robotic arm.
• Drive System: Servo motors for XYZ axes, stepper motor for θ axis.
• Stage: Aluminum platform with precision machining treatment.

Optimized Workflow

The OL-FLD1000B automates the complex process of FPC loading. The system uses multiple robotic arms for precise product handling between stations.

The Optimized Workflow:

1. Tray Loading: Operator loads full trays into input magazine.
2. Tray Positioning: Lift mechanism positions tray at pick height.
3. Product Picking: XYZ arm picks FPC from tray using vacuum.
4. Transfer: Robotic arm moves product to output position.
5. Conveyor Placement: Product is placed on output conveyor accurately.
6. Empty Tray Handling: Empty tray is moved to output magazine.
7. Stacking: Empty trays are stacked automatically in magazine.
8. Cycle Repeat: Process repeats for continuous production flow.

The entire process is controlled by a reliable Panasonic PLC system. The Proface HMI provides intuitive operation and parameter setting.

Robust Engineering & Safety Features

Built for demanding production environments, the OL-FLD1000B incorporates high-quality components and comprehensive safety systems.

Key Technical Specifications:

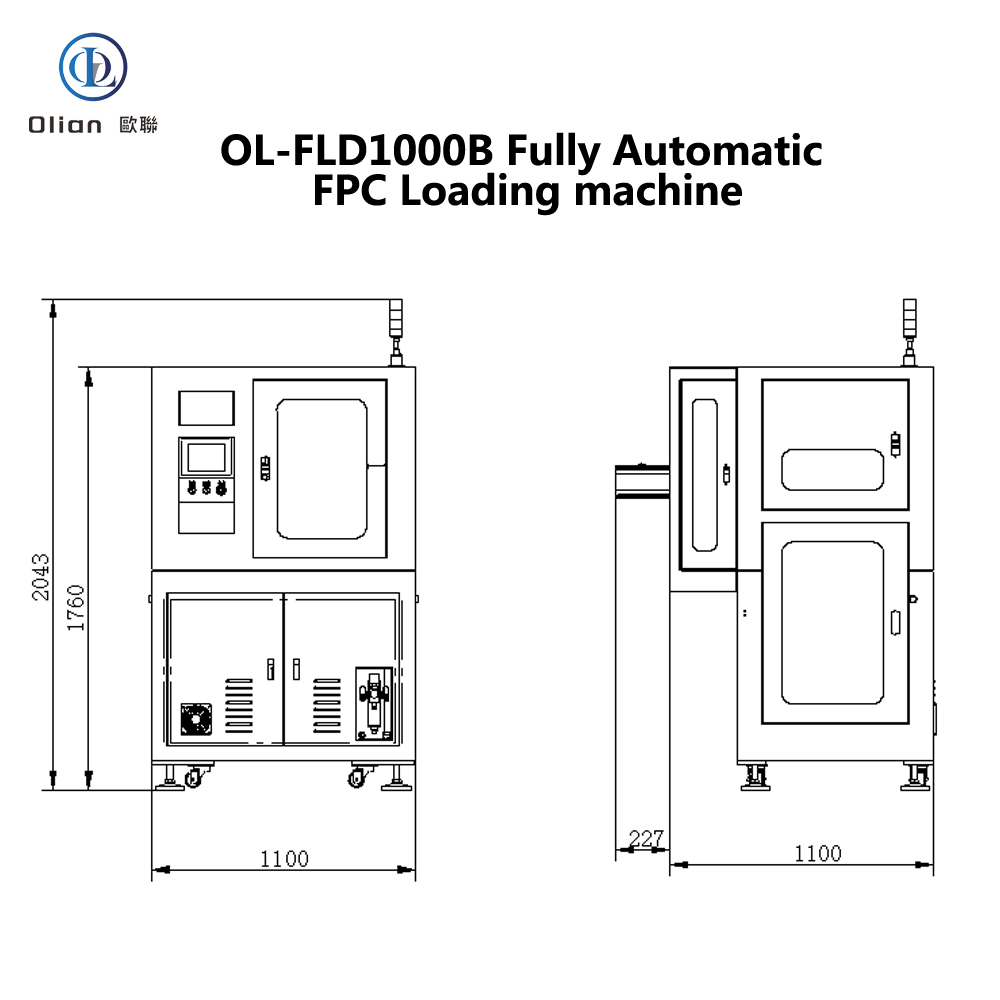

• Machine Dimensions: 1100(L) x 1100(W) x 1760(H) mm.
• Machine Weight: Approximately 400kg.
• Machine Color: Off-white paint, customizable colors available.
• Working Height: Ergonomic height for easy operation access.

Component Brands:

• PLC: Panasonic (Japan)
• HMI: Proface (Japan)
• Servo Motors: Chinese brand
• Stepper Motors: Chinese brand
• Modules: SKD (China)
• Rails: HIWIN (China)
• Pneumatics: Airtac (China)
• Power Supply: Mean Well (China)
• Circuit Breakers: Shihlin (China)
• Cable Carrier: Igus (Germany)
• Emergency Stop: Schneider (China)
• FFU: Yunfeng (China)

Safety Systems: The machine includes an interlock design with warning labels on hazardous areas. Emergency stop buttons have protective covers to prevent accidental activation. Door opening during operation triggers machine pause. Three-color signal tower provides visual status alerts.

Environmental Requirements: The machine requires a clean, dust-free cleanroom environment. Operating temperature and humidity should be controlled for optimal performance.

Power & Air Requirements:

• Power: 1Phase AC220V±10%, 50Hz, 2000W max
• Compressed Air: 0.5-0.7MPa, ≈100 L/min
• Vacuum: Built-in system (100L/min) or customer supply (≥-70Kpa)

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Your Handling Needs?

Olian Automatic is a trusted manufacturer of display manufacturing equipment headquartered in Shenzhen, China. With extensive experience in automation, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. Visit our [About Us] page for more information about our company. Explore our [Product Lines] for complete display manufacturing solutions.

Sustainability Commitment: The OL-FLD1000B is designed for energy efficiency. Its optimized handling process reduces power consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.

FAQ

Q: What is an Automatic FPC Loader?
A: It is an automated system that transfers FPCs from trays to conveyors for downstream processing.

Q: What products can the OL-FLD1000B handle?
A: The OL-FLD1000B handles FPCs from 15x10mm to 100x175mm in size.

Q: What is the production speed of the OL-FLD1000B?
A: The tact time is 4.5 seconds per piece for high-volume production.

Q: What tray sizes does the OL-FLD1000B support?
A: It supports trays from 250x220mm to 400x460mm with 500mm max stack height.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.

Q: What is the positioning accuracy of the robotic arm?
A: The XYZ robotic arm achieves ±0.05mm positioning accuracy.

Q: What type of environment is required for the OL-FLD1000B?
A: The machine requires a clean, dust-free cleanroom environment.

Q: Does the machine have digital vacuum monitoring?
A: Yes, it features digital vacuum gauges for real-time suction pressure monitoring.

Upgrade your FPC handling process with the OL-FLD1000B, the Automatic FPC Loader that combines tray loading, product picking, and conveyor feeding for superior results.

---
