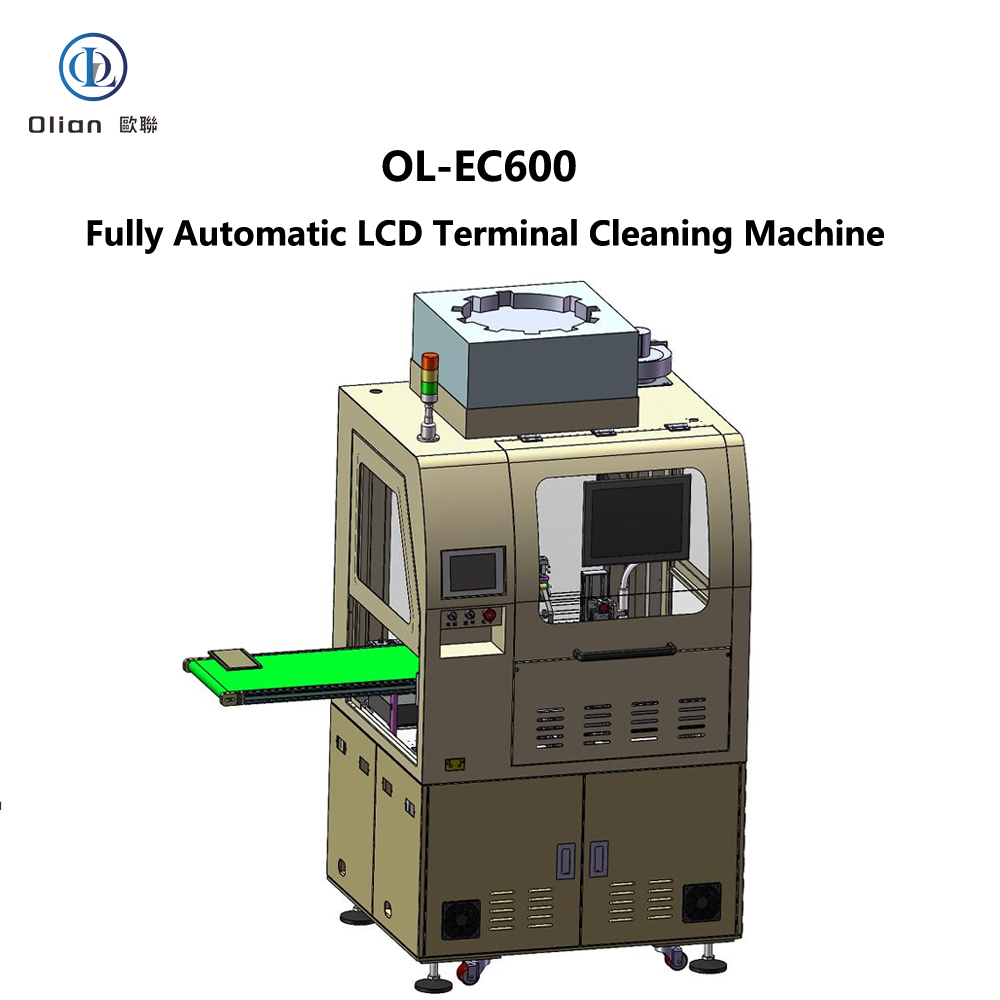

OL-EC600 Automatic LCD EC Cleaning Machine: Precision Terminal Preparation

The OL-EC600 Automatic LCD EC Cleaning Machine is a specialized automation solution. It is designed for cleaning LCD terminals before the bonding process.

Manufactured by Olian Automatic in Shenzhen, China, this machine handles wiping, solvent cleaning, and plasma treatment. It ensures a pristine surface for reliable ACF (Anisotropic Conductive Film) adhesion.

Why Choose the OL-EC600 Automatic LCD EC Cleaning Machine?

The OL-EC600 Automatic LCD EC Cleaning Machine streamlines your production line. It combines multiple critical cleaning steps into one seamless, automated process.

• All-in-One Integration: Combines wiping, solvent cleaning, and plasma treatment in one machine.
• High-Speed Production: Achieves a cycle time as fast as 3.5 seconds per piece.
• High Precision: Offers a搬运精度 (handling accuracy) of ±0.1mm.
• Effective Cleaning: Ensures a water drop angle of ≤15 degrees for optimal surface energy.
• Flexible Operation: Handles LCDs from 20x20mm to 150x90mm.
• User-Friendly: Features a Chinese touch screen interface for easy control.
• Safe Operation: Includes multiple emergency stops and safety interlocks.

Technical Specifications of the OL-EC600 Automatic LCD EC Cleaning Machine

The OL-EC600 is engineered for demanding manufacturing environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• LCD Size (Max): 150mm (L) x 90mm (W).
• LCD Size (Min): 20mm (L) x 20mm (W).
• LCD Thickness: 0.15mm to 1.1mm.
• Cleaning Type: Single-side terminal cleaning.
• Lint-Free Wipe Width: ≤10mm.
• Lint-Free Wipe Roll Diameter: ≤300mm.
• Cleaning Solvent: Alcohol or Acetone.

Performance Metrics:

• Cycle Time: 3.5 sec/pcs (for <4 inch), 4.2 sec/pcs (for 4-6.5 inch).
• Wiping Speed: ≥80mm/s.
• Handling Accuracy: ±0.1mm.
• Water Drop Angle: ≤15 degrees.
• Model Changeover: ≤30 min for new models, ≤15 min for existing.

Machine Dimensions & Weight:

• Overall Dimensions: 1100mm (L) x 1000mm (W) x 1800mm (H).
• Machine Weight: Approximately 800kg.
• Power Supply: Single-phase, AC 220V.
• Power Consumption: Maximum power of 3KW.
• Compressed Air: 0.5-0.7 MPa, ≤220 L/min consumption.
• Vacuum System: Vacuum ≥-70Kpa, flow ≥700 L/min.

Advanced Cleaning Process of the OL-EC600

The OL-EC600 features a sophisticated multi-stage cleaning process. This ensures a perfectly prepared surface for subsequent bonding processes.

Cleaning Workflow:

• Loading: An operator places the LCD on the input platform or conveyor.
• CCD Alignment: Robot 1 picks the LCD and moves it to the CCD for alignment.
• Wiping: Robot 1 moves the LCD to the wiping platform.
• Solvent Cleaning: The platform moves the LCD under the cleaning head.
• Plasma Treatment: Robot 2 picks the LCD and moves it to the plasma stage.
• Unloading: Robot 2 moves the cleaned LCD to the output station.

Key System Components:

• Robotic Arms: Two sets of high-precision robots for product handling.
• Cleaning Heads: Dedicated heads for wiping, solvent application, and plasma.
• Control Unit: Panasonic PLC with a Proface/Weinview touch screen.
• Vision System: CCD camera for automatic product alignment.

Robust Engineering & Safety Features of the OL-EC600

Built for reliability, the OL-EC600 uses quality industrial components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Servo Motors: Fuji/Ruit (Japan/China).
• Angle Motors: Inovance/Hengchuan (China).
• Linear Motors: Yaskawa/Xianma (China).
• Screws/Guides: THK/HIWIN (Japan/China).
• Pneumatics: SMC/AirTAC (Japan/China).
• PLC Controller: Panasonic (Japan).
• HMI: Proface/Weinview (Japan/China).
• Power Supply: Mean Well (China).
• Circuit Breakers: Schneider/Shihlin (France/Taiwan).
• Cable Carriers: Igus (Germany).

Safety Systems: The machine features three emergency stop buttons. It has a safety interlock that pauses operation when doors are opened. A buzzer and touch screen provide alarm notifications. Clear safety signs warn of potential hazards.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Display Manufacturing Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global display industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-EC600 is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic LCD EC Cleaning Machine?
A: It is a machine that cleans LCD terminals. It automates wiping, solvent cleaning, and plasma treatment.

Q: What is the production speed of the OL-EC600?
A: The cycle time is 3.5 to 4.2 seconds per piece. This depends on the product size.

Q: What is the cleaning precision?
A: The handling accuracy is ±0.1mm. The water drop angle is ≤15 degrees.

Q: What size LCDs can it process?
A: It handles LCDs from 20x20mm up to 150x90mm in size.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Upgrade your production line with the OL-EC600, the Automatic LCD EC Cleaning Machine. It combines speed, precision, and reliability for superior LCD terminal preparation.

---
