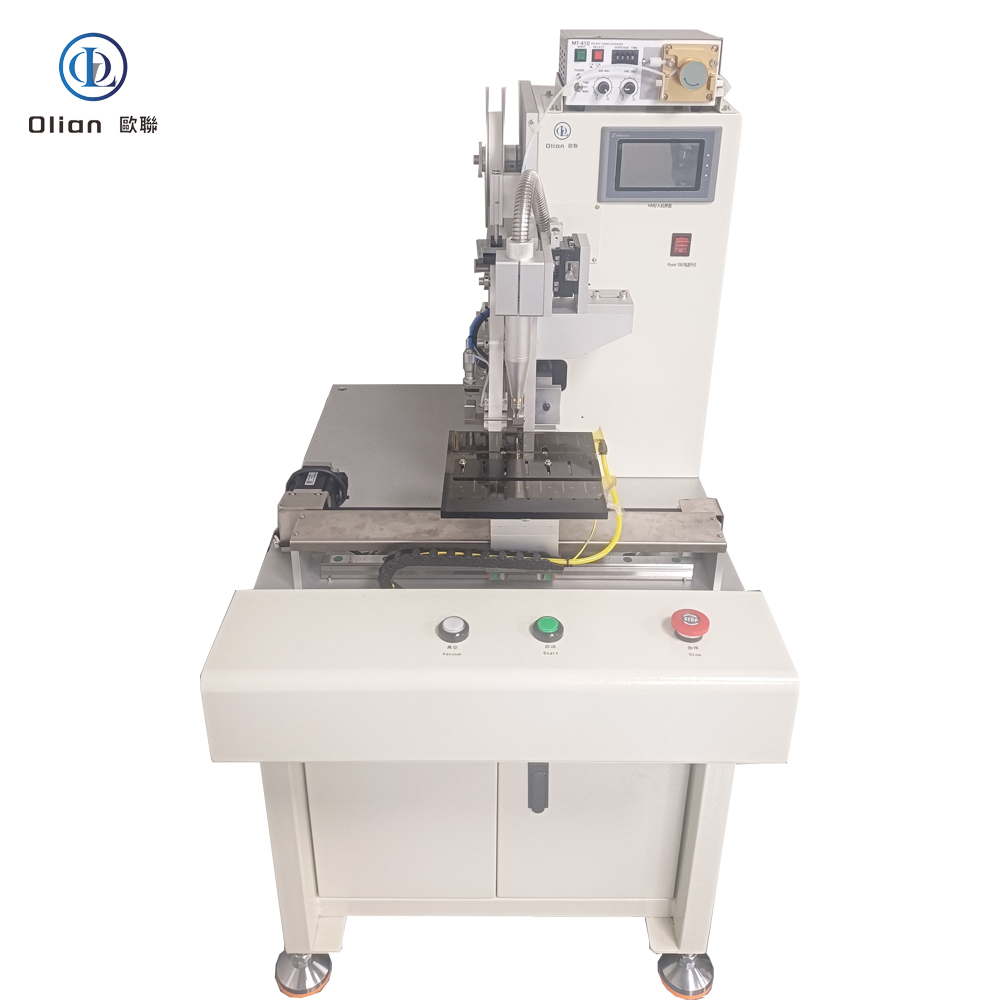

OL-Q006 Manual LCD Terminal Cleaning Machine: Precision and Purity

In the competitive world of display manufacturing, achieving a perfectly clean surface is critical. The OL-Q006 Manual LCD Terminal Cleaning Machine, engineered by Olian Automatic, is a semi-automatic solution designed to deliver exceptional precision and reliability for this essential process.

This machine specializes in cleaning the ITO terminals of panels before attaching conductive film (ACF). It uses a combination of lint-free cloth wiping and plasma cleaning to ensure optimal surface preparation.

🚀 Unmatched Performance for High-Volume Production

The OL-Q006 Manual LCD Terminal Cleaning Machine is built for manufacturers who demand both speed and accuracy. Its design optimizes the human-machine workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 200-600 PCS/H, with a cleaning speed greater than 110mm/s.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.035mm on the X-axis and ≤±0.04mm on the Y-axis, ensuring a consistent, high-quality bond.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-Q006 handles a wide range of products, from 3-inch to 7-inch displays, and can process fine pitches with a minimum width and spacing of 65um.

⚙️ Advanced Process & Intelligent Control

The OL-Q006 streamlines the cleaning process by combining manual operation with sophisticated automation. This semi-automatic approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Panel Placement: The operator manually places the panel onto the cleaning platform.
2. Automated Cleaning: The platform moves right as the cleaning head descends. It then wipes the LCD terminal and performs plasma cleaning.
3. Completion: The operator removes the cleaned LCD from the platform.

The entire process is managed by a reliable Panasonic PLC and a user-friendly touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-Q006 features a robust construction with high-quality components from industry-leading brands like Panasonic, THK, and SMC.

Key Technical Specifications:

• Temperature Control: RT to 400℃ with a surface variance of ≤±5℃.
• Pressure Control: Adjustable from 25N to 400N with a precision regulator.
• Power & Air: AC 220V, 2000W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 900mm (W) x 830mm (D) x 1340mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-Q006, the Manual LCD Terminal Cleaning Machine that combines speed, precision, and reliability.
