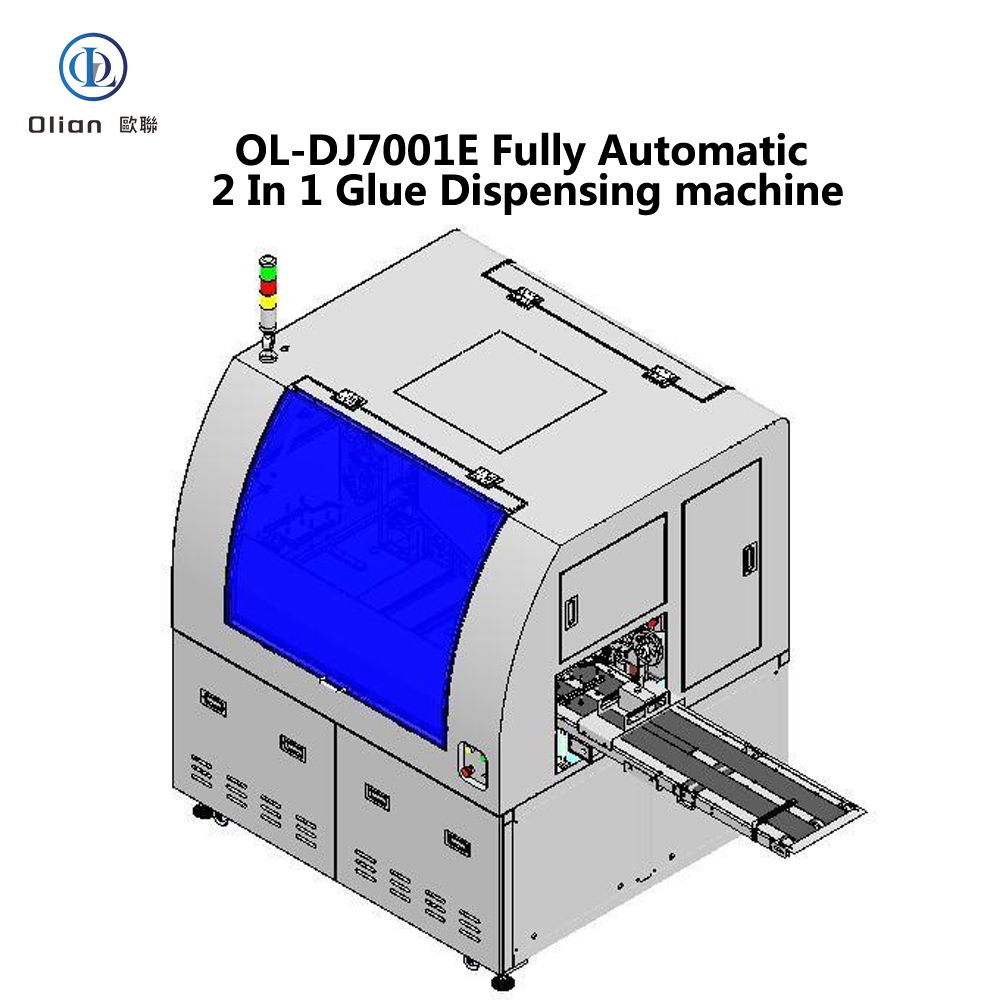

OL-DJ7001E Automatic 2-in-1 Dispensing Machine: Precision Adhesive Application

The OL-DJ7001E Automatic 2-in-1 Dispensing Machine is a versatile system. It is designed for high-precision dot and line dispensing.

Manufactured by Olian Automatic in Shenzhen, China, this machine handles multiple adhesive processes. It is built for 0.96″ to 7″ LCD, OLED, and E-paper products.

Why Choose the OL-DJ7001E Automatic 2-in-1 Dispensing Machine?

The OL-DJ7001E Automatic 2-in-1 Dispensing Machine delivers speed and accuracy. Its automated process ensures consistent quality for high-volume production.

• High-Speed Production: Achieves a fast tact time of 3.5s for 1+0 and 4.5s for 2+0.
• Superior Precision: Dispensing accuracy is ±0.1mm in X and Y axes.
• Automated Workflow: Handles CCD positioning, line dispensing, and surface dispensing automatically.
• Wide Compatibility: Processes 0.96″ to 7″ LCD, OLED, and E-paper products.
• Versatile Adhesives: Compatible with silver paste, UV glue, blue glue, and silicone.
• Advanced Vision System: Uses CCD cameras for accurate product alignment and correction.
• Robust Construction: Built with high-quality components from Japan, China, and Taiwan.
• Flexible Integration: Can be connected with FOG, AOI, or buffer drying machines.

Technical Specifications of the OL-DJ7001E Automatic 2-in-1 Dispensing Machine

The OL-DJ7001E is engineered for demanding manufacturing environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• Panel Size Range: Minimum 0.96″ (15mm x 10mm). Maximum 7″ (160mm x 100mm).
• Panel Thickness: 0.2mm to 2.0mm supported.
• IC Slit Width: ≥0.2mm (with piezoelectric jet valve).
• Adhesive Types: Silver paste, UV glue, blue glue, silicone, and more.
• Positioning Method: CCD vision positioning for areas >6mm x 5mm.
• Control System: PLC + PC control for stable operation.

Performance Metrics:

• Tact Time: 3.5s for 1+0, 4.5s for 2+0. Varies by product and glue.
• Dispensing Accuracy: X: ±0.1mm, Y: ±0.1mm, Z: ±0.02mm.
• Model Changeover: <30 minutes for new products (excluding glue debugging).
• Model Recall: <20 minutes for previously produced products.
• Uptime Rate: High reliability for continuous operation.
• Yield Rate: Optimized for high first-pass yield.

Machine Dimensions & Weight:

• Overall Dimensions: 1600mm (L) x 1400mm (W) x 1700mm (H). Excluding signal tower.
• Machine Weight: Approximately 1000kg.
• Power Supply: AC 220V, 50/60Hz, 2.5KW rated power.
• Compressed Air: 0.5-0.7 Mpa, 300L/min consumption.
• Vacuum System: Absolute value ≥500mmHg, 220L/min consumption.

Advanced Dispensing Technology in the OL-DJ7001E

The OL-DJ7001E features a multi-stage dispensing process. This ensures precise application of various adhesives.

Dispensing Process:

• Product Loading: An operator places the LCD on the input belt. Or it is fed from a previous process.
• Robotic Transfer: Robotic Arm #1 moves the LCD to the Y-axis platforms.
• CCD Positioning: The system takes a picture for precise alignment.
• Adhesive Application: The machine performs line dispensing, silver paste, and surface dispensing.
• Product Unloading: Robotic Arm #2 moves the finished product to the output belt.

Key Dispensing Components:

• Line Dispensing: Uses a piezoelectric jet valve for UV glue.
• Surface Dispensing: Uses a piezoelectric jet valve for blue or UV glue.
• Silver Paste Dispensing: Uses a precision pin valve or needle syringe.
• Glue Supply: Options include GJ300 pump, pressure barrel, or syringe.
• UV Curing: Optional LED cold light source, ≥1000mw/cm² intensity.

Robust Engineering & Safety Features of the OL-DJ7001E

Built for reliability, the OL-DJ7001E uses industrial-grade components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Screws & Guides: HIWIN (Taiwan) for smooth, precise motion.
• Servo Motors: HCFA (China) for reliable power.
• Stepper Motors: Leadshine (China) for accurate control.
• HMI: WEINVIEW (Taiwan) for an intuitive interface.
• Pneumatics: AirTac (Taiwan) for valves and cylinders.
• PLC Controller: Zmotion (China) for system logic.
• Power Supply: Mean Well (Taiwan) for stable power.
• Bearings: NSK (Japan) for long-lasting performance.

Safety Systems: The machine features a three-color signal tower. Red indicates an alarm or material shortage. Yellow signals a waiting state or warning. Green shows normal operation. A buzzer alerts operators to any issues.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Display Manufacturing Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global display industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-DJ7001E is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic 2-in-1 Dispensing Machine?
A: It is a system that automates dot and line dispensing. It can apply surface glue and line glue in one process.

Q: What is the production speed of the OL-DJ7001E?
A: The tact time is 3.5s for 1+0 and 4.5s for 2+0. This varies by product size and glue type.

Q: What is the dispensing accuracy?
A: The accuracy is ±0.1mm in X and Y axes, and ±0.02mm in Z axis.

Q: What screen sizes can the OL-DJ7001E process?
A: It is designed for 0.96″ to 7″ LCD, OLED, and E-paper products.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Upgrade your production line with the OL-DJ7001E, the Automatic 2-in-1 Dispensing Machine. It combines speed, precision, and reliability for superior adhesive application.

---
