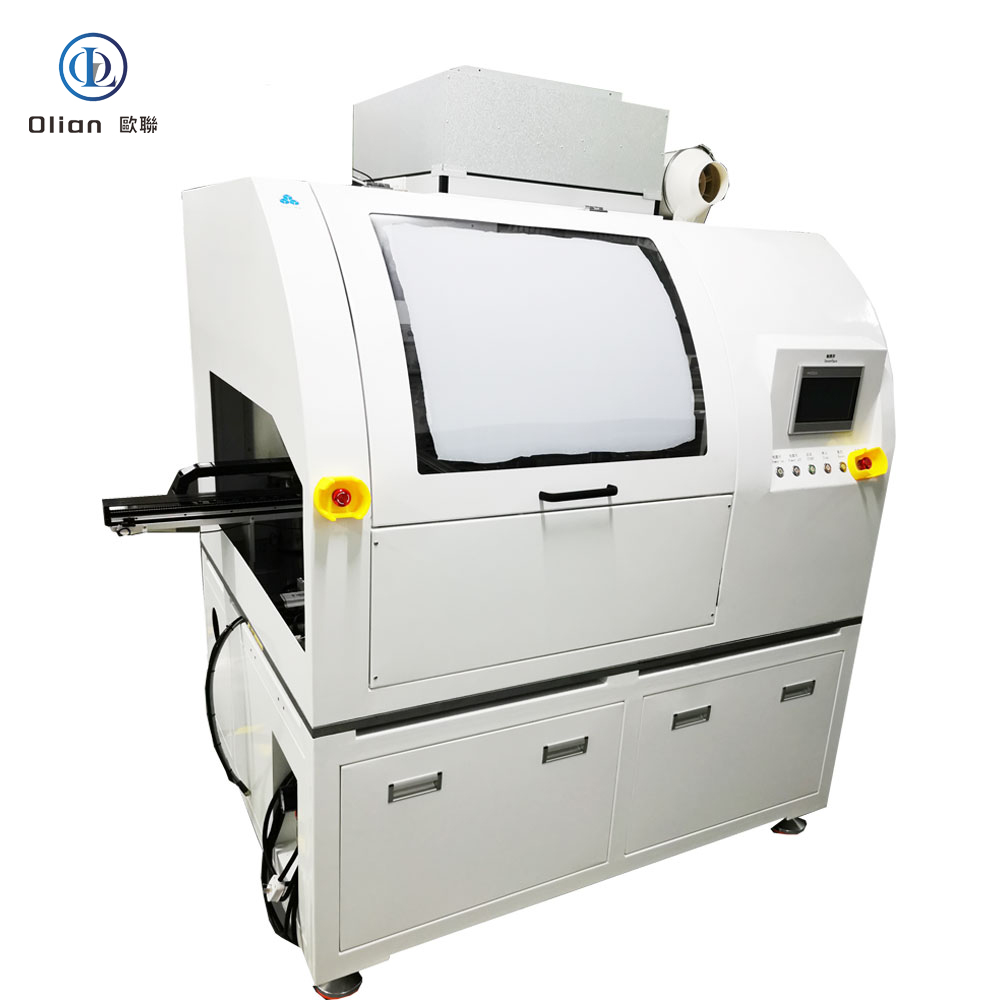

OL-CQX17 Automatic Multi-Side LCD Terminal Cleaning Machine: Precision Cleaning for Display Manufacturing

In display manufacturing, cleaning ITO terminals before ACF attachment is a critical step. The OL-CQX17 Automatic Multi-Side LCD Terminal Cleaning Machine, engineered by Olian Automatic, delivers high-precision cleaning for LCD panels up to 17 inches.

This machine specializes in cleaning ITO terminals on rigid glass displays (TFT, IPS, OLED) using lint-free cloth and low-temperature plasma. The process combines manual loading with fully automated cleaning and handling.

Why Choose the OL-CQX17 Automatic Multi-Side LCD Terminal Cleaning Machine?

The OL-CQX17 LCD Terminal Cleaning Machine is built for manufacturers who demand reliable pre-bonding surface preparation. Its multi-side cleaning design handles complex terminal configurations with ease.

• Multi-Side Cleaning: Clean up to three sides simultaneously. The machine supports four cleaning modes for maximum flexibility.
• High Throughput: Production capacity reaches 300-500 PCS/H for 7-12 inch panels. For 12-17 inch panels, capacity is 250-400 PCS/H.
• Fast Cleaning Speed: The cleaning head moves at speeds exceeding 200mm/s for efficient processing.
• Micron-Level Precision: Platform repeat accuracy reaches ±0.005mm for consistent positioning.
• Exceptional Yield Rate: The stable cleaning process guarantees a product qualification rate of ≥98%.
• Versatile Compatibility: Handles LCD panels from 5 to 17 inches. Supports panel thickness from 0.2mm to 2.2mm.
• Quick Changeover: New product setup takes ≤30 minutes. Existing product changeover takes ≤15 minutes.
• Wide Product Support: Supports up to 100 different product varieties in memory.

Advanced Cleaning Process & Plasma Technology

The OL-CQX17 combines mechanical wiping with low-temperature plasma treatment for superior cleaning results. This dual-action approach ensures optimal surface preparation for ACF attachment.

Cleaning Modes:

1. Clean S-L side only
2. Clean G-L side only
3. Clean G-L + S1-L sides
4. Clean G-L + S2-L sides

The Optimized Workflow:

1. Loading: The operator places the LCD panel on the loading conveyor.
2. Auto Feeding: The conveyor automatically moves the panel to the positioning area.
3. Pickup: The robot arm picks the LCD and places it on the cleaning platform.
4. Vision Correction: The platform moves to the correction position for first-side vision alignment.
5. First-Side Cleaning: The machine cleans the first ITO terminal side using alcohol and plasma.
6. Rotation: The platform rotates to position the second side for cleaning.
7. Second-Side Cleaning: Vision correction and cleaning are performed on the second side.
8. Unloading: The robot arm removes the cleaned LCD and places it on the output conveyor.

The cleaning solvent can be alcohol or acetone, selected based on process requirements. The cleaning quality is verified by a water contact angle of less than 30 degrees (before cleaning less than 60 degrees).

2-CCD Vision Alignment System

The OL-CQX17 is equipped with an advanced two-camera CCD vision system for precise alignment. Each camera has 1.3MP resolution with coaxial LED lighting for optimal mark recognition. The system provides a field of view of 6.4 x 4.8mm with 1x magnification. This ensures accurate positioning for all cleaning operations.

Low-Temperature Plasma Cleaning Unit

The integrated plasma cleaning unit delivers consistent surface activation for superior ACF adhesion. The plasma generator operates at 100-300W output power for gentle yet effective cleaning. The high voltage range of 2KV to 7KV ensures thorough terminal treatment. The operating frequency of 18KHz to 60KHz provides flexible process control. The maximum plasma cleaning width reaches 12mm for wide terminal coverage. Y-axis and Z-axis adjustments allow precise positioning for different panel configurations.

Intelligent Process Control

The OL-CQX17 streamlines the cleaning process through sophisticated automation. The entire workflow is managed by a reliable Panasonic PLC and a user-friendly touch screen interface.

For security and quality control, the machine features a two-level password system. Engineers can set parameters while operators can only run the machine and switch products. The system supports both manual and automatic modes with real-time parameter display.

Robust Engineering & Reliable Support

Built for durability in cleanroom environments, the OL-CQX17 features high-quality components from industry-leading brands.

Key Technical Specifications:

• LCD Panel Size: Max 17″ (380 x 240mm), Min 5″ (152 x 86mm), thickness 0.2~2.2mm
• Cleaning Method: Lint-free cloth + Plasma (Plasma) cleaning
• Max Wipe Width: 6mm
• Cleaning Speed: Greater than 200mm/s
• Plasma Output: 100~300W (low-temperature plasma)
• Plasma Cleaning Width: Max 12mm
• Plasma High Voltage: 2KV~7KV
• Plasma Frequency: 18KHz~60KHz
• Cleaning Clamp Pressure: 0.1~0.4MPa
• Lint-Free Cloth Width: 8~15mm
• Platform Repeat Accuracy: ≤±0.005mm
• Platform Flatness: ≤±0.008mm/100mm
• Product Variety: Up to 100 products stored
• Equipment Failure Rate: ≤2%
• Power: 1Phase AC220V/50Hz/3500W
• Compressed Air: 0.4~0.7MPa, ~220L/min
• Vacuum: ~240L/min
• Dimensions: 1780mm (W) x 1200mm (D) x 1850mm (H)
• Weight: Approximately 686 kg (main unit) + 52 kg (loading belt)
• Working Table Height: 980±50mm

Component Brands:

• PLC: Panasonic (Japan)
• HMI: Weinview, Kunlun Tongtai, Xiankong
• Solenoid Valves: CKD, Airtac, SMC
• Regulating Valves: SMC, Airtac
• Cylinders: SMC, Airtac
• Linear Guides: THK, Kuroda, HIWIN
• Servo Motors: Panasonic, Yaskawa
• Stepper Motors: Leadshine

ESD Compliance: The OL-CQX17 meets strict ESD standards. All consumables and parts are anti-static. Panel surface static remains below ±100V during operation. Static dissipation reduces voltage from 1000V to 100V within 4 seconds. Ground impedance is ≤5Ω. ESD grounding is provided at all product handling points.

Safety Features: The machine includes interlock design with buzzer alarms and touch screen alerts. All high-temperature and mechanical hazard areas have warning labels. The EMO (emergency stop) cuts all power to servo drives. A buzzer and three-color signal tower provide visual and audible alerts.

Loading & Unloading: The machine supports conveyor-based loading and unloading. The output can be set to either conveyor or Panasonic TBX system. This flexibility allows seamless integration into existing production lines.

Cleaning Head Specifications:

• Quantity: 1 set
• Drive Method: Cylinder-driven
• Head Width: 20mm
• Cleaning Pressure: 0.1~0.4MPa, adjustable
• Cleaning Liquid: Pump-controlled delivery via fluoropolymer tubing

Lint-Free Cloth Supply:

• Tension Control: Feed motor with tension adjustment
• Feed Amount: Minimum 2mm, freely adjustable
• Feed Control: Stepper motor with synchronous belt
• Waste Recovery: Collection reel

Why Choose Olian Automatic for Your LCD Cleaning Needs?

Olian Automatic is a trusted manufacturer of display assembly equipment headquartered in Shenzhen, China. With over two decades of experience, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. for more information about our company. for complete display assembly solutions.

Sustainability Commitment: The OL-CQX17 is designed for energy efficiency. Its optimized cleaning system reduces solvent consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.

FAQ:

Q: What is an LCD terminal cleaning machine used for?
A: An LCD terminal cleaning machine cleans ITO terminals on display panels before ACF attachment.

Q: What cleaning methods does the OL-CQX17 use?
A: The OL-CQX17 uses lint-free cloth wiping combined with low-temperature plasma cleaning.

Q: What panel sizes can the OL-CQX17 handle?
A: The OL-CQX17 handles LCD panels from 5 to 17 inches with thickness from 0.2mm to 2.2mm.

Q: What is the production capacity of the OL-CQX17?
A: Capacity is 300-500 PCS/H for 7-12 inch panels and 250-400 PCS/H for 12-17 inch panels.

Q: What is the cleaning quality standard?
A: The water contact angle after cleaning is less than 30 degrees (before cleaning less than 60 degrees).

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.

Q: How long does product changeover take?
A: New product setup takes ≤30 minutes. Existing product changeover takes ≤15 minutes.

Upgrade your display assembly line with the OL-CQX17, the Automatic Multi-Side LCD Terminal Cleaning Machine that combines precision, speed, and reliability.

---
