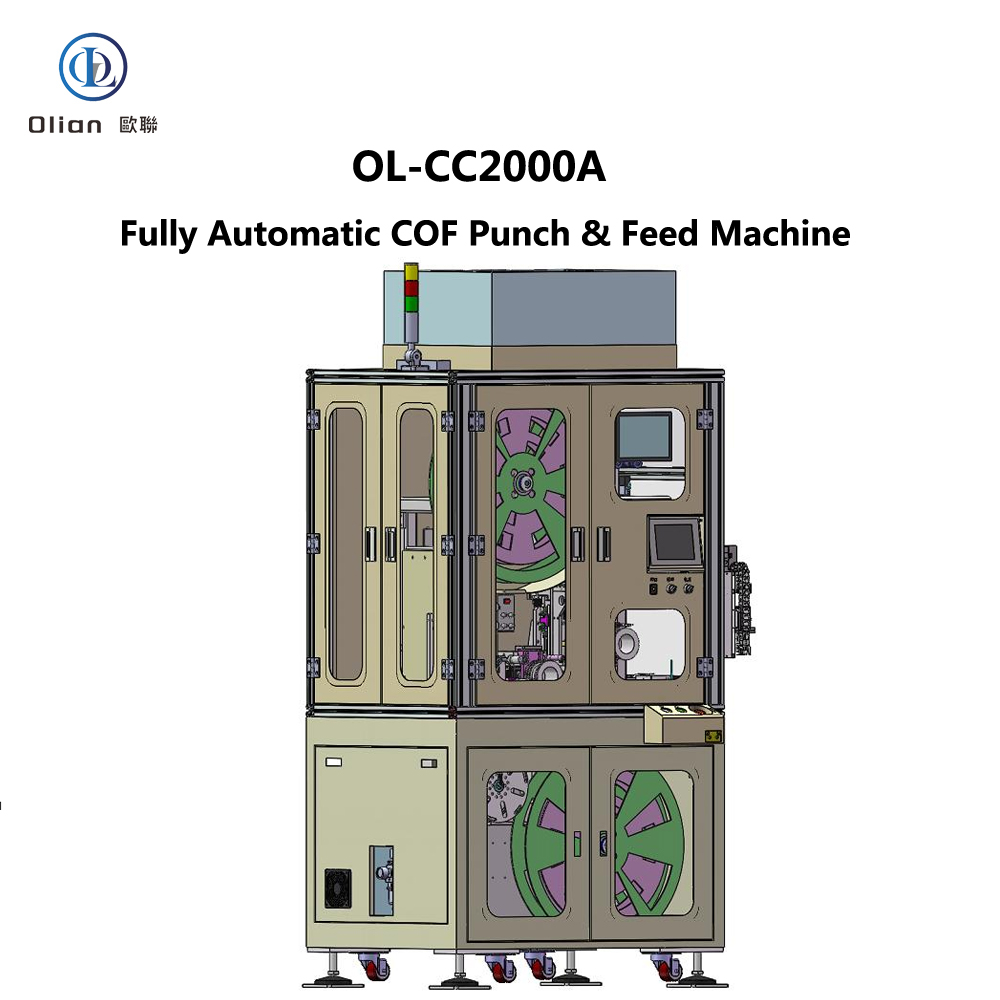

OL-CC2000A Automatic COF Punching Feeder: High-Precision Reel Processing

The OL-CC2000A Automatic COF Punching Feeder is an advanced automation solution. It is designed for high-precision feeding and punching of COF (Chip on Film) reels.

Manufactured by Olian Automatic in Shenzhen, China, this machine ensures superior product quality. It can be integrated with other binding equipment for a seamless production line.

Why Choose the OL-CC2000A Automatic COF Punching Feeder?

The OL-CC2000A Automatic COF Punching Feeder delivers exceptional performance. Its automated process ensures consistent results for high-volume manufacturing.

• High-Speed Production: Achieves fast and efficient processing of COF reels.
• Superior Precision: Features punching accuracy of ±50um or ±80um, depending on the material.
• Automated Workflow: Handles the entire process from reel feeding to sheet output.
• Wide Compatibility: Processes 35mm, 48mm, and 70mm wide COF reels.
• Advanced Vision System: Uses a CCD camera for automatic product alignment and correction.
• Robust Construction: Built with high-quality components for long-lasting reliability.
• Flexible Integration: Can be connected with other production equipment for a complete line.

Technical Specifications of the OL-CC2000A Automatic COF Punching Feeder

The OL-CC2000A is engineered for demanding manufacturing environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• COF Width: 35mm, 48mm, and 70mm.
• COF Thickness: Greater than 50um to 125um.
• Reel Size: Outer diameter Φ405-600mm, Inner diameter Φ25.4mm.
• COF Dimensions: 5-30mm (L) x 7-42mm (W).
• Control System: PLC control with a Chinese touch screen interface.
• Operation Modes: Supports both manual and automatic operation modes.

Performance Metrics:

• Punching Accuracy: ±50um or ±80um, based on material specifications.
• Model Changeover: Fast setup for different product types.
• Uptime Rate: High reliability for continuous operation.
• Vacuum System: Built-in pump or external source. Vacuum ≥-70Kpa.

Machine Dimensions & Weight:

• Overall Dimensions: 800mm (L) x 1100mm (W) x 2090mm (H). Excludes the signal tower.
• Machine Weight: Approximately 300kg.
• Power Supply: Single-phase AC 220V±10%, 50 Hz.
• Power Consumption: Maximum power of 4KW.
• Compressed Air: 0.5-0.7 MPa, ≈20L/min consumption.
• Operating Environment: Requires a Class 1000 or better cleanroom.

Advanced Processing Technology in the OL-CC2000A

The OL-CC2000A features a multi-stage processing system. This ensures thorough and precise handling of COF materials.

Processing Flow:

• Reel Feeding: The COF reel is loaded, and a tensioning mechanism ensures smooth feeding.
• CCD Alignment: A camera system corrects the material position for accurate punching.
• Punching: A pneumatic cylinder drives the mold to punch the COF sheet.
• Waste Removal: A stepper motor and tensioning mechanism collect the waste material.
• Sheet Output: The finished COF sheet is transferred to the output platform.

Key System Components:

• Feeding Unit: Uses a motor and tensioning mechanism with sprocket transmission.
• Punching Unit: Driven by a pneumatic cylinder with a high-precision mold.
• Vision System: Uses a CCD camera and coaxial LED light for alignment.
• Cleaning Unit: Features an anti-static brush for surface cleaning.
• Handling: Uses soft materials to pick up and transfer the COF sheets.

Robust Engineering & Safety Features of the OL-CC2000A

Built for reliability, the OL-CC2000A uses industrial-grade components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Control System: PLC and HMI for system logic and interface.
• Vision System: CCD camera and coaxial lens for high-precision imaging.
• Pneumatics: High-quality cylinders and valves for reliable actuation.
• Motors: Servo and stepper motors for precise motion control.
• Guides: High-precision linear guides for smooth movement.

Safety Systems: The machine features a three-color signal tower. It has an emergency stop button with a protective cover. An interlock design pauses the machine when doors are opened. A buzzer and touch screen provide alarm notifications.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Display Manufacturing Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global display industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-CC2000A is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic COF Punching Feeder?
A: It is a system that feeds COF reels and punches them into individual sheets. It uses a vision system for high-precision alignment.

Q: What COF widths can the OL-CC2000A handle?
A: It is compatible with 35mm, 48mm, and 70mm wide COF reels.

Q: What is the punching accuracy of the OL-CC2000A?
A: The accuracy is ±50um or ±80um, depending on the material specifications.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Q: Can the machine be integrated into a production line?
A: Yes, it can be connected with other equipment for automated production.

Upgrade your production line with the OL-CC2000A, the Automatic COF Punching Feeder. It combines speed, precision, and reliability for superior processing results.

---
