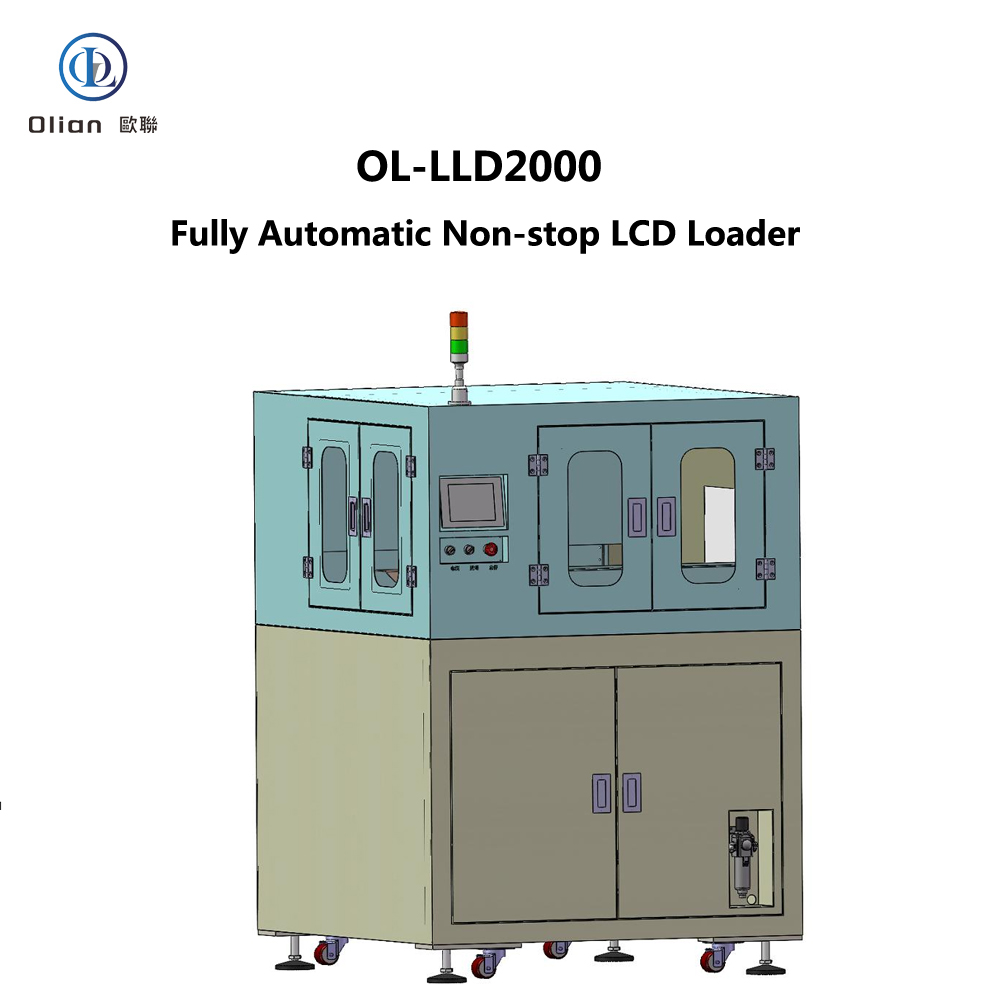

OL-LLD2000 Automatic Non-Stop LCD Loader: Continuous Production Efficiency

The OL-LLD2000 Automatic Non-Stop LCD Loader is an advanced material handling system. It is designed for continuous, automated feeding of LCD panels.

Manufactured by Olian Automatic in Shenzhen, China, this machine ensures uninterrupted production. It uses a tray-to-tray transfer method for seamless integration with other equipment.

Why Choose the OL-LLD2000 Automatic Non-Stop LCD Loader?

The OL-LLD2000 Automatic Non-Stop LCD Loader maximizes production uptime. Its automated design eliminates manual intervention during operation.

• Continuous Operation: Achieves non-stop feeding by automatically swapping full and empty trays.
• High-Speed Performance: Delivers a fast cycle time of ≤3.5 seconds per piece.
• Automated Workflow: Handles the entire process from full tray input to empty tray output.
• Wide Compatibility: Processes LCDs from 45x72mm to 95x160mm.
• Flexible Tray Sizes: Accommodates trays from 250x220mm to 400x520mm.
• High Precision: Features a搬运机械手 (handling robot) with ±0.05mm motion accuracy.
• User-Friendly Control: Equipped with a Proface touch screen and PLC control system.
• Robust Construction: Built with high-quality components from Japan, China, and Germany.

Technical Specifications of the OL-LLD2000 Automatic Non-Stop LCD Loader

The OL-LLD2000 is engineered for reliability in demanding environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• LCD Size Range: Minimum 45mm x 72mm. Maximum 95mm x 160mm.
• Tray Size Range: Minimum 250mm x 220mm. Maximum 400mm x 520mm.
• Tray Stack Height: Maximum stack height of 600mm supported.
• Control System: PLC control with a Chinese language touch screen interface.
• Operation Modes: Supports both manual and automatic operation modes.

Performance Metrics:

• Cycle Time: ≤3.5 seconds per piece for high-speed production.
• Motion Accuracy: ±0.05mm precision for the LCD handling robot.
• Vacuum System: Vacuum degree ≥-70Kpa with a flow of ≈100L/min.
• Uptime Rate: Designed for continuous, non-stop operation.
• Integration: Can be connected in-line with other production equipment.

Machine Dimensions & Weight:

• Overall Dimensions: 1250mm (L) x 1300mm (W) x 1700mm (H). Excluding the 350mm signal tower.
• Machine Weight: Approximately 350kg.
• Power Supply: Single-phase, AC 220V±10%, 50Hz.
• Power Consumption: Maximum power of 2000W.
• Compressed Air: 0.5-0.7 MPa, ≈100L/min consumption.
• Operating Environment: Requires a clean, dust-free cleanroom environment.

Advanced Operation of the OL-LLD2000 Automatic Non-Stop LCD Loader

The OL-LLD2000 features a sophisticated tray exchange mechanism. This ensures a continuous supply of LCD panels to the production line.

Operation Process:

• Loading: An operator places a full tray of LCDs into the full tray buffer仓 (warehouse).
• Feeding: The full tray moves to the pickup position. The Z-axis lowers to the correct height.
• Pick & Place: The product robot arm picks an LCD and transfers it to the next process.
• Tray Swap: Once a tray is empty, the tray robot arm moves it to the empty tray仓 (warehouse).
• Continuous Cycle: The system automatically brings a new full tray into position, ensuring no downtime.

Key Mechanical Components:

• Handling Robot: XYZ-axis robot for LCD搬运 (handling). XY axes are servo-driven.
• Tray Robot: X-axis robot for moving empty trays.
• Lifting Mechanism: Uses a stepper motor and precision ball screw for tray elevation.
• Vacuum System: Features a digital display to monitor vacuum levels.
• Positioning: Mechanical positioning ensures trays are correctly aligned.

Robust Engineering & Safety Features of the OL-LLD2000

Built for reliability, the OL-LLD2000 uses industrial-grade components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Servo/Stepper Motors: Ruit (China) for reliable power.
• Modules: SKD (China) for linear motion.
• Guides: HIWIN (China) for smooth, precise movement.
• Pneumatics: AirTac (China) for valves and cylinders.
• PLC Controller: Panasonic (Japan) for system logic.
• HMI: Proface (Japan) for an intuitive interface.
• Power Supply: Mean Well (China) for stable power.
• Circuit Breakers: Shihlin (China) for electrical safety.
• Cable Carriers: Igus (Germany) for long-lasting performance.

Safety Systems: The machine features a three-color signal tower. It has an emergency stop button with a protective cover. An interlock design pauses the machine when doors are opened. A buzzer and touch screen provide alarm notifications.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Display Manufacturing Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global display industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-LLD2000 is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic Non-Stop LCD Loader?
A: It is a machine that automatically feeds LCD panels from trays. It operates continuously without stopping for tray changes.

Q: What is the production speed of the OL-LLD2000?
A: The cycle time is ≤3.5 seconds per piece. This ensures high-speed, continuous production.

Q: What LCD sizes can the OL-LLD2000 handle?
A: It processes LCDs from a minimum of 45x72mm to a maximum of 95x160mm.

Q: What is the motion accuracy of the handling robot?
A: The robot arm has a high motion accuracy of ±0.05mm.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Upgrade your production line with the OL-LLD2000, the Automatic Non-Stop LCD Loader. It combines speed, precision, and reliability for superior material handling.

---
