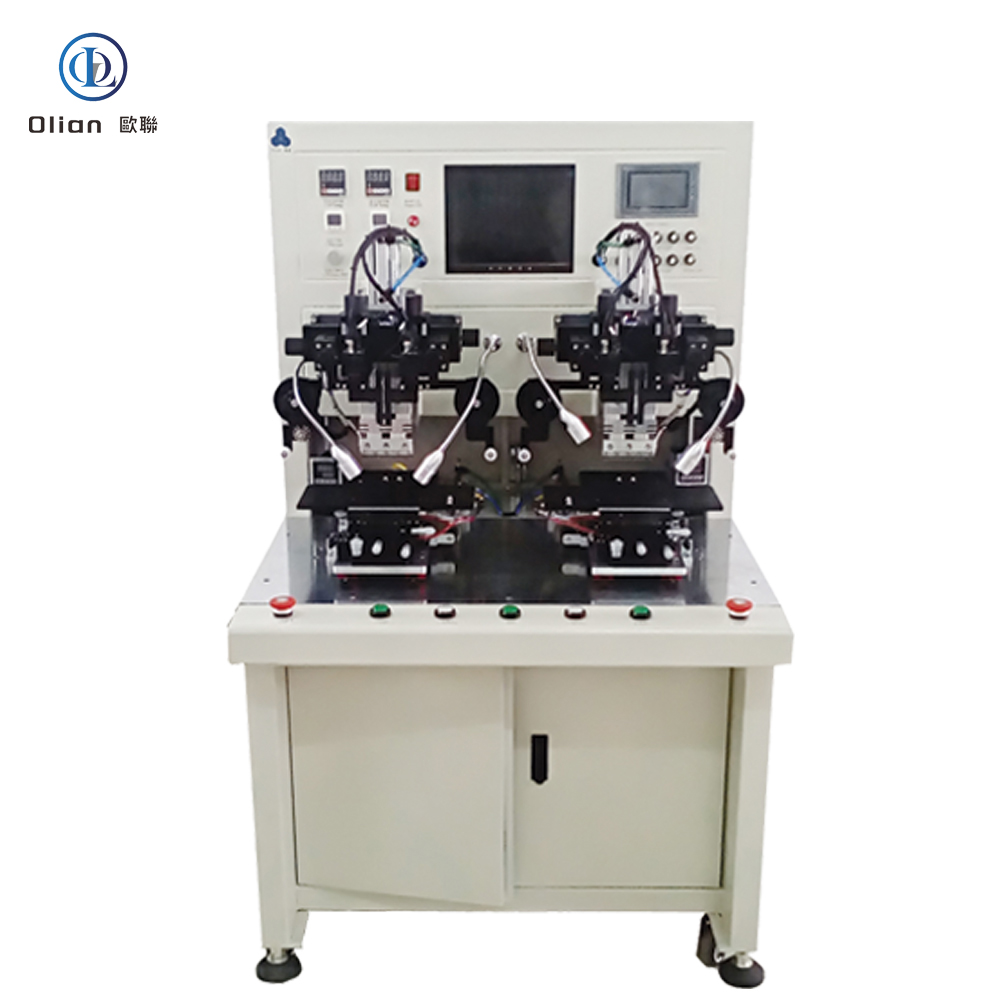

OL-F006U Dual-Station Top-Alignment FOG Bonding Machine: Precision and Efficiency

In the precise world of display manufacturing, accurate FOG bonding is a critical step. The OL-F006U Dual-Station Top-Alignment FOG Bonding Machine, engineered by Olian Automatic, is a semi-automatic solution designed to deliver exceptional accuracy and reliability.

This machine specializes in bonding FPC or touch flex cables to panels that have already been attached with ACF. The process is streamlined for efficiency, from manual product placement to automated thermal compression.

🚀 Unmatched Performance for High-Volume Production

The OL-F006U Dual-Station Top-Alignment FOG Bonding Machine is built for manufacturers who demand both speed and accuracy. Its semi-automatic design optimizes the workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 120-280 PCS/H, with a main bonding time of less than 10 seconds.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.035mm on the X-axis and ≤±0.04mm on the Y-axis.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥99%, minimizing material waste and rework.
• Versatile Compatibility: The OL-F006U handles a wide range of products, including on-cell touch flex cables, PCB flex cables, and large-end COF.

⚙️ Advanced Process & Intelligent Control

The OL-F006U streamlines the FOG bonding process by combining simple manual setup with sophisticated automation. This approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Product Placement: The operator places the panel on the glass platform and the FPC on its dedicated platform.
2. Vacuum Activation: The operator activates the vacuum to secure the products in place.
3. Manual Alignment: The operator performs the alignment using the mark points and confirms the result on the monitor.
4. Automated Bonding: After confirmation, the operator presses the dual start buttons. The platform moves to the bonding position.
5. Thermal Compression: The machine automatically performs the main bonding process.
6. Completion: After the bonding time, the press head lifts, and the platform returns to the loading position.
7. Product Removal: The operator removes the finished product and repeats the process.

The entire process is managed by a reliable Panasonic PLC and a user-friendly Xinje touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-F006U features a robust construction with high-quality components from industry-leading brands like THK, HIWIN, SMC, and Airtac.

Key Technical Specifications:

• Temperature Control: RT to 400℃ with a surface variance of ≤±5℃.
• Pressure Control: Adjustable from 25N to 400N with a digital pressure gauge.
• Power & Air: AC 220V, 2000W; Compressed air at 0.4~0.7 Mpa.
• Dimensions: 900mm (W) x 860mm (D) x 1450mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-F006U, the Dual-Station Top-Alignment FOG Bonding Machine that combines speed, precision, and reliability.
