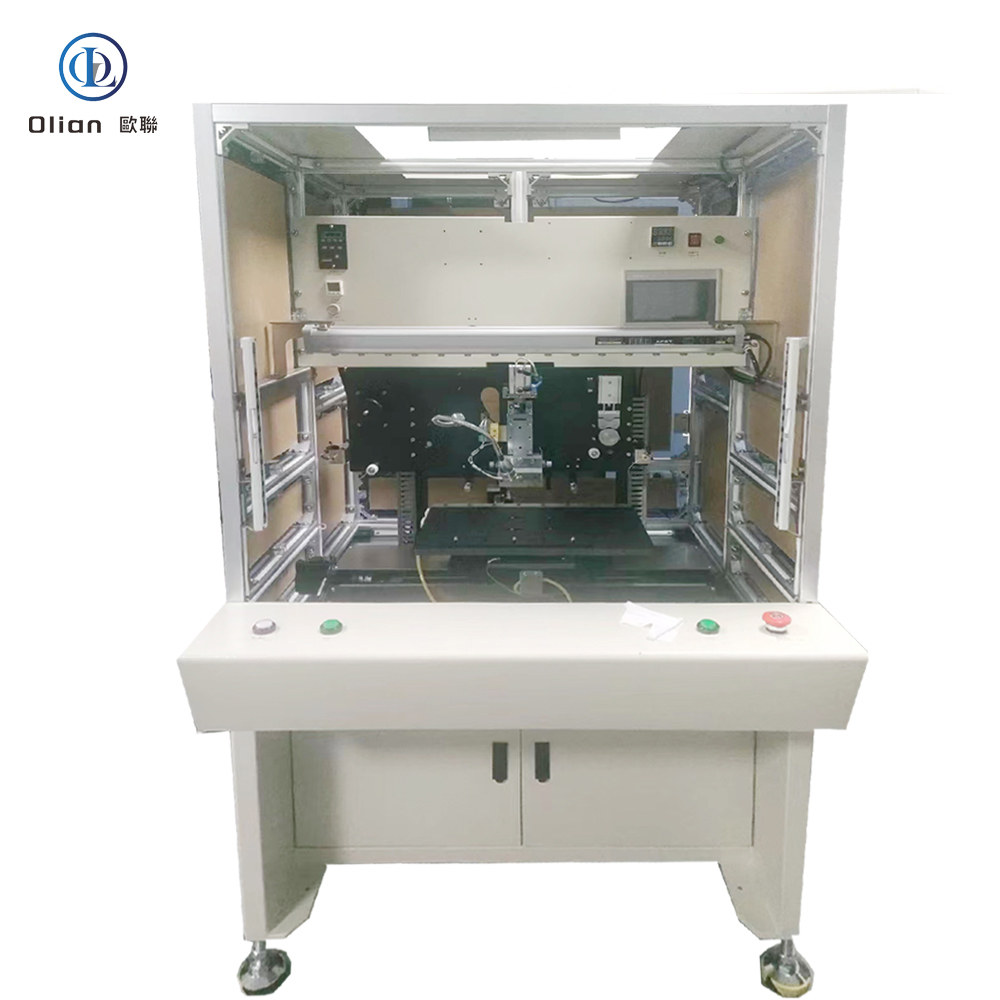

OL-A156 Single-Side Multi-Segment ACF Attaching Machine: Precision and Flexibility

In the precise world of display manufacturing, accurate ACF attachment is a critical step. The OL-A156 Single-Side Multi-Segment ACF Attaching Machine, engineered by Olian Automatic, is a manual solution designed to deliver exceptional accuracy and flexibility.

This machine specializes in attaching Anisotropic Conductive Film (ACF) to a single side of a product. The process is streamlined for efficiency, from manual product placement to automated thermal compression and multi-position attaching.

🚀 Unmatched Performance for High-Volume Production

The OL-A156 Single-Side Multi-Segment ACF Attaching Machine is built for manufacturers who demand both speed and accuracy. Its manual design optimizes the workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 150-400 PCS/H, with a main bonding time of less than 10 seconds.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.25mm on the X-axis and ≤±0.15mm on the Y-axis.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-A156 handles a wide range of products, including rigid glass displays, flexible displays, FPC, and PCB products.

⚙️ Advanced Process & Intelligent Control

The OL-A156 streamlines the ACF attaching process by combining simple manual setup with sophisticated automation. This approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Product Placement: The operator manually places the panel on the working platform.
2. Vacuum Activation: The operator presses the vacuum button to secure the product.
3. Process Start: The operator presses the dual start buttons to begin the cycle.
4. Automated Attaching: The platform moves to the bonding position, and the thermal head descends.
5. Thermal Compression: The machine automatically performs the main bonding process.
6. Multi-Segment Process: The platform automatically moves to the next position and repeats the process.
7. Completion: The platform returns to the loading position, and the operator removes the finished product.

The entire process is managed by a reliable Panasonic PLC and a user-friendly Weinview touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-A156 features a robust construction with high-quality components from industry-leading brands like HIWIN, SMC, and Airtac.

Key Technical Specifications:

• Temperature Control: RT to 200℃ with a surface variance of ≤±3℃.
• Pressure Control: Adjustable from 25N to 200N with a digital pressure gauge.
• Power & Air: AC 220V, 1500W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 980mm (W) x 1050mm (D) x 1950mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-A156, the Single-Side Multi-Segment ACF Attaching Machine that combines speed, precision, and reliability.
