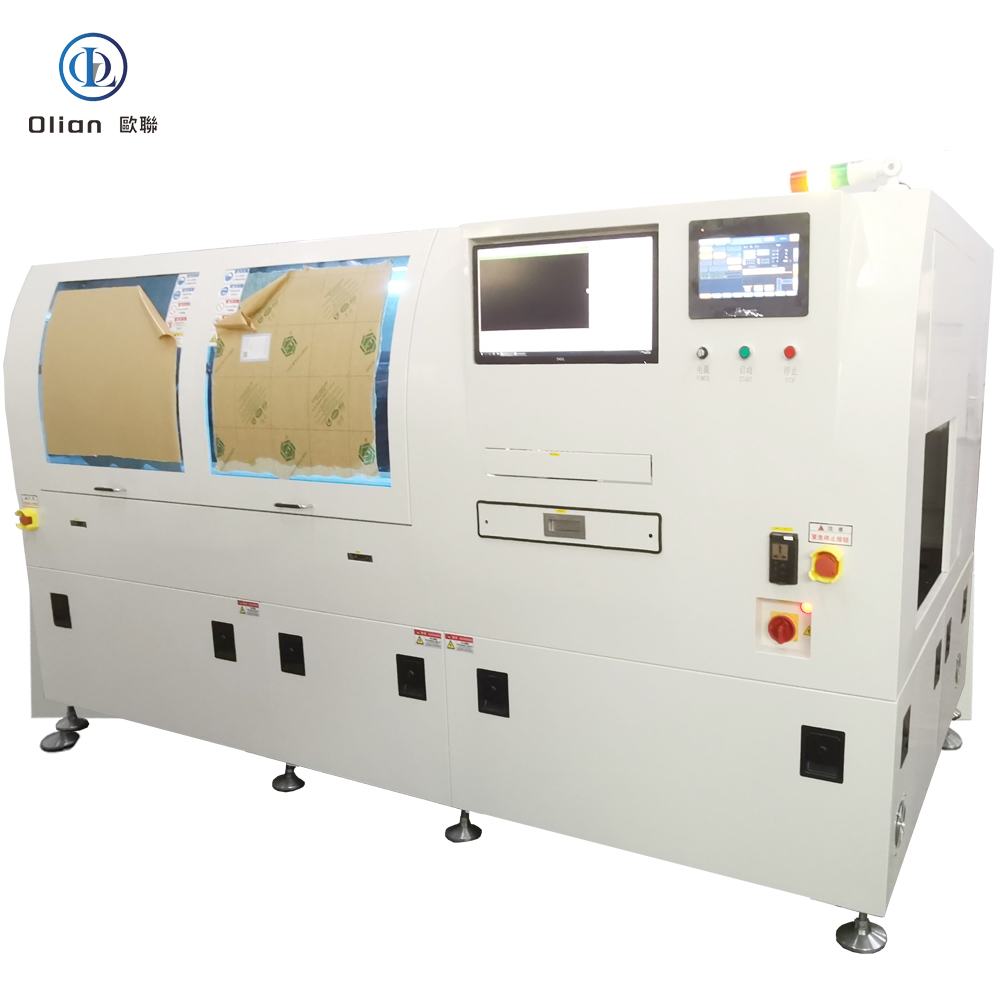

OL-3B20 Medium-Size Dual-Side Particle Inspection Machine: High-Speed Dual-Side Analysis

The OL-3B20 Medium-Size Dual-Side Particle Inspection Machine is an advanced in-line inspection system. It is engineered for high-speed, dual-side analysis of conductive particles and bonding defects.

Manufactured by Olian Automatic in Shenzhen, China, the OL-3B20 ensures quality in display manufacturing. It automatically inspects both sides of medium-sized panels with exceptional speed and accuracy.

Why Choose the OL-3B20 Medium-Size Dual-Side Particle Inspection Machine?

The OL-3B20 Medium-Size Dual-Side Particle Inspection Machine excels in medium-format display quality control. Its dual-platform design ensures maximum throughput for high-volume production.

• Dual-Side Capability: Simultaneously inspects both sides of medium-sized panels. This significantly increases production efficiency.
• Large Format Support: Handles panels from 5.0 to 17.6 inches. Maximum product size is 390 x 220mm.
• Ultra-Fast Speed: Tact time is ≤5 seconds for 1 IC + 1 FPC. It is ≤7 seconds for 2 ICs + 2 FPCs.
• High Precision: Achieves an offset detection accuracy of ±1.5um. Ensures reliable bonding quality assessment.
• Low False Rejection Rate: Maintains a false rejection rate of <1%. This ensures high production yield.
• Low Missed Detection Rate: Keeps the missed detection rate below 0.05%. Guarantees superior quality control.
• Quick Changeover: New model setup takes ≤60 minutes. Returning models take only ≤20 minutes.
• Comprehensive Defect Detection: Identifies cracks, foreign objects, and corrosion. Detects defects as small as 5*30um.

Advanced Dual-Platform Inspection Technology

The OL-3B20 features a sophisticated dual-platform structure for maximum efficiency. It uses a high-resolution line scan camera for detailed particle analysis.

Dual-Platform Structure:

• Configuration: Two independent inspection platforms for simultaneous operation.
• Control: Servo motors and linear motors for precise, high-speed movement.
• Vacuum Adsorption: Ensures stable product holding on both platforms during inspection.

Vision System:

• Line Scan Camera: One 3200-pixel resolution camera for particle inspection.
• Area Scan Camera: One 5MP monochrome camera for Mark point alignment.
• Pixel Size: 0.7um/pixel for the line scan camera.
• Focus: Automatic focus adjustment for consistent image quality.

Inspection Capabilities:

• Particle Analysis: Counts particles and measures distribution uniformity. Calculates particle offset with high precision.
• Defect Detection: Identifies cracks, chips, foreign objects, and scratches. Detects corrosion and IC surface damage.
• Dimple Detection: Can be configured to detect or filter dimples and dirt. This is a programmable feature.

Optimized Workflow

The OL-3B20 automates the complex process of dual-side particle and defect inspection. The system uses robotic arms for precise product handling between platforms.

The Optimized Workflow:

1. Power On: Turn on the equipment and perform origin return.
2. Loading: An upstream process places the panel on the input platform.
3. Transfer: A robotic arm moves the panel to an available inspection platform.
4. Alignment: A camera captures Mark points for position correction.
5. Scanning: The line scan camera captures high-resolution images of both sides.
6. Analysis: Software analyzes images to determine OK/NG status.
7. Sorting: A robotic arm places the product on the correct output line.
8. Output: OK products flow to the next process. NG products are separated.

The entire process is controlled by a reliable Mitsubishi PLC system. The Pro-face or Weinview HMI provides intuitive operation and parameter setting.

Robust Engineering & Safety Features

Built for demanding production environments, the OL-3B20 incorporates high-quality components and comprehensive safety systems.

Key Technical Specifications:

• Machine Dimensions: 3000(L) x 1500(W) x 1750(H) mm.
• Machine Weight: Approximately 2500kg.
• Machine Color: Ivory white frame with orange acrylic observation window.
• Product Thickness: 0.25 to 2mm (excluding polarizer thickness).

Component Brands:

• PLC: Mitsubishi
• HMI: Pro-face, Weinview
• Linear Motor: TAI LAI
• Servo Motors: Mitsubishi, Panasonic, GOOGOL
• Guideways: THK, HIWIN
• Sensors: SMC, Airtac

Safety Systems: The machine includes an interlock design with warning labels on hazardous areas. All potential hazard areas have clear warning labels. The EMO (emergency stop) cuts power to all moving units. A three-color signal tower provides visual status alerts.

Environmental Requirements: The machine requires a clean, dust-free workshop. Operating temperature should be 25±5°C. Relative humidity should be 50-80%.

Power & Air Requirements:

• Power: 1Phase AC220V, 50Hz/60Hz, 4.5KW
• Compressed Air: 0.5-0.7MPa, approximately 300L/min
• Vacuum: Customer supply required, approximately 250L/min

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Your Inspection Needs?

Olian Automatic is a trusted manufacturer of display inspection equipment headquartered in Shenzhen, China. With over two decades of experience, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. Visit our [About Us] page for more information about our company. Explore our [Product Lines] for complete display inspection solutions.

Sustainability Commitment: The OL-3B20 is designed for energy efficiency. Its optimized inspection process reduces power consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.

FAQ

Q: What is a Medium-Size Dual-Side Particle Inspection Machine?
A: It is an AOI system that inspects both sides of 5-17.6″ display panels for particle and bonding defects.

Q: What products can the OL-3B20 inspect?
A: The OL-3B20 inspects 5-17.6″ TFT and non-flexible OLED panels for COG, FOG, and COF bonding.

Q: What is the inspection speed of the OL-3B20?
A: The tact time is ≤5 seconds for a panel with 1 IC and 1 FPC.

Q: What is the inspection accuracy of the OL-3B20?
A: The OL-3B20 achieves an offset detection accuracy of ±1.5um for precise measurement.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.

Q: How long does product changeover take?
A: New model setup takes ≤60 minutes, while returning models take only ≤20 minutes.

Q: What type of environment is required for the OL-3B20?
A: The machine requires a clean, dust-free workshop with temperature 25±5°C and humidity 50-80%.

Q: Does the machine require an external vacuum supply?
A: Yes, the equipment requires a customer-supplied vacuum source for product handling.

Upgrade your display inspection line with the OL-3B20, the Medium-Size Dual-Side Particle Inspection Machine that combines dual-side capability, speed, and reliability.

---
