OL-WB650 Automatic CCD Screen Laminating Machine: Precision for Large-Format Displays

The OL-WB650 Automatic CCD Screen Laminating Machine is engineered for high-precision film lamination on large displays. This automatic equipment handles products up to 65 inches with exceptional accuracy.

Manufactured by Olian Automatic in Shenzhen, China, the OL-WB650 delivers reliable performance for large-format LCD and touch panel assembly. The machine combines manual loading with an automated CCD alignment and laminating process for optimal efficiency.

Why Choose the OL-WB650 Automatic CCD Screen Laminating Machine?

The OL-WB650 Automatic CCD Screen Laminating Machine excels in large-format display manufacturing. Its robust design ensures consistent lamination quality for high-precision products.

• Large Format Capability: Handles displays from 23 to 65 inches. Maximum product size reaches 1500 x 800mm.
• High Precision: Achieves an accuracy of ≤±0.15mm. Ensures perfect alignment for each lamination.
• Fast Cycle Time: Total cycle time is approximately 35 seconds. This excludes manual loading and cleaning time.
• Excellent Yield Rate: Maintains a product qualification rate of ≥99%. This excludes human error and material defects.
• Quick Changeover: New model setup takes approximately 60 minutes. Returning models take only 30 minutes.
• Versatile Applications: Bonds film to glass or other hard boards. Handles a wide range of product thicknesses.
• Wide Material Compatibility: Accepts glass thickness from 0.1 to 1.6mm. Accepts film thickness from 0.1 to 0.3mm.
• Fine Pitch Support: Suitable for products with a step gap of ≥0.4mm.

Advanced Laminating Technology

The OL-WB650 features precise pressure and speed control for optimal film attachment. The system ensures uniform lamination across the entire contact area.

Laminating Pressure:

• Range: 0.1 to 0.6MPa
• Control: Precise pressure regulation for consistent results
• Programmable for different materials

Pressure Control:

• Control Method: Precision pressure regulator valve
• Ensures uniform pressure application

Roller Specifications:

• Dimensions: Φ48mm diameter, 830mm length
• Effective Stroke: ≤1550mm
• Hardness: Standard 60 degrees (customizable)

Platform Specifications:

• Flipping Platform: 1600 x 900mm
• Net Box: 1800 x 960mm
• Material: Hard magnesium aluminum

CCD Laminating Process

The OL-WB650 simplifies the complex process of large-panel film lamination. The system relies on skilled operator loading for high-precision results.

The Optimized Workflow:

1. Power On: Turn on the equipment and perform origin return.
2. Panel Loading: Manually place the glass/display panel on the flipping platform.
3. Panel Alignment: Activate vacuum suction to secure the panel.
4. Film Loading: Place the film on the net box and activate vacuum.
5. Process Start: Press the start button to begin the cycle.
6. Flipping: The flipping platform moves to a safe position and rotates.
7. CCD Alignment: The CCD vision system automatically aligns the panel and film.
8. Laminating: The roller moves up and completes the lamination process.
9. Return: The platform returns to the loading position.
10. Unloading: The operator removes the finished product manually.

The entire process is controlled by a reliable Panasonic PLC system. The Weinview HMI provides intuitive operation and parameter setting.

Robust Engineering & Safety Features

Built for demanding production environments, the OL-WB650 incorporates high-quality components and comprehensive safety systems.

Key Technical Specifications:

• Platform Size: 1600 x 900mm (flipping), 1800 x 960mm (net box)
• Product Thickness: 0.1 to 1.6mm (glass), 0.1 to 0.3mm (film)

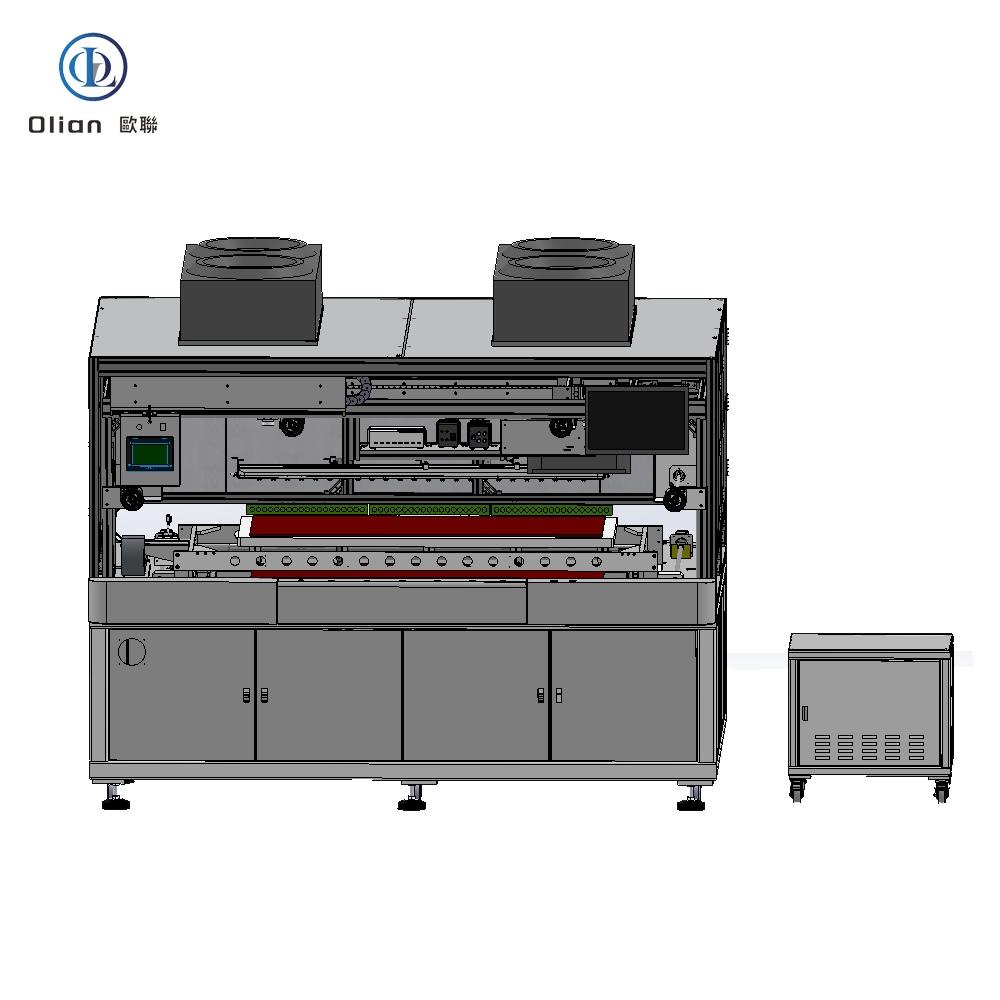

• Machine Dimensions: 2690 x 2650 x 2450mm (including FFU and lights)
• Working Height: 938±30mm (net box), 1160±30mm (flipping platform)
• Machine Weight: Approximately 1380kg
• Machine Color: Bright white frame with chrome/anodized parts

Component Brands:

• PLC: Panasonic
• HMI: Weinview
• Cylinders: Airtac, CKD
• Pressure Regulators: Airtac, SMC
• Guideways: THK, TBI, PMI, HIWIN
• Servo Motors: Fuji, Panasonic

Safety Systems: The machine includes interlock design with warning labels on hazardous areas. All high-temperature and mechanical hazard areas have clear warning labels. The EMO (emergency stop) cuts all power to servo drives. A three-color signal tower provides visual status alerts.

Environmental Requirements: The machine requires a clean, dust-free workshop. Operating temperature should be 23±5°C. Relative humidity should be 60%±15%.

Power & Air Requirements:

• Power: 1Phase AC220V, 50Hz/60Hz, 4500W
• Compressed Air: 0.5-0.7MPa, approximately 250L/min
• Vacuum: Factory vacuum required, approximately 200L/min

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Your Laminating Needs?

Olian Automatic is a trusted manufacturer of display assembly equipment headquartered in Shenzhen, China. With over two decades of experience, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. Visit our [About Us] page for more information about our company. Explore our [Product Lines] for complete display assembly solutions.

Sustainability Commitment: The OL-WB650 is designed for energy efficiency. Its optimized laminating process reduces power consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.

FAQ

Q: What is an Automatic CCD Screen Laminating Machine used for?
A: It laminates film to large LCD or touch panels up to 65 inches for display manufacturing.

Q: What products can the OL-WB650 handle?
A: The OL-WB650 handles LCD products from 23 to 65 inches with film lamination capabilities.

Q: What is the laminating precision of the OL-WB650?
A: The OL-WB650 achieves an accuracy of ≤±0.15mm on both X and Y axes.

Q: How long does the laminating process take?
A: The total cycle time is approximately 35 seconds, excluding manual loading and cleaning.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.

Q: How long does product changeover take?
A: New model setup takes approximately 60 minutes, while returning models take 30 minutes.

Q: What type of environment is required for the OL-WB650?
A: The machine requires a clean, dust-free workshop with temperature 23±5°C and humidity 60%±15%.

Q: What is the minimum step gap supported by the OL-WB650?
A: The OL-WB650 is suitable for products with a step gap of ≥0.4mm.

Upgrade your display assembly line with the OL-WB650, the Automatic CCD Screen Laminating Machine that combines precision, versatility, and reliability.

---
