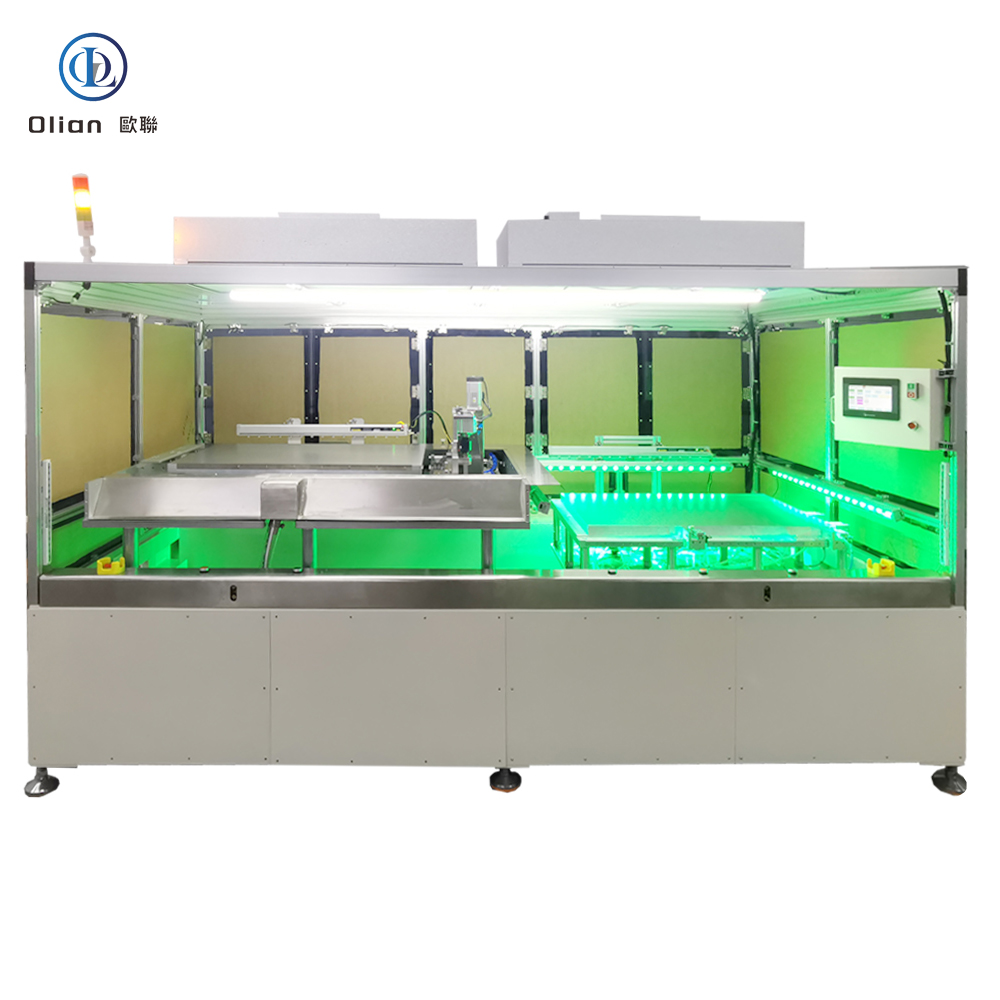

OL-FBM037 Semi-Automatic Flipping Laminating Machine: Precision for Large-Format Displays

The OL-FBM037 Semi-Automatic Flipping Laminating Machine is engineered for high-precision film lamination on large displays. This semi-automatic equipment handles products up to 32 inches with exceptional accuracy.

Manufactured by Olian Automatic in Shenzhen, China, the OL-FBM037 delivers reliable performance for large-format LCD and touch panel assembly. The machine combines manual loading with an automated flipping and laminating process for optimal efficiency.

Why Choose the OL-FBM037 Semi-Automatic Flipping Laminating Machine?

The OL-FBM037 Semi-Automatic Flipping Laminating Machine excels in large-format display manufacturing. Its robust design ensures consistent lamination quality for high-precision products.

• Large Format Capability: Handles displays from 7 to 32 inches. Maximum product size reaches 710 x 400mm.
• High Precision: Achieves X and Y-axis accuracy of ≤±0.1mm. Ensures perfect alignment for each lamination.
• Fast Cycle Time: Total cycle time is under 40 seconds. This excludes manual loading and cleaning time.
• Excellent Yield Rate: Maintains a product qualification rate of ≥98%. This excludes human error and material defects.
• Quick Changeover: New model setup takes approximately 30 minutes. Returning models take only 10 minutes.
• Versatile Applications: Bonds film to hard or soft boards. Handles a wide range of product thicknesses.
• Wide Material Compatibility: Accepts FPC thickness from 0.1 to 1mm. Accepts glass thickness from 0.1 to 1mm.
• Fine Pitch Support: Suitable for products with a step gap of ≥0.4mm.

Advanced Laminating Technology

The OL-FBM037 features precise pressure and speed control for optimal film attachment. The system ensures uniform lamination across the entire contact area.

Laminating Speed:

• Range: 40 to 200mm/s
• Control: Precise speed regulation for consistent results
• Programmable for different materials

Pressure Control:

• Range: 0.2 to 0.4MPa
• Control Method: Precision pressure regulator valve
• Ensures uniform pressure application

Roller Specifications:

• Dimensions: Φ50mm diameter, 648mm length
• Material: Stainless steel with rubber coating
• Hardness: Standard 60 degrees (customizable)

Platform Specifications:

• Flipping Platform: 620 x 920mm
• Lower Platform: 620 x 920mm
• Material: Hard magnesium aluminum

Flipping Laminating Process

The OL-FBM037 simplifies the complex process of large-panel film lamination. The system relies on skilled operator loading for high-precision results.

The Optimized Workflow:

1. Power On: Turn on the equipment and perform origin return.
2. Film Loading: Manually place the polarizer film on the flipping platform.
3. Film Alignment: Adjust position and activate vacuum suction.
4. Panel Loading: Place the display panel on the lower platform.
5. Process Start: Press the start button to begin the cycle.
6. Flipping: The flipping cylinder rotates 180 degrees automatically.
7. Laminating: The lower platform moves, and the roller completes lamination.
8. Return: The platform returns to the loading position.
9. Reset: The flipping platform resets to its original position.
10. Unloading: The operator removes the finished product manually.

The entire process is controlled by a reliable Panasonic PLC system. The Weinview HMI provides intuitive operation and parameter setting.

Robust Engineering & Safety Features

Built for demanding production environments, the OL-FBM037 incorporates high-quality components and comprehensive safety systems.

Key Technical Specifications:

• Platform Size: 620 x 920mm (flipping and lower)
• Product Thickness: 0.1 to 1mm
• Machine Dimensions: 3010 x 1600 x 2120mm (including FFU and lights)
• Working Height: 820mm (lower platform), 1020mm (flipping platform)
• Machine Weight: Approximately 900kg
• Machine Color: Computer white frame with chrome/anodized parts

Component Brands:

• PLC: Panasonic
• HMI: Weinview
• Cylinders: Airtac
• Pressure Regulators: SMC
• Guideways: HIWIN, TBI
• Servo Motors: Panasonic

Safety Systems: The machine includes interlock design with warning labels on hazardous areas. All high-temperature and mechanical hazard areas have clear warning labels. The EMO (emergency stop) cuts all power to servo drives. A three-color signal tower provides visual status alerts.

Environmental Requirements: The machine requires a clean, dust-free workshop. Operating temperature should be 22-27°C. Relative humidity should be 40-70%.

Power & Air Requirements:

• Power: 1Phase AC220V, 50Hz/60Hz, 2000W
• Compressed Air: 0.4-0.7MPa, approximately 150L/min
• Vacuum: Factory vacuum required, approximately 66L/min

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Your Laminating Needs?

Olian Automatic is a trusted manufacturer of display assembly equipment headquartered in Shenzhen, China. With over two decades of experience, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. Visit our [About Us] page for more information about our company. Explore our [Product Lines] for complete display assembly solutions.

Sustainability Commitment: The OL-FBM037 is designed for energy efficiency. Its optimized laminating process reduces power consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.

FAQ

Q: What is a Semi-Automatic Flipping Laminating Machine used for?
A: It laminates film to large LCD or touch panels up to 32 inches for display manufacturing.

Q: What products can the OL-FBM037 handle?
A: The OL-FBM037 handles LCD products from 7 to 32 inches with film lamination capabilities.

Q: What is the laminating precision of the OL-FBM037?
A: The OL-FBM037 achieves an accuracy of ≤±0.1mm on both X and Y axes.

Q: How long does the laminating process take?
A: The total cycle time is under 40 seconds, excluding manual loading and cleaning.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.

Q: How long does product changeover take?
A: New model setup takes approximately 30 minutes, while returning models take 10 minutes.

Q: What type of environment is required for the OL-FBM037?
A: The machine requires a clean, dust-free workshop with temperature 22-27°C and humidity 40-70%.

Q: What is the minimum step gap supported by the OL-FBM037?
A: The OL-FBM037 is suitable for products with a step gap of ≥0.4mm.

Upgrade your display assembly line with the OL-FBM037, the Semi-Automatic Flipping Laminating Machine that combines precision, versatility, and reliability.

---
