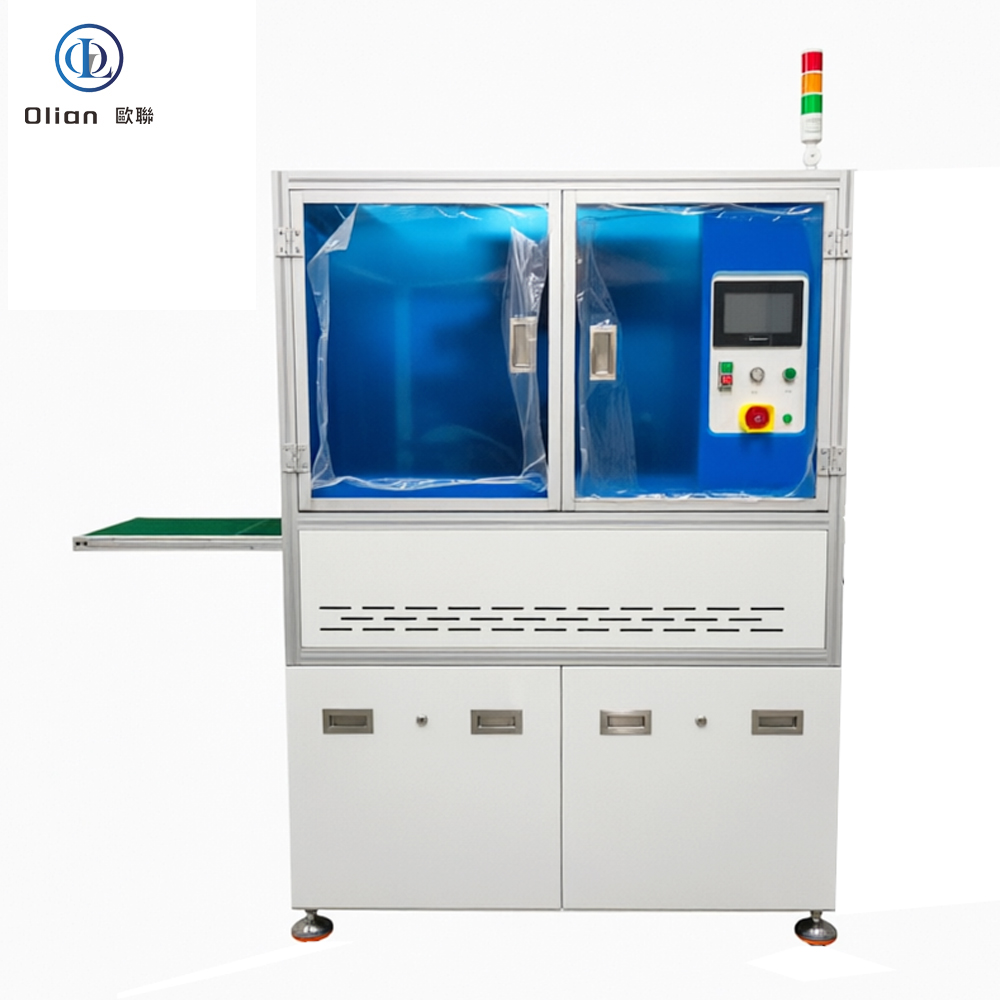

OL-ACF150-T Semi-Automatic Dual-Side COF ACF Attaching Machine: Precision Bonding

In the precise world of display manufacturing, accurate ACF attachment is a critical step. The OL-ACF150-T Semi-Automatic Dual-Side COF ACF Attaching Machine, engineered by Olian Automatic, is a semi-automatic solution designed to deliver exceptional accuracy and reliability.

This machine specializes in attaching two different types of Anisotropic Conductive Film (ACF) to both ends of a COF (Chip on Film). The process is streamlined for efficiency, from manual COF placement to automated thermal compression.

🚀 Unmatched Performance for High-Volume Production

The OL-ACF150-T Semi-Automatic Dual-Side COF ACF Attaching Machine is built for manufacturers who demand both speed and accuracy. Its semi-automatic design optimizes the workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity with a cycle time of less than 14.7 seconds for continuous production.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.25mm on both X and Y axes.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-ACF150-T handles a wide range of COF sizes, from 20mm to 80mm in length and 10mm to 60mm in width.

⚙️ Advanced Process & Intelligent Control

The OL-ACF150-T streamlines the ACF attaching process by combining simple manual setup with sophisticated automation. This approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Material Loading: The operator manually installs the two types of ACF material rolls.
2. COF Placement: The operator places the COF onto the platform and activates the vacuum.
3. Process Selection: The operator selects the positions for ACF attachment on the touch screen.
4. Automated Attaching: The operator presses the dual start buttons. The machine automatically attaches the first ACF type.
5. Automated Bonding: The machine moves to the thermal compression position to bond the first ACF.
6. Second Side Process: The machine repeats the attach and bond process for the second ACF type.
7. Completion: The process finishes, and the operator removes the completed COF.

The entire process is managed by a reliable Panasonic PLC and a user-friendly Weinview touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-ACF150-T features a robust construction with high-quality components from industry-leading brands like HIWIN, SMC, and Airtac.

Key Technical Specifications:

• Temperature Control: RT to 200℃ with a surface variance of ≤±5℃.
• Pressure Control: Adjustable from 25N to 200N with a digital pressure gauge.
• Power & Air: AC 220V, 2000W; Compressed air at 0.4~0.7 Mpa.
• Dimensions: 1350mm (W) x 930mm (D) x 1680mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-ACF150-T, the Semi-Automatic Dual-Side COF ACF Attaching Machine that combines speed, precision, and reliability.
