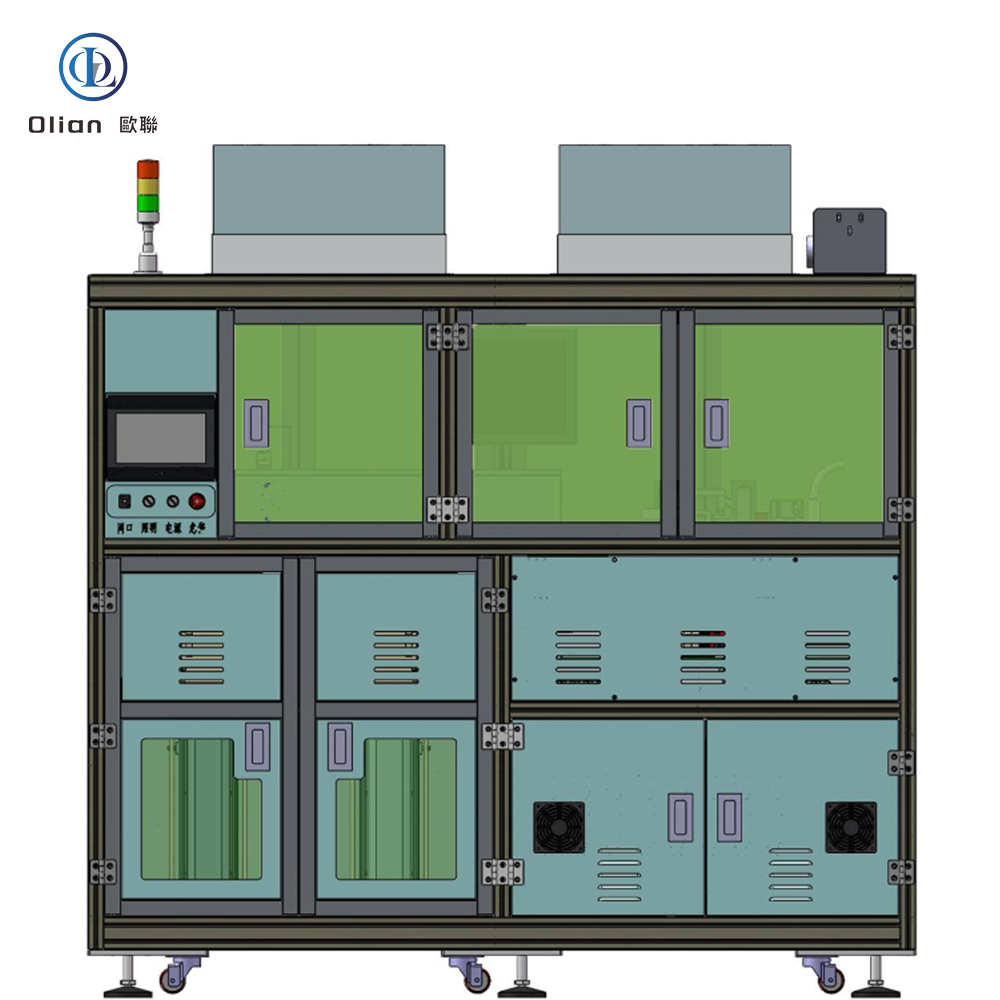

OL-LEC-600C Automatic LCD Terminal Cleaning Machine: Precision Cleaning for Display Terminals

The OL-LEC-600C Automatic LCD Terminal Cleaning Machine is an advanced in-line cleaning system. It is engineered for high-precision cleaning of LCD terminals.

Manufactured by Olian Automatic in Shenzhen, China, the OL-LEC-600C ensures quality in display manufacturing. It automatically performs wiping, solvent cleaning, and plasma treatment with exceptional accuracy.

Why Choose the OL-LEC-600C Automatic LCD Terminal Cleaning Machine?

The LEC-600C Automatic LCD Terminal Cleaning Machine excels in LCD terminal preparation. Its integrated process ensures superior bonding surface quality.

• Versatile Product Compatibility: Cleans LCDs from 20x20mm to 150x90mm. Handles thickness from 0.15 to 1.1mm.
• High Cleaning Precision: Achieves of ±0.1mm. Ensures reliable cleaning process control.
• Fast Cleaning Speed: Tact time is 3.5 seconds for products under 4 inches. It is 4.2 seconds for 4-6.5 inch products.
• Effective Plasma Treatment: Achieves a water drop angle of ≤15 degrees. Ensures excellent surface activation.
• Quick Changeover: New model setup takes ≤30 minutes. Returning models take only ≤20 minutes.
• Comprehensive Cleaning Process: Integrates wiping, solvent cleaning, and plasma treatment. Provides a complete cleaning solution.
• Flexible Solvent Options: Compatible with alcohol or acetone cleaning solvents. Adapts to different cleaning requirements.
• Automated Operation: Can be used in-line with other equipment. Requires no fixed operator for continuous production.

Advanced Cleaning Technology

The LEC-600C features a sophisticated multi-stage cleaning system for thorough terminal preparation. It combines mechanical wiping with chemical and plasma treatment.

Cleaning Process:

• Mechanical Wiping: Uses roll-type lint-free cloth for physical cleaning. Cloth length is programmable from 0.1 to 99.9mm.
• Solvent Cleaning: Employs a peristaltic dispenser for precise solvent application. Solvent amount is adjustable for optimal cleaning.
• Plasma Treatment: Utilizes a low-temperature plasma unit (PT300 model). Operating temperature is approximately 100 degrees Celsius.

Vision & Control System:

• Large FOV Camera: 600W camera with FA lens for product alignment (optional).
• CCD Correction: Automatic position correction through camera imaging.
• PLC Control: Panasonic PLC for reliable system control.
• HMI: Weintek touchscreen with Chinese interface for operation.

Handling System:

• Loading Mechanism: Servo motor with screw and guide rail for Z-axis.
• Transfer Robots: Multiple robotic arms with servo motors for X/Y axes.
• Vacuum System: Digital vacuum gauges for monitoring suction pressure.
• Stage: Aluminum platform with black hard anodizing treatment.

Optimized Workflow

The OL-LEC-600C automates the complex process of LCD terminal cleaning. The system uses multiple robotic arms for precise product handling between stations.

The Optimized Workflow:

1. Loading: Operator places full trays into the input magazine.
2. Transfer 1: Loading robot moves product to the transfer platform.
3. Alignment: Large FOV camera performs vision correction (optional).
4. Transfer 2: EC Robot 1 moves product to the cleaning platform.
5. Cleaning: Product undergoes wiping and solvent cleaning.
6. Transfer 3: EC Robot 2 moves product to the plasma station.
7. Plasma Treatment: Low-temperature plasma activates the terminal surface.
8. Unloading: Product is transferred to the output conveyor or next machine.

The entire process is controlled by a reliable Panasonic PLC system. The Weintek HMI provides intuitive operation and parameter setting.

Robust Engineering & Safety Features

Built for demanding production environments, the LEC-600C incorporates high-quality components and comprehensive safety systems.

Key Technical Specifications:

• Machine Dimensions: 2060(L) x 1100(W) x 1800(H) mm.
• Machine Weight: Approximately 1200kg.
• Machine Color: Black hard anodized parts with ivory white frame.
• Tray Size: Maximum 420x510mm, minimum 250x220mm.

Component Brands:

• PLC: Panasonic (Japan)
• HMI: Weintek (China)
• Servo Motors: Ruitai (China)
• Screws & Rails: HIWIN/TBI (China)
• Pneumatics: SMC (Japan), Airtac (China)
• Sensors: Moons’ (China)
• Power Supply: Mean Well (China)
• Cable Carrier: Igus (Germany)

Safety Systems: The machine includes an interlock design with warning labels on hazardous areas. Emergency stop button has a protective cover to prevent accidental activation. Door opening during operation triggers machine pause. Three-color signal tower provides visual status alerts.

Environmental Requirements: The machine requires a clean, dust-free workshop. Operating temperature and humidity should be controlled for optimal performance.

Power & Air Requirements:

• Power: 1Phase AC220V, 50Hz/60Hz, 4.5KW max
• Compressed Air: 0.5-0.7MPa, ≤220 L/min
• Vacuum: Built-in pump (200L/min) or customer supply (≥700 L/min)

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Your Cleaning Needs?

Olian Automatic is a trusted manufacturer of display manufacturing equipment headquartered in Shenzhen, China. With extensive experience in automation, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. Visit our [About Us] page for more information about our company. Explore our [Product Lines] for complete display manufacturing solutions.

Sustainability Commitment: The OL-LEC-600C is designed for energy efficiency. Its optimized cleaning process reduces solvent consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.

FAQ

Q: What is an Automatic LCD Terminal Cleaning Machine?
A: It is an automated system that cleans LCD terminals using wiping, solvent, and plasma treatment.

Q: What products can the 0L-LEC-600C clean?
A: The LEC-600C cleans LCDs from 20x20mm to 150x90mm with thickness 0.15-1.1mm.

Q: What is the cleaning speed of the OL-LEC-600C?
A: The tact time is 3.5 seconds for products under 4 inches.

Q: What cleaning solvents are compatible with the OL-LEC-600C?
A: The machine is compatible with alcohol or acetone cleaning solvents.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.

Q: How long does product changeover take?
A: New model setup takes ≤30 minutes, while returning models take only ≤20 minutes.

Q: What type of environment is required for the OL-LEC-600C?
A: The machine requires a clean, dust-free workshop environment for optimal operation.

Q: Does the machine have a built-in vacuum system?
A: Yes, it has a built-in vacuum pump (200L/min) or can use customer supply.

Upgrade your LCD cleaning process with the OL-LEC-600C, the Automatic LCD Terminal Cleaning Machine that combines wiping, solvent, and plasma treatment for superior results.

---
