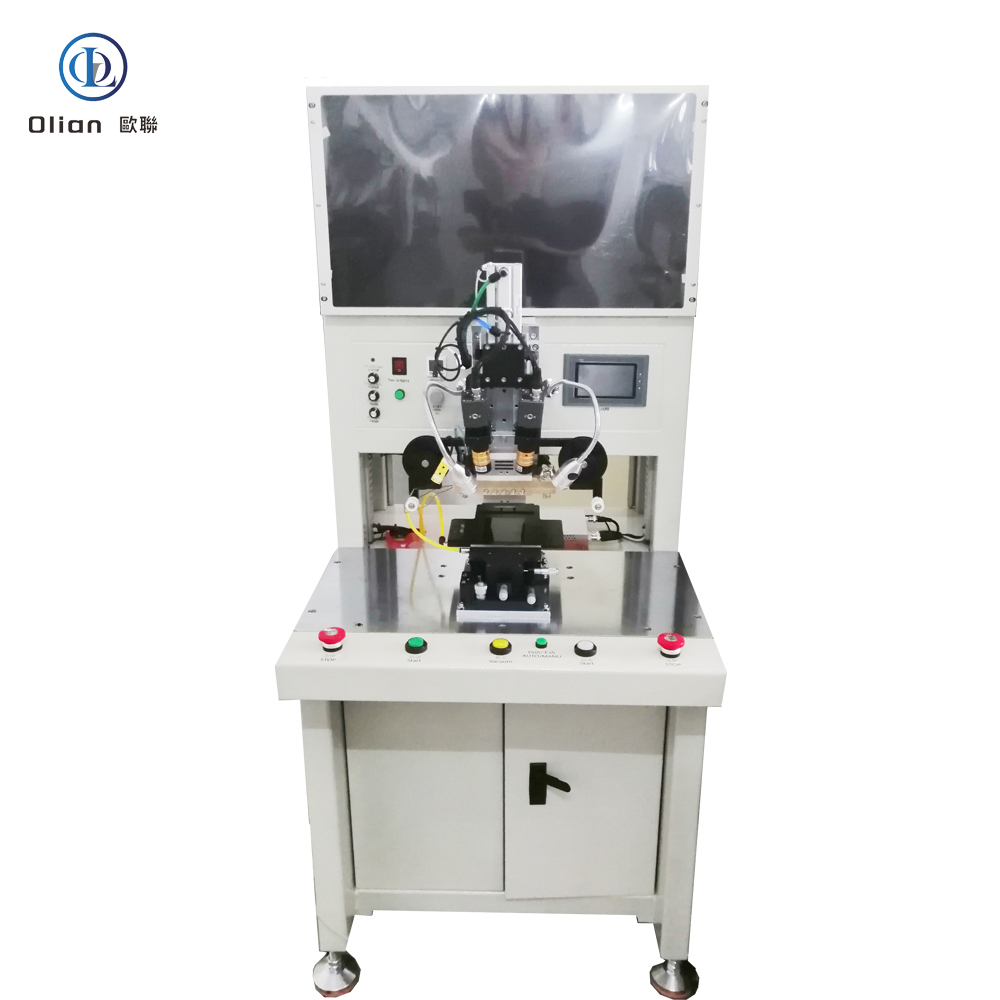

OL-FPD005 Single-Station COF Manual Pulse Pre-Bonder: Precision and Control

In the precise world of display manufacturing, a perfect initial bond is essential. The OL-FPD005 Single-Station COF Manual Pulse Pre-Bonder, engineered by Olian Automatic, is a semi-automatic solution designed for exceptional accuracy and control.

This machine specializes in the pre-bonding of COF (Chip on Film) onto display panels already attached with Anisotropic Conductive Film (ACF). The loading, unloading, and product alignment are done manually, while the thermal compression process is fully automated.

🚀 Unmatched Performance for High-Precision Tasks

The OL-FPD005 Single-Station COF Manual Pulse Pre-Bonder is built for manufacturers who demand both speed and accuracy. Its single-station design optimizes the workflow to maximize output without compromising on quality.

• High Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.008mm on the X and Y axes.
• Efficient Throughput: The efficient design enables a production capacity of approximately 60-100 PCS/H, with a pre-bonding time of less than 1.5 seconds.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-FPD005 handles a wide range of products, from 3-inch to 7-inch displays, and can process fine pitches as small as 25um.

⚙️ Advanced Process & Intelligent Control

The OL-FPD005 streamlines the bonding process by combining manual operation with sophisticated automation. This semi-automatic approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Panel Placement: The operator manually places the ACF-attached panel onto the Panel work platform.
2. Vacuum Activation: The operator activates the vacuum to secure the panel to the platform.
3. COF Placement: The operator places the COF on its work platform and performs a preliminary alignment.
4. Manual Alignment: The operator performs precise visual alignment of the COF to the panel marks on the monitor.
5. Pre-Bonding Check: The operator presses the pre-bond button. The head descends without heating for a final check.
6. Automated Bonding: If alignment is correct, the operator presses the dual start buttons. The head descends, heats, and bonds.
7. Completion: The head retracts after the set time, and the operator removes the finished product.

The entire process is managed by a reliable Panasonic or Delta PLC and a user-friendly touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-FPD005 features a robust construction with high-quality components from industry-leading brands like HIWIN, Airtac, and SMC.

Key Technical Specifications:

• Temperature Control: RT to 400℃ with a surface variance of ≤±8℃.
• Pressure Control: Adjustable from 20N to 300N with a precision regulator.
• Power & Air: AC 220V, 2500W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 750mm (W) x 960mm (D) x 1550mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-FPD005, the Single-Station COF Manual Pulse Pre-Bonder that combines speed, precision, and reliability.
