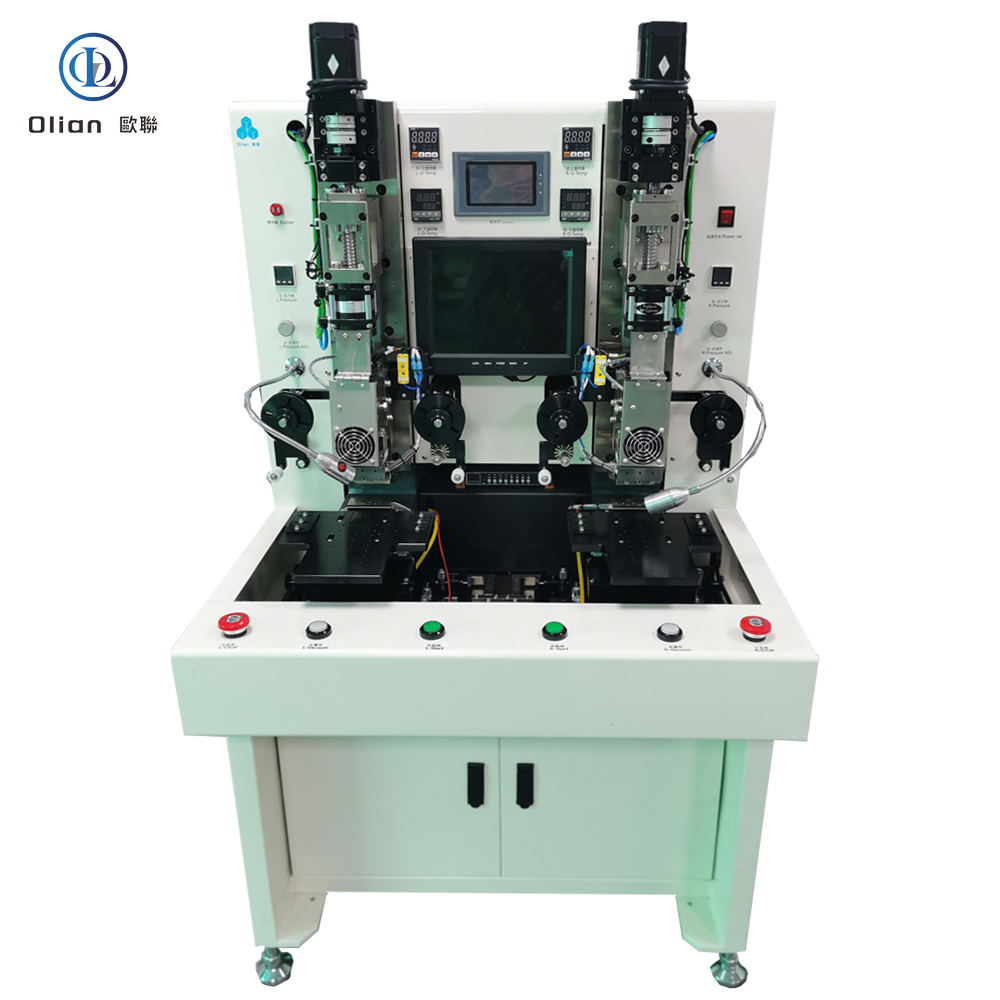

OL-C012C Dual-Station Servo Main Bonder: Precision and Speed

In the competitive world of display manufacturing, achieving a perfect main bond is critical. The OL-C012C Dual-Station Servo Main Bonder, engineered by Olian Automatic, is a semi-automatic solution designed to deliver exceptional precision and reliability for this essential process.

This machine specializes in the main bonding of ICs or COFs onto panels that have already been pre-bonded with Anisotropic Conductive Film (ACF). The loading and unloading of panels are done manually, while the thermal compression process is fully automated.

🚀 Unmatched Performance for High-Volume Production

The OL-C012C Dual-Station Servo Main Bonder is built for manufacturers who demand both speed and accuracy. Its dual-station design optimizes the workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 500-800 PCS/H for glass screens.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.005mm on both the X and Y axes.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-C012C handles a wide range of products, from 3-inch to 7-inch displays, and can process fine pitches as small as 18um.

⚙️ Advanced Process & Intelligent Control

The OL-C012C streamlines the main bonding process by combining manual operation with sophisticated automation. This semi-automatic approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Panel Placement: The operator manually places the pre-bonded panel onto the work platform.
2. Vacuum Activation: The operator confirms the position and activates the vacuum to secure the panel.
3. Automated Bonding: The operator presses the dual start buttons for safety. The machine automatically initiates the main bonding cycle.
4. Completion: The thermal head retracts after the set time, and the operator removes the finished product.

The entire process is managed by a reliable Panasonic PLC and a user-friendly touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-C012C features a robust construction with high-quality components from industry-leading brands like Panasonic, THK, and SMC.

Key Technical Specifications:

• Temperature Control: RT to 400℃ with a surface variance of ≤±5℃.
• Pressure Control: Adjustable from 20N to 500N with a precision regulator.
• Power & Air: AC 220V, 2000W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 820mm (W) x 890mm (D) x 1520mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-C012C, the Dual-Station Servo Main Bonder that combines speed, precision, and reliability.
