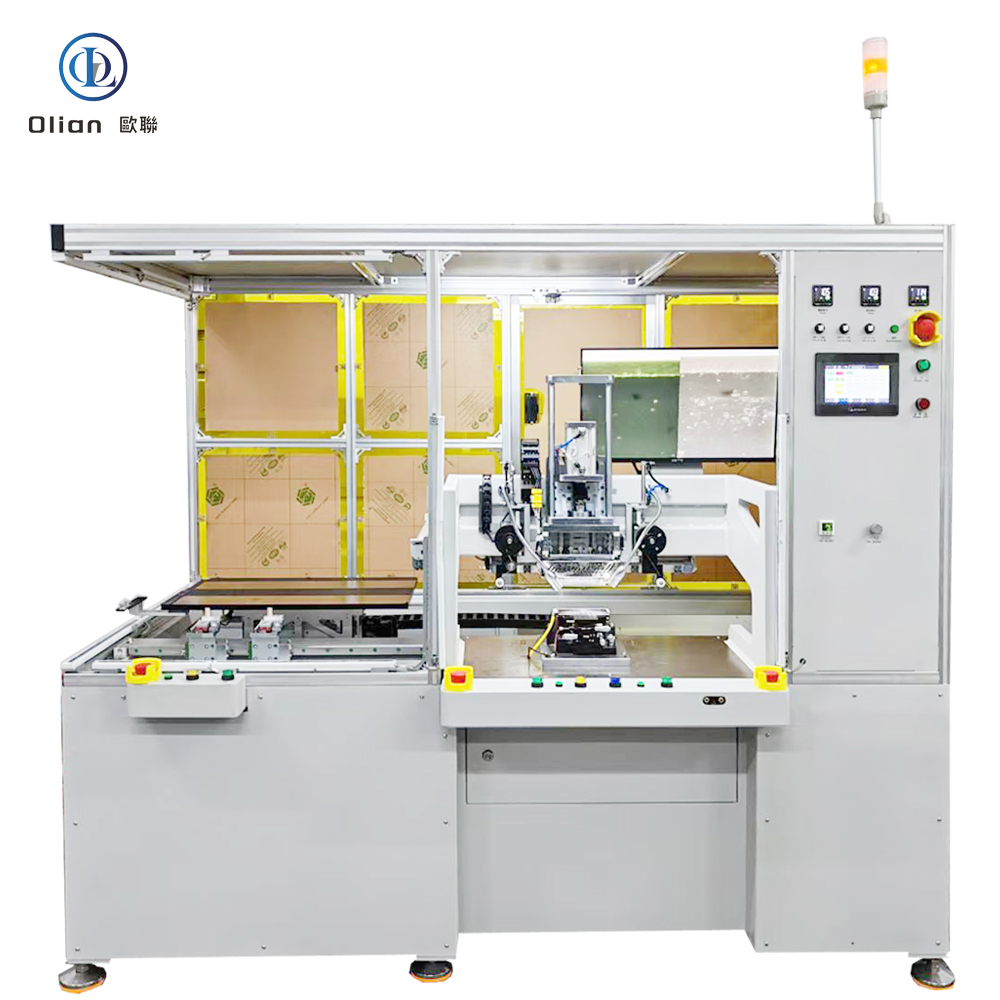

OL-FOG320 Large Size FOG Repair Machine: Precision Bonding for Large Displays

The OL-FOG320 Large Size FOG Repair Machine is engineered for precise Film-on-Glass (FOG) bonding and rework. This single-station machine handles large displays up to 32 inches with exceptional accuracy.

Manufactured by Olian Automatic in Shenzhen, China, the OL-FOG320 delivers reliable performance for LCD, FPC, and PCB assembly. The machine combines manual alignment with automated bonding processes for optimal efficiency.

Why Choose the OL-FOG320 Large Size FOG Repair Machine?

The OL-FOG320 Large Size FOG Repair Machine excels in large-format display manufacturing and repair. Its robust design ensures consistent bonding quality across multiple segments.

• Large Format Capability: Handles displays from 10 to 32 inches. Maximum product size reaches 710 x 400mm.
• Multi-Segment Bonding: Supports bonding of up to 10 FPCs of the same type on a single product.
• High Precision: Achieves X-axis accuracy of ≤30μm for COF. Achieves Y-axis accuracy of ≤40μm for COF.
• Fast Cycle Time: The bonding time per FPC is approximately 25 seconds. This excludes manual loading and alignment time.
• Excellent Yield Rate: Maintains a product qualification rate of ≥98%. This excludes human error and material defects.
• Quick Changeover: New model setup takes approximately 30 minutes. This minimizes production downtime.
• Versatile Applications: Bonds FPC and PCB to LCD substrates. Handles a wide range of product thicknesses.
• Wide Material Compatibility: Accepts FPC thickness from 0.05 to 1mm. Accepts PCB thickness from 0.3 to 2.0mm.

Advanced Bonding Technology

The OL-FOG320 features precise temperature, pressure, and time control for optimal FOG attachment. The system ensures uniform bonding across the entire contact area.

Temperature Control:

• Range: Room temperature to 400°C
• Surface temperature variation: ≤±3°C
• Constant temperature heating method

Pressure Control:

• Range: 25 to 400N
• Precision: ±5N
• Digital pressure display with unit selection

Time Setting:

• Range: 0.1 to 9.9 seconds
• Precise timing control for consistent results
• Programmable for different materials

Thermal Head Specifications:

• Standard size: 55 x 0.6mm (customizable)
• Material: Tungsten steel
• Surface flatness: ≤±3μm (standard 35mm)

Manual Alignment Bonding Process

The OL-FOG320 simplifies the complex process of large-panel FOG bonding. The system relies on skilled operator alignment for high-precision results.

The Optimized Workflow:

1. Panel Loading: Operator places the LCD panel on the glass platform manually.
2. Vacuum Activation: Panel is secured by vacuum suction.
3. FPC Loading: Operator places the FPC on the FPC platform.
4. Process Start: Operator initiates the automatic positioning sequence.
5. Manual Alignment: Operator performs alignment using mark points on the monitor.
6. Bonding Initiation: Operator presses dual start buttons for safety.
7. Thermal Bonding: Thermal head descends and applies pressure automatically.
8. Completion: Pressure head rises after the set time.
9. Tape Feeding: Buffer material tape advances automatically (if enabled).
10. Unloading: Operator removes the finished product manually.

The entire process is controlled by a reliable Panasonic PLC system. The Weinview touch screen provides intuitive operation and parameter setting.

Robust Engineering & Safety Features

Built for demanding production environments, the OL-FOG320 incorporates high-quality components and comprehensive safety systems.

Key Technical Specifications:

• Platform Size: 800 x 550mm
• Product Thickness: 0.2 to 0.5mm
• Machine Dimensions: 2150 x 1150 x 1850mm
• Working Height: 860±35mm
• Machine Weight: Approximately 550kg
• Machine Color: Beige frame with chrome/anodized parts

Component Brands:

• PLC: Panasonic (Japan)
• HMI: Weinview
• Servo Motors: Inovance (China)
• Cylinders: Airtac, Fujikura
• Guideways: HIWIN
• Valves: CKD, SMC, Airtac

ESD Protection: The OL-FOG320 meets strict ESD standards. All consumables and parts use anti-static materials. Panel surface static remains below ±100V during operation. Static dissipation reduces voltage from 1000V to 100V within 3 seconds. Ground impedance is ≤5Ω. ESD grounding is provided at all product handling points.

Safety Systems: The machine includes interlock design with buzzer alarms and touch screen alerts. All high-temperature and mechanical hazard areas have warning labels. The EMO (emergency stop) cuts all power to servo drives. A buzzer and three-color signal tower provide visual and audible alerts. Safety light curtains prevent operation when obstructed.

Environmental Requirements: The machine requires a clean, dust-free workshop. Operating temperature should be 22-27°C. Relative humidity should be 40-70%. An FFU (Fan Filter Unit) is installed above the work area for dust control.

Power & Air Requirements:

• Power: 3Phase AC220V, 50Hz/60Hz, 2500W
• Compressed Air: 0.4-0.7MPa, approximately 250L/min
• Vacuum: Approximately 36L/min (provided by facility)

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Your Bonding Needs?

Olian Automatic is a trusted manufacturer of display assembly equipment headquartered in Shenzhen, China. With over two decades of experience, we serve display manufacturers worldwide. Our equipment is designed in ISO-certified facilities and shipped to over 30 countries across Asia, Europe, and North America. Visit our [About Us] page for more information about our company. Explore our [Product Lines] for complete display assembly solutions.

Sustainability Commitment: The OL-FOG320 is designed for energy efficiency. Its optimized bonding process reduces power consumption. The machine also features low-noise operation and uses environmentally friendly materials in compliance with RoHS standards.

FAQ

Q: What is a large size FOG repair machine used for?
A: A large size FOG repair machine bonds FPC to large LCD panels up to 32 inches for display repair and manufacturing.

Q: What products can the OL-FOG320 handle?
A: The OL-FOG320 handles LCD products from 10 to 32 inches with FPC and PCB bonding capabilities.

Q: What is the bonding precision of the OL-FOG320?
A: The OL-FOG320 achieves X-axis precision of ≤30μm and Y-axis precision of ≤40μm for COF bonding.

Q: What is the yield rate of the OL-FOG320?
A: The OL-FOG320 achieves a product qualification rate of ≥98% under normal operating conditions.

Q: How long is the warranty period?
A: Olian Automatic provides a 1-year warranty with lifetime technical support for all equipment.

Q: How long does product changeover take?
A: New model setup takes approximately 30 minutes depending on engineer proficiency.

Q: What type of environment is required for the OL-FOG320?
A: The machine requires a clean, dust-free workshop with temperature 22-27°C and humidity 40-70%.

Q: What is the maximum number of FPCs per product?
A: The OL-FOG320 supports bonding of up to 10 FPCs of the same type on a single product.

Upgrade your display assembly line with the OL-FOG320, the Large Size FOG Repair Machine that combines precision, versatility, and reliability.

---
