OL-A003D Manual ACF Attaching Machine: Precision and Efficiency

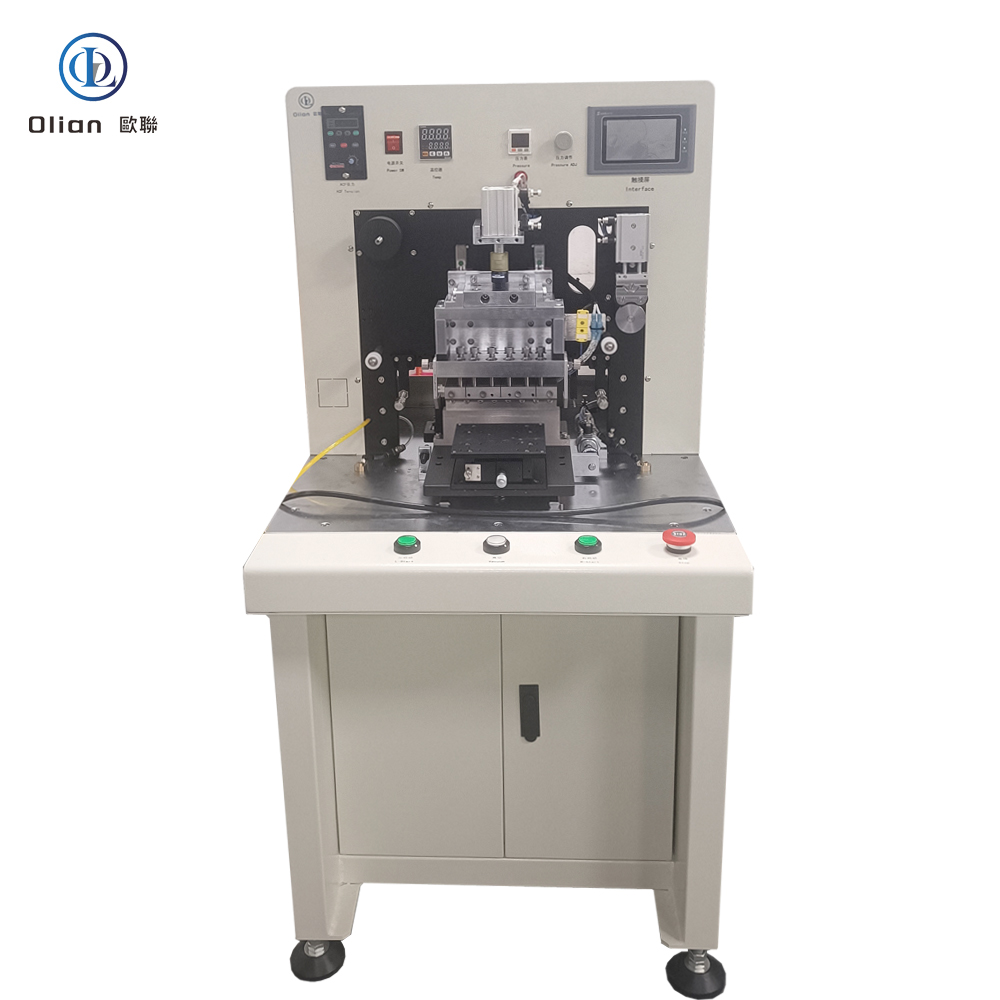

In the competitive world of display manufacturing, achieving a perfect bond is critical. The OL-A003D Manual ACF Attaching Machine, engineered by Olian Automatic, is a semi-automatic solution designed to deliver exceptional precision and reliability for this essential process.

This machine specializes in attaching Anisotropic Conductive Film (ACF) to LCD, FPC, or PCB products. The loading and unloading of panels are done manually, while the thermal compression process is fully automated.

🚀 Unmatched Performance for High-Volume Production

The OL-A003D Manual ACF Attaching Machine is built for manufacturers who demand both speed and accuracy. Its design optimizes the human-machine workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 400-600 PCS/H, with an attaching time of less than 1.5 seconds.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.2mm on the X-axis and ≤±0.1mm on the Y-axis, ensuring a consistent, high-quality bond.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-A003D handles a wide range of products, from 3-inch to 7-inch displays, and can process ACF widths from 0.5mm to 5mm.

⚙️ Advanced Process & Intelligent Control

The OL-A003D streamlines the ACF attaching process by combining manual operation with sophisticated automation. This semi-automatic approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Panel Placement: The operator manually places the panel onto the work platform.
2. Vacuum Activation: The operator presses the vacuum button to secure the panel in place.
3. Automated Bonding: The operator presses the dual start buttons for safety. The platform moves to the bonding position, and the thermal head descends.
4. Completion: The thermal head retracts after the set time. The platform returns to the loading position, and the operator removes the finished product.

The entire process is managed by a reliable Panasonic PLC and a user-friendly touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-A003D features a robust construction with high-quality components from industry-leading brands like Panasonic, THK, and SMC.

Key Technical Specifications:

• Temperature Control: RT to 200℃ with a surface variance of ≤±5℃.
• Pressure Control: Adjustable from 55N to 300N with a precision regulator.
• Power & Air: AC 220V, 1500W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 650mm (W) x 660mm (D) x 1340mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-A003D, the Manual ACF Attaching Machine that combines speed, precision, and reliability.
