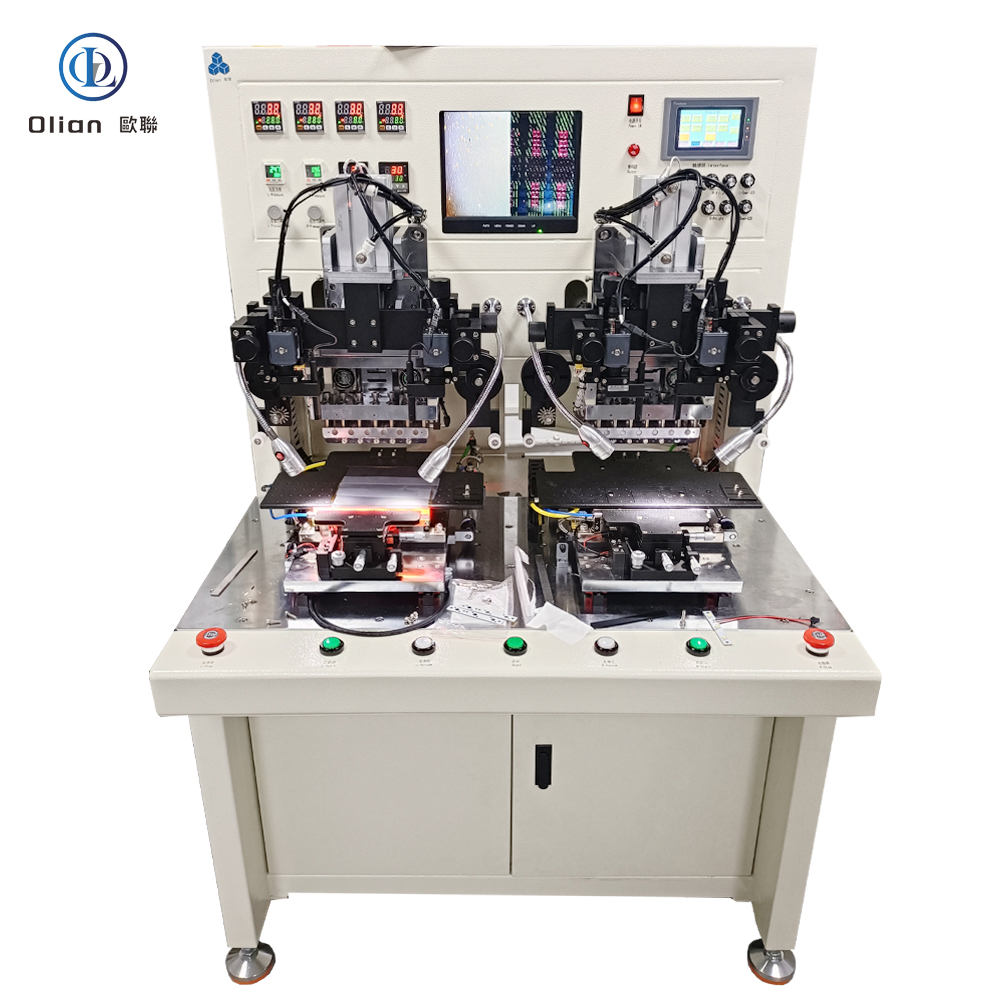

OL-F0716 Dual-Station FOG Bonding Machine: 150mm bonding head

In the competitive world of display manufacturing, achieving a perfect FOG (Film on Glass) bond is critical. The OL-F0716 Dual-Station FOG Bonding Machine, engineered by Olian Automatic, is a semi-automatic solution designed to deliver exceptional precision and reliability for this essential process.

This machine specializes in bonding FPCs or touch flex cables onto panels that have already been attached with Anisotropic Conductive Film (ACF). The loading, unloading, and product alignment are done manually, while the thermal compression process is fully automated.

🚀 Unmatched Performance for High-Volume Production

The OL-F0716 Dual-Station FOG Bonding Machine is built for manufacturers who demand both speed and accuracy. Its dual-station design optimizes the workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 150-300 PCS/H, with a bonding time of less than 10 seconds.
• Micron-Level Precision: Achieve flawless connections with remarkable alignment accuracy. The machine maintains a precision of ≤±0.035mm on the X-axis and ≤±0.04mm on the Y-axis.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Versatile Compatibility: The OL-F0716 handles a wide range of products, from 3-inch to 7-inch displays, and can process fine pitches as small as 65um.

⚙️ Advanced Process & Intelligent Control

The OL-F0716 streamlines the FOG bonding process by combining manual operation with sophisticated automation. This semi-automatic approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Panel Placement: The operator manually places the ACF-attached panel onto the glass platform.
2. Vacuum Activation: The operator places the FPC on its platform and activates the vacuum to secure the panel.
3. Manual Alignment: The operator performs precise visual alignment of the FPC to the panel marks on the monitor.
4. Automated Bonding: Once aligned, the operator presses the dual start buttons. The platform moves forward, and the thermal head descends for bonding.
5. Completion: The head retracts after the set time, and the operator removes the finished product.

The entire process is managed by a reliable Panasonic PLC and a user-friendly touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-F0716 features a robust construction with high-quality components from industry-leading brands like Panasonic, THK, and SMC.

Key Technical Specifications:

• Temperature Control: RT to 400℃ with a surface variance of ≤±5℃.
• Pressure Control: Adjustable from 55N to 600N with a precision regulator.
• Power & Air: AC 220V, 2500W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 900mm (W) x 850mm (D) x 1450mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-F0716, the Dual-Station FOG Bonding Machine that combines speed, precision, and reliability.
