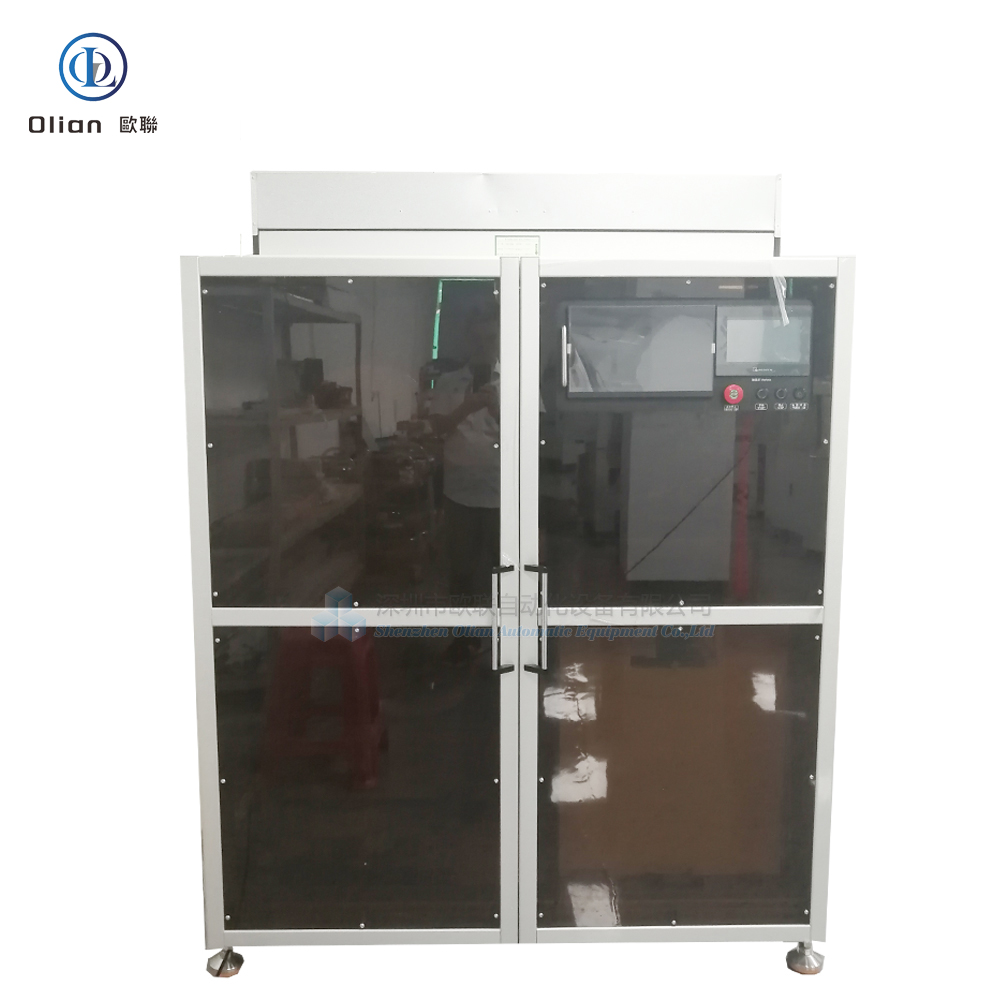

OL-CC006 Automatic Offline COF Punching Machine: Precision and Efficiency

In the fast-paced world of display manufacturing, precision cutting is a critical step. The OL-CC006 Automatic Offline COF Punching Machine, engineered by Olian Automatic, is a fully automated solution designed to deliver exceptional accuracy and reliability.

This machine specializes in punching COF (Chip on Film) from a continuous roll. The process is streamlined for efficiency, from loading the material roll to discharging the finished, cut pieces.

🚀 Unmatched Performance for High-Volume Production

The OL-CC006 Automatic Offline COF Punching Machine is built for manufacturers who demand both speed and accuracy. Its fully automated design optimizes the workflow to maximize output without compromising on quality.

• High Throughput: The efficient design enables a production capacity of approximately 600-900 PCS/H, with a punching time of less than 1 second.
• Micron-Level Precision: Achieve flawless cuts with remarkable alignment accuracy. The machine maintains a precision of ≤±0.055mm on the X-axis and ≤±0.05mm on the Y-axis.
• Exceptional Yield Rate: The stable and repeatable process guarantees a product qualification rate of ≥98%, minimizing material waste and rework.
• Intelligent Operation: The machine features an automatic IC detection system. It identifies COFs without an IC and skips them, preventing unnecessary punching and material waste.

⚙️ Advanced Process & Intelligent Control

The OL-CC006 streamlines the punching process by combining simple manual setup with sophisticated automation. This approach provides the perfect balance of human oversight and machine precision.

The Optimized Workflow:

1. Material Loading: The operator manually installs the roll of COF material onto the unwinding rack.
2. Material Threading: The operator threads the COF strip through the jig and secures it to the sprocket wheel.
3. Initial Alignment: The operator manually moves the COF to position the Mark point within the CCD camera’s field of view.
4. Automated Correction: The machine vision system automatically corrects the COF’s position for precise alignment.
5. Automated Punching: After correction, the machine automatically performs the punching operation.
6. Automated Discharge: The cut COF pieces fall onto a conveyor belt, which automatically transports them out of the machine.

The entire process is managed by a reliable Panasonic PLC and a user-friendly Weinview touch screen interface. For security and quality control, the machine features a two-level password system, allowing engineers to set parameters while operators can only run the machine.

🛠️ Robust Engineering & Reliable Support

Built for durability in a cleanroom environment, the OL-CC006 features a robust construction with high-quality components from industry-leading brands like THK, SMC, and CKD.

Key Technical Specifications:

• Mold Size: Max: W100D125H100mm; Min: 90*90mm.
• Pressure Control: Adjustable from 1000N to 2000N.
• Power & Air: AC 220V, 1500W; Compressed air at 0.5~0.7 Mpa.
• Dimensions: 1700mm (W) x 1000mm (D) x 1840mm (H)

Warranty and Service:
Olian Automatic stands behind its equipment with a 1-year warranty and lifetime technical support. We provide comprehensive on-site installation, debugging, and operator training to ensure your team can achieve optimal results from day one.

Upgrade your display assembly line with the OL-CC006, the Automatic Offline COF Punching Machine that combines speed, precision, and reliability.
