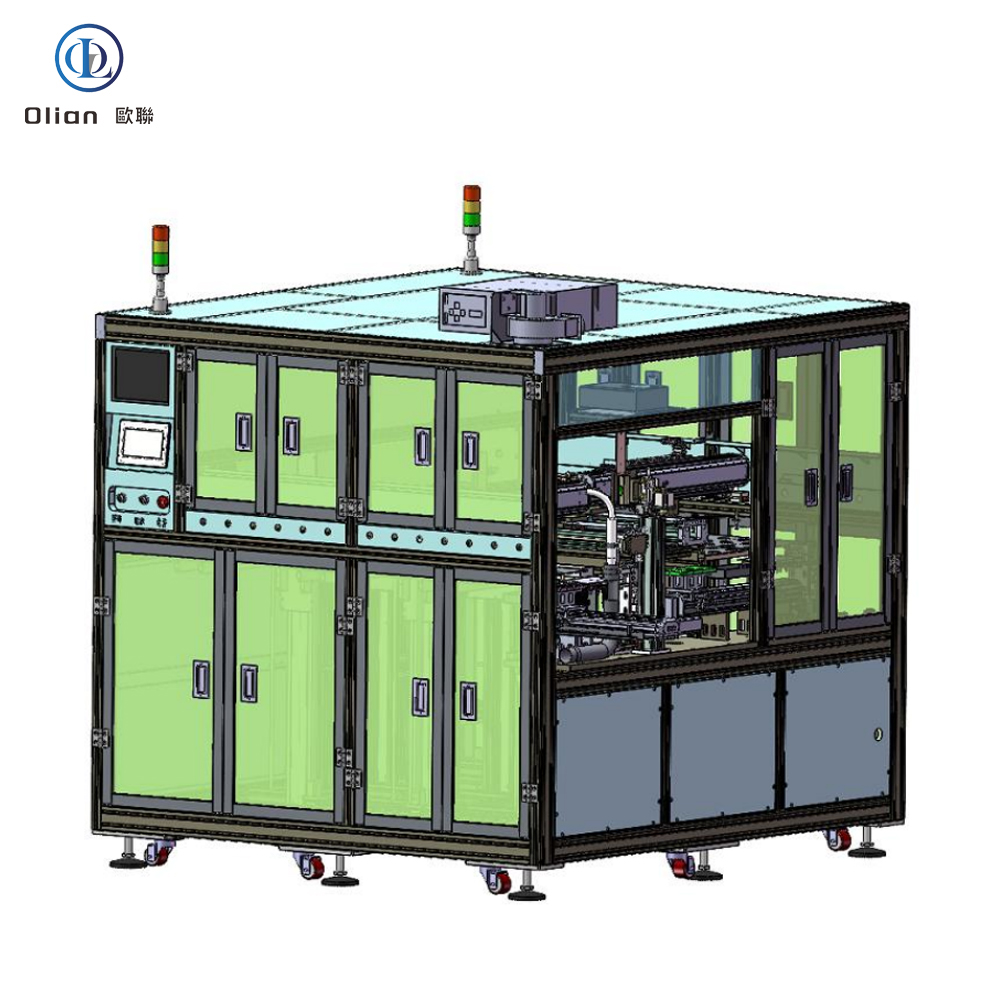

OL-GLLD3000 Automatic Non-Stop Loader: Dual Tray Continuous Feeding

The OL-GLLD3000 Automatic Non-Stop Loader is a high-efficiency automation solution. It is designed for continuous feeding of PCB and FOG products.

Manufactured by Olian Automatic in Shenzhen, China, this machine ensures uninterrupted production. It features a dual-tray system that allows for automatic tray changes.

Why Choose the OL-GLLD3000 Automatic Non-Stop Loader?

The OL-GLLD3000 Automatic Non-Stop Loader maximizes production uptime. Its dual-tray design eliminates the need to stop the machine for material changes.

• Non-Stop Operation: Features dual full trays and dual empty tray stations.
• High-Speed Feeding: Achieves a fast cycle time of ≤4.5 seconds per piece.
• Dual Material Handling: Can load both PCB and FOG products simultaneously.
• High Precision: Offers a handling precision of ±0.05mm.
• Seamless Integration: Designed to work in-line with FOB bonding machines.
• User-Friendly: Features a Chinese touch screen interface for easy control.
• Safe Operation: Includes safety interlocks and emergency stop functions.

Technical Specifications of the OL-GLLD3000 Automatic Non-Stop Loader

The OL-GLLD3000 is engineered for demanding manufacturing environments. All specifications are sourced directly from the official product document.

Product Compatibility:

• FOG Size (Max): 50mm (L) x 180mm (W).
• FOG Size (Min): 30mm (L) x 30mm (W).
• PCB Size (Max): 50mm (L) x 50mm (W).
• PCB Size (Min): 30mm (L) x 30mm (W).
• Tray Size (Max): 400mm x 520mm.
• Tray Size (Min): 250mm x 220mm.
• Tray Stack Height: Maximum of 500mm.

Performance Metrics:

• Cycle Time: ≤4.5 seconds per piece.
• Handling Precision: ±0.05mm.

Machine Dimensions & Weight:

• Overall Dimensions: 1800mm (L) x 2010mm (W) x 1800mm (H).
• Machine Weight: Approximately 900kg.
• Power Supply: Single-phase, AC 220V ±10%, 50 Hz.
• Power Consumption: Maximum power of 5000W.
• Compressed Air: 0.5-0.7 MPa, ≈100L/min consumption.
• Vacuum System: Vacuum ≥-70Kpa, flow ≈100L/min.

Advanced Feeding Process of the OL-GLLD3000

The OL-GLLD3000 features a sophisticated dual-sided feeding process. This ensures a continuous and reliable supply of components.

Feeding Workflow:

• Loading: An operator places full trays into the two full tray magazines.
• Tray Elevation: The Z-axis lifts the full tray to the pick-up position.
• Product Pick-up: A robotic arm picks the product from the tray.
• Product Handoff: The product is transferred to the output line.
• Empty Tray Handling: A tray manipulator moves the empty tray to the empty magazine.
• Continuous Operation: The second full tray is ready for immediate use.

Key System Components:

• Robotic Arms: Two sets of XYZ manipulators for product and tray handling.
• Tray Lifters: Six sets with stepper motors and precision ball screws.
• Control Unit: Panasonic PLC with a Proface touch screen for system management.
• Vacuum System: Digital gauges display vacuum levels for monitoring.

Robust Engineering & Safety Features of the OL-GLLD3000

Built for reliability, the OL-GLLD3000 uses quality industrial components. Comprehensive safety systems protect both operators and the equipment.

Critical Component Brands:

• Servo/Stepper Motors: Ruit (China).
• Modules: Baichuan (China).
• Guides: HIWIN (China).
• Pneumatics: AirTAC (China).
• PLC Controller: Panasonic (Japan).
• HMI: Proface (Japan).
• Power Supply: Mean Well (China).
• Circuit Breakers: Shihlin (China).
• Cable Carriers: Igus (Germany).

Safety Systems: The machine features a three-color signal tower. It has two emergency stop buttons with protective covers. An interlock design pauses the machine when doors are opened. A buzzer and touch screen provide alarm notifications.

Warranty and Service: Olian Automatic provides a 1-year warranty with lifetime technical support. We offer comprehensive on-site installation, debugging, and operator training. For spare parts and service inquiries, please [Contact Us] or visit our [Service Page].

Why Choose Olian Automatic for Display Manufacturing Equipment?

Olian Automatic is a leading manufacturer of automation equipment. We are based in the technology hub of Shenzhen, China. We provide high-quality solutions for the global display industry. Our machines are designed for performance and reliability. Visit our [About Us] page to learn more about our company. Explore our [Product Lines] for a full range of manufacturing solutions.

Sustainability Commitment: The OL-GLLD3000 is designed for energy efficiency. Optimized motion control reduces power consumption. The machine is built with durable materials for a long service life.

FAQ

Q: What is an Automatic Non-Stop Loader?
A: It is a machine that feeds products without stopping. It uses dual trays for continuous operation.

Q: What is the production speed of the OL-GLLD3000?
A: The cycle time is ≤4.5 seconds per piece. This ensures high-speed, continuous production.

Q: What is the handling precision?
A: The handling precision is ±0.05mm. This ensures accurate product placement.

Q: What size products can it process?
A: It handles FOG products up to 50x180mm and PCB products up to 50x50mm.

Q: What kind of warranty is provided?
A: Olian Automatic provides a 1-year warranty and lifetime technical support.

Q: Is on-site training available?
A: Yes, we provide comprehensive on-site installation and operator training.

Upgrade your production line with the OL-GLLD3000, the Automatic Non-Stop Loader. It combines speed, precision, and reliability for superior material handling.

---
