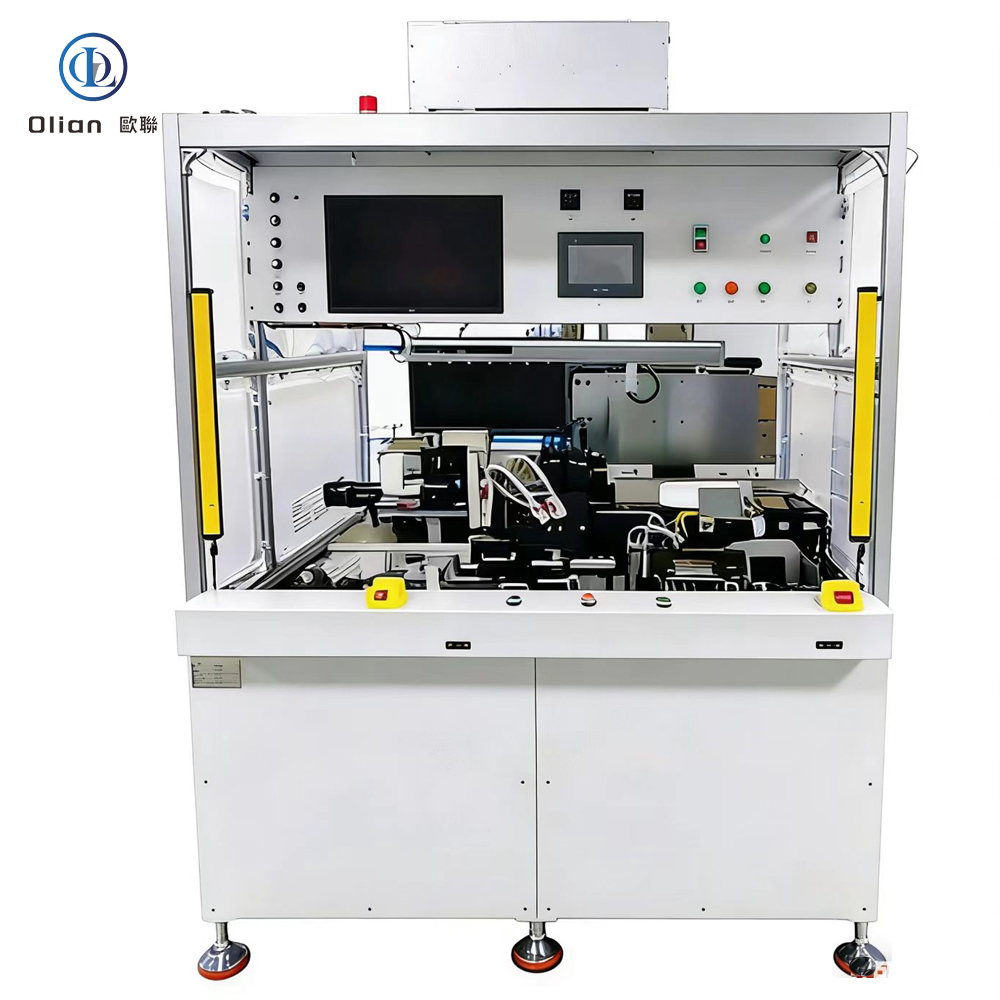

Automatic COF Bonding Machine for Display Panel Production
An automatic COF (Chip on Film/chip on FPC) bonding machine is a precision assembly system that mounts driver ICs onto flexible polyimide film substrates OR FPC using Anisotropic Conductive Film (ACF) technology OR gold to gold technology.
Sometimes,bond the COF on the glass or on the PCB,we also call it COF bonding technology. But in fact ,they are differnet processes..
In shenzhen olian, we can do these both technology (Chip on Film/chip on FPC) and (ACF bonding /Gold to Gold Bonding).
Unlike manual or semi-automatic systems,
fully automatic COF bonders handle the entire process—from ACF attachment and IC placement to thermocompression bonding—without operator intervention. This makes them essential for high-volume display panel production where consistency, speed, and micron-level accuracy determine manufacturing yield.
COF bonding differs from COG (Chip on Glass) and COB (Chip on Board) in that the chip is mounted on a flexible film carrier rather than directly on glass or a rigid PCB.
This flexibility enables ultra-thin bezels, curved displays, and foldable screen designs that are now standard in smartphones, tablets, automotive dashboards, and premium TVs.
The global display industry is pushing toward higher resolutions, larger panel sizes, and more complex form factors. As panels evolve from HD to 4K, 8K, and beyond, the pitch between bonding pads shrinks dramatically—often to sub-10 micrometer levels. Manual alignment simply cannot achieve the repeatability required at these scales.
Automatic COF bonding machines solve this by integrating advanced vision systems, servo-driven motion platforms, and closed-loop thermal control.
The result is bonding accuracy within ±5 to ±15 micrometers, temperature stability within ±5°C, and cycle times under 4.5 seconds per bond—parameters that directly impact production capacity and return on investment.
For display panel manufacturers, the shift to automation is not merely about speed. It is about eliminating the variables that cause defects: misalignment, uneven pressure distribution, thermal drift, and human inconsistency.
In an industry where a single bonding defect can scrap an entire panel worth hundreds of dollars, automatic COF bonding is a risk mitigation strategy as much as a production tool.
When sourcing an automatic COF bonding machine for display panel production, these specifications separate professional-grade equipment from basic alternatives:
Look for sub-micron precision systems using CCD cameras with pattern recognition algorithms. Industry-leading machines achieve ±3 µm accuracy, which is necessary for 4K and 8K panel production where pad pitches are extremely fine.
Pulse heating technology with PID auto-tuning ensures rapid temperature ramp-up (180°C in 2–3 seconds) and stability within ±0.5°C to ±1°C.
The hot press head should use titanium alloy or molybdenum with surface flatness of 0.001 mm to guarantee uniform heat transfer across the bonding zone.
Closed-loop servo pressure systems with 0.1 N resolution and 2 ms response time allow precise force application.
The pressure range should span from 0.1 N for delicate components up to 50 N or more for larger driver ICs, with active gravity compensation to prevent substrate deformation.
High-resolution CCD or CMOS cameras (12 MP or higher) with telecentric lenses, coaxial and side LED illumination, and AI edge detection enable repeatable alignment to 3 µm. Auto-focus and overlay comparison features further reduce operator dependency.
Automatic systems should achieve cycle times under 30 seconds per bond, with production rates of 100+ units per hour for TAB bonding and 2,500+ pieces per day for repair applications. Multi-station configurations can further increase throughput by processing multiple bonds simultaneously.
Modern machines feature intuitive touch-screen HMIs with recipe storage, error logging, and SPC (Statistical Process Control) output. Ethernet, USB, and RS-232 connectivity enable remote monitoring, firmware updates, and MES integration—critical for Industry 4.0 environments.
Automatic COF bonding machines serve diverse segments of the display ecosystem:
The demand for bezel-less designs and foldable screens makes COF bonding the preferred method for connecting driver ICs to OLED and flexible LCD panels. The flexible film substrate allows the IC to be bent behind the display, maximizing active screen area.
Machines supporting panels from 7 inches up to 100 inches or more handle everything from laptop screens to massive TV open-cell repairs. High-precision bonding ensures uniform image quality across the entire display surface.
Vehicle displays require extreme reliability under harsh temperature and vibration conditions. Automatic COF bonding delivers the consistent joint quality needed for automotive-grade displays, including curved instrument clusters and center-console screens.
Ruggedized displays for industrial control panels and medical diagnostic equipment benefit from the precision and repeatability of automatic bonding, where failure is not an option.
Professional LCD/LED TV repair facilities use automatic COF bonders to fix vertical lines, horizontal bands, black screens, and other common panel defects caused by failed driver IC connections. A single machine can handle panels from 15 inches to 120 inches, making it a versatile investment for repair businesses.
Next-generation bonding machines incorporate AI-driven predictive maintenance that forecasts heater life up to 200 cycles in advance, scheduling maintenance before quality degradation occurs. Machine learning algorithms also optimize bonding parameters in real time based on feedback from vision systems and thermal sensors.
The rise of heterogeneous integration, wafer-level packaging (WLP), and system-in-package (SiP) solutions is driving demand for COF bonders capable of sub-10 µm pitch bonding. Manufacturers are developing “one-stop” machines that handle multiple materials in a single pass, reducing thermal deformation and improving overall yield.
European and North American markets increasingly prioritize energy-efficient equipment that reduces cycle time and waste. Modern pulse heating systems minimize power consumption by delivering heat only during the bonding phase, with rapid cooling to prevent thermal stress on surrounding components.

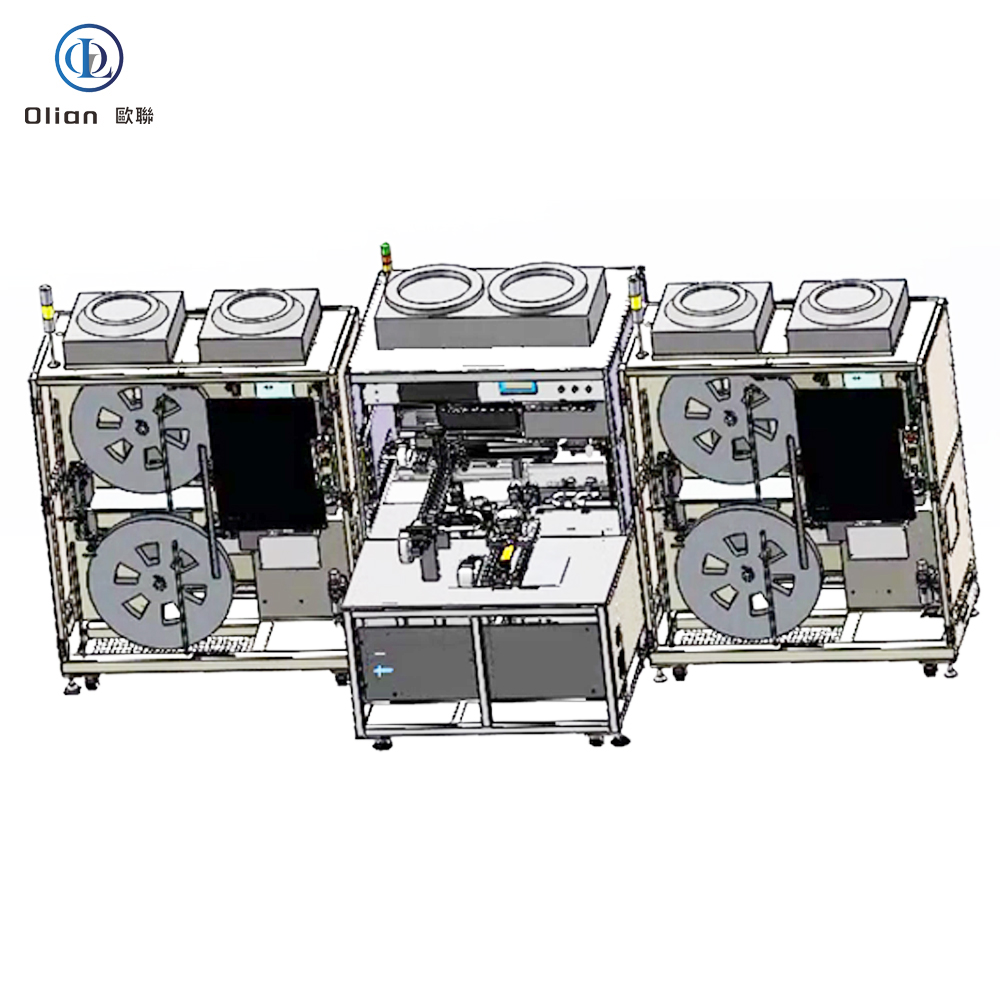

The industry is moving beyond single-station machines toward fully automated production lines with multi-station processing. These systems perform simultaneous COB and COF operations, robotic substrate handling, and inline AOI (Automated Optical Inspection) to achieve throughput rates suitable for mass production environments.
Selecting equipment for your display panel production line requires balancing technical capability, production volume, and total cost of ownership. Consider these factors:
Panel Size Range: Ensure the machine supports your current and projected panel sizes, from small wearable displays to large-format TV panels.
Bonding Accuracy Requirements: 4K and 8K production demands ±5 µm or better accuracy. HD and lower-resolution applications may tolerate slightly wider tolerances.
Production Volume: High-volume factories need fully automatic lines with robotic handling, while repair centers may prefer compact single-station units with manual platform adjustment.
After-Sales Support: Look for manufacturers offering comprehensive training, spare parts availability, remote diagnostics, and on-site technical support. A one-year warranty is standard, but lifetime technical support adds significant long-term value.
Integration Capability: Confirm compatibility with your existing MES, quality management systems, and cleanroom requirements (ISO 6 recommended for precision bonding).
Automatic COF bonding machines are the backbone of modern display panel production, enabling the precision, speed, and reliability required by today’s high-resolution screens and advanced form factors.
Whether you are scaling up smartphone OLED manufacturing, producing automotive display modules, or operating a professional TV repair center, investing in the right automatic COF bonding equipment directly impacts your yield rates, operational costs, and competitive position.
As the display industry continues its shift toward foldable devices, larger panels, and smarter manufacturing, partnering with an experienced bonding machine manufacturer ensures you stay ahead of technological curves rather than struggling to catch up.
Ready to upgrade your display panel production capabilities? Explore our full range of automatic COF bonding machines at bonding-machine.com and connect with our engineering team for a customized solution tailored to your specific requirements.
Precision bonding starts with the right partner. Shenzhen Olian welcome you .
