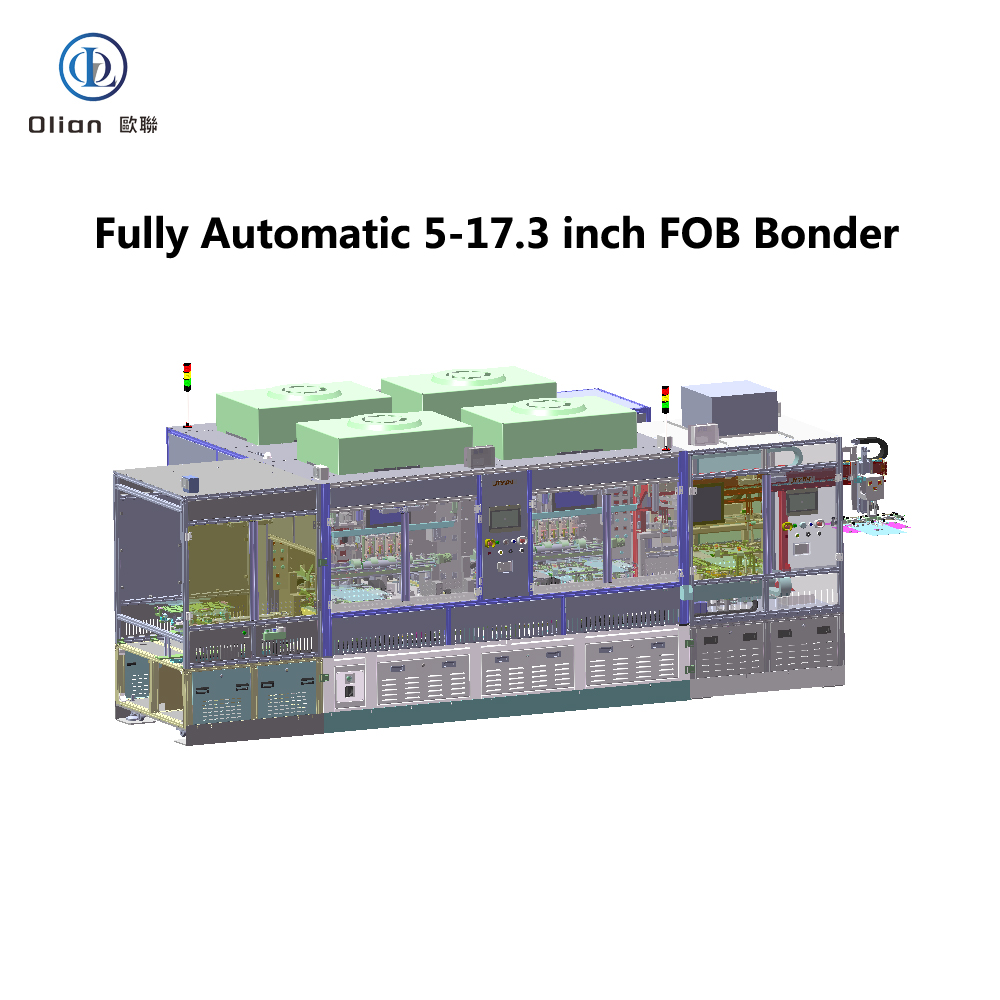

5-17.3 Inch Mid-Size LOAD/EC/COG/FOG/FPC Production Line.
Engineered for High-Mix, High-Precision Display Manufacturing
This document details Olian Automatic’s turnkey solution for mid-size display module assembly (5″–17.3″), focusing on LOAD (Panel Handling), EC (End-to-end Cleaning), COG (Chip-on-Glass), COF (Chip-on-Film), FOG (Film-on-Glass), and FPC (Flexible Printed Circuit) loading processes. Designed for rigid and flexible panel substrates, this production line integrates robotics, vision systems, and precision bonding technologies to achieve sub-micron accuracy and support high-mix production environments.
The production line follows a sequential workflow:

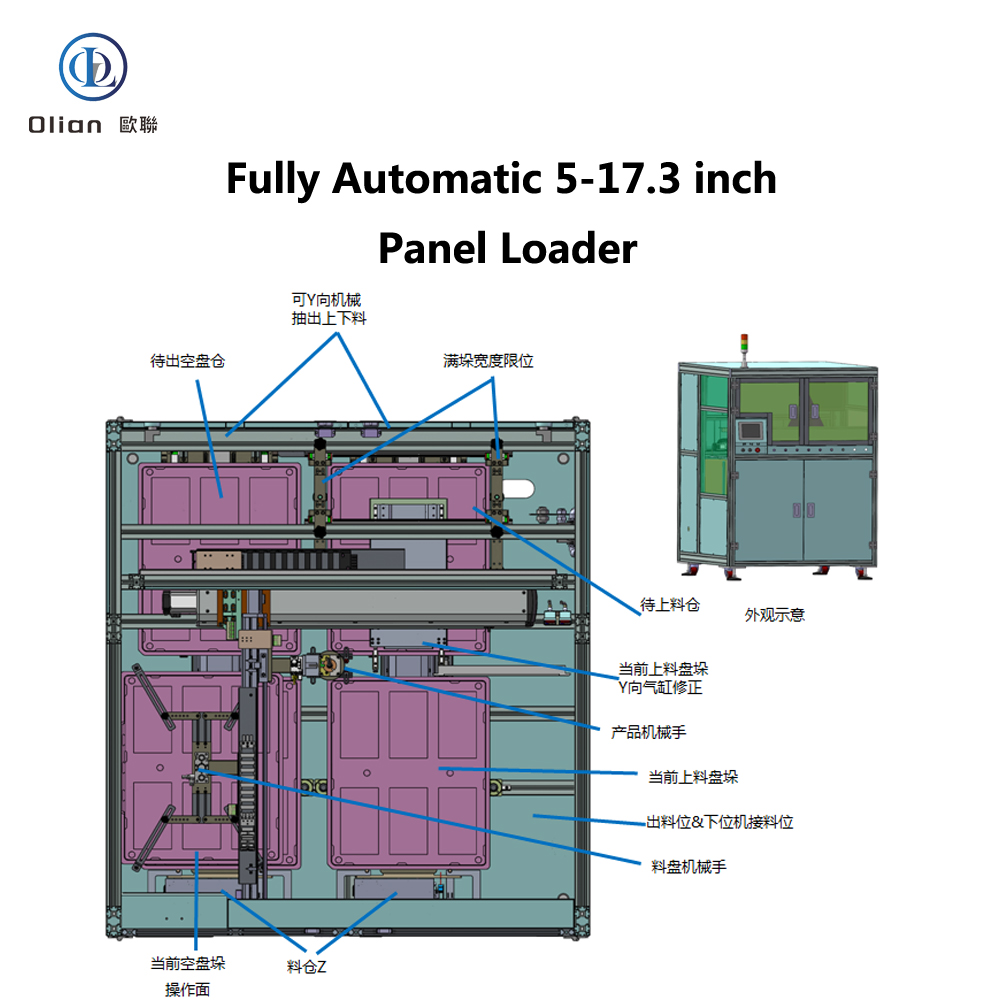

Function: Automated loading of panel trays (400×460mm max) with Y-axis pneumatic correction.

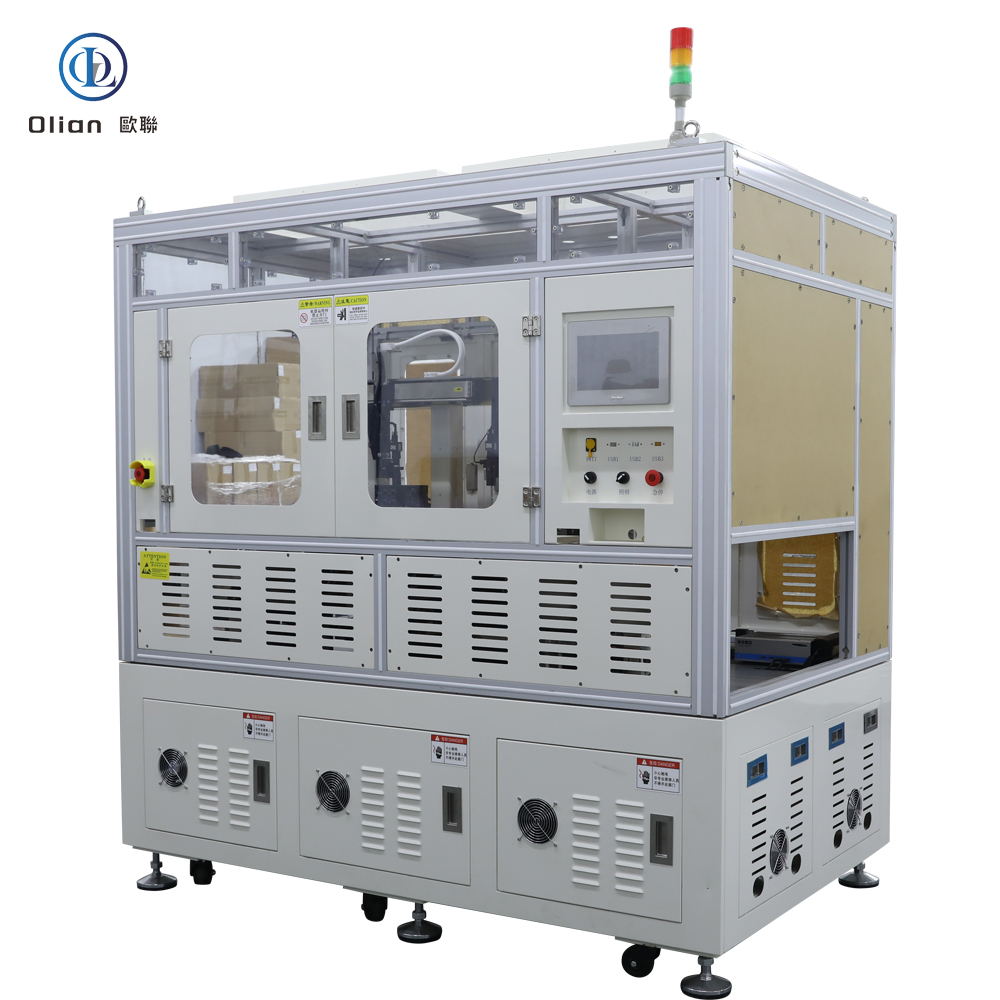

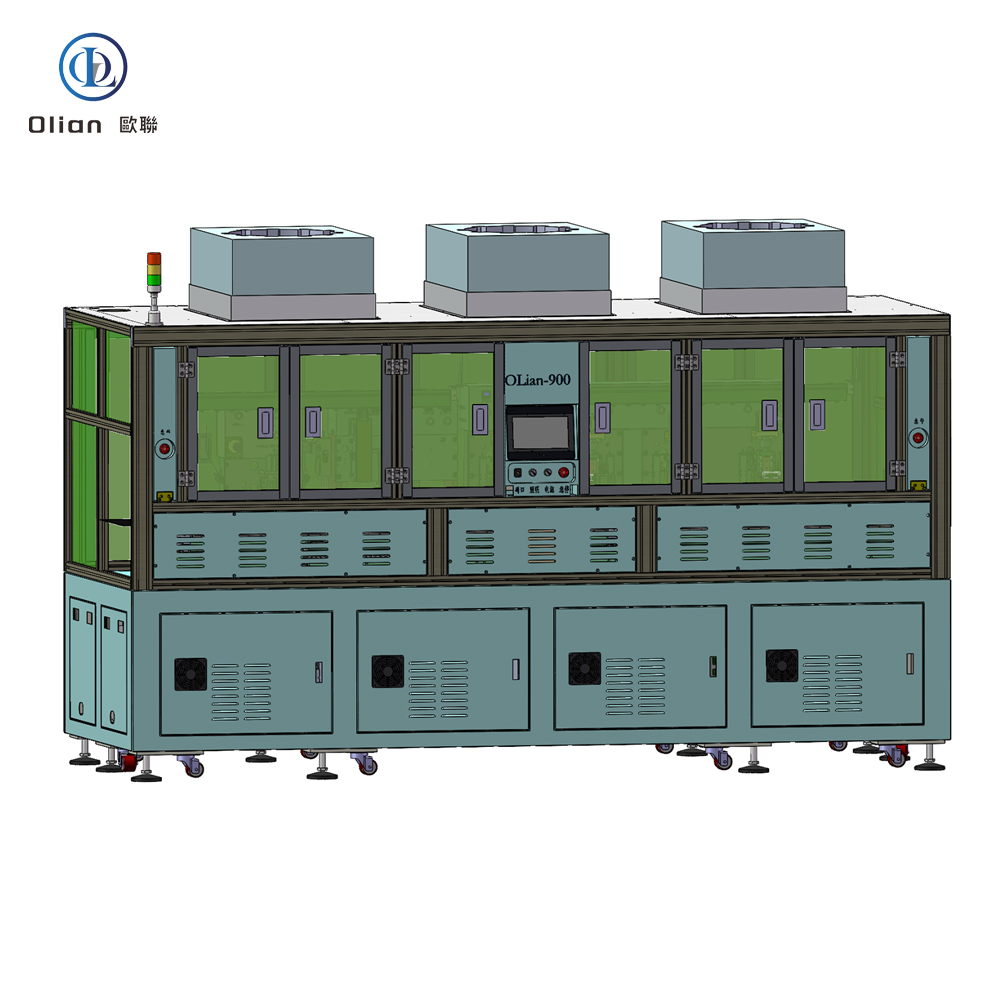

Function: Fully automated multi-edge plasma terminal cleaning.

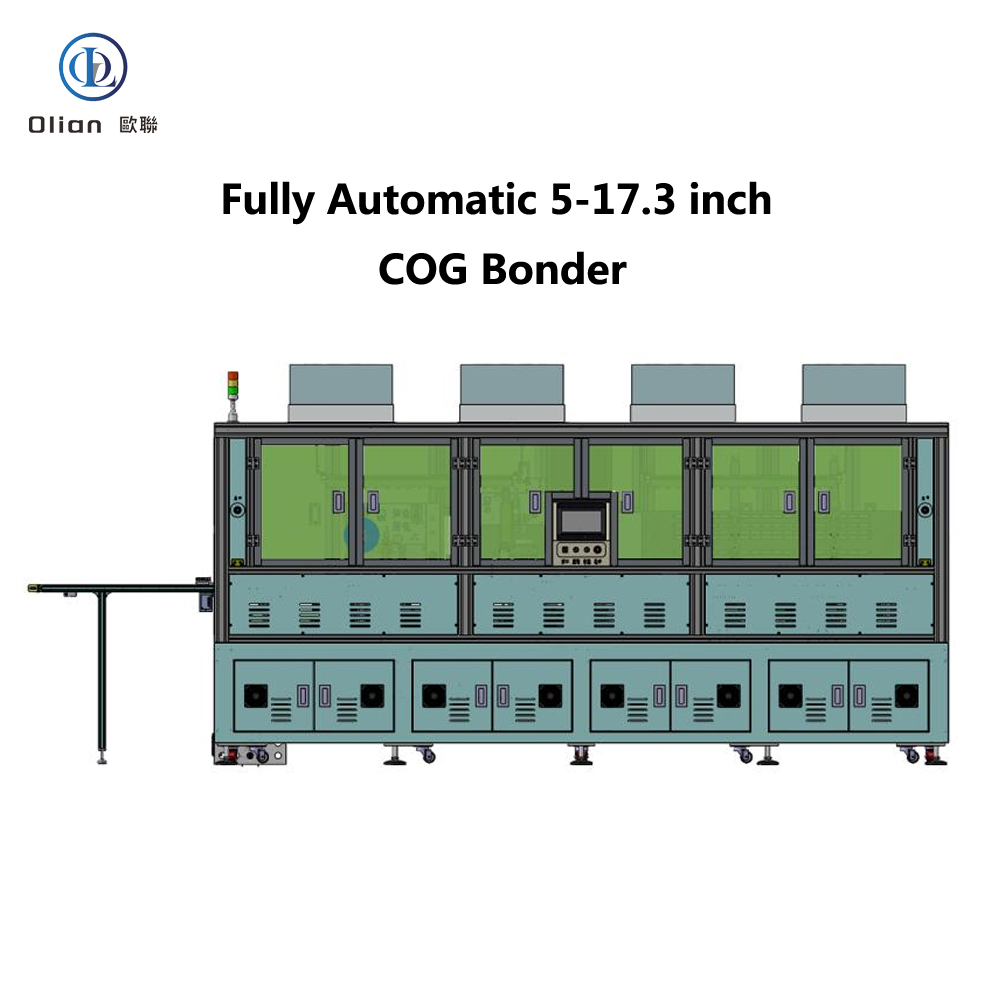

Function: Full-process IC bonding with ACF application, pre-press, and main press.
Function: Servo-driven COF tape feeding with CCD-guided punching.

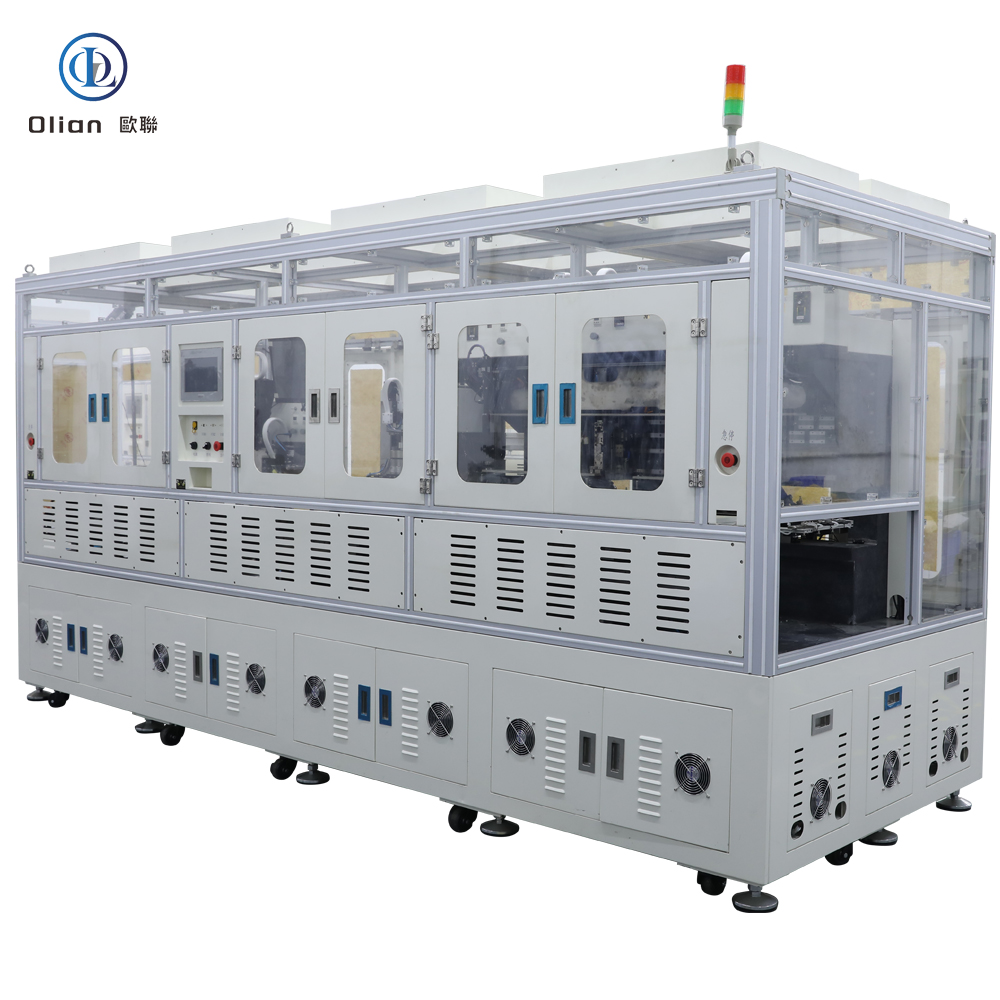

Function: FPC-to-glass bonding with Long Bar bonding heads and dual-channel FPC feeding.

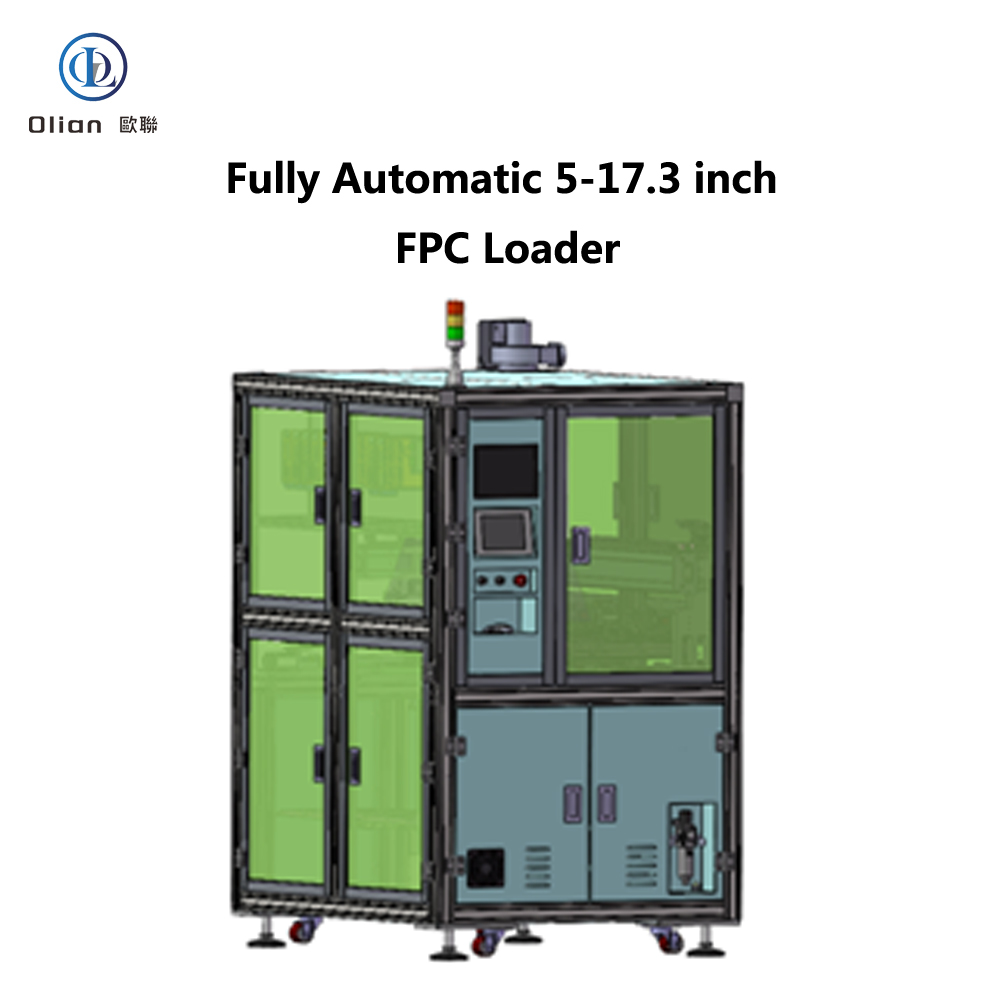

Function: Dual-channel FPC feeding with tray-to-bonder transfer.
This solution targets high-mix manufacturing of:
By integrating LOAD, EC, COG, FOG, and FPC processes into a single line, manufacturers reduce handling errors by 40% and achieve 25% faster changeover times for batch switching.
The production line accommodates emerging trends:
SEO Keywords: Mid-size display production line, COG bonding machine, FOG bonding equipment, ACF application system, plasma cleaning for displays, high-precision display assembly, FPC loading system, COF punching machine.COG FOG Bonding production line.

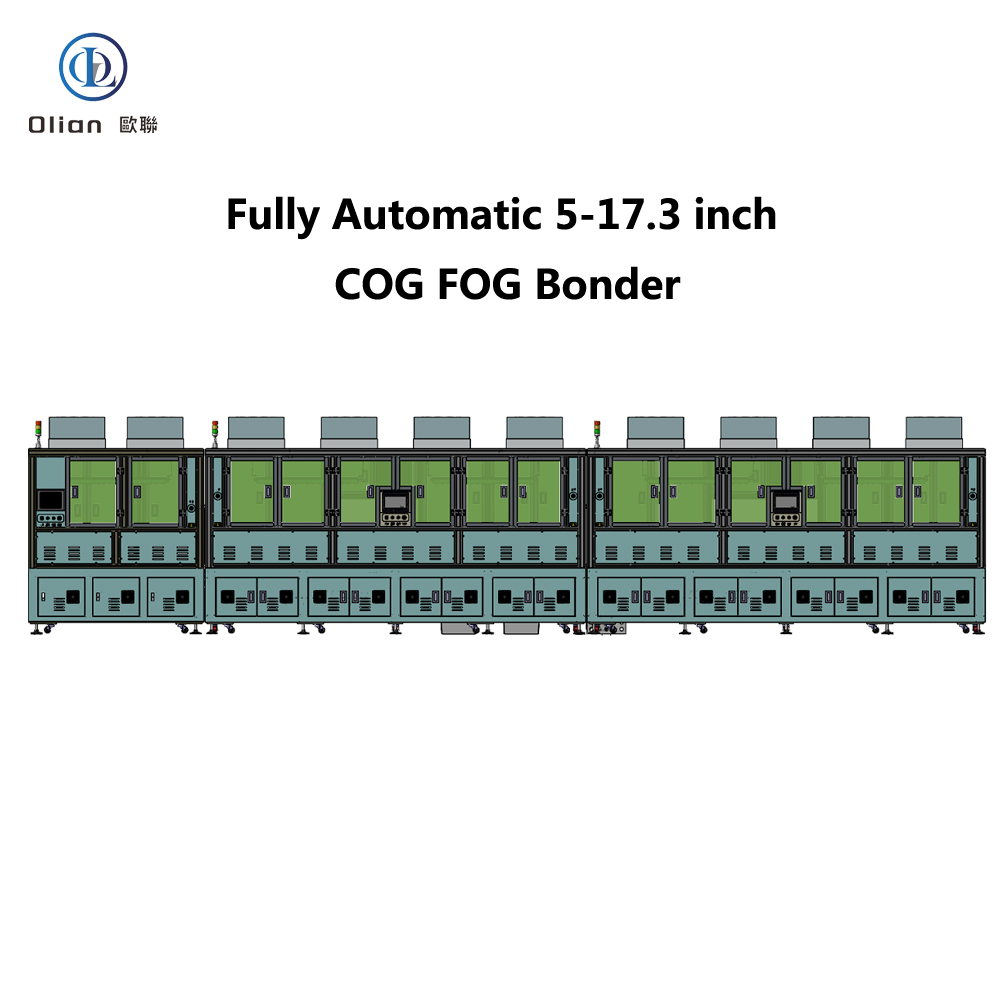

7-17 Inch Mid-Size EC/COG/FOG Production Line
Engineered for Precision, Scalability, and High-Throughput Display Manufacturing
This is automated solution for mid-size display module assembly (7″–17″), focusing on EC (End-to-end Cleaning), COG (Chip-on-Glass), and FOG (Film-on-Glass) processes. Designed for rigid panel substrates, this production line integrates advanced robotics, vision systems, and precision bonding technologies to achieve sub-micron accuracy and high-efficiency throughput.
The production line follows a sequential workflow:

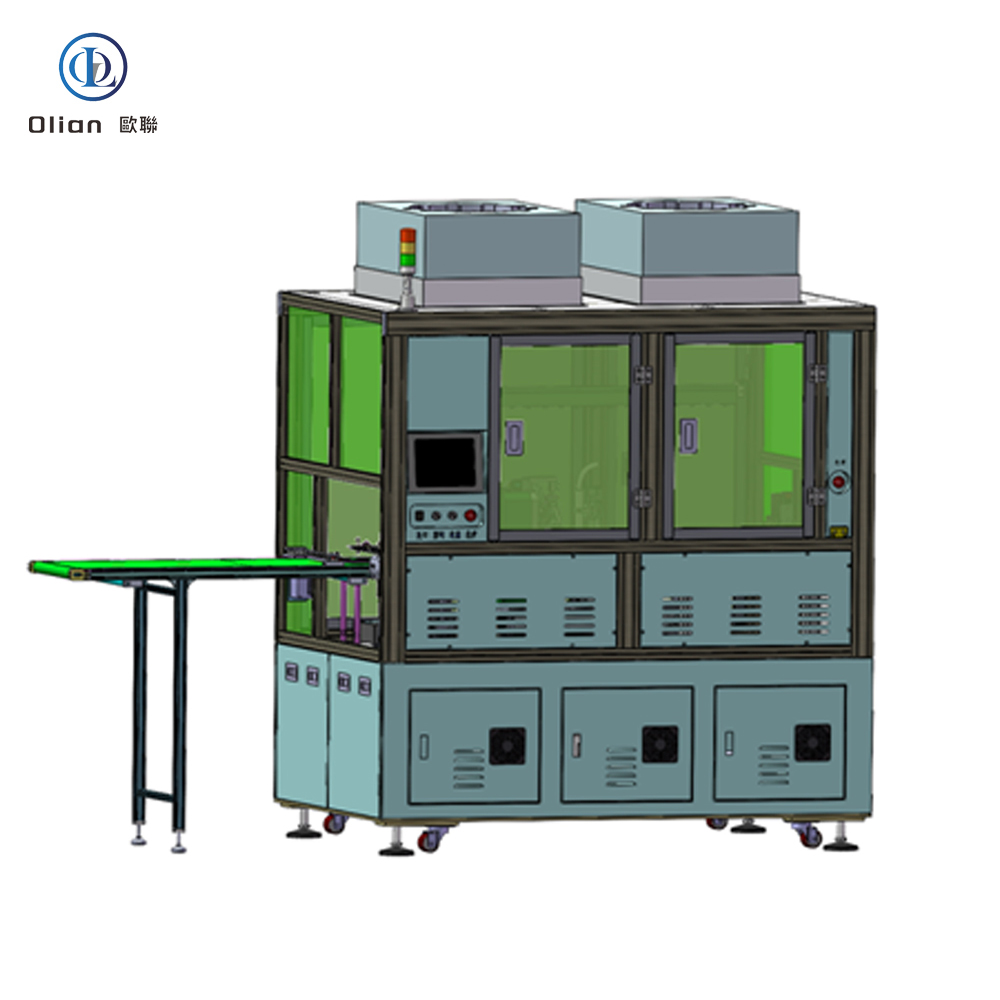

Function: Automated ITO terminal cleaning for both S-side and G-side substrates.

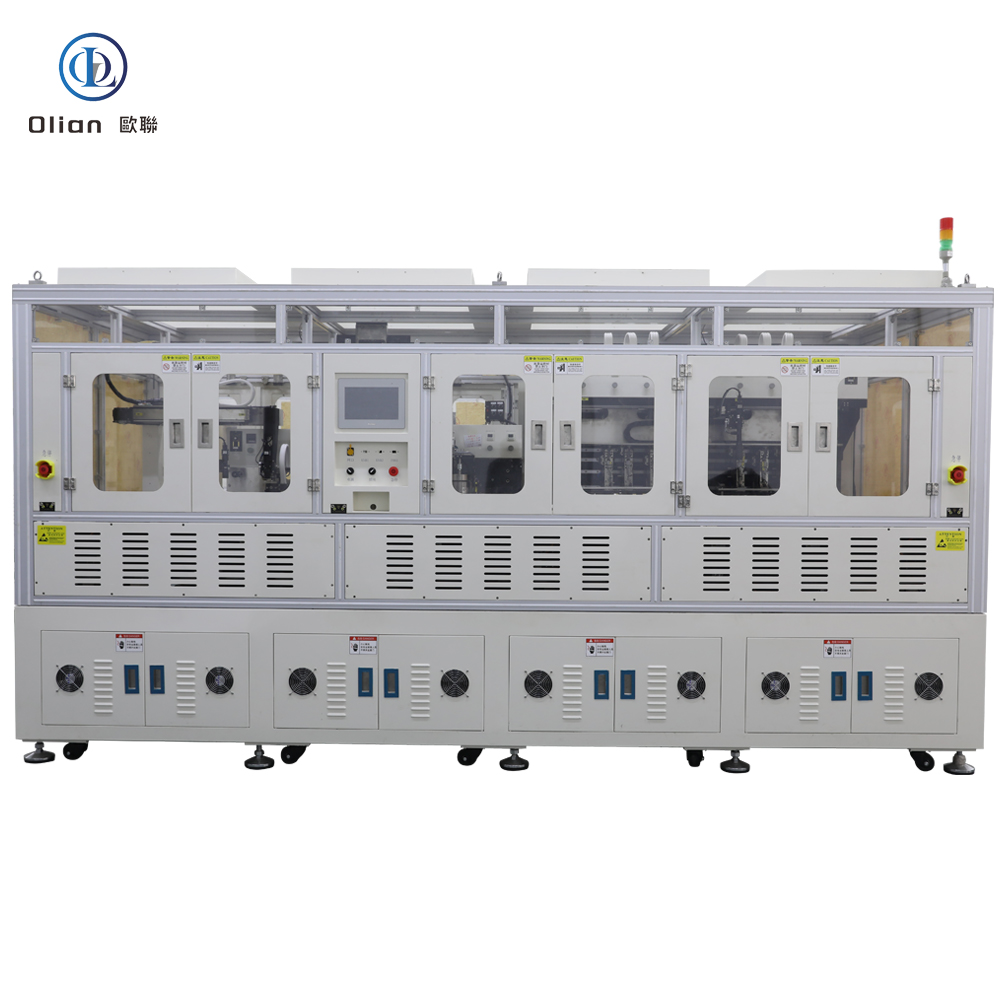

Function: Full-process IC-to-glass bonding with ACF application, pre-press, and main press.

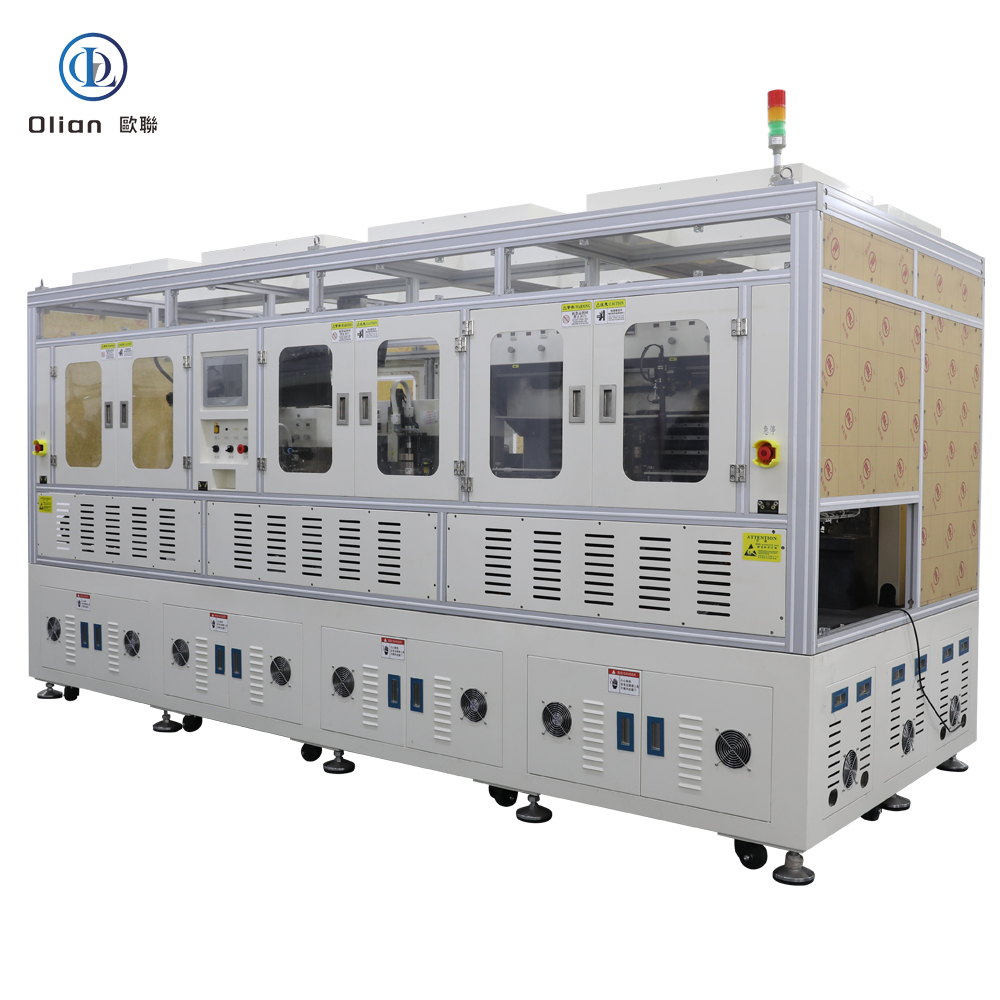

Function: FPC-to-glass bonding with integrated ACF application and thermal compression.
This solution targets high-volume manufacturing of:
By integrating cleaning, COG, and FOG processes into a single line, manufacturers reduce handling errors, minimize footprint, and achieve 20% faster time-to-market.
The production line accommodates emerging trends:
SEO Keywords: Mid-size display production line, COG bonding machine, FOG bonding equipment, ACF application system, plasma cleaning for displays, high-precision display assembly.
COF Bonding Machines Precision Engineering for Modern Display Manufacturing.
In the rapidly evolving world of display technology, the COF bonding machine (Chip-on-Film bonding equipment) stands as a cornerstone for high-precision assembly in OLED, LCD, and emerging flexible display production. This comprehensive guide explores the working principles, industrial applications, maintenance best practices, and future trends of COF bonding machines, empowering manufacturers to optimize yield, reliability, and innovation.
COF bonding machines enable the integration of driver ICs onto flexible film substrates (COF), which are then bonded to display panels (e.g., glass or plastic substrates). The process relies on three core technologies:
A heated bonding tip applies precise temperature (typically 350–450°C) and pressure (0.2–0.8 MPa) to create electrical and mechanical connections between the IC bumps (e.g., gold or solder) and the panel’s electrodes. Advanced machines use pulse-heating technology with ±0.1°C temperature uniformity to prevent thermal damage to sensitive components.
High-resolution CCD cameras and AI-powered image processing enable sub-micron alignment accuracy (±0.05 mm). This ensures perfect registration between the COF’s IC pads and the display’s electrode patterns, critical for high-resolution screens.
Modern COF bonders feature dual-stage worktables, allowing simultaneous pre-bonding (alignment) and main bonding (compression). This parallel processing boosts throughput to 600–1,200 units per hour, meeting mass-production demands.
For curved or foldable OLED panels, COF bonding machines handle flexible PCBs (FPCs) with minimal warpage. Adaptive pressure control (0.2–0.8 MPa) and anti-static designs prevent damage to delicate organic materials.
In harsh environments (85°C/85% humidity), COF bonding ensures long-term reliability. Features like ACF (Anisotropic Conductive Film) auto-cutting improve moisture resistance, extending module lifespan to over 10,000 hours.
High-density Mini LED arrays require precise bonding of 128+ driver ICs. Modular bonding heads enable multi-zone simultaneous processing, reducing cycle times by 30%.
Ultra-narrow bezel designs demand COF bonding with <0.1 mm pitch accuracy. Machines with nano-positioning stages (e.g., piezoelectric actuators) achieve this, enabling “borderless” displays.
Proactive maintenance prevents costly downtime. Key strategies include:
Misalignment greater than 0.1 mm is often caused by vision system calibration drift and can be corrected by recalibrating using PV310 alignment tools. A high void rate exceeding 5% typically results from non-uniform tip temperature, which can be addressed by replacing the tungsten-carbide heater and optimizing finite element method (FEM) parameters. ACF film jams are usually due to vacuum suction failure and can be prevented by cleaning or replacing vacuum nozzles on a regular basis.
It is recommended to clean CCD lenses and laser sensors daily to prevent dust-induced errors. Pressure sensors should be calibrated monthly within the 0.2–0.8 MPa range to ensure linearity error remains below 1%. Additionally, inspecting bonding tip wear and replacing it if surface roughness exceeds 0.5 µm should be performed quarterly.
The next generation of COF bonding machines will integrate:
Thermal imaging sensors combined with machine learning models, such as BERT, analyze vibration spectra to predict bonding defects up to 24 hours in advance, reducing scrap rates by 40%.
AI algorithms, including reinforcement learning, automatically tune temperature and pressure curves based on real-time yield data, cutting setup time by 30%.
As AR/VR displays demand pixel pitches under 10 µm, COF bonders will adopt laser-assisted alignment and atomic-force microscopy (AFM) feedback for nanometer-scale precision.
Mastering COF bonding machine technology is no longer optional—it’s a competitive necessity. By understanding core principles, implementing rigorous maintenance, and embracing AI-driven innovation, manufacturers can achieve:
