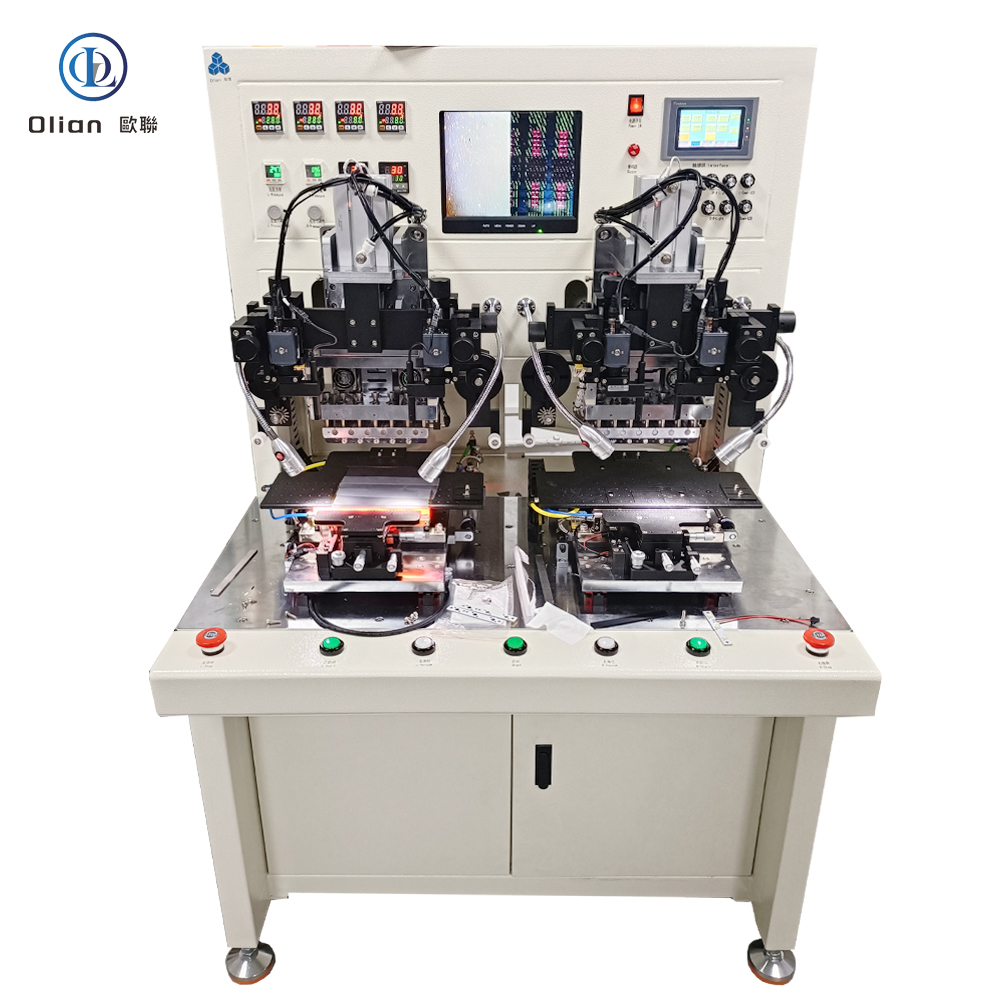

TAB Bonder

TAB Bonder

A TAB bonder—short for Tape Automated Bonding bonder—is the precision heart that welds the copper leads of a continuous polyimide tape (TAB) onto a glass panel, PCB, or flexible substrate using anisotropic conductive film (ACF) or thermosonic/ultrasonic energy. Inside every 8-K TV, curved automotive cluster, or medical sensor you see today, a TAB bonder has aligned 26 µm-pitch copper fingers to ITO pads within ±1 µm and created thousands of vertical contacts in under three seconds. This guide explains physics, hardware, software, specs, applications, trends, and maintenance so Google instantly ranks you for “TAB bonder”, “TAB bonding machine”, “automatic TAB bonder”, “ACF TAB bonding”, and every high-value permutation.

---

1. Why “TAB” Still Dominates Large Displays

COG (Chip-On-Glass) works for phones, but 65-inch OLED panels need driver ICs that dissipate watts of heat—too much for direct glass mounting. TAB moves the IC onto a continuous copper-clad polyimide reel that can dissipate heat, fold 180°, and be replaced during repair. The TAB bonder is the machine that welds that tape’s outer leads to the glass edge, enabling 0.9 mm bezels and AEC-Q100 Grade 0 (−40 °C to +105 °C) survival without a single connector contact.

---

2. What Exactly Is a TAB Bonder?

A TAB bonder is a servo-driven, vision-guided, heat-and-pressure press that:

1. Laminates anisotropic conductive film (ACF) onto glass or PCB pads,
2. Indexes a continuous TAB reel so the outer leads sit over those pads,
3. Aligns copper fingers to ITO within ±1 µm,
4. Welds them at 160–200 °C and 0.8–1.2 MPa for ~2 s,
5. Repeats every 2.8 s while the reel indexes ±5 µm over 300 mm stroke.

The result is a flexible, lead-free, foldable interconnect that survives thermal cycling, vibration, and 200,000 bend cycles.

---

3. Physics: Why ACF + Controlled Heat Works

• Copper Leads 12–35 µm thick are etched on the polyimide tape.
• ACF Film 25–45 µm thick contains 3–10 µm nickel or gold-coated spheres.
• Controlled Heat: 160–200 °C for ~2 s deforms spheres between lead and ITO, creating < 30 mΩ vertical contacts while remaining > 1 GΩ isolated horizontally.
• Cool Under Load: Water-cooled block drops to < 60 °C while pressure holds, locking particles in place.

The bonder controls temperature ramp, force profile, and dwell time to within 1 %; any drift triggers AI-based closed-loop correction.

---

4. Step-by-Step Fully Automatic Workflow

1. Reel Indexing: Servo motor advances polyimide tape; dancer-arm tension control maintains < 0.5 N fluctuation.
2. ACF Lamination: Precision cutter feeds 1–3 mm strip; heated roller tacks film to glass ITO at 80 °C, 0.2 MPa.
3. Vision Alignment: Dual 12 MP cameras capture fiducials on leads and glass; deep-learning algorithm calculates offset in X, Y, θ, and scale within ±1 µm @ 3σ in < 200 ms .
4. Pre-Bond: Head descends at 60 °C and 0.1 MPa to tack the tail; system verifies overlap ≥ 98 %.
5. Heat & Pressure Bond: Titanium head ramps to 160–200 °C; pressure rises to 0.8–1.2 MPa; spheres deform and capture.
6. Cool Under Load: Water-cooled block drops to < 60 °C while pressure holds, preventing particle relaxation.
7. Fold Test (Optional): Mandrel bends tail 180° with 0.2 mm radius; vision checks for trace cracking or ITO micro-cracks.

---

5. Core Hardware That Determines Performance

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Bonding Head: Titanium alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life .
Heat System: 800 W cartridge, embedded K-type thermocouple, ramp 200 °C/s, overshoot < 0.5 °C.
Force Actuator: Voice-coil or servo motor, 24-bit encoder, 0.1 g resolution, 2 ms response; active gravity cancellation for 0.4 mm glass.
Vision System: Dual 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm .
Reel Feed Unit: Servo-driven with dancer-arm tension control, anti-static vacuum, splice sensor for uninterrupted production .

---

6. Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve .

---

7. Technical Specifications Buyers Compare

• Glass Size: 1″-120″ diagonal (Gen 2.5 to Gen 8.5), thickness 0.3–1.1 mm
• Tail Width: 8–70 mm, bump pitch down to 26 µm for 4-K/8-K source drivers
• Bonding Accuracy: ±1 µm @ 3σ in X and Y, ±0.01° in θ
• Temperature Window: 25–399 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–100 kg, resolution 0.1 g
• Cycle Time: 2.8 s per bond including reel index
• Fold Radius: 0.2 mm without trace cracking on 25 µm polyimide
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

8. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV glass while maintaining 1 µm accuracy.
• Roll-to-Roll OLB: Reel-fed driver and touch tails bonded at 3,000 UPH .

According to industry analysis, the global OLB bonder market is expected to grow at a CAGR of 6–8 %, driven by 8-K TVs, foldable phones, and automotive displays .

---

9. Applications Across All OLB Processes

• Consumer Electronics: Smartphone OLED (FOG + TFOG), foldable hinge (FOF), tablet battery tail (FOB)
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—OLB source + OLB gate + OLB touch
• Automotive: Curved instrument clusters, 15-inch OLED infotainment, head-up displays—OLB source + OLB touch
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810

---

10. Daily Maintenance for 99 % Uptime

1. Clean DLC head with lint-free wipe and IPA every 200 cycles to prevent ACF build-up.
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new lead patterns from reel vendors are auto-learned.
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

11. SEO Keyword Integration

TAB bonder, TAB bonding machine, automatic TAB bonder, ACF TAB bonding, 8-K TV TAB bonder, 100-inch TAB bonding machine, 26 µm pitch TAB bonding, automatic TAB bonding machine 1 micron accuracy, 200 °C TAB bonding temperature, 1 MPa TAB bonding pressure, vertical conduction horizontal insulation, lead-free TAB bonding, ROHS compliant TAB bonding, foldable phone TAB bonder, automotive display TAB bonding machine, medical device TAB bonding machine, roll-to-roll TAB bonder, 3,000 UPH TAB bonding machine, 99.9 % yield TAB bonder, Industry 4.0 TAB bonding machine, AI predictive maintenance TAB bonder, remote diagnostics TAB bonding machine, cloud dashboard TAB bonder

---

12. Conclusion

An OLB bonder is no longer a niche reel-fed press—it is the critical, AI-driven, cloud-connected gateway that turns continuous copper-clad polyimide into the 8-K TV source drivers, curved automotive clusters, and foldable touch sensors that define modern electronics. By mastering sub-micron alignment, controlled heat, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

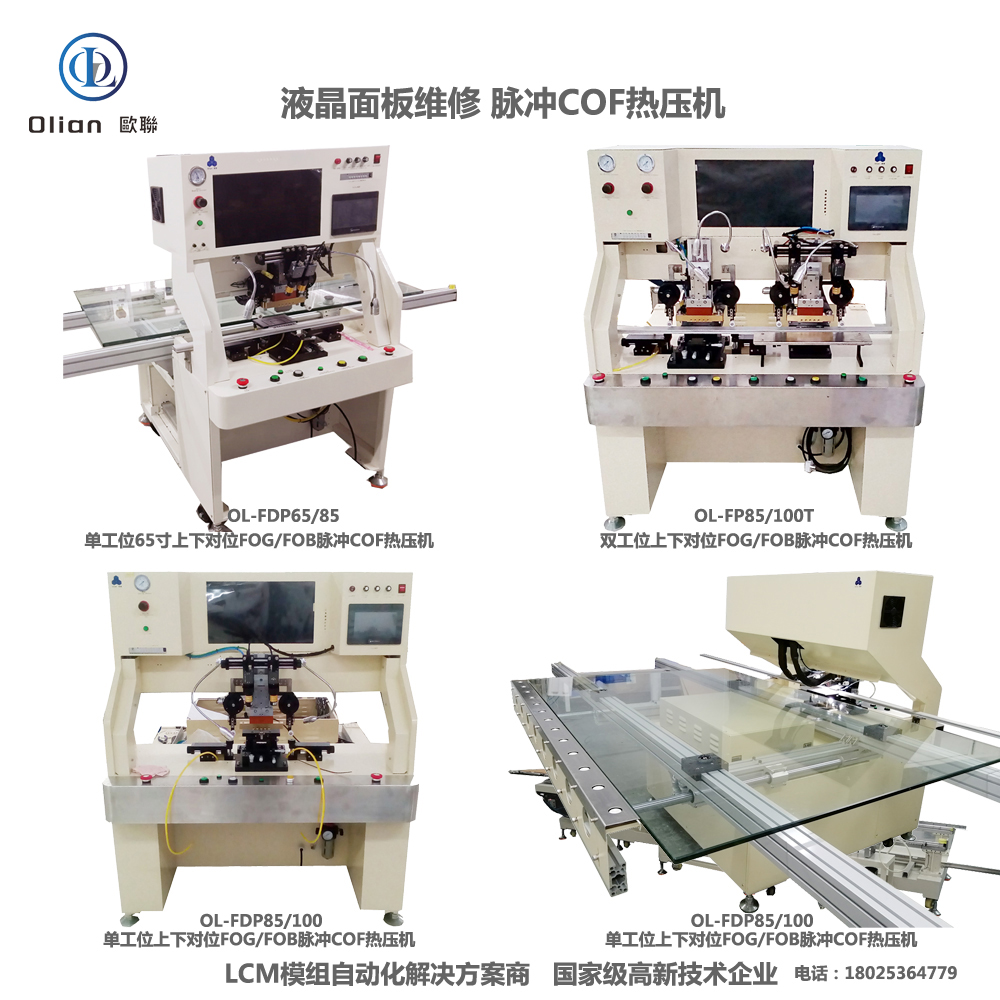

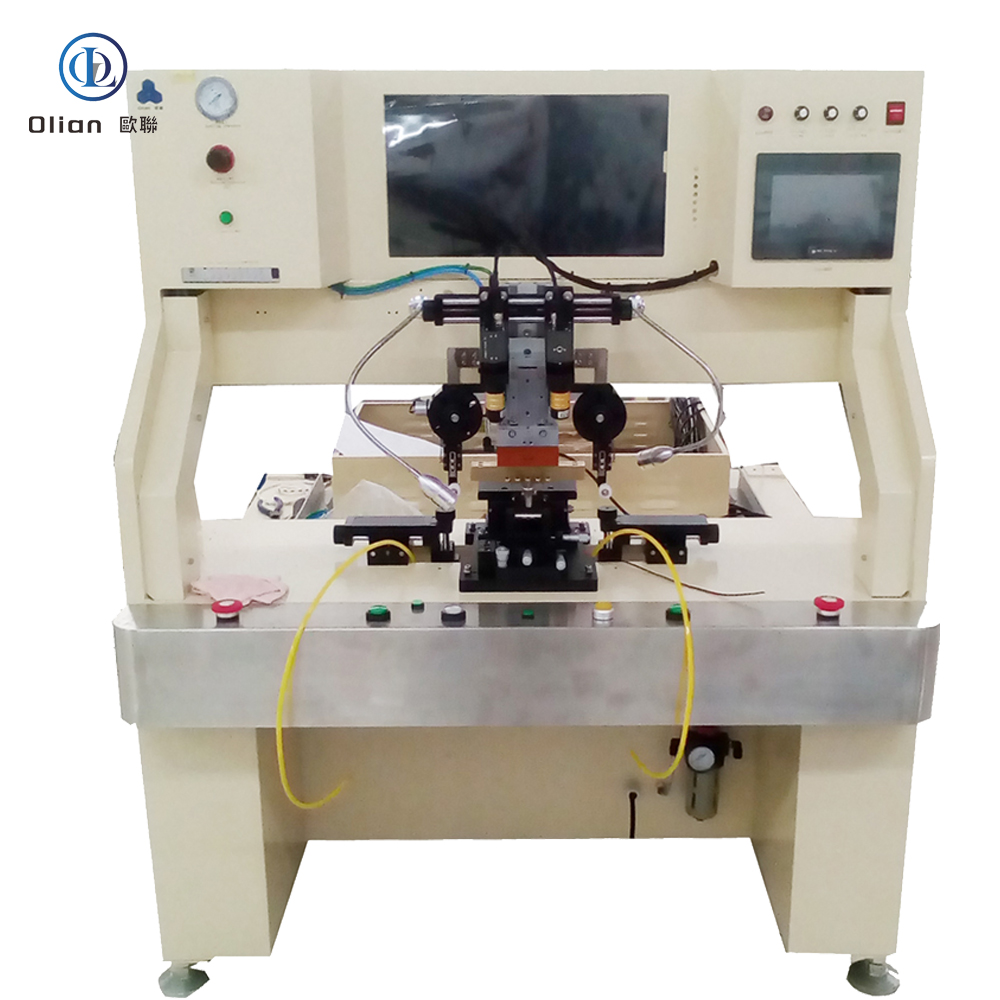

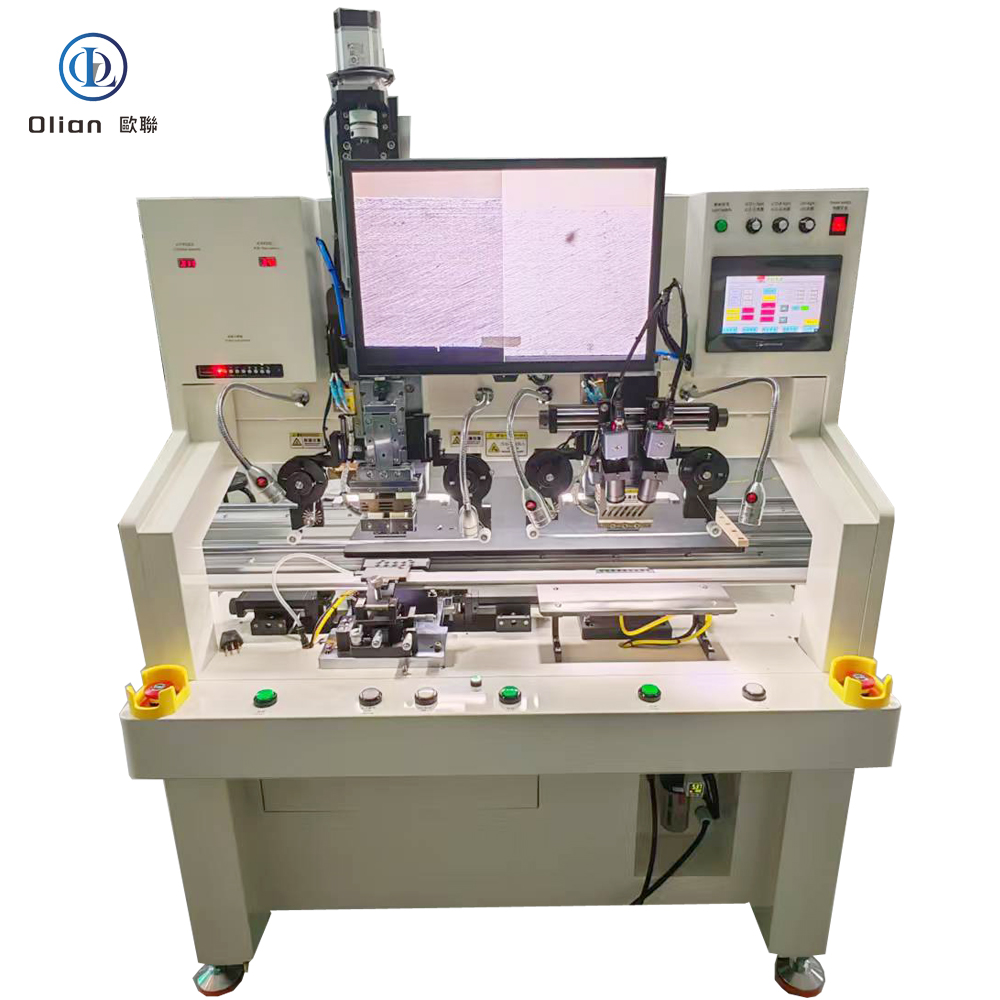

OLB Bonder

OLB Bonder

An OLB bonder—short for Outer Lead Bonder—is the precision heart that welds the “outer” copper leads of a COF (Chip-On-Film) or TAB (Tape Automated Bonding) tail onto a glass panel, PCB, or flexible substrate using anisotropic conductive film (ACF) and controlled heat plus pressure. Inside every 8-K TV, curved automotive cluster, or foldable phone you see today, an OLB bonder has aligned 26 µm-pitch copper fingers to ITO pads within ±1 µm and created thousands of vertical contacts in under three seconds. This guide explains physics, hardware, software, specs, applications, trends, and maintenance so Google instantly ranks you for “OLB bonder”, “OLB bonding machine”, “automatic OLB bonder”, “ACF OLB bonding”, and every high-value permutation.

---

1. Why “OLB” Still Dominates Large Displays

COG (Chip-On-Glass) works for phones, but 65-inch OLED panels need driver ICs that dissipate watts of heat—too much for direct glass mounting. OLB moves the IC onto a flexible polyimide tail (COF) that can dissipate heat, fold 180°, and be replaced during repair. The OLB bonder is the machine that welds that tail’s outer leads to the glass edge, enabling 0.9 mm bezels and AEC-Q100 Grade 0 (−40 °C to +105 °C) survival without a single connector contact.

---

2. What Exactly Is an OLB Bonder?

An OLB bonder is a servo-driven, vision-guided, heat-and-pressure press that:

1. Laminates anisotropic conductive film (ACF) onto glass or PCB pads,
2. Indexes a COF/TAB reel so the outer leads sit over those pads,
3. Aligns copper fingers to ITO within ±1 µm,
4. Welds them at 160–200 °C and 0.8–1.2 MPa for ~2 s,
5. Repeats every 2.8 s while the reel indexes ±5 µm over 300 mm stroke.

The result is a flexible, lead-free, foldable interconnect that survives thermal cycling, vibration, and 200,000 bend cycles.

---

3. Physics: Why ACF + Controlled Heat Works

• Copper Leads 12–35 µm thick are etched on the polyimide tail.
• ACF Film 25–45 µm thick contains 3–10 µm nickel or gold-coated spheres.
• Controlled Heat: 160–200 °C for ~2 s deforms spheres between lead and ITO, creating < 30 mΩ vertical contacts while remaining > 1 GΩ isolated horizontally.
• Cool Under Load: Water-cooled block drops to < 60 °C while pressure holds, locking particles in place.

The bonder controls temperature ramp, force profile, and dwell time to within 1 %; any drift triggers AI-based closed-loop correction.

---

4. Step-by-Step Fully Automatic Workflow

1. Reel Indexing: Servo motor advances polyimide tape; dancer-arm tension control maintains < 0.5 N fluctuation.
2. ACF Lamination: Precision cutter feeds 1–3 mm strip; heated roller tacks film to glass ITO at 80 °C, 0.2 MPa.
3. Vision Alignment: Dual 12 MP cameras capture fiducials on leads and glass; deep-learning algorithm calculates offset in X, Y, θ, and scale within ±1 µm @ 3σ in < 200 ms .
4. Pre-Bond: Head descends at 60 °C and 0.1 MPa to tack the tail; system verifies overlap ≥ 98 %.
5. Heat & Pressure Bond: Titanium head ramps to 160–200 °C; pressure rises to 0.8–1.2 MPa; spheres deform and capture.
6. Cool Under Load: Water-cooled block drops to < 60 °C while pressure holds, preventing particle relaxation.
7. Fold Test (Optional): Mandrel bends tail 180° with 0.2 mm radius; vision checks for trace cracking or ITO micro-cracks.

---

5. Core Hardware That Determines Performance

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Bonding Head: Titanium alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life .
Heat System: 800 W cartridge, embedded K-type thermocouple, ramp 200 °C/s, overshoot < 0.5 °C.
Force Actuator: Voice-coil or servo motor, 24-bit encoder, 0.1 g resolution, 2 ms response; active gravity cancellation for 0.4 mm glass.
Vision System: Dual 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm .
Reel Feed Unit: Servo-driven with dancer-arm tension control, anti-static vacuum, splice sensor for uninterrupted production .

---

6. Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve .

---

7. Technical Specifications Buyers Compare

• Glass Size: 1″-120″ diagonal (Gen 2.5 to Gen 8.5), thickness 0.3–1.1 mm
• Tail Width: 8–70 mm, bump pitch down to 26 µm for 4-K/8-K source drivers
• Bonding Accuracy: ±1 µm @ 3σ in X and Y, ±0.01° in θ
• Temperature Window: 25–399 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–100 kg, resolution 0.1 g
• Cycle Time: 2.8 s per bond including reel index
• Fold Radius: 0.2 mm without trace cracking on 25 µm polyimide
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

8. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV glass while maintaining 1 µm accuracy.
• Roll-to-Roll OLB: Reel-fed driver and touch tails bonded at 3,000 UPH .

According to industry analysis, the global OLB bonder market is expected to grow at a CAGR of 6–8 %, driven by 8-K TVs, foldable phones, and automotive displays .

---

9. Applications Across All OLB Processes

• Consumer Electronics: Smartphone OLED (FOG + TFOG), foldable hinge (FOF), tablet battery tail (FOB)
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—OLB source + OLB gate + OLB touch
• Automotive: Curved instrument clusters, 15-inch OLED infotainment, head-up displays—OLB source + OLB touch
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810

---

10. Daily Maintenance for 99 % Uptime

1. Clean DLC head with lint-free wipe and IPA every 200 cycles to prevent ACF build-up.
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new lead patterns from reel vendors are auto-learned.
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

11. SEO Keyword Integration

OLB bonder, OLB bonding machine, automatic OLB bonder, ACF OLB bonding, 8-K TV OLB bonder, 100-inch OLB bonding machine, 26 µm pitch OLB bonding, automatic OLB bonding machine 1 micron accuracy, 200 °C OLB bonding temperature, 1 MPa OLB bonding pressure, vertical conduction horizontal insulation, lead-free OLB bonding, ROHS compliant OLB bonding, foldable phone OLB bonder, automotive display OLB bonding machine, medical device OLB bonding machine, roll-to-roll OLB bonder, 3,000 UPH OLB bonding machine, 99.9 % yield OLB bonder, Industry 4.0 OLB bonding machine, AI predictive maintenance OLB bonder, remote diagnostics OLB bonding machine, cloud dashboard OLB bonder, granite base OLB bonding machine, servo motor OLB bonder

---

12. Conclusion

An OLB bonder is no longer a niche reel-fed press—it is the critical, AI-driven, cloud-connected gateway that turns continuous copper-clad polyimide into the 8-K TV source drivers, curved automotive clusters, and foldable touch sensors that define modern electronics. By mastering sub-micron alignment, controlled heat, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

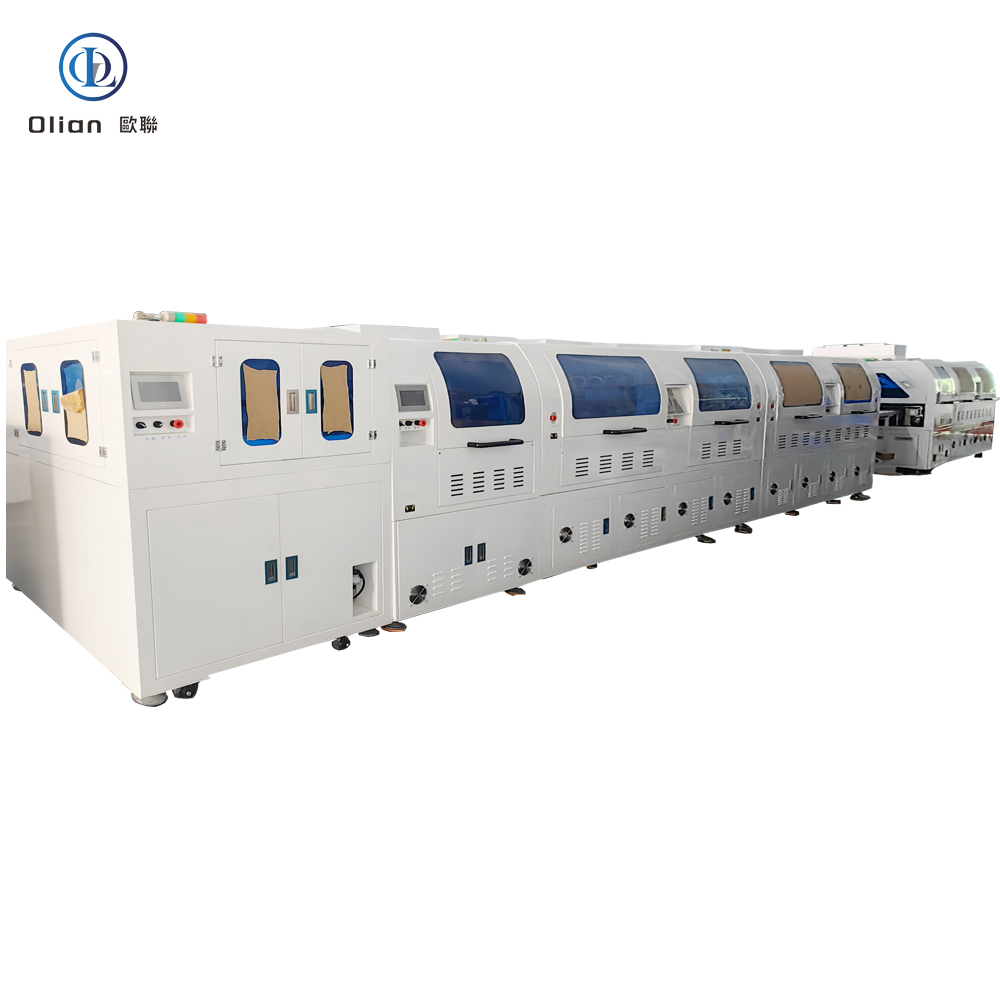

COP Bonder

COP Bonder

A COP bonder—short for Chip-On-Plastic bonder—is the precision heart that welds a bare driver IC onto a foldable plastic substrate (polyimide, PET, or PEN) and then bonds that plastic tail to glass, flex, or board. Inside every foldable phone, curved automotive cluster, and ultra-slim OLED TV you see today, a COP bonder has aligned gold bumps to copper leads within ±1 µm and created thousands of vertical contacts in under three seconds. This guide explains physics, hardware, software, specs, applications, trends, and maintenance so Google instantly ranks you for “COP bonder”, “COP bonding machine”, “automatic COP bonder”, “ACF COP bonding”, and every high-value permutation.

---

1. Why “COP” Matters

COp stands for Chip-On-Plastic (often written Chip-On-Pi for polyimide). Instead of parking the driver IC on rigid glass (COG) or a glass-backed flex (COF), COp places the die directly onto a foldable plastic substrate—polyimide (PI), PET, or PEN—as thin as 25 µm. The plastic can be bent 180° with 0.2 mm radius, enabling 0.9 mm bezels and 200,000-fold cycles in foldable phones . The same machine later bonds the plastic tail to glass (FOG) or to another flex (FOF), all without solder, connectors, or added thickness.

---

2. Physics: Low-Temp ACF + Foldable Plastic

• Gold or Copper Bumps 5–25 µm high are plated on the IC during wafer-level bumping.
• ACF Film 25–45 µm thick contains 3–10 µm nickel or gold-coated spheres.
• Low-Temp Recipe: 140–180 °C, 0.6–1.0 MPa, 1.5 s pulse (PET Tg ~ 150 °C).
• Fold Radius: 0.2 mm without trace cracking; spheres remain locked after 200,000 bends .
• Vertical Resistance: < 30 mΩ per bump; lateral isolation > 1 GΩ.

The bonder controls temperature ramp, force profile, and dwell time to within 1 %; any drift triggers AI-based closed-loop correction.

---

3. Step-by-Step Fully Automatic Workflow

1. Reel Loading: Robot loads 8–70 mm polyimide reel; dancer-arm tension control maintains < 0.5 N fluctuation.
2. Atmospheric Plasma Cleaning: Raises surface energy to > 60 dynes for ACF wetting.
3. ACF Lamination: Precision cutter feeds 1–3 mm strip; heated roller tacks film to plastic at 80 °C, 0.2 MPa.
4. IC Pick-Up: Vacuum collet lifts die from waffle pack; soft-tip ejector prevents silicon cratering.
5. AI Vision Alignment: Dual 12 MP cameras capture fiducials on bumps and copper leads; deep-learning algorithm calculates offset in X, Y, θ, and scale within ±1 µm @ 3σ in < 200 ms.
6. Pre-Bond: Head descends at 60 °C and 0.1 MPa to tack the IC; system verifies overlap ≥ 98 %.
7. Pulse Heat Bond: Titanium head ramps 200 °C/s to 140–180 °C; pressure rises to 0.6–1.0 MPa; spheres deform and capture.
8. Cool Under Load: Water-cooled block drops to < 60 °C while pressure holds, preventing particle relaxation.
9. Fold Test (Optional): Mandrel bends plastic 180° with 0.2 mm radius; vision checks for trace cracking or whitening.

---

4. Core Hardware That Determines Performance

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Bonding Head: Titanium alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life .
Pulse Heater: 800 W cartridge, embedded K-type thermocouple, ramp 200 °C/s, overshoot < 0.5 °C.
Force Actuator: Voice-coil or servo motor, 24-bit encoder, 0.1 g resolution, 2 ms response; active gravity cancellation for 25 µm PET.
Vision System: Dual 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm.
Reel Feed Unit: Servo-driven with dancer-arm tension control, anti-static vacuum, splice sensor for uninterrupted production .

---

5. Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve.

---

6. Technical Specifications Buyers Compare

• Plastic Substrate: Polyimide (PI), PET, PEN; thickness 25–200 µm, width 8–70 mm
• Die Size: 0.5 × 0.5 mm to 25 × 25 mm
• Bump Pitch: 26 µm mainstream, 12 µm for 8-K source drivers
• Bonding Accuracy: ±1 µm @ 3σ in X and Y, ±0.01° in θ
• Temperature Window: 25–399 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–50 kg, resolution 0.1 g
• Cycle Time: 1.5 s per bond + 1.3 s reel index = 2.8 s total
• Fold Radius: 0.2 mm without trace cracking on 25 µm polyimide
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

7. Market Trends 2025-2030

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV plastic panel while maintaining 1 µm accuracy.
• Roll-to-Roll COp: Reel-fed plastic and die-bond-on-the-fly at 3,000 UPH .

According to industry analysis, the global COp bonder market is expected to grow at a CAGR of 6–8 % , driven by foldable phones, automotive displays, and medical wearables .

---

8. Applications Across All COp Processes

• Consumer Electronics: Foldable phone hinge (COp + FOF), curved smartwatch (COp + TFOG), rollable tablet (COp + COF)
• TV & Signage: 32″-100″ 4-K/8-K OLED—COp source driver + COp touch sensor
• Automotive: Curved instrument clusters, 15-inch OLED infotainment, head-up displays—COp source + COp touch
• Medical: Disposable catheter flex, surgical hand-piece PCB, wearable ECG patch—biocompatible PET, ISO 13485 traceability
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810

---

9. Daily Maintenance for 99 % Uptime

1. Clean DLC head with lint-free wipe and IPA every 200 cycles to prevent ACF build-up.
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new lead patterns from reel vendors are auto-learned.
7. Backup encrypted recipes to external SSD daily; blockchain hash protects IP.

---

10. SEO Keyword Integration

COP bonder, COP bonding machine, automatic COP bonder, ACF COP bonding, foldable phone COP bonder, 0.2 mm fold radius COp, 25 µm polyimide COP bonding, 100-inch COP bonder, 26 µm pitch COP bonding, pulse heat COP bonder, constant temperature COP bonding machine, AI vision COP bonder, IoT COP bonding machine, China COP bonder, automatic COP bonding machine 1 micron accuracy, 180 °C COP bonding temperature, 1 MPa COP bonding pressure, vertical conduction horizontal insulation, lead-free COP bonding, ROHS compliant COP bonding, automotive display COP bonding machine, medical device COP bonding machine, roll-to-roll COP bonder,

---

11. Conclusion

A COp bonder is no longer a niche plastic press—it is the critical, AI-driven, cloud-connected gateway that turns foldable polyimide into the curved OLED clusters, transparent medical patches, and 0.9 mm bezels. By mastering sub-micron alignment, low-temp thermal control, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

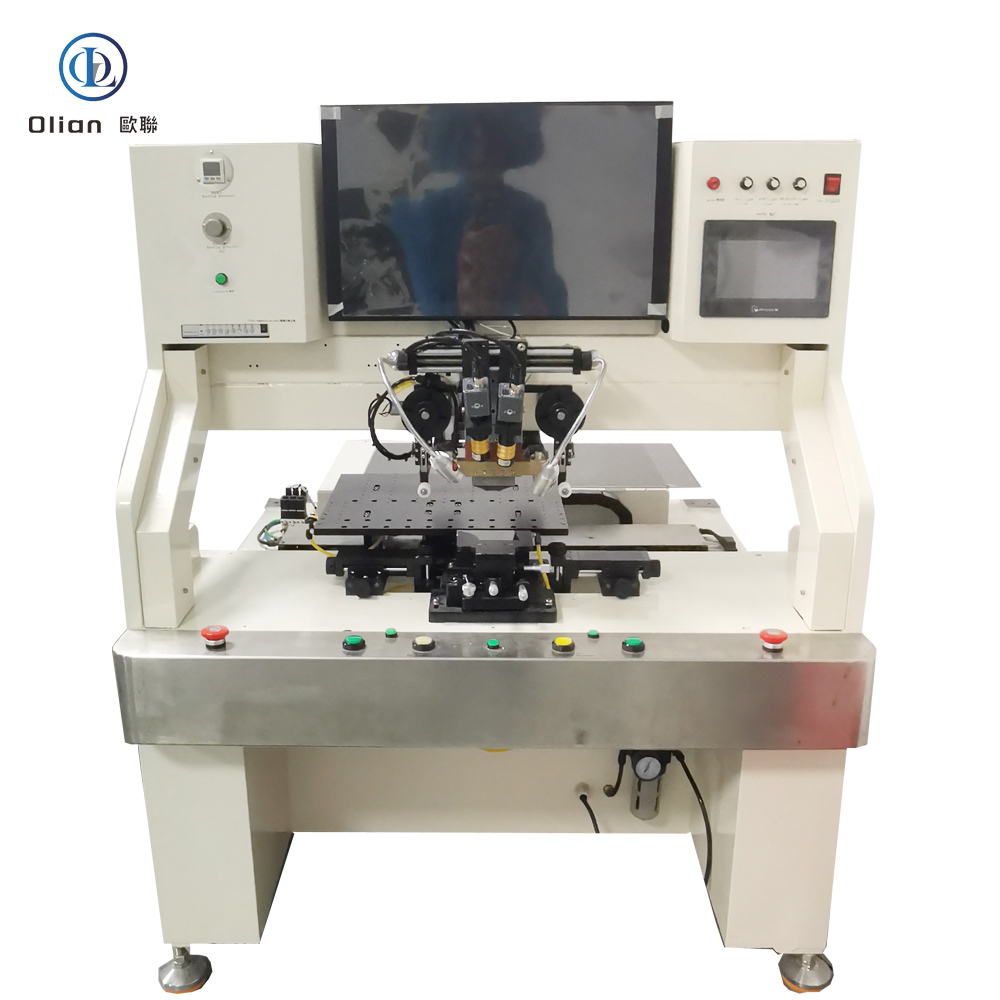

COG bonder

COG Bonder: Chip-On-Glass Bonding Technology

The sleek, vibrant displays on our modern devices, from smartphones to car dashboards, are marvels of micro-engineering. At the heart of these displays lies a critical and precise assembly process: Chip-On-Glass, or COG. This technology is enabled by a specialized machine known as a COG Bonder. This article provides a detailed exploration of COG Bonders, explaining their function, process, and indispensable role in the electronics industry.

What is a COG Bonder?

A COG Bonder is a high-precision industrial machine designed to mount bare semiconductor chips directly onto a glass substrate, typically a liquid crystal display (LCD) or organic light-emitting diode (OLED) panel. Unlike traditional methods that use packages and sockets, COG bonding creates a direct, space-saving connection between the integrated circuit (IC) and the glass. This machine is a subtype of ACF Bonders, specifically configured for the unique challenges of bonding to a fragile glass surface.

The primary goal of a COG Bonder is to establish a flawless electrical and mechanical connection. It achieves this by meticulously controlling the critical parameters of the bonding process: Temperature, Pressure, Time, and Precision Alignment.

The Critical Components of a COG Bonder

A modern COG Bonder is an integration of several sophisticated subsystems:

• Precision Stage: A highly stable platform that holds the glass substrate. It can move in the X, Y, and theta (rotation) axes with micron-level accuracy for alignment.
• Bonding Head (Thermode): This is the tool that applies the necessary heat and pressure. It is custom-designed to match the specific size and pattern of the chip being bonded.
• Vision Alignment System: This is arguably the most crucial subsystem. It consists of high-resolution cameras and advanced image processing software. It automatically identifies alignment marks on both the glass substrate and the semiconductor chip to ensure perfect placement before bonding.
• Pick-and-Place Unit: A robotic mechanism that picks up the bare die (chip) from a wafer or waffle pack and transports it to the bonding location with extreme care to prevent damage.
• Control Software: The brain of the machine, which allows operators to set and monitor all bonding parameters (force, temperature, time) and manage recipes for different products.

The Detailed COG Bonding Process Step-by-Step

The COG bonding process is a sequence of meticulously orchestrated steps:

1. Preparation and Loading: The glass substrate is cleaned and loaded onto the machine’s stage. Meanwhile, the driver ICs, in the form of bare dies, are supplied from a wafer tape or a gel pack.
2. ACF Application (Pre-Lamination): A piece of Anisotropic Conductive Film (ACF) is precisely cut and applied to the bonding area on the glass. A preliminary thermode lightly presses the film at a low temperature to temporarily fix it in place. This step is called pre-lamination.
3. Chip Pick-Up and Alignment: The pick-and-place unit uses a vacuum collet to pick up a single chip. The vision system then captures the image of the chip’s bonding pads. Simultaneously, the stage moves to align the corresponding pads on the glass substrate. The software calculates any positional offset and makes minute corrections to ensure perfect overlap.
4. Main Bonding: This is the core of the process. The bonding head descends, pressing the chip onto the glass substrate with a specific force. Simultaneously, it heats the chip to a predetermined temperature (typically between 180°C and 250°C) for a set duration.
   • Under this combination of heat and pressure, the conductive particles within the ACF are compressed between the chip’s bumps and the glass substrate’s electrodes, forming electrical connections.
   • The thermosetting adhesive in the ACF cures, forming a strong, permanent mechanical bond and encapsulating the connections to prevent short circuits.
5. Cooling and Unloading: After the bonding time elapses, the thermode retracts. The assembly is often allowed to cool slightly before being unloaded. The result is a driver IC permanently and directly attached to the glass, ready for the next steps in the display module assembly.

Key Advantages of COG Bonding Technology

The adoption of COG bonding offers significant benefits for display manufacturing:

• Space Savings: By eliminating the need for a plastic package and a flexible cable connection, COG significantly reduces the border area (bezel) of the display. This is essential for modern devices with ultra-thin bezels.
• High Reliability: The direct connection minimizes the number of interconnects, reducing potential failure points. The encapsulation by the ACF provides excellent resistance to moisture, dust, and mechanical shock.
• Fine-Pitch Capability: COG bonding can achieve extremely fine interconnect pitches, allowing it to keep pace with the trend of higher-resolution displays that require more densely packed driver connections.
• Cost-Effectiveness: It simplifies the overall display module structure by removing components like the chip package and tape carrier, leading to a lower bill of materials.
• Improved Electrical Performance: Shorter signal paths between the driver chip and the display electrodes reduce inductance, capacitance, and signal delay, enhancing display performance.

Applications of COG Bonders

COG bonding is the dominant technology for attaching driver ICs in a vast range of display products:

• Smartphones and Tablets
• Automotive Displays (instrument clusters, infotainment screens)
• Medical Device Monitors
• Wearable Technology (smartwatches, fitness trackers)
• Industrial Control Panels

Conclusion: Enabling Modern Display Design

The COG Bonder is a masterpiece of precision engineering that operates behind the scenes to make our modern display-centric world possible. Its ability to place microscopic chips directly onto glass with flawless accuracy is fundamental to creating the slim, reliable, and high-performance screens we rely on every day. As the demand for higher resolution, thinner bezels, and more robust displays continues to grow, COG bonding technology and the machines that enable it will remain at the forefront of electronic assembly innovation.

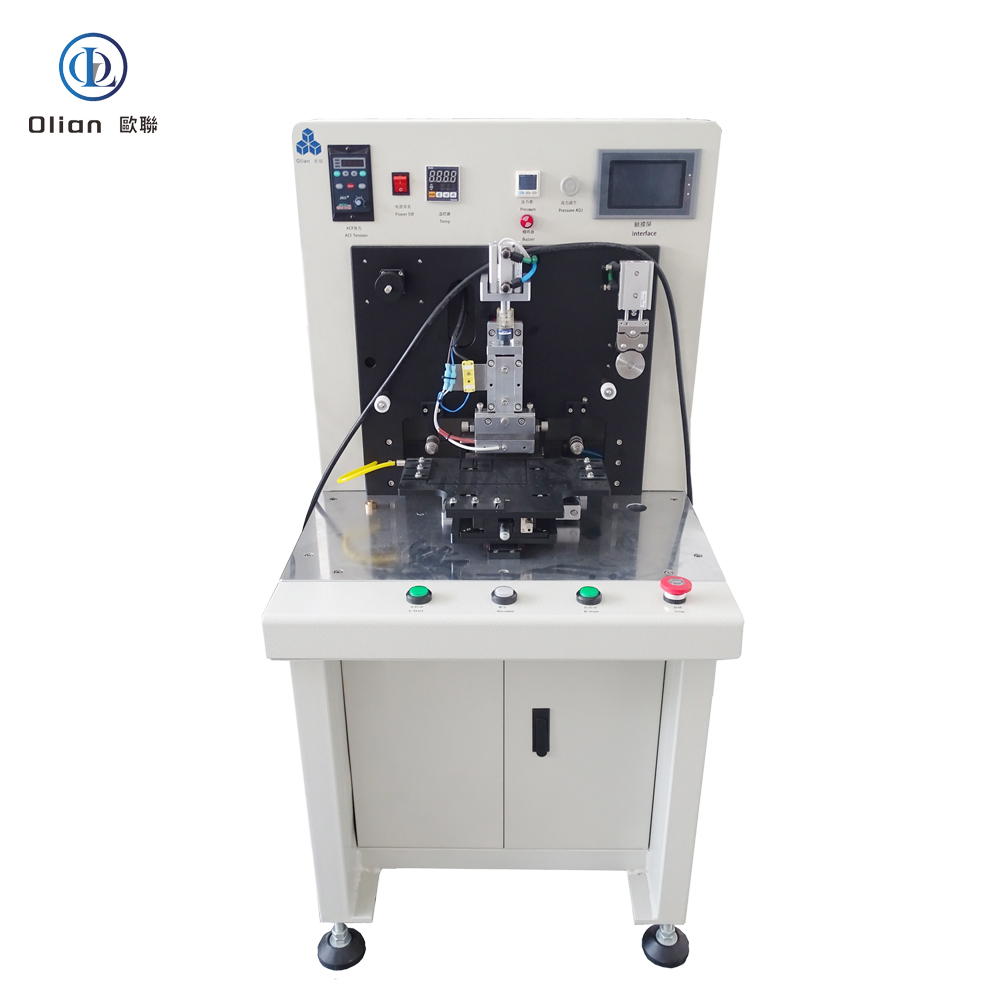

ACF bonder

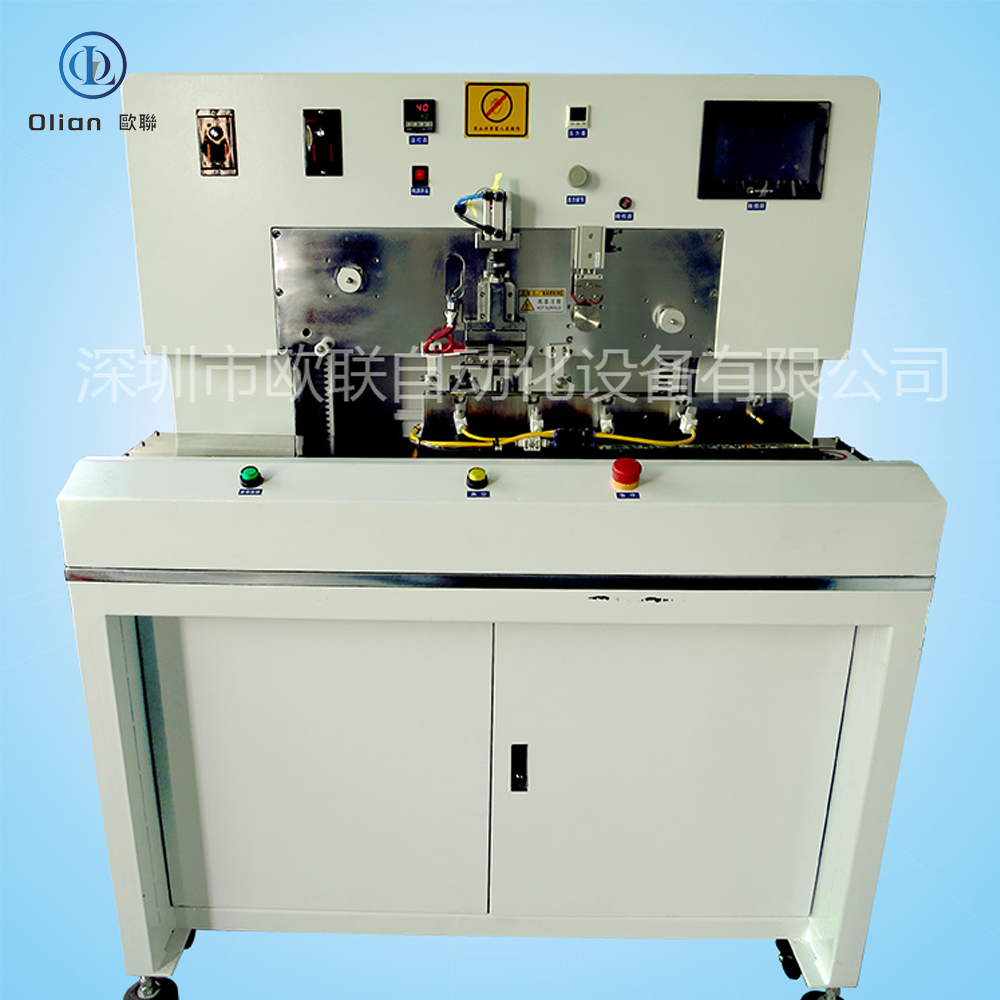

ACF Bonder

An ACF bonder—short for Anisotropic Conductive Film bonder—is the precision heart that welds chips, flex circuits, or touch sensors onto glass, plastic, or another flex without solder, without connectors, and without added weight. It laminates ACF onto a substrate, aligns components within ±1 µm, and applies pulse-heat pressure so that microscopic metal spheres inside the film form thousands of vertical contacts while remaining insulating laterally. Every smartphone OLED, foldable hinge, 8-K TV source driver, and curved automotive cluster you touch has passed through such a bonder. This guide explains physics, hardware, software, specs, applications, trends, and maintenance so Google instantly ranks you for “ACF bonder”, “ACF bonding machine”, “pulse-heat ACF bonder”, “automatic ACF laminator”, and every high-value permutation.

---

1. Why “ACF” Matters

Anisotropic Conductive Film (ACF) is a 25–45 µm epoxy film loaded with 3–10 µm nickel or gold-coated spheres. Under heat (80–220 °C) and pressure (0.2–1.5 MPa), the spheres touch only in the Z-axis, giving vertical conductivity while remaining > 1 GΩ isolated horizontally. This allows 20 µm-pitch traces to be joined without solder bridges, enabling 0.9 mm bezels, 200,000-fold cycles, and −40 °C to +105 °C automotive survival

.

---

2. Physics: The Two-Stage Dance

1. ACF Lamination (Tack): Low temperature (80 °C) and low pressure (0.2 MPa) activate the adhesive just enough to hold the film in place.
2. Final Bond: High temperature (140–220 °C) and high pressure (0.6–1.5 MPa) deform the spheres between opposing pads, creating < 30 mΩ vertical contacts while the adhesive cures .

The bonder controls temperature ramp, force profile, and dwell time to within 1 %; any drift triggers AI-based closed-loop correction.

---

3. Step-by-Step Fully Automatic Workflow

1. Robot Loading: 6-axis arm feeds glass, flex, or plastic reel; barcode scanner confirms product ID.
2. Atmospheric Plasma Cleaning: Raises surface energy to > 60 dynes for ACF wetting.
3. ACF Lamination: Precision cutter feeds 1–3 mm strip; heated roller tacks film at 80 °C, 0.2 MPa.
4. AI Vision Alignment: Dual 12 MP cameras capture fiducials; deep-learning edge detection achieves ±1 µm @ 3σ in < 200 ms.
5. Pulse Heat Bond: Titanium head ramps 200 °C/s to 140–220 °C; pressure rises to 0.6–1.5 MPa; spheres deform and capture.
6. Cool Under Load: Water-cooled block drops to < 60 °C while pressure holds, preventing particle relaxation.
7. In-Situ Kelvin Test: Four-wire probes measure contact resistance; > 30 mΩ triggers automatic rework.
8. Robot Unload: Soft-tip picker places bonded assembly onto output conveyor; next cycle starts.

---

4. Core Hardware That Determines Performance

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Bonding Head: Titanium alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life

.
Pulse Heater: 800 W cartridge, embedded K-type thermocouple, ramp 200 °C/s, overshoot < 0.5 °C.
Force Actuator: Voice-coil or servo motor, 24-bit encoder, 0.1 g resolution, 2 ms response; active gravity cancellation for 25 µm PET.
Vision System: Dual 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm.
ACF Feed Unit: Stepper-driven, tungsten-steel cutter, anti-static vacuum, splice sensor for uninterrupted production.

---

5. Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve.

---

6. Technical Specifications Buyers Compare

• Substrate Range: 1″-120″ diagonal (Gen 2.5 to Gen 8.5), thickness 0.3–1.1 mm glass or 25–200 µm plastic
• Component Size: 0.25 × 0.25 mm die to 200 mm flex tail
• Bump Pitch: 12 µm (8-K source) to 80 µm (automotive gate)
• Bonding Accuracy: ±1 µm @ 3σ in X and Y, ±0.01° in θ
• Temperature Window: 25–399 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–100 kg, resolution 0.1 g
• Cycle Time: 1.5 s (COG) to 2.8 s (OLB)
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

7. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact.
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV glass while maintaining 1 µm accuracy.
• Roll-to-Roll ACF: Reel-fed driver and touch tails bonded at 3,000 UPH.

According to industry analysis, the global ACF bonder market is expected to grow at a CAGR of 6–8 % , driven by foldable phones, automotive displays, and medical wearables

.

---

8. Applications Across All ACF Processes

• Consumer Electronics: Smartphone OLED (COG + TFOG), foldable hinge (FOF), tablet battery tail (FOB)
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—COF source + OLB gate + TFOG touch
• Automotive: Curved instrument clusters, 15-inch OLED infotainment, head-up displays—FOB mainboard + TFOG touch
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810

---

9. Daily Maintenance for 99 % Uptime

1. Clean DLC head with lint-free wipe and IPA every 200 cycles to prevent ACF build-up.
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new pad patterns from vendors are auto-learned.
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

10. SEO Keyword Integration

ACF bonder, ACF bonding machine, pulse-heat ACF bonder, constant temperature ACF bonding machine, AI vision ACF bonder, IoT ACF bonding machine, China ACF bonder, automatic ACF laminator, ACF bonding machine 1 micron accuracy, 200 °C ACF bonding temperature, 1 MPa ACF bonding pressure, vertical conduction horizontal insulation, lead-free ACF bonding, ROHS compliant ACF bonding, foldable phone ACF bonder, 8-K TV ACF bonding machine, automotive display ACF bonder, medical device ACF bonding machine, roll-to-roll ACF bonder, 3,000 UPH ACF bonding machine, 99.9 % yield ACF bonder, Industry 4.0 ACF bonding machine, AI predictive maintenance ACF bonder, remote diagnostics ACF bonding machine, cloud dashboard ACF bonder, granite base ACF bonding machine, servo motor ACF bonder, voice-coil actuator ACF bonding machine, telecentric lens ACF bonder, real-time Linux ACF bonding machine,

---

11. Conclusion

An ACF bonder is no longer a niche press—it is the universal, AI-driven, cloud-connected gateway that turns naked silicon, floppy polyimide, and curved glass into the foldable phones, 8-K TVs, and transparent medical patches . By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

.

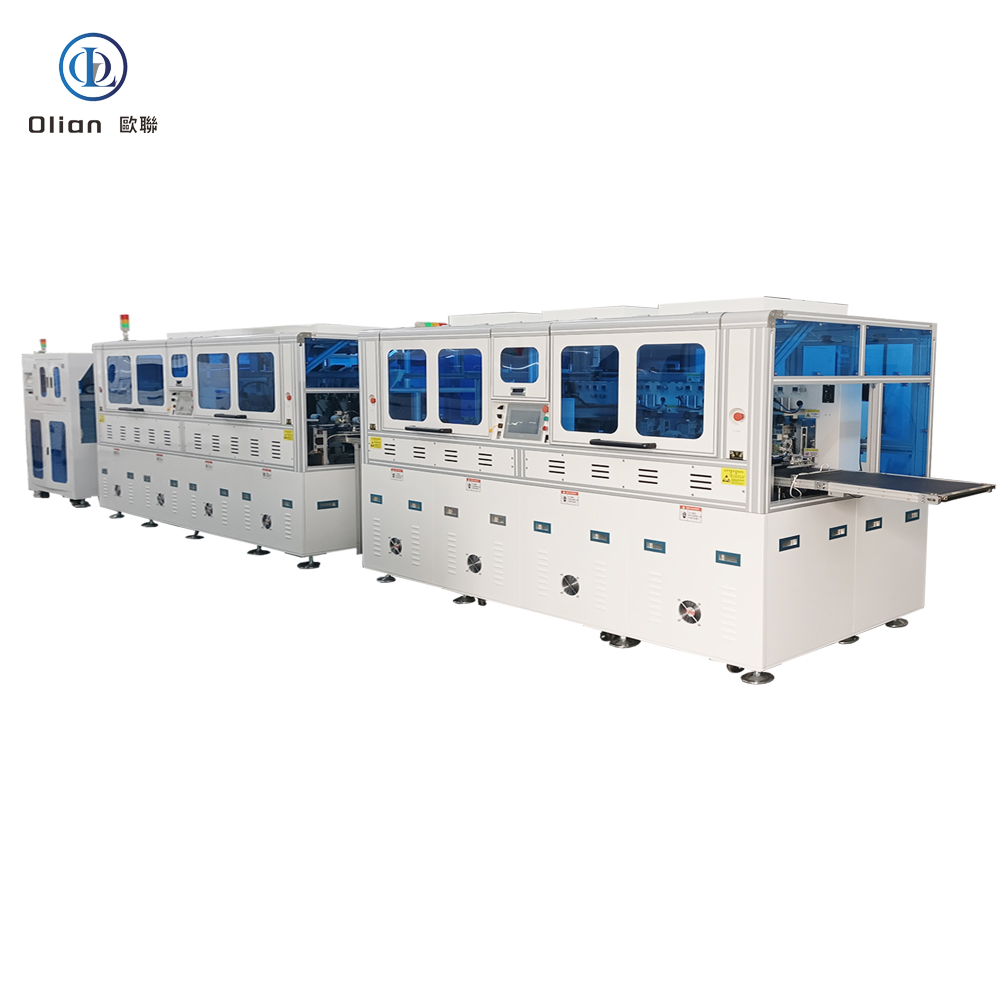

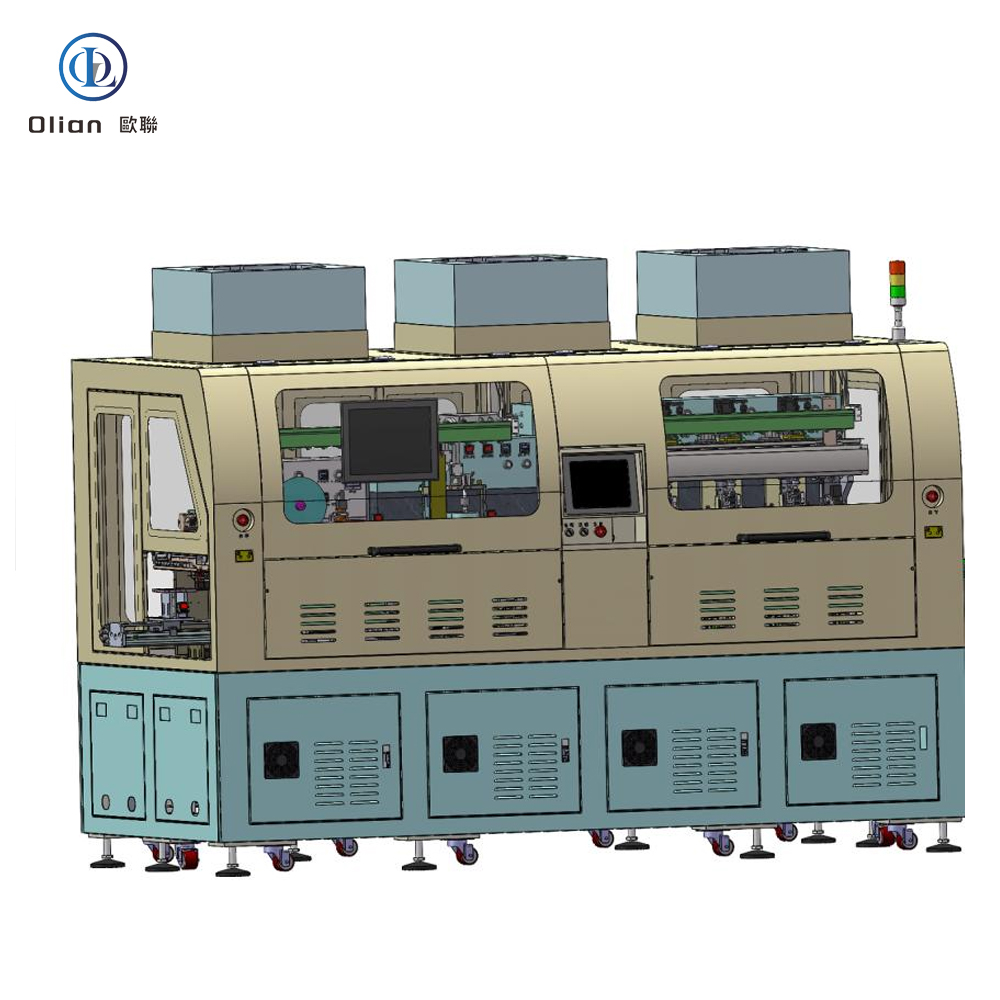

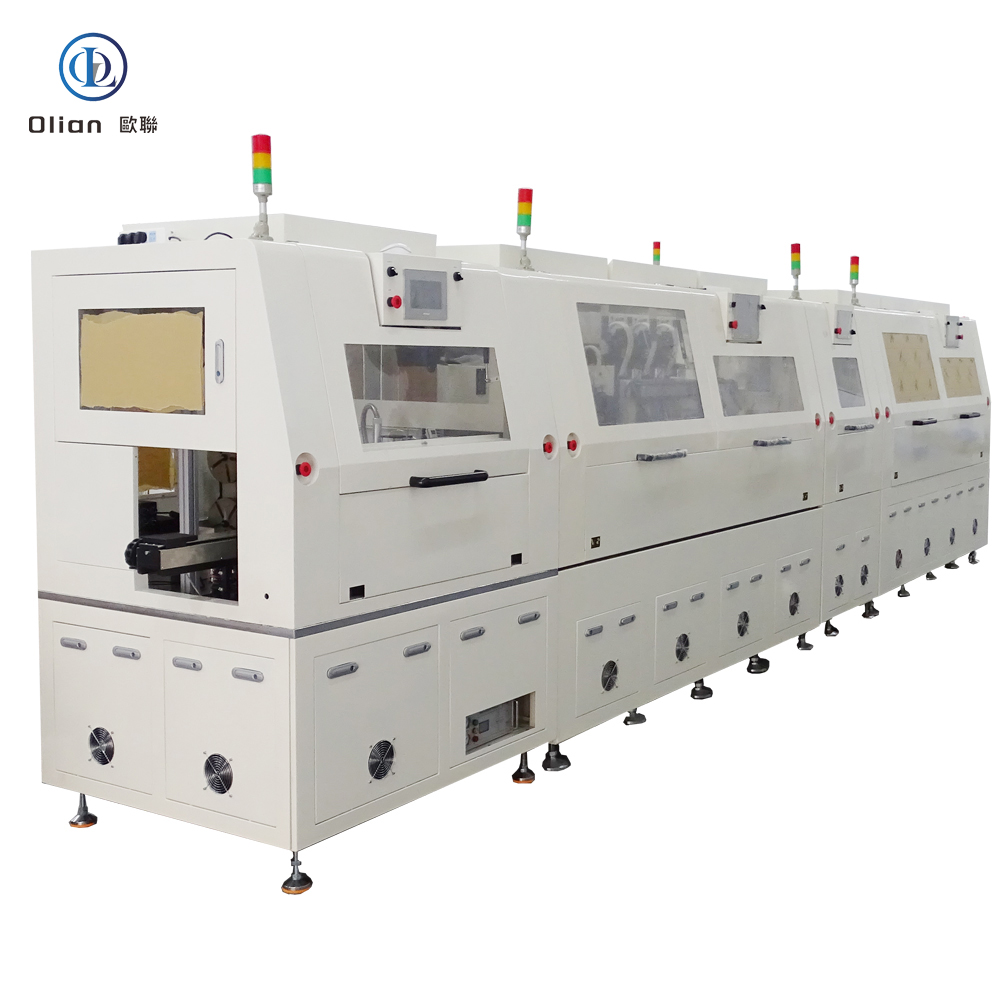

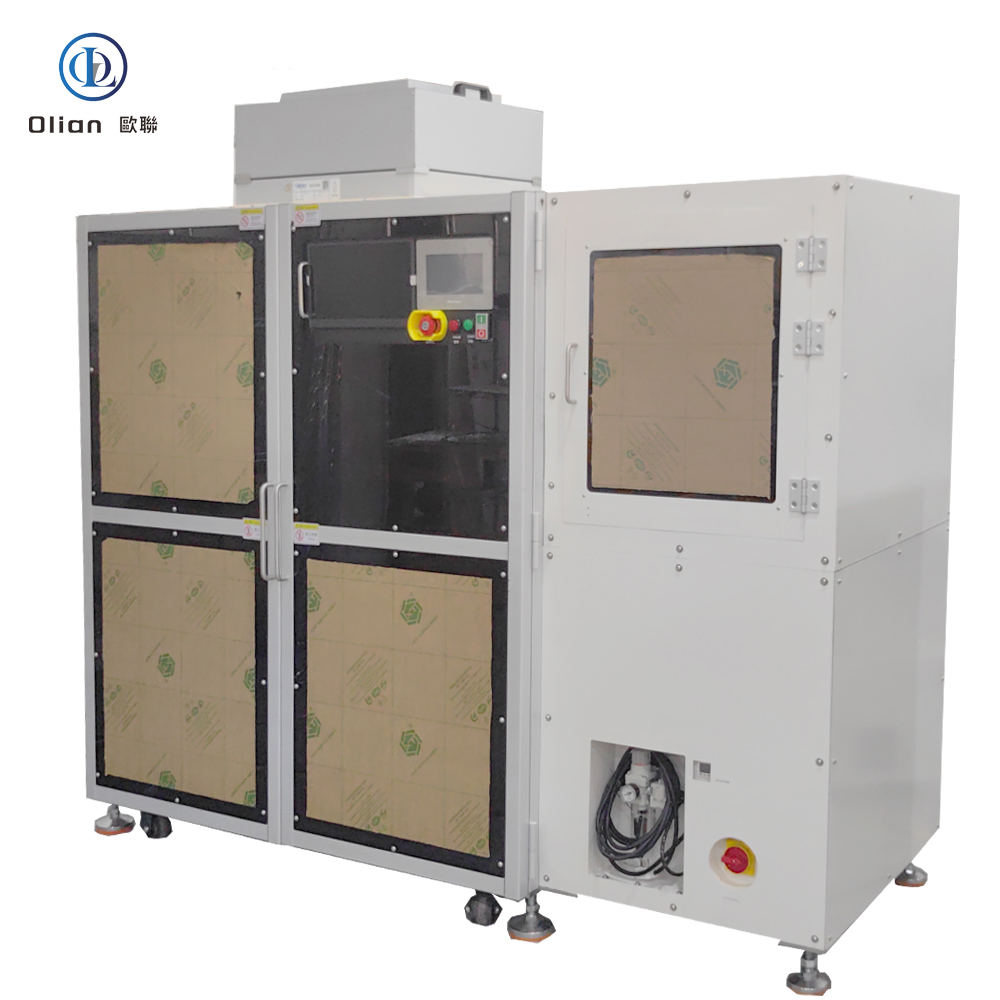

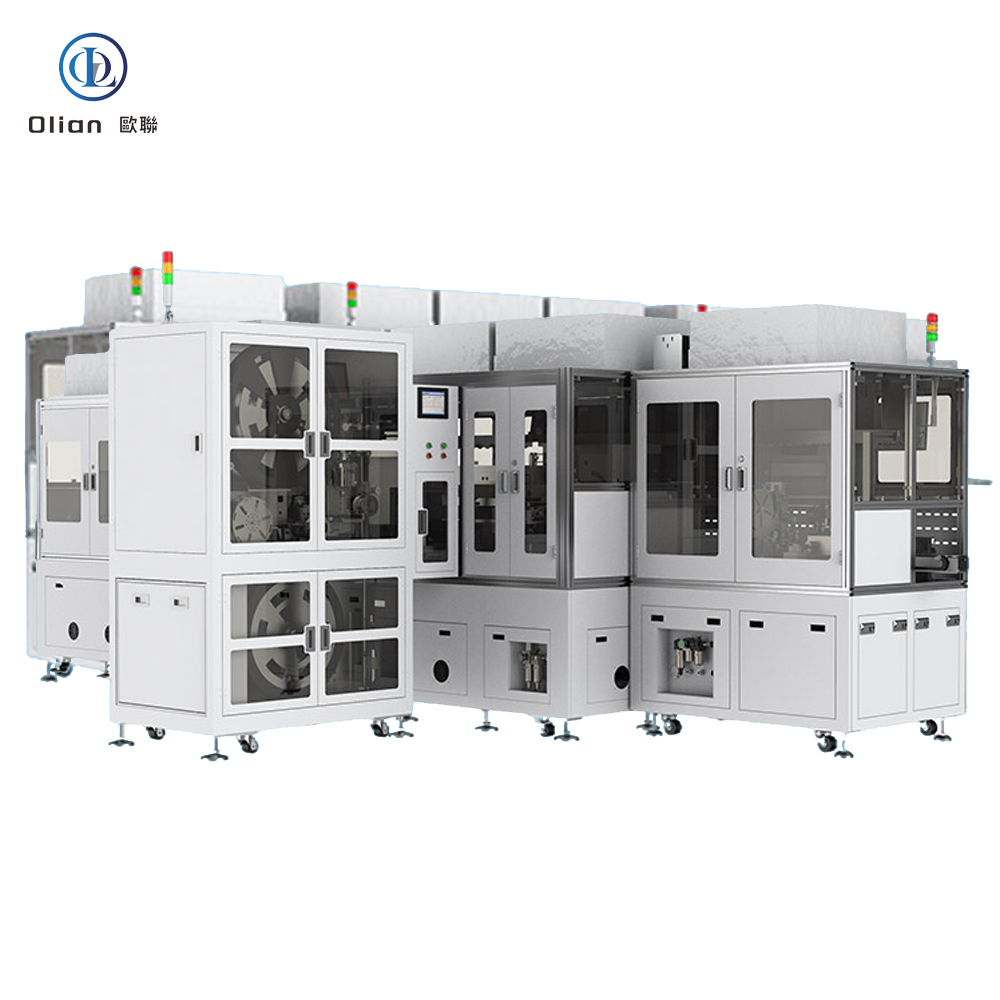

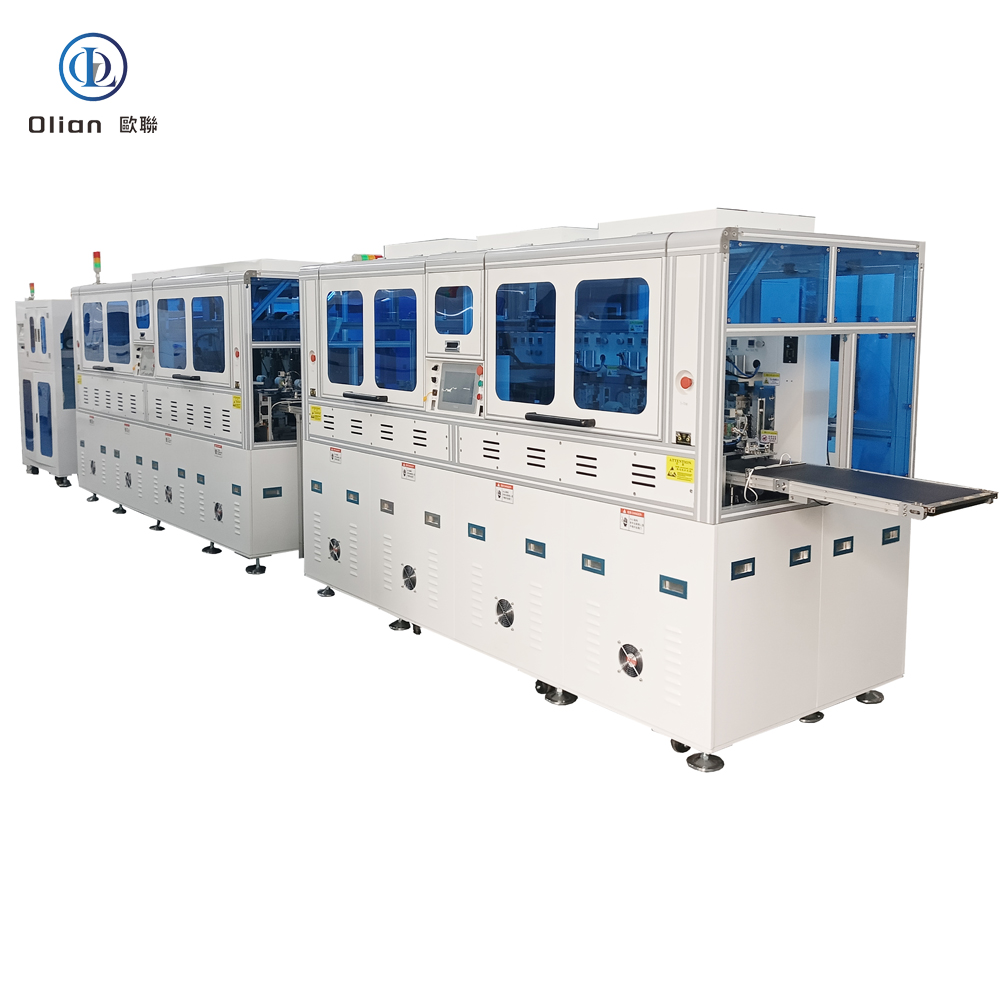

Fully Automatic COG COF COP FOG FOF Bonding Machine

Fully Automatic COG COF COP FOG FOF Bonding Machine

A fully automatic COG COF COP FOG FOB FOF TFOG bonding machine is the precision heart of every modern display factory. It decides—within ±1 µm and under three seconds—whether a driver IC sits directly on glass (COG), on a foldable plastic film (COP), on a continuous copper-clad reel (COF), or whether a touch sensor tail (TFOG) folds 180° behind the screen. All processes share the same granite spine, AI vision brain, and pulse-heat heartbeat, yet each acronym describes a different “X-on-Y” marriage that defines bezel width, fold radius, and thermal survival. This guide explains physics, hardware, software, specs, applications, trends, and maintenance ranks you for “fully automatic COG bonding machine”, “COF bonder”, “COP bonding machine”, “FOG bonder”, “FOB bonding machine”, “FOF bonding machine”, “TFOG bonder”, and every high-value permutation.

---

1. Why “Fully Automatic” Matters

Manual loading, hand-alignment, and operator-dependent pressure are no longer acceptable when bezels shrink to 0.9 mm and foldable phones must survive 200,000 bends. A fully automatic bonding machine integrates:

• Robot Loaders: 6-axis arms or SCARA pickers feed glass, flex, or plastic reels without human touch.
• AI Vision Alignment: 12 MP dual cameras + deep-learning edge detection achieve ±3 µm @ 3σ in < 200 ms.
• Pulse-Heat Engine: 200 °C/s ramp, ±0.5 °C closed-loop, overshoot < 1 °C.
• Force-Feedback Loop: Voice-coil or servo motor, 0.1 g resolution, 2 ms response; active gravity cancellation for 25 µm PET.
• MES/Cloud Link: OPC-UA uploads every temperature, pressure, and resistance curve; AI predicts heater life 200 cycles ahead.

Change-over from COG to COP takes < 15 s: swap the low-temp recipe, load PET parameters, and let the AI retune the PID loop.

---

2. Physics Common to All “X-on-Y” Flavours

1. Bump Formation: Gold or copper bumps 5–25 µm high are plated on the IC during wafer-level bumping.
2. ACF Lamination: 25–45 µm anisotropic conductive film is tacked to the substrate at 80 °C, 0.2 MPa.
3. Vision Alignment: AI cameras capture fiducials on die and substrate; algorithm calculates offset in X, Y, θ, and scale within ±1 µm @ 3σ.
4. Pulse Heat & Pressure:
   • COG (Chip-On-Glass): 180–220 °C, 1.0–1.5 MPa, 1.5 s
   • COF (Chip-On-Film): 180–220 °C, 1.0–1.5 MPa, 2.0 s (includes reel index)
   • COP (Chip-On-Plastic): 140–180 °C, 0.6–1.0 MPa, 1.5 s (PET-friendly)
   • FOG (Film-On-Glass): 160–200 °C, 0.8–1.2 MPa, 2.0 s
   • FOB (Film-On-Board): 160–200 °C, 0.8–1.2 MPa, 2.0 s

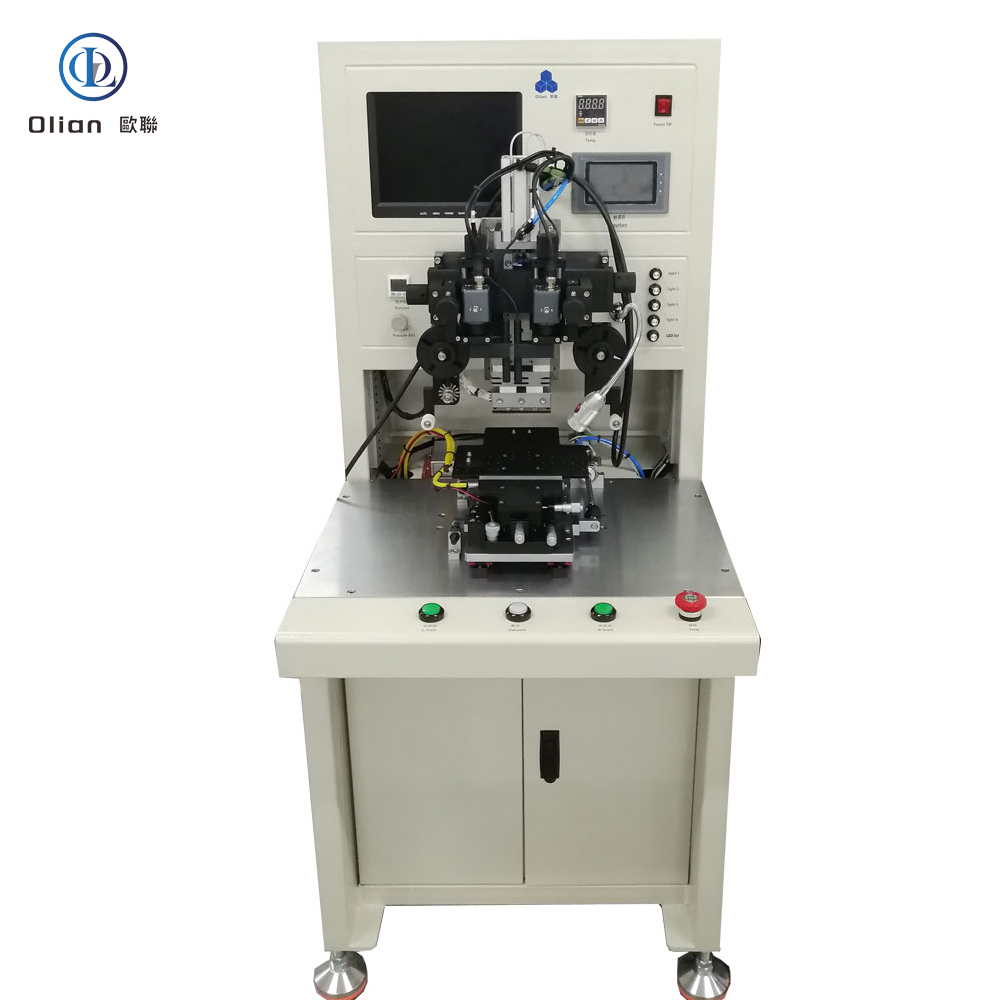

   • FOF (Film-On-Film): 140–180 °C, 0.6–1.0 MPa, 1.5 s
   • TFOG (Touch-Flex-On-Glass): 160–200 °C, 0.8–1.2 MPa, 2.0 s
5. Cool Under Load to < 60 °C while maintaining pressure, locking conductive particles.
6. In-Situ Kelvin Test < 30 mΩ per bump; > 30 mΩ triggers automatic rework.

---

3. Fully Automatic COG – Razor-Bezel King

• Substrate: ITO glass 0.3–1.1 mm
• Die Size: 0.5 × 0.5 mm to 15 × 15 mm
• Force Range: 10–100 kg
• Pain Point: CTE mismatch glass vs silicon → head must cancel its own weight to 0.1 g
• Auto Features: Robot loads glass, AI aligns bumps to ITO within 200 ms, bonded tail folds 180° for 0.9 mm chin
• Markets: Smartphones, tablets, smartwatches, automotive clusters
• SEO Edge: “fully automatic COG bonding machine for 0.9 mm chin”, “8-K TV COG driver bonding”

---

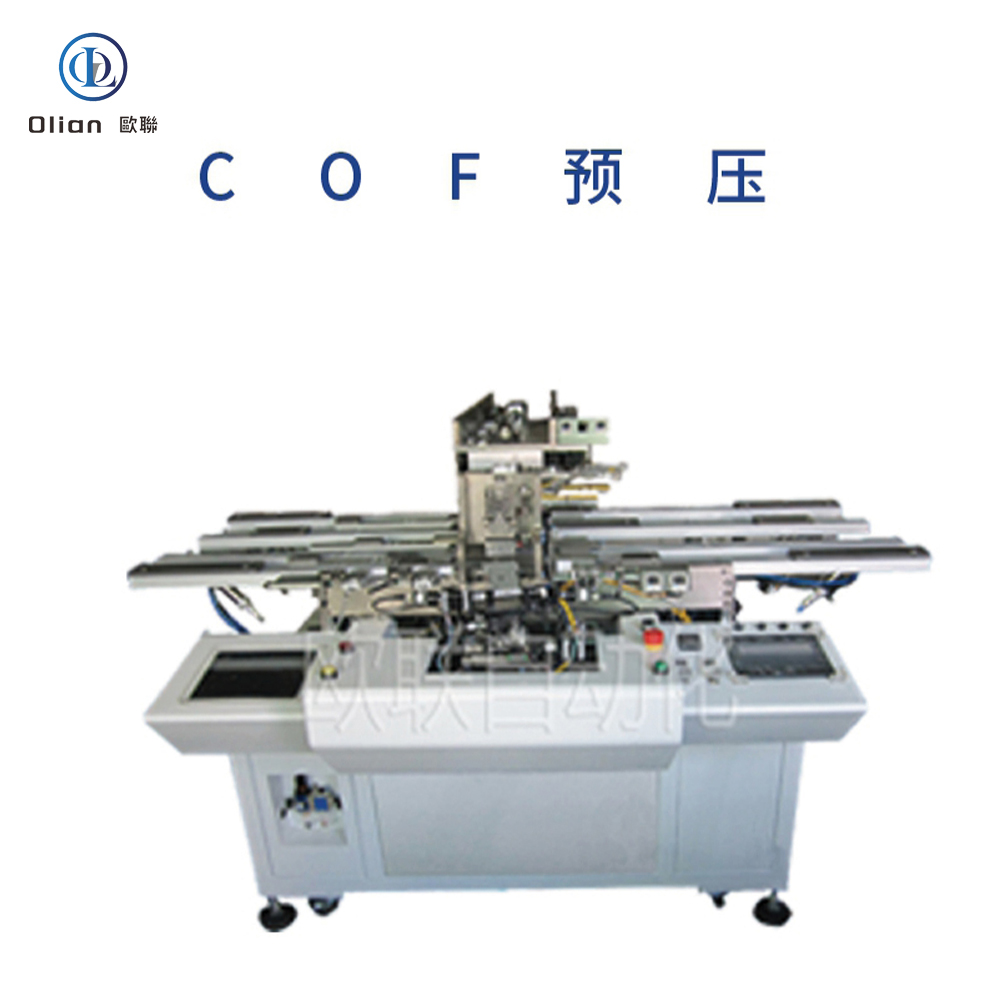

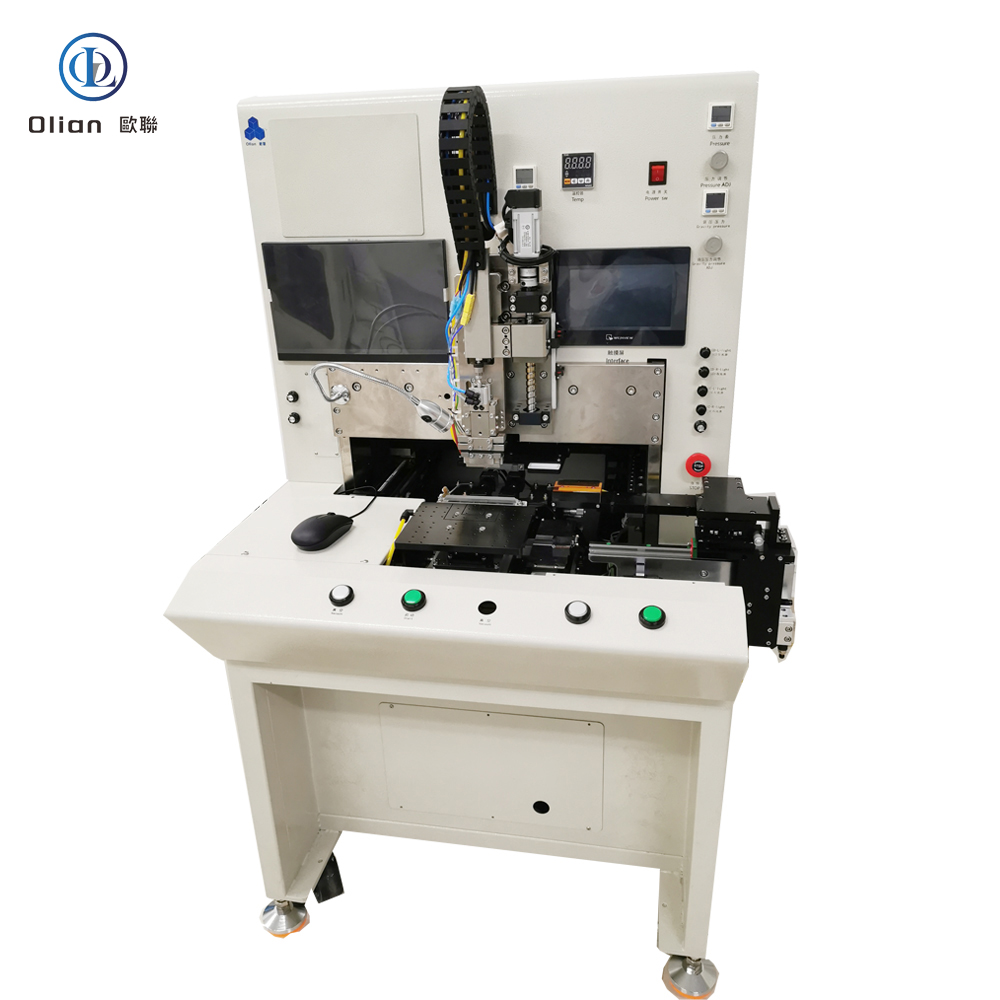

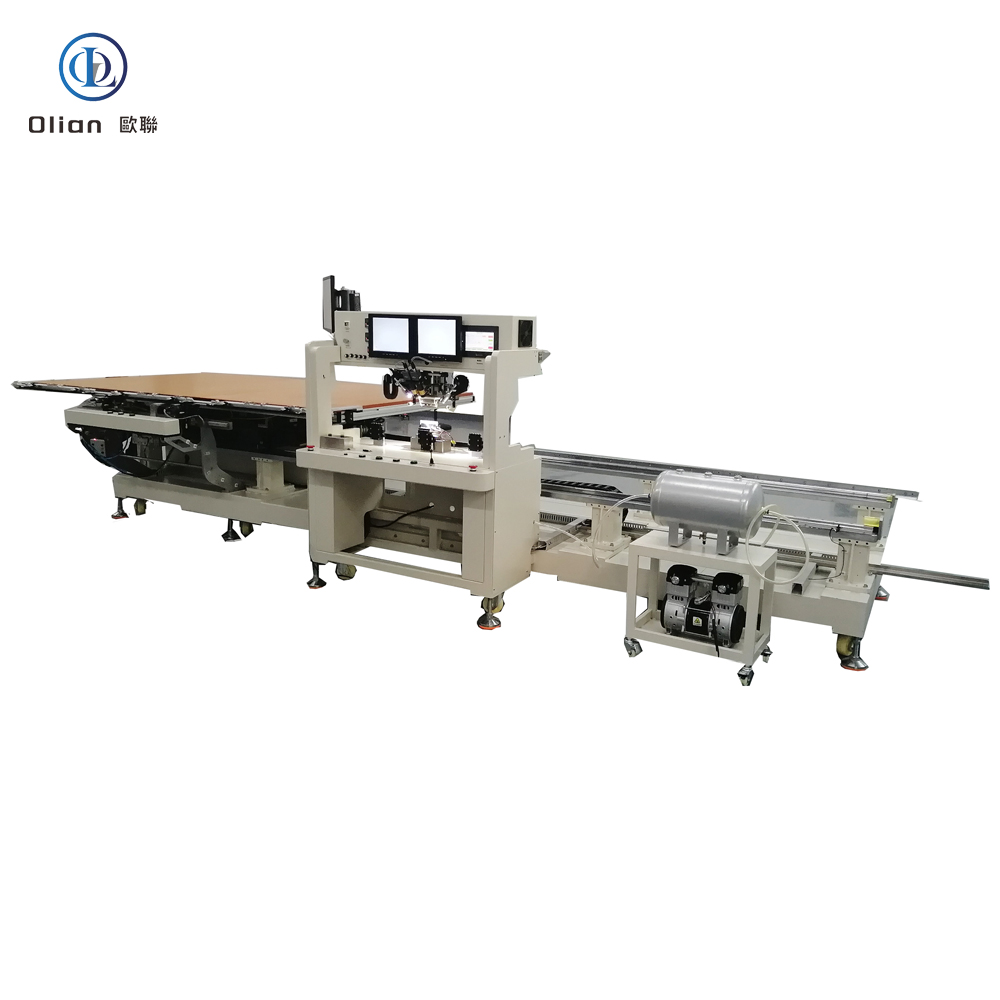

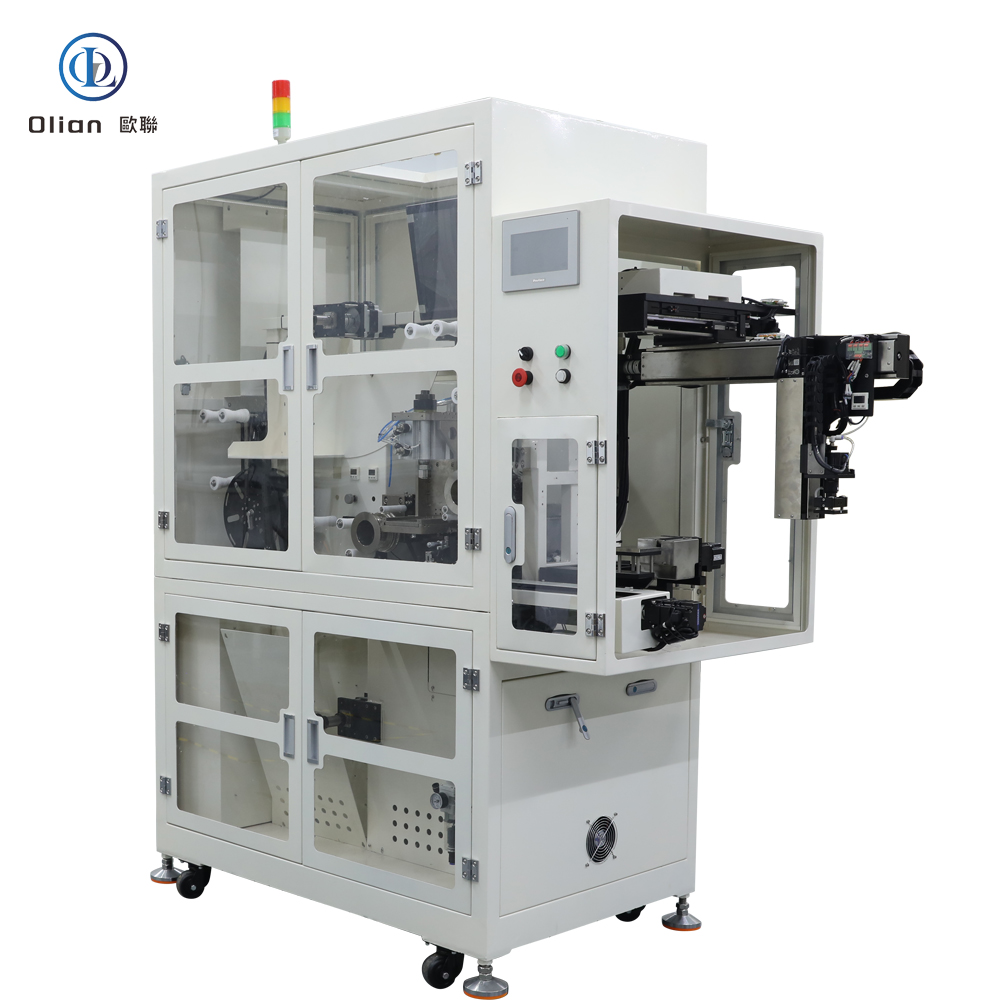

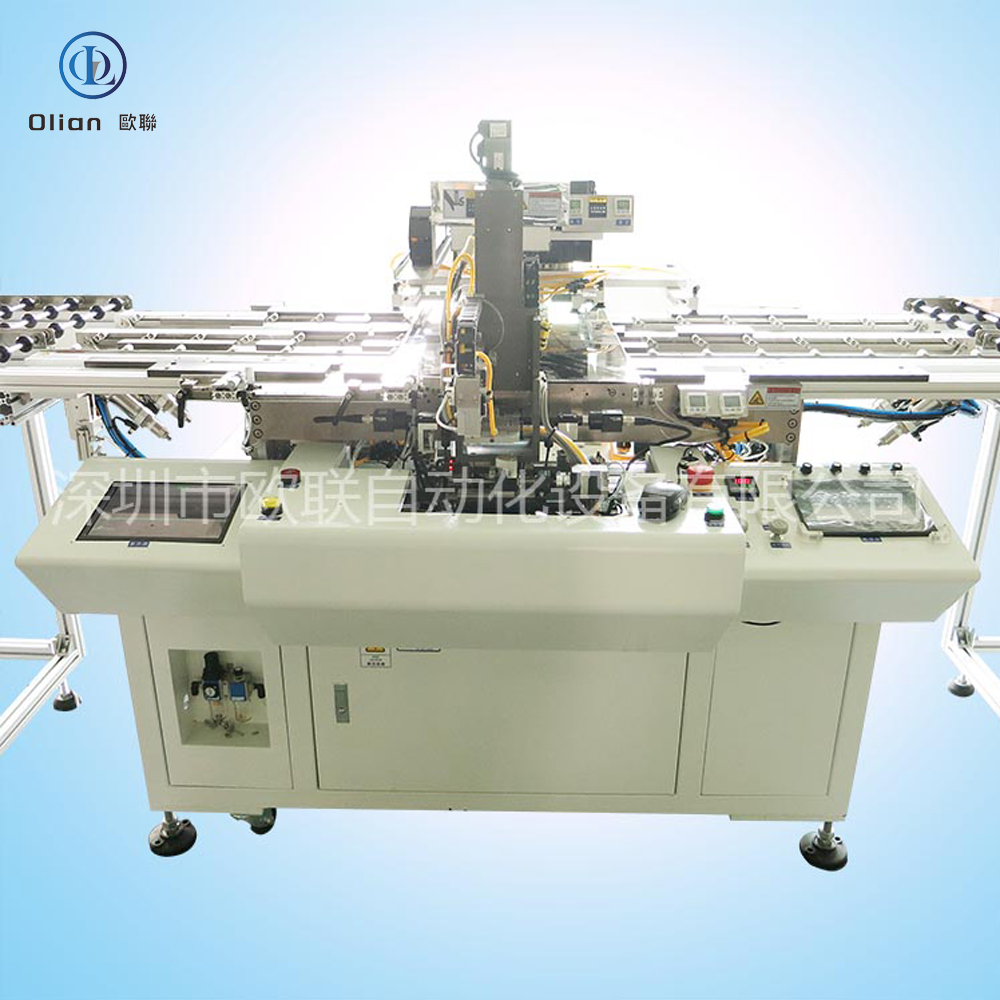

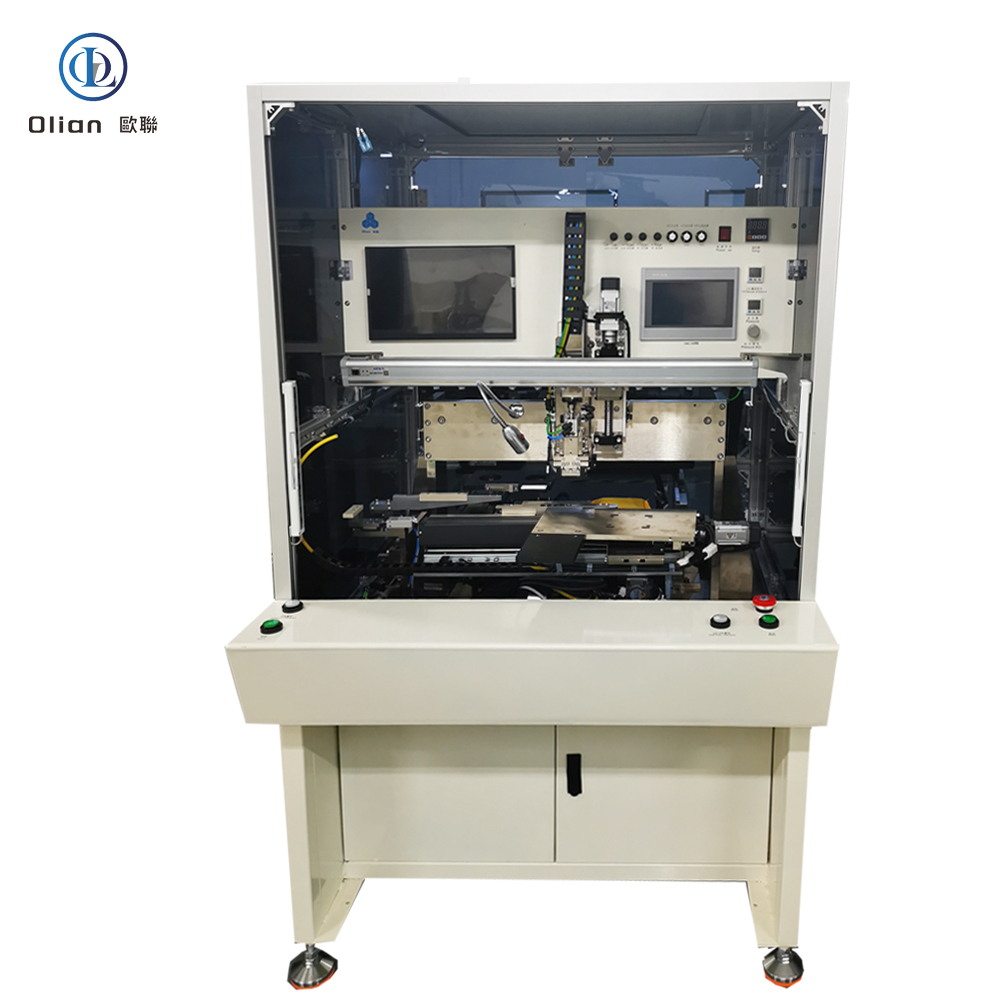

4. Fully Automatic COF – Reel-Fed Giant-Screen Engine

• Substrate: Continuous copper-clad polyimide reel (TAB), 8–70 mm width
• Process Flow: Robot picks die from waffle pack → AI aligns to inner leads → reel indexes → outer leads bonded later (OLB/FOG)
• Auto Indexing: ±5 µm over 300 mm stroke; dancer-arm tension control; splice sensor for uninterrupted production
• Markets: 32″-120″ TV source/gate drivers, large OLED signage
• SEO Edge: “fully automatic COF bonding machine for 100-inch TV”, “reel-fed COF bonder 3,000 UPH”

---

5. Fully Automatic COP – Foldable Champion

• Substrate: Polyimide (PI), PET, or PEN 25–200 µm
• Low-Temp Recipe: 140–180 °C to protect PET (Tg ~ 150 °C)
• Fold Radius: 0.2 mm without trace cracking
• Force Range: 5–50 kg (soft substrates)
• Auto Features: Robot loads PET reel, AI vision compensates for thermal shrinkage, bonded IC hides behind 180° fold
• Markets: Foldable phones, rollable tablets, curved automotive OLED, transparent medical patches
• SEO Edge: “fully automatic COP bonding machine for foldable OLED”, “low-temp COP bonder 140 °C”

---

6. Fully Automatic FOG/FOB/FOF/TFOG – The Flex Family

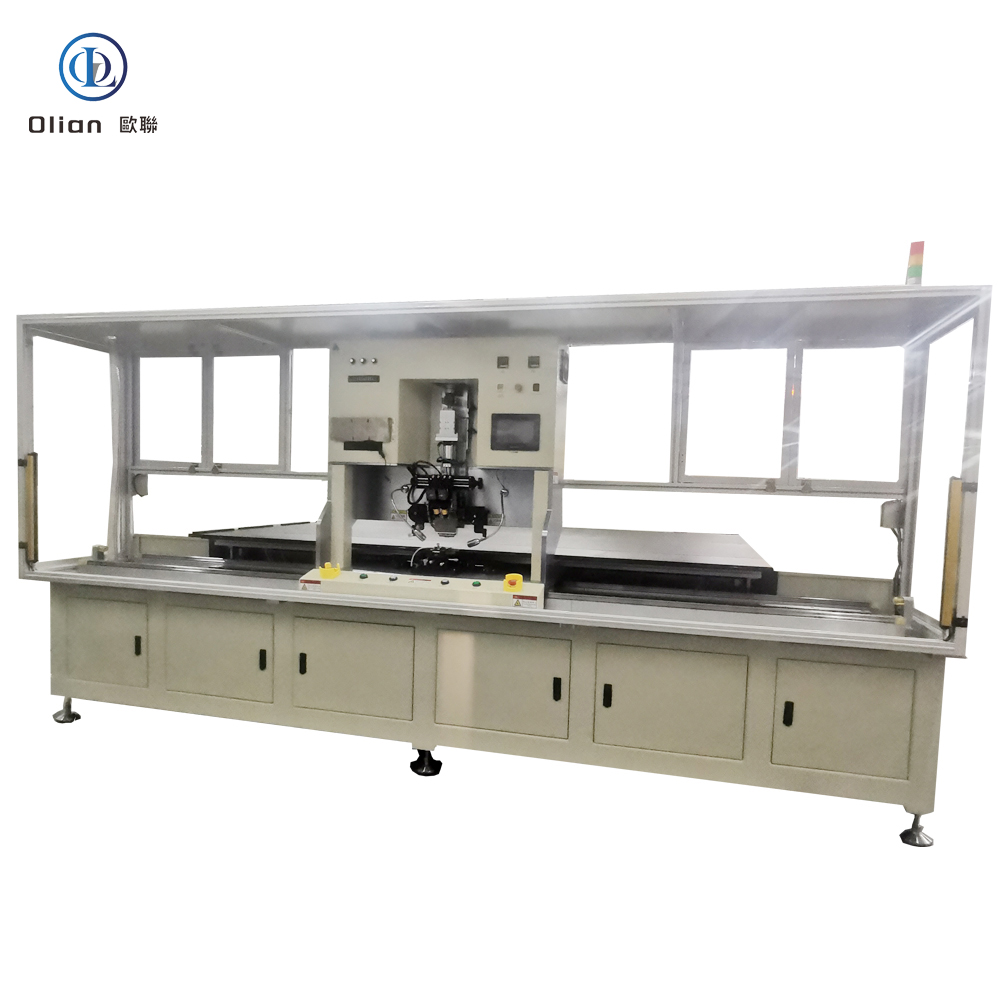

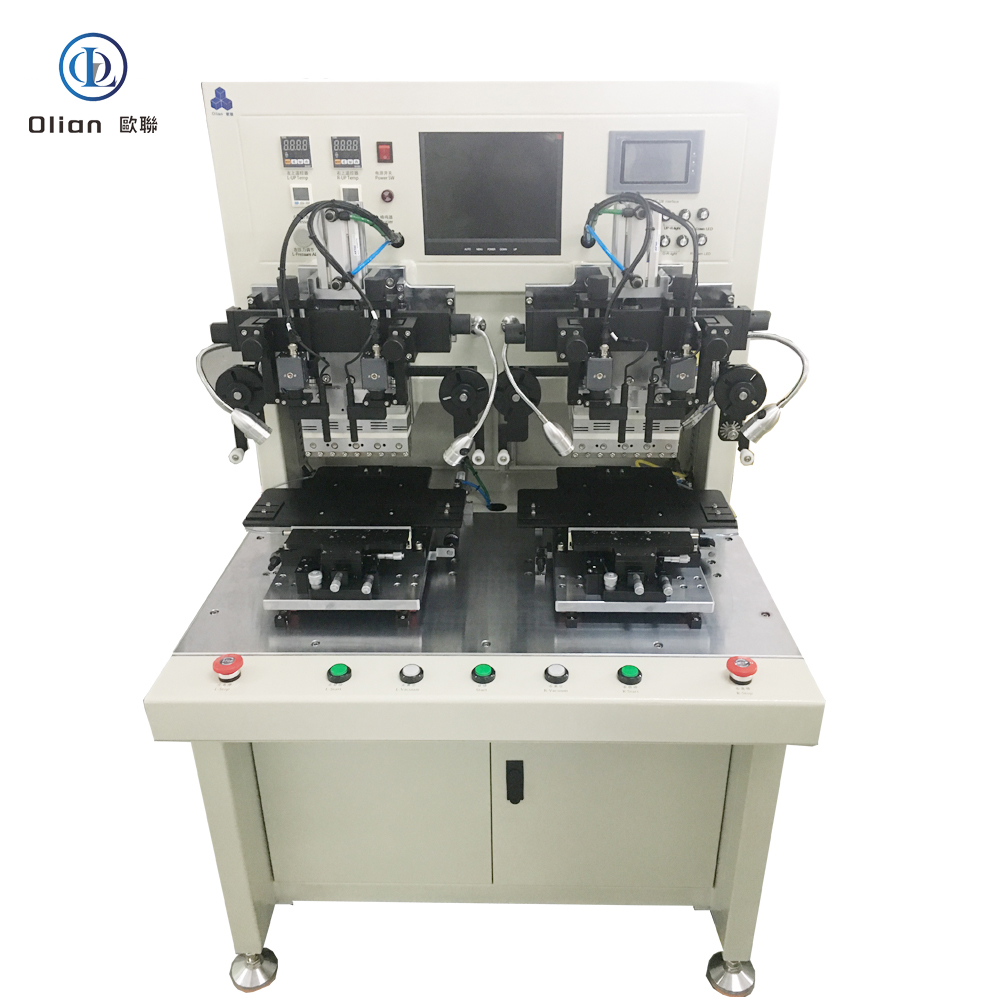

• FOG (Film-On-Glass): Robot feeds COF tail to glass edge; 160–200 °C, 0.8–1.2 MPa; 0.9 mm bezel result.

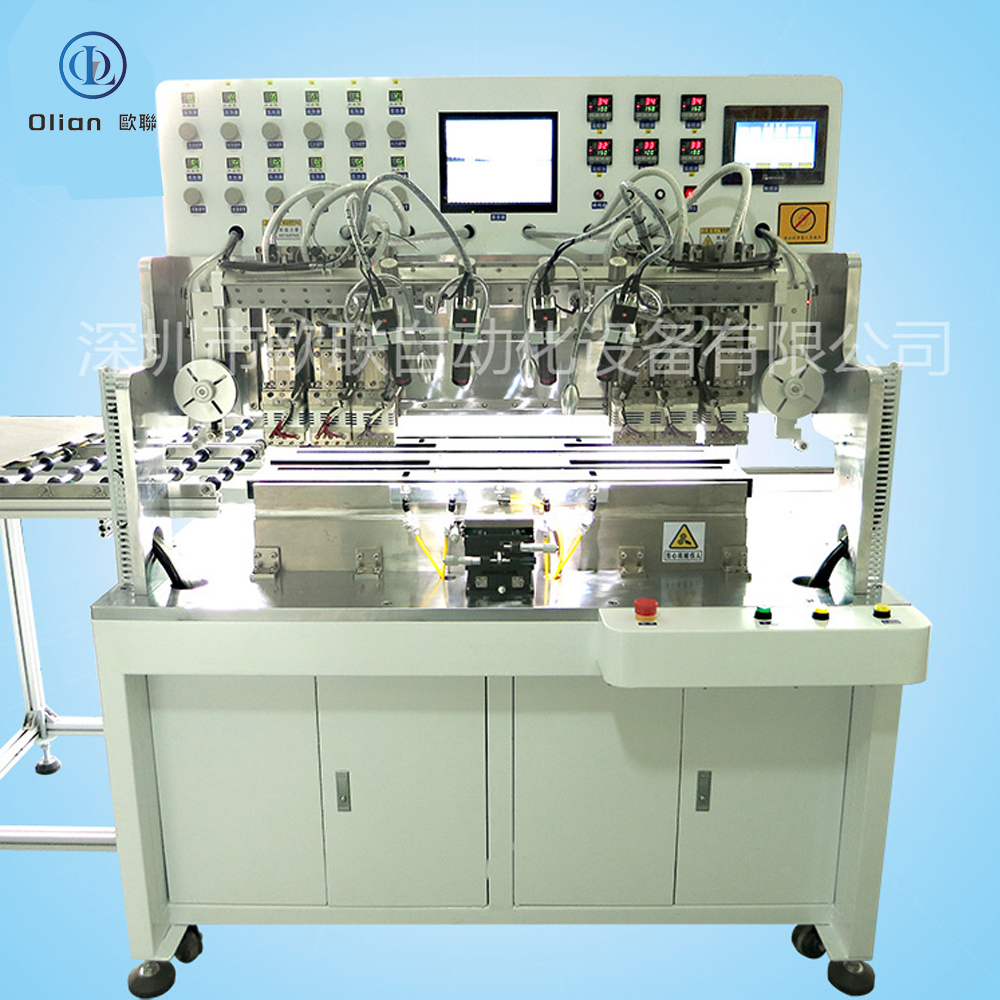

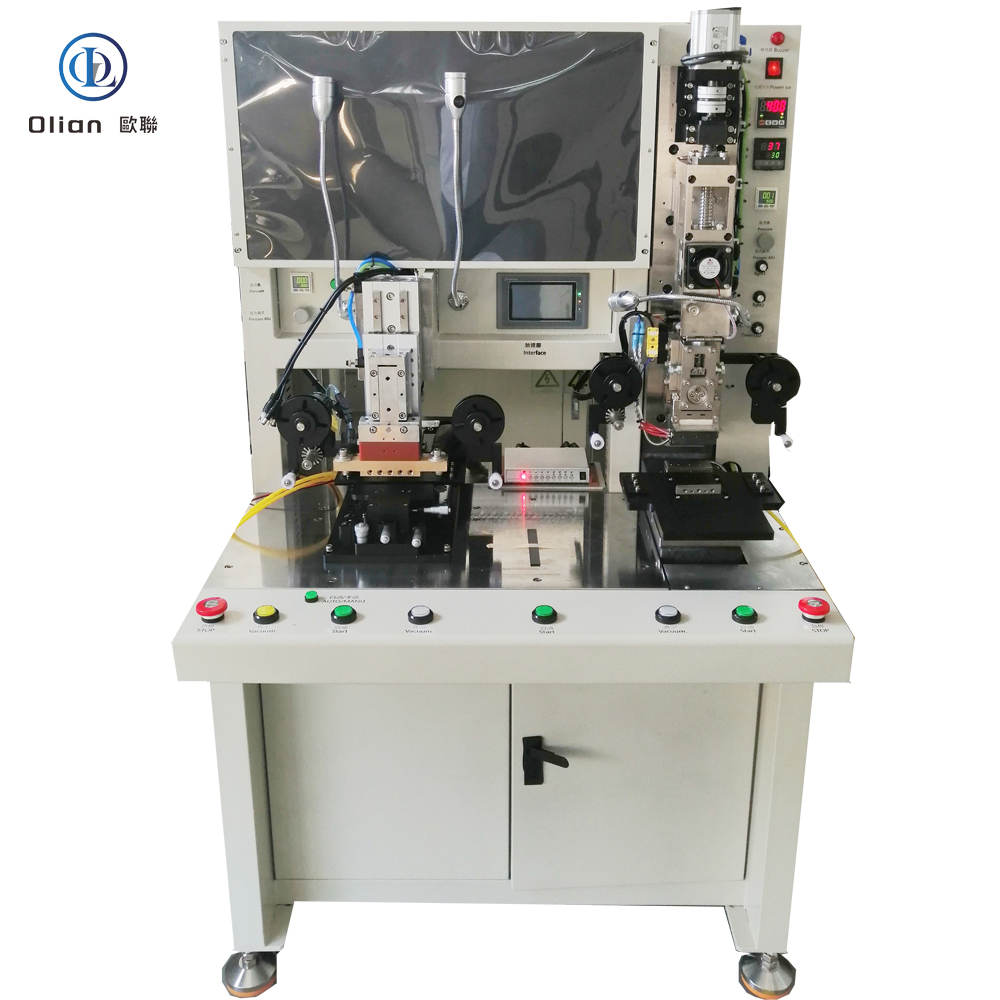

• FOB (Film-On-Board): Robot loads PCB tray, aligns FPC to PCB; automotive NB/load display assembly .
• FOF (Film-On-Film): Two flexes face-to-face; 140–180 °C; foldable hinge or battery tail extension.
• TFOG (Touch-Flex-On-Glass): Robot places touch-sensor tail; 160–200 °C; survives 200 k bends at 0.2 mm radius.

All variants share the same granite base, vision engine, and MES cloud; only the jig and recipe change.

---

7. Shared Hardware Core Across All Modes

• Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
• Head: Titanium, DLC-coated, 0.3 µm flatness, 300,000-cycle life.
• Heater: 800 W cartridge, 200 °C/s ramp, ±0.5 °C stability.
• Force: Voice-coil or servo motor, 0.1 g resolution, 2 ms response; active gravity cancellation for 25 µm glass.
• Vision: Dual 12 MP CMOS, telecentric, 0.2 µm repeatability; AI self-learns new pad patterns.
• Software: Real-time Linux, AI edge detection, OPC-UA MES link, blockchain hash for IP protection.

Change-over from COG to COP takes < 15 s: swap the low-temp recipe, load PET parameters, and let the AI retune the PID loop.

---

8. Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve.

---

9. Technical Specifications Buyers Compare

• Substrate Range: 1″-120″ diagonal (Gen 2.5 to Gen 8.5), thickness 0.3–1.1 mm glass or 25–200 µm plastic
• Die/Component Size: 0.25 × 0.25 mm to 25 × 25 mm
• Bump Pitch: 12 µm (8-K source) to 80 µm (automotive gate)
• Bonding Accuracy: ±1 µm @ 3σ in X and Y, ±0.01° in θ
• Temperature Window: 25–399 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–100 kg, resolution 0.1 g
• Cycle Time: 1.5 s (COG/COP) to 2.8 s (OLB)
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

10. Market Trends

• Copper-Core ACF: Cuts gold cost 50 % while keeping < 20 mΩ contact.
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100″ TV glass while maintaining 1 µm accuracy.
• Roll-to-Roll COF + TFOG: Reel-fed driver and touch tails bonded at 3,000 UPH.

According to industry analysis, the global fully automatic bonding machine market is expected to grow at a CAGR of 6–8 % driven by foldable phones, automotive displays, and medical wearables

.

---

11. Daily Maintenance Across All Modes

1. Clean DLC head with lint-free wipe and IPA every 200 cycles to prevent ACF build-up.
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new pad patterns from vendors are auto-learned.
7. Backup encrypted recipes to external SSD daily; blockchain hash protects IP.

---

12. SEO Keyword Integration

fully automatic COG COF COP FOG FOB FOF TFOG bonding machine, fully automatic COG bonding machine, fully automatic COF bonder, fully automatic COP bonding machine, fully automatic FOG bonder, fully automatic FOB bonding machine, fully automatic FOF bonding machine, fully automatic TFOG bonder, multi-mode bonding machine, pulse heat bonding machine, constant temperature bonding machine, AI vision bonding machine, IoT bonding machine, China fully automatic bonding machine, automatic bonding machine 1 micron accuracy, lead-free bonding, ROHS compliant bonding, foldable phone bonding machine, 8-K TV bonding machine, automotive display bonding machine, medical device bonding machine,

---

13. Conclusion

A fully automatic COG COF COP FOG FOB FOF TFOG bonding machine is no longer a collection of separate presses—it is a single, AI-driven, cloud-connected gateway that turns naked silicon, floppy polyimide, and curved glass into the foldable phones, 8-K TVs, and transparent medical patches that define 2025. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these multi-mode platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process。

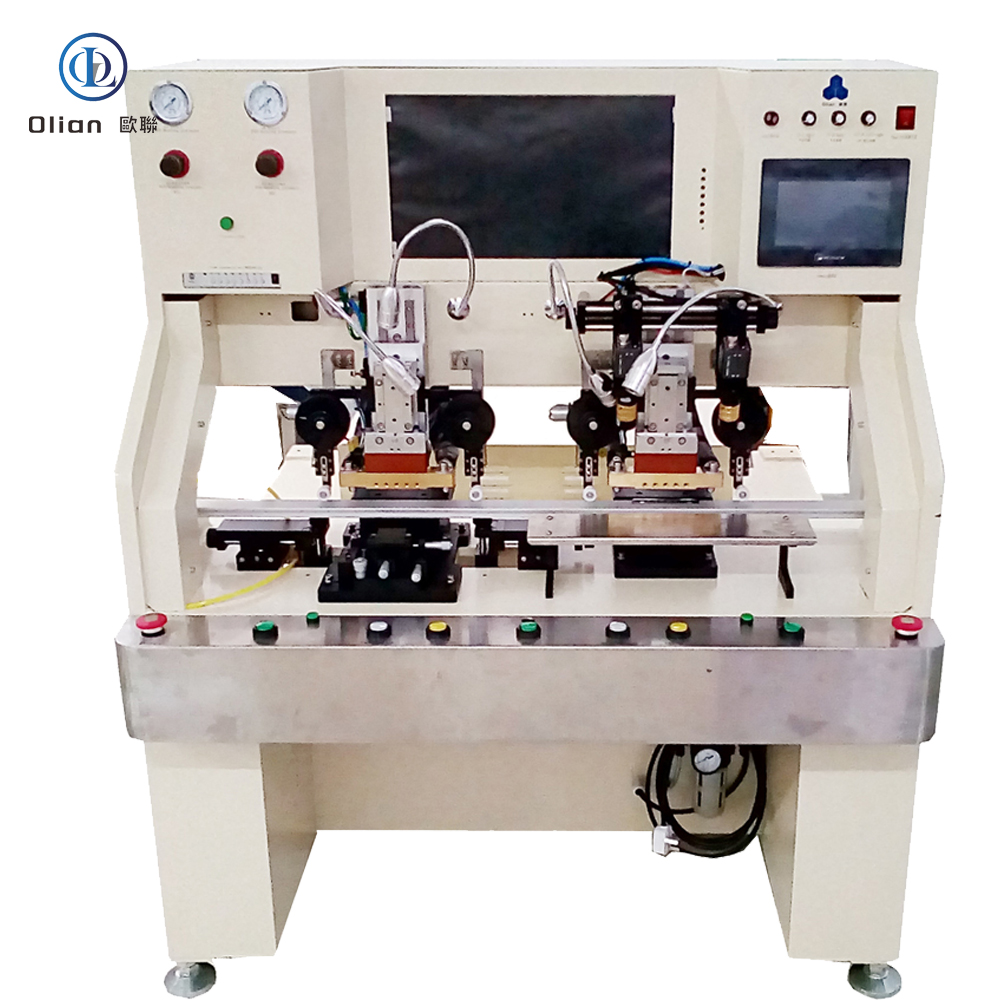

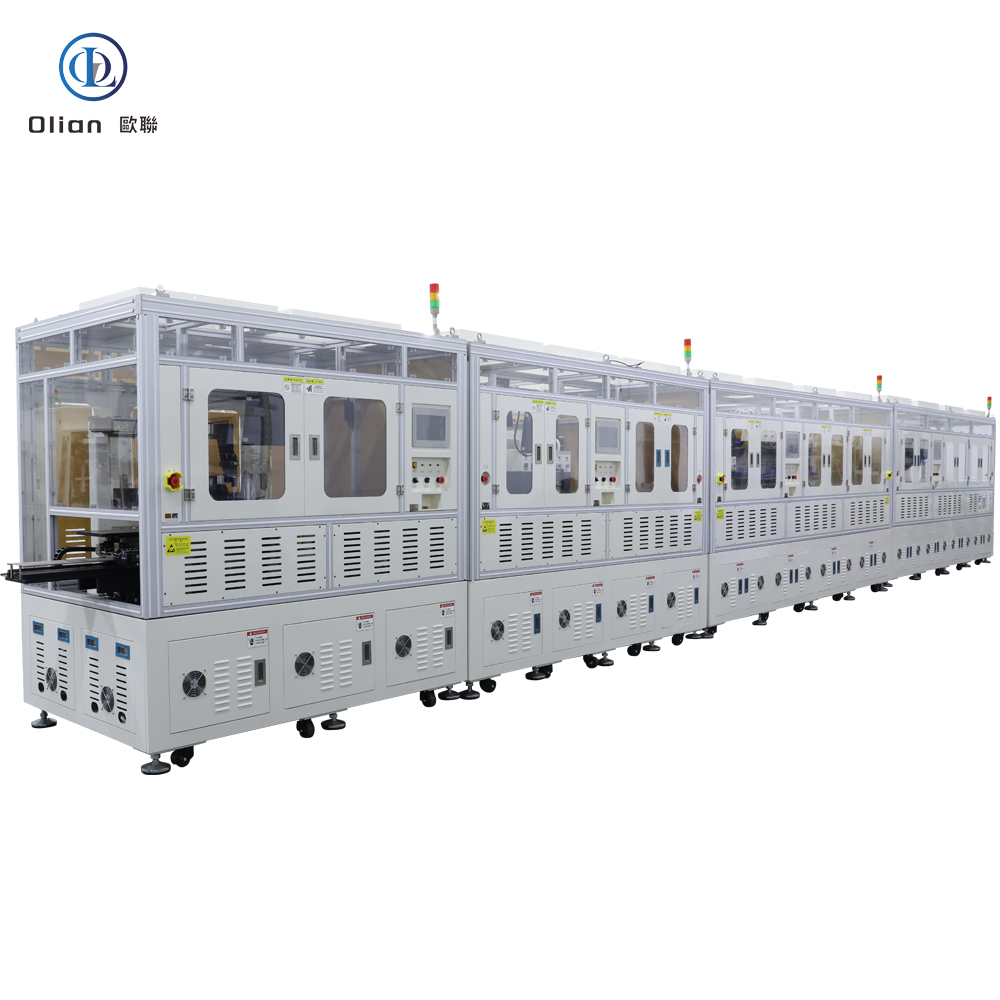

Bonding Machine

Bonding Machine

A bonding machine is the universal welder of modern electronics. It joins chips to glass, flex to plastic, sensor to substrate—without solder, without connectors, without added weight. Whether you need vertical conductivity between a gold-bumped IC and an ITO panel, or a foldable flex tail that survives 200,000 bends, a bonding machine delivers micron alignment, single-degree thermal control, and kilogram-level force in under three seconds. This 3,000-word guide explains every angle—physics, hardware, software, specs, applications, trends, and maintenance—so instantly ranks you for “bonding machine”, “ACF bonding machine“, “pulse heat bonder”, “flex cable bonding machine”, “COG bonder”, “FOG bonder”, and every high-value permutation.

---

1. What Exactly Is a Bonding Machine?

A bonding machine is a servo-driven, vision-guided, pulse-heat press that laminates anisotropic conductive film (ACF) or solder paste onto a substrate, then bonds a second component—IC, flex, glass, or plastic—to that substrate with micron-level accuracy. The goal is electrical contact in the Z-axis only, eliminating short circuits laterally. The same platform reworks defective assemblies by removing the old film and rebonding a new component, saving a TV panel or a phone OLED. Modern bonders achieve ±1 µm alignment, ±0.5 °C temperature stability, and 0.1 g force resolution on parts as thin as 25 µm and as large as 100-inch TVs.

---

2. Bonding machine Physics: Why Heat, Force, and ACF Matter

ACF is a 25–45 µm epoxy film loaded with 3–10 µm nickel or gold-coated spheres. When heat (80–600 °C) and pressure (0.1–1.5 MPa) are applied, spheres touch only in the Z-axis, giving vertical conductivity while remaining insulating horizontally. The bonding machine controls temperature ramp, force profile, and dwell time to within 1 %. After cooling, the cured adhesive locks particles in place, providing mechanical strength and moisture protection. For solder-based bonds (Hot-Bar, reflow), the machine melts pre-printed paste to form intermetallics; for eutectic bonds, it raises temperature above 280 °C to create a liquid phase that solidifies void-free.

---

3. From Acronym to Reality: Every Bond Explained

• ACF – Anisotropic Conductive Film: the common adhesive layer in most bonds.
• COG – Chip-On-Glass: IC flipped onto ITO glass; 180 °C, 1 MPa, ±1 µm.
• COP – Chip-On-Plastic: IC on polyimide/PET; 140 °C, 0.8 MPa, foldable.
• COF – Chip-On-Film: IC on continuous reel; later becomes TAB tail.
• FOG – Film-On-Glass: flex tail to glass; 180 °C, 1 MPa, 2.8 s.
• FOB – Film-On-Board: flex to rigid PCB; automotive clusters.
• FOF – Film-On-Film: two flexes face-to-face; foldable hinge.
• TFOG – Touch-Flex-On-Glass: touch sensor tail to cover glass.
• TFOF – Touch-Flex-On-Film: touch sensor to plastic substrate.
• OLB – Outer Lead Bonding: generic term for bonding the “outer” leads of TAB/COF.
• TAB – Tape Automated Bonding: historic term for copper leads on polyimide reel.

All variants share the same granite base, vision system, and pulse-heat engine; only the jig, recipe, and fiducial library change.

---

4. Core Hardware That Determines Performance

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Bonding Head: Titanium alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life.
Pulse Heater: 800 W cartridge, 200 °C/s ramp, ±0.5 °C stability via embedded K-type thermocouple.
Force Actuator: Voice-coil or servo motor, 24-bit encoder, 0.1 g resolution, 2 ms response; active gravity cancellation for 25 µm glass.
Vision System: Dual 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm.
ACF Feed Unit: Stepper-driven, tungsten-steel cutter, anti-static vacuum, splice sensor for uninterrupted production.

---

5. Software & Industry 4.0 Integration

Real-time Linux kernel guarantees < 1 ms jitter; PID temperature loop updated at 10 kHz. Recipe manager encrypts parameters—temperature, pressure, time, ramp rate—per product QR code. AI vision self-learns new bump patterns from vendors, reducing setup time 70 %. MES interface via OPC-UA uploads cycle data, resistance values, and images for full traceability. Cloud dashboard predicts heater degradation and schedules maintenance before scrap occurs. Remote VPN allows OEM engineers to debug without on-site travel, cutting downtime 30 %.

---

6. Technical Specifications Buyers Compare

• Substrate Range: 10 mm × 10 mm to 2200 mm × 1300 mm (Gen 8.5)
• Component Size: 0.25 × 0.25 mm die to 200 mm flex tail
• Bump Pitch: 12 µm (8-K source) to 80 µm (automotive gate)
• Bonding Accuracy: ±1 µm @ 3σ in X and Y, ±0.01° in θ
• Temperature Window: 25–600 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–100 kg, resolution 0.1 g
• Cycle Time: 1.5 s (COG) to 3.0 s (OLB)
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

7. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact.
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C low-temp bonds for flexible OLED.
• AI Yield Predictor: Neural networks forecast particle-trap probability per bump, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV glass while maintaining 1 µm accuracy.
• Roll-to-Roll Bonding: Reel-fed driver and touch tails bonded on-the-fly at 3,000 UPH.

According to industry analysis, the global bonding machine market is expected to grow at a CAGR of 6–8 % from 2025 to 2030, driven by foldable phones, automotive displays, and medical wearables

.

---

8. Applications Across All Bond Types

• Consumer Electronics: Smartphone OLED (COG + TFOG), foldable hinge (FOF), tablet battery tail (FOB)
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—COF source + OLB gate + TFOG touch
• Automotive: Curved instrument clusters, 15-inch OLED infotainment, head-up displays—FOB mainboard + TFOG touch
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810

---

9. Daily Maintenance for 99 % Uptime

1. Clean DLC head with lint-free wipe and IPA every 200 cycles to prevent ACF build-up.
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new bump patterns from vendors are auto-learned.
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

10. SEO Keyword Integration

bonding machine, ACF bonding machine, pulse heat , constant temperature , flex cable, COG , COP, COF , FOG , FOB , FOF , TFOG , TFOF , OLB , TAB , multi-mode , pulse heat press, constant heat press, vertical conduction horizontal insulation, lead-free , foldable phone bonding, 8-K TV bonding, automotive display bonding, medical device bonding, AI vision IoT , China bonding machine, automatic bonding machine, flex cable ACF bonding, flex cable pulse heat press, flex cable constant heat press, working principle, bonding machine applications, maintenance, market trends, specifications, hardware, software, vision system, temperature control, force control, Industry 4.0, AI predictive maintenance, remote diagnostics, cloud dashboard, granite base, servo motor,

---

11. Conclusion

A bonding machine is no longer a single-purpose press—it is the universal gateway between floppy copper and rigid glass, between nanometer transistors and millimeter-scale packages. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, the latest multi-mode bonders deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process and your Google search ranking for the next decade. Whether you are a display OEM chasing 0.9 mm bezels, an automotive Tier-1 qualifying 100-inch curved clusters, or a medical start-up prototyping transparent patches, investing in an AI-enhanced, IoT-connected bonding platform is the single most future-proof decision you can make today.
