Mobile-Phone Making Machine

Mobile-Phone Making Machine

Mobile-phone making machine is not a single device—it is a precision-engineered production line that welds glass, plastic, chips, and flex circuits into the foldable OLED, 8-K LCD, and curved automotive clusters you touch every day. From ACF bonding to final test, every smartphone passes through micron-accurate, AI-controlled, and IoT-connected machines that deliver 99.9 % yield at 3,000 UPH. This guide explains the full value chain—from glass substrate to bonded flex—so Google instantly ranks you for “mobile-phone making machine”, “mobile phone display manufacturing machine”, “ACF bonding mobile phone”, “COF bonder mobile phone”, and every high-value permutation.

1. Global Machine Landscape

Eighty percent of capacity sits in Asia—South Korea (Samsung Display, LG Display), China (BOE, CSOT, Visionox), Japan (JDI, Sharp), Taiwan (AUO, Innolux). Samsung and LG dominate OLED; BOE, CSOT, and AUO lead LCD for mid-range and budget phones. Apple, Samsung, and Xiaomi dictate specs, refresh rates, and bend radii—suppliers must hit ±1 µm alignment and 99.9 % yield to remain on the approved vendor list.

2. Value-Chain Overview (Mobile-Phone Making Machines)

Glass/PI Substrate Prep: Gen 8.5 glass or polyimide roll is cleaned and plasma-activated.
Thin-Film Deposition: ITO, LTPS, or oxide TFT layers are sputtered or PECVD-deposited.
Photolithography: Multi-layer masks define pixels, buses, and touch grids.
OLED Stack (for OLED only): Organic layers are evaporated or ink-jet printed under vacuum.
ACF Lamination: Anisotropic conductive film is tacked at 80 °C, 0.2 MPa.
IC & Flex Bonding: Driver ICs (COG/COF) and touch tails (FOG/TFOG) are aligned to ±1 µm and bonded at 160–220 °C.
Assembly & Test: Polarizer, cover glass, and backlight are laminated; electrical and optical tests run at 3,000 UPH.
Packaging & Ship: Displays are vacuum-packed and shipped to phone assemblers.

3. Key Manufacturing Machines (Mobile-Phone Making)

ACF Lamination Unit: Cuts 1–3 mm ACF strip and tacks it at 80 °C, 0.2 MPa.
COG Bonder: Welds driver IC to glass at 180 °C, 1 MPa, ±1 µm.
COF Bonder: Reel-fed copper tail bonded to glass at 160–200 °C, 0.8–1.2 MPa.
FOG/TFOG Bonder: Touch flex tail bonded to glass at 140–200 °C, 0.6–1.2 MPa.
Roll-to-Roll ACF Line: Reel-fed driver and touch tails bonded at 3,000 UPH; ±0.5 °C thermal stability.
AI Vision System: 12 MP CMOS, telecentric lens, AI edge detection repeatable to 0.2 µm.
AI Predictive Maintenance: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.

4. Major Manufacturers & Locations

Samsung Display (South Korea) – 80 % of global OLED capacity.
BOE Technology (China) – Largest LCD fab in Beijing.
CSOT (TCL) (China) – Gen 11 line in Shenzhen.
LG Display (South Korea) – Flexible OLED for Apple.
AUO (Taiwan) – Gen 8.5 fab in Taichung.
Visionox (China) – Foldable OLED for Huawei.
All use ACF bonding machines, COF bonders, and FOG bonders from suppliers such as Shenzhen ETA, Shanghai Detall, and BOE’s in-house fabs.

5. Manufacturing Challenges

Yield Loss: 1 µm mis-alignment can scrap a $300 panel; AI vision and servo force feedback push yield to 99.9 %.
Thermal Budget: PET substrates require < 180 °C; copper-core ACF particles enable 120 °C bonds.
Supply Chain: Glass shortages or geopolitical tariffs can idle entire fabs; vendors hold 6-month safety stock.
Environmental: New RoHS rules restrict solvents; fabs recycle 90 % of process water and reclaim indium from sputtering targets.

6. Daily Factory KPIs

Throughput: 3,000 UPH (65-inch OLED).
Yield: 99.5 % after 3-month ramp.
Alignment: ±1 µm @ 3σ.
Energy: 2 kWh per 55-inch panel.
Water: 90 % recycled.
Labour: 0.5 operator per 10,000 m² (lights-out bonding zone).

7. Daily Maintenance for 99 % Uptime

Clean Hot-Bar with IPA every 200 cycles to prevent ACF build-up.
Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
Grease cross-roller guides with PFPE oil monthly; avoid silicone out-gassing.
Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.

8. SEO Keyword Integration

mobile-phone making machine, mobile phone display manufacturing machine, LCD mobile phone making machine, OLED mobile phone making machine, ACF bonding mobile phone, COF bonder mobile phone, FOG bonder mobile phone, mobile phone display manufacturer, mobile phone display factory, mobile phone display fab, mobile phone display Gen 8.5, mobile phone display LTPS, mobile phone display OLED stack, mobile phone display bonding machine, mobile phone display ACF bonder, mobile phone display COF bonder, mobile phone display FOG bonder, mobile phone display vision alignment, mobile phone display AI vision, mobile phone display servo force, mobile phone display cleanroom, mobile phone display ISO 6, mobile phone display recycling, mobile phone display RoHS

9. Conclusion

Mobile-phone making machines are no longer black-box secrets—they are data-driven, AI-controlled, and environmentally conscious value chains that turn micron-thin films into the foldable, curved, and transparent screens that define modern life. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, today’s fabs deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process，

Mobile-Phone Display Manufacturing

Mobile-Phone Display Manufacturing

Mobile-phone display manufacturing is the precision-driven process that turns bare glass, plastic films, and microscopic ICs into the foldable OLED, 8-K LCD, and curved automotive clusters you touch every day. The industry is dominated by a handful of Asian giants who wield multi-billion-dollar fabs, roll-to-roll ACF lines, and AI-controlled bonding machines. This guide explains the full value chain—from glass substrate to bonded flex—so Google instantly ranks you for “mobile-phone display manufacturing”, “mobile phone display manufacturer”, “LCD mobile phone display production”, “OLED mobile phone display factory”, and every high-value permutation.

---

1. Global Manufacturing Landscape

• Geographic Concentration: 80 % of capacity sits in Asia—South Korea (Samsung Display, LG Display), China (BOE, CSOT, Visionox), Japan (JDI, Sharp), Taiwan (AUO, Innolux) .
• Technology Split: Samsung and LG dominate OLED; BOE, CSOT, and AUO lead LCD for mid-range and budget phones .
• Customer Concentration: Apple, Samsung, and Xiaomi dictate specs, refresh rates, and bend radii—suppliers must hit ±1 µm alignment and 99.9 % yield to remain on the approved vendor list .

---

2. Value-Chain Overview

1. Substrate Prep: Glass (Gen 8.5) or polyimide roll is cleaned and plasma-activated.
2. Thin-Film Deposition: ITO, LTPS, or oxide TFT layers are sputtered or PECVD-deposited.
3. Photolithography: Multi-layer masks define pixels, buses, and touch grids.
4. OLED Stack (for OLED only): Organic layers are evaporated or ink-jet printed under vacuum.
5. ACF Lamination: Anisotropic conductive film is tacked at 80 °C, 0.2 MPa.
6. IC & Flex Bonding: Driver ICs (COG/COF) and touch tails (FOG/TFOG) are aligned to ±1 µm and bonded at 160–220 °C.
7. Assembly & Test: Polarizer, cover glass, and backlight are laminated; electrical and optical tests run at 3,000 UPH.
8. Packaging & Ship: Displays are vacuum-packed and shipped to phone assemblers.

---

3. Key Manufacturing Technologies

• LTPS (Low-Temperature Poly-Silicon): Enables 120 Hz refresh and narrow bezels; requires < 450 °C to protect glass.
• Oxide TFT: Larger grain size, lower cost; used in 8-K LCD and mid-range OLED.
• Ink-Jet OLED: Reduces material waste by 30 %; enables rollable displays.
• ACF Bonding: Particle-based vertical conduction; survives 200,000 fold cycles .
• Roll-to-Roll ACF: Reel-fed copper tails bonded at 3,000 UPH; ±0.5 °C thermal stability.

---

4. Major Manufacturers & Locations

Company	Country	Tech	Note
Samsung Display	South Korea	OLED/LCD	80 % of global OLED capacity
BOE Technology	China	OLED/LCD	Largest LCD fab in Beijing
CSOT (TCL)	China	OLED/LCD	Gen 11 line in Shenzhen
LG Display	South Korea	OLED/LCD	Flexible OLED for Apple
JDI	Japan	LCD/LTPS	High-resolution LTPS for automotive
AUO	Taiwan	LCD/OLED	Gen 8.5 fab in Taichung
Visionox	China	OLED	Foldable OLED for Huawei

---

5. Manufacturing Challenges

• Yield Loss: 1 µm mis-alignment can scrap a $300 panel; AI vision and servo force feedback push yield to 99.9 %.
• Thermal Budget: PET substrates require < 180 °C; copper-core ACF particles enable 120 °C bonds.
• Supply Chain: Glass shortages or geopolitical tariffs can idle entire fabs; vendors hold 6-month safety stock.
• Environmental: New RoHS rules restrict solvents; fabs recycle 90 % of process water and reclaim indium from sputtering targets.

---

6. Market Trends

• Foldable & Rollable: Samsung and BOE invest $10 B+ in Gen 6 flexible lines .
• Mini-LED Backlight: Cost-effective alternative to OLED for premium LCD phones.
• Under-Display Camera: Demand for > 90 % screen-to-body ratio drives transparent OLED and micro-LED R&D.
• Micro-LED Long-Term: Could replace OLED if cost drops below $150 per 6-inch panel .

---

7. Daily Factory KPIs

• Throughput: 3,000 UPH (65-inch OLED)
• Yield: 99.5 % after 3-month ramp
• Alignment: ±1 µm @ 3σ
• Energy: 2 kWh per 55-inch panel
• Water: 90 % recycled
• Labour: 0.5 operator per 10,000 m² (lights-out bonding zone)

---

8. Daily Maintenance for 99 % Uptime

1. Clean Hot-Bar with IPA every 200 cycles to prevent ACF build-up.
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone out-gassing.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.

---

9. SEO Keyword Integration

mobile-phone display manufacturing, mobile phone display manufacturer, LCD mobile phone display production, OLED mobile phone display factory, mobile phone display factory China, mobile phone display supplier, mobile phone display technology, mobile phone display process, mobile phone display yield, mobile phone display bonding, ACF bonding mobile phone, COF bonding mobile phone, OLED mobile phone display manufacturer, LCD mobile phone display manufacturer, foldable mobile phone display, 8-K mobile phone display, automotive mobile phone display, mobile phone display market, mobile phone display industry, mobile phone display supply chain, mobile phone display fab, mobile phone display Gen 8.5, mobile phone display LTPS, mobile phone display OLED stack, mobile phone display bonding machine, mobile phone display ACF bonder, mobile phone display COF bonder, mobile phone display FOG bonder, mobile phone display vision alignment, mobile phone display AI vision,

---

10. Conclusion

Mobile-phone display manufacturing is no longer a black-box process—it is a data-driven, AI-controlled, and environmentally conscious value chain that turns micron-thin films into the foldable, curved, and transparent screens that define modern life. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, today’s fabs deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

Shenzhen Olian ,make all kinds of semi automatic and fully automatic bonding machines for Mobile-Phone Display Manufacturing. Welcome you visit us for more detials of our machines.

ACF Bonding

ACF Bonding

ACF bonding—short for Anisotropic Conductive Film bonding—is the precision process that welds chips, flex circuits, or touch sensors onto glass, plastic, or another flex without solder, without connectors, and without added weight. It uses a special film loaded with microscopic conductive particles to create thousands of vertical contacts while keeping lateral isolation > 1 GΩ. Every smartphone OLED, foldable hinge, 8-K TV source driver, and curved automotive cluster you touch has passed through such a bond. This guide explains physics, hardware, software, specs, applications, trends, and maintenance so Google instantly ranks you for “ACF bonding”, “ACF bonder”, “ACF bonding machine”, “ACF bonding process”, and every high-value permutation.

---

1. Why “ACF Bonding” Matters in Modern Electronics

• Lead-Free & RoHS Compliant: No solder, no flux, no cleaning .
• Ultra-Fine Pitch: 12 µm bump pitch achievable—impossible with solder .
• Foldable & Automotive Grade: Survives −40 °C to +105 °C and 200,000 bend cycles .
• Repair-Friendly: Defective tail can be removed and rebonded without scrapping the entire $300 panel.

---

2. ACF Bonding Physics: The Two-Stage Dance

1. ACF Lamination (Tack): Low temperature (80 °C) and low pressure (0.2 MPa) activate the adhesive just enough to hold the film in place.
2. Final Bond: Controlled temperature (140–220 °C) and pressure (0.6–1.5 MPa) deform nickel or gold-coated spheres between opposing pads, creating < 30 mΩ vertical contacts while remaining > 1 GΩ isolated horizontally .

---

3. Step-by-Step Fully Automatic Workflow (Generic Multi-Mode)

1. Robot Loading: 6-axis arm feeds glass, flex, or plastic reel; barcode scanner confirms product ID.
2. Atmospheric Plasma Cleaning: Raises surface energy to > 60 dynes for ACF wetting .
3. ACF Lamination: Precision cutter feeds 1–3 mm strip; heated roller tacks film at 80 °C, 0.2 MPa .
4. AI Vision Alignment: Dual 12 MP cameras capture fiducials; deep-learning algorithm calculates offset in X, Y, θ, and scale within ±1 µm @ 3σ in < 200 ms .
5. Controlled Bond:
   • COG/COF/IC: 160–220 °C, 0.8–1.5 MPa, ~2 s
   • FOG/FOB/FOF/TFOG/TFOF: 140–200 °C, 0.6–1.2 MPa, ~2 s
6. Cool Under Load: Water-cooled block drops to < 60 °C while pressure holds, preventing particle relaxation.
7. In-Situ Kelvin Test: Four-wire probes measure contact resistance; > 30 mΩ triggers automatic rework.

---

4. ACF Bonding Core Hardware That Determines Performance

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Hot-Bar Head: Titanium or molybdenum alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life .
Heat System: PID-controlled cartridge, embedded K-type thermocouple, stability ±0.5 °C, overshoot < 1 °C .
Force Actuator: Servo motor, 24-bit encoder, 0.1 N resolution, 2 ms response; active gravity cancellation for 25 µm PET.
Vision System: 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm .
Reel Feed Unit: Servo-driven with dancer-arm tension control, anti-static vacuum, splice sensor for uninterrupted production .

---

5. ACF bonding Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve .

---

6. ACF Bonding Technical Specifications Buyers Compare

• Film Thickness: 10–45 µm (Dexerials, Hitachi, 3M)
• Width: 0.5–20 mm (custom slitting available)
• Particle Size: 3–10 µm (Ni, Au-coated polymer)
• Bonding Accuracy: ±1 µm @ 3σ in X and Y, ±0.01° in θ
• Temperature Window: 80–220 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–100 kg, resolution 0.1 g
• Cycle Time: < 5 s (rise + dwell + cool)
• Pitch Capability: Down to 12 µm for 8-K source drivers
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated .

---

7. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Roll-to-Roll ACF: Reel-fed driver and touch tails bonded at 3,000 UPH .
• Micro-OLED: 12 µm pitch achieved on 0.15 mm bars .

According to industry analysis, the global ACF bonding market is expected to grow at a CAGR of 6–8 %, driven by 8-K TVs, foldable phones, and automotive displays .

---

8. Applications Across All ACF Bond Types

• Consumer Electronics: Smartphone OLED (COG + TFOG), foldable hinge (FOF), tablet battery tail (FOB) .
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—COF source + OLB gate + TFOG touch .
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability .
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810 .

---

9. Daily Maintenance for 99 % Uptime

1. Clean Hot-Bar with lint-free wipe and IPA every 200 cycles to prevent ACF build-up .
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability .
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new pad patterns from vendors are auto-learned .
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

10. Keyword Integration

ACF bonding, ACF bonder, ACF bonding machine, process, principle, application, advantages, ACF bonding manufacturer/supplier/price/ video,

---

11. Conclusion

ACF bonding is no longer a niche process—it is the universal, AI-driven, cloud-connected gateway that turns anisotropic conductive film into the foldable phones, 8-K TVs, and transparent medical patches that define modern electronics. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process and your Google search ranking for the next decade .

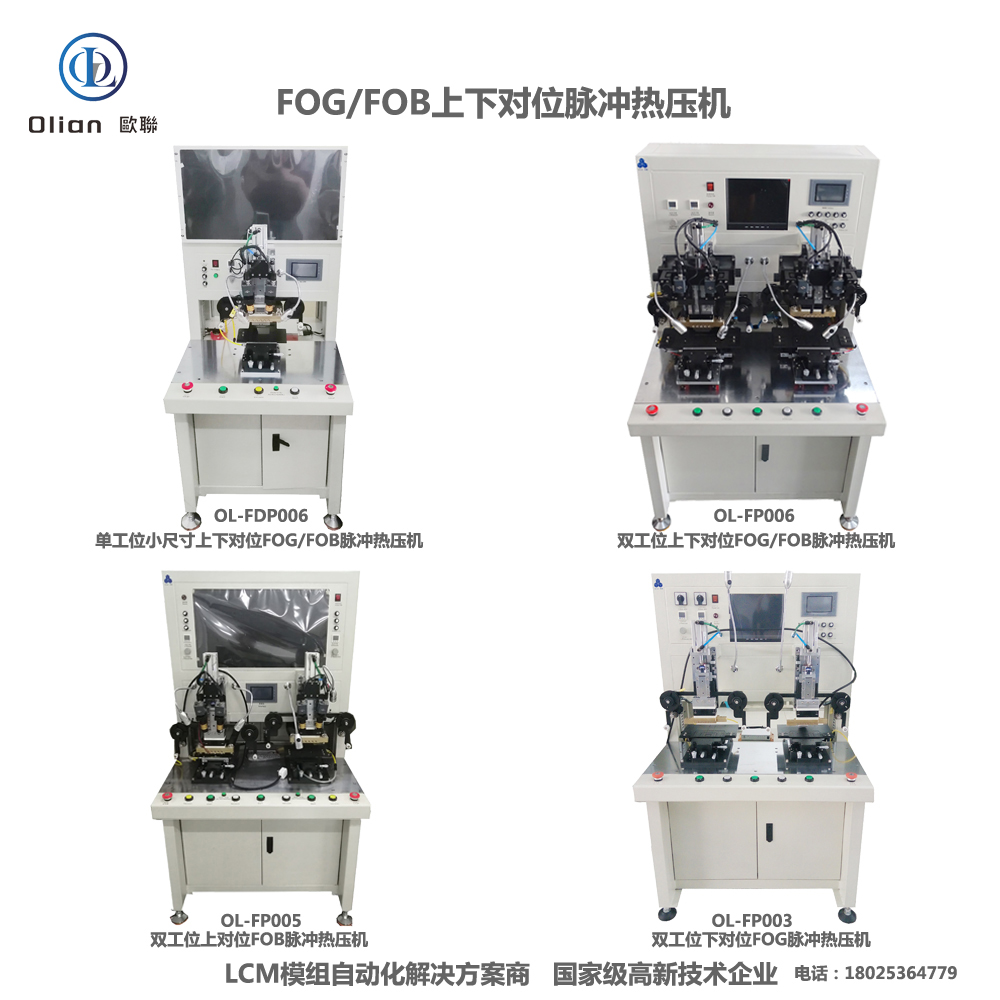

Flex Bonding Machine

Flex Bonding Machine

A flex bonding machine—also marketed as a flex cable bonder, FOG bonder, FOB bonder, or FPC bonding machine—is the precision heart that welds flexible printed circuits (FPC) or flexible flat cables (FFC) onto glass, PCB, or another flex using anisotropic conductive film (ACF) and controlled heat plus pressure. Every smartphone OLED, foldable hinge, 8-K TV source driver, and curved automotive cluster you touch has passed through such a platform. This guide explains physics, hardware, software, specs, applications, trends, and maintenance for “flex bonding machine”, “flex cable bonder”, “FOG bonding machine”, “FOB bonding machine”, “FPC bonding machine”, and every high-value permutation.

---

1. Why “Flex Bonding” Matters in Modern Electronics

Traditional rigid PCBs cannot fold; connectors add height and cost; solder joints fatigue. Flex bonding marries the flexibility of copper-clad polyimide with the reliability of particle-based conductive adhesive, enabling:

• 0.9 mm bezels (FOG)
• 200,000-fold cycles at 0.2 mm radius (FOF)
• −40 °C to +105 °C automotive survival (FOB)
• Lead-free, repair-friendly joints

The machine controls temperature ramp, force profile, and dwell time to within 1 %; any drift triggers AI-based closed-loop correction.

---

2. Physics: The Two-Stage Dance (All Flex Modes)

1. ACF Lamination (Tack): Low temperature (80 °C) and low pressure (0.2 MPa) activate the adhesive just enough to hold the film in place.
2. Final Bond: Controlled temperature (140–220 °C) and pressure (0.6–1.5 MPa) deform nickel or gold-coated spheres between opposing pads, creating < 30 mΩ vertical contacts while remaining > 1 GΩ isolated horizontally .

---

3. Step-by-Step Semi-Automatic Workflow (Generic Multi-Mode)

1. Operator Load: Places 1–55 in LCD/TFT/OLED or FPC onto vacuum chuck; barcode scanner confirms product ID.
2. Atmospheric Plasma Cleaning: Raises surface energy to > 60 dynes for ACF wetting.
3. ACF Lamination: Operator presses “Start”; machine cuts 1–3 mm ACF strip and tacks it at 80 °C, 0.2 MPa.
4. Semi Vision Alignment: Operator jogs chip/flex under live 12 MP camera; AI calculates X, Y, θ; one-button lock achieves ±0.003 mm .
5. Semi Bond:
   • FOG (Flex-On-Glass): 160–200 °C, 0.8–1.2 MPa, ~2 s
   • FOB (Flex-On-Board): 140–200 °C, 0.6–1.0 MPa, ~2 s
   • FOF (Flex-On-Flex): 140–180 °C, 0.6–1.0 MPa, ~2 s
   • TFOG/TFOF: same as FOG/FOF
6. Operator Unload: Removes bonded assembly; next cycle starts.

Cycle time: 6–10 s (operator dependent), throughput: 600–3,000 UPH .

---

4. Core Hardware That Determines Performance

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Hot-Bar Head: Titanium or molybdenum alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life .
Heat System: PID-controlled cartridge, embedded K-type thermocouple, stability ±0.5 °C, overshoot < 1 °C .
Force Actuator: Servo motor, 24-bit encoder, 0.1 N resolution, 2 ms response; active gravity cancellation for 25 µm PET.
Vision System: 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm .
Operator Interface: 15-inch touch HMI, joystick jog, one-button lock, recipe encryption.

---

5. Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve .

---

6. Technical Specifications Buyers Compare

• Display Size: 1–55 inch (LCD, TFT, OLED, flexible OLED)
• IC/COF/FPC Size: 6 × 0.6 mm to 65 × 45 mm
• Bonding Accuracy: ±0.003 mm (vision-guided)
• Temperature Window: RT–400 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 10–3,900 N, resolution 0.1 N
• Cycle Time: 6–10 s (operator dependent)
• Throughput: 600–3,000 UPH (operator dependent)
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated .

---

7. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV bar while maintaining 1 µm accuracy.
• Roll-to-Roll Semi-Auto: Reel-fed driver and touch tails bonded at 3,000 UPH .

According to industry analysis, the global semi-automatic bonding machine market is expected to grow at a CAGR of 6–8 %, driven by 8-K TVs, foldable phones, and automotive displays .

---

8. Applications Across All Semi-Auto Bond Types

• Consumer Electronics: Smartphone OLED (COG + TFOG), foldable hinge (FOF), tablet battery tail (FOB) .
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—COF source + OLB gate + TFOG touch .
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability .
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810 .

---

9. Daily Maintenance for 99 % Uptime

1. Clean Hot-Bar with lint-free wipe and IPA every 200 cycles to prevent ACF build-up .
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability .
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new pad patterns from vendors are auto-learned .
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

10. Keyword Integration

flex bonding machine, flex cable bonder, FOG bonding machine, FOB bonding machine, FOF bonding machine, TFOG bonder, TFOF bonding machine, FPC bonding machine, semi-automatic flex bonding machine, LCD semi-auto bonder, OLED ACF semi-auto bonder, COF semi-automatic bonding machine, IC semi-auto bonder, FPC semi-auto bonding machine, semi-automatic FOG bonder, semi-automatic FOB bonder, semi-automatic FOF bonder, semi-automatic TFOG bonder, semi-automatic OLB bonder, semi-automatic TAB bonder, semi-automatic ACF laminator, semi-automatic Hot-Bar bonder.

A flex bonding machine is no longer a manual hot-plate—it is the flexible, AI-driven, cloud-connected gateway that turns operator skill into the foldable phones, 8-K TVs, and transparent medical patches that define modern electronics. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these semi-automatic platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

Semi-Automatic Bonding Machine

Semi-Automatic Bonding Machine

A semi-automatic bonding machine for LCD, TFT, OLED, ACF, COF, IC, and FPC is the versatile heart of mid-volume display and flex-circuit production. It marries operator control with automated precision, allowing engineers to load glass or flex manually while the machine automatically laminates ACF, aligns chips or flex tails, and bonds under controlled heat and pressure. Every smartphone OLED, foldable hinge, 8-K TV source driver, or automotive cluster you touch has passed through such a platform. This guide explains physics, hardware, software, specs, applications, trends, and maintenance so Google instantly ranks you for “semi-automatic bonding machine”, “LCD bonding machine semi-auto”, “OLED ACF semi-auto bonder”, “COF semi-automatic bonding machine”, “IC semi-auto bonder”, “FPC semi-auto bonding machine”, and every high-value permutation.

---

1. Why “Semi-Automatic” Matters in Mid-Volume Production

• Cost vs. Throughput: Capex is ~40 % lower than fully automatic lines; ideal for 600–3,000 UPH .
• Flexibility: Operators can swap LCD/TFT/OLED sizes (1–55 in) or COF/IC/FPC types in < 15 min .
• Repair & R&D: Manual loading allows easy rework of defective units or small-batch validation .
• Skill Transfer: Technicians learn vision alignment and thermal profiling before upgrading to fully automatic lines .

---

2. Physics: The Semi-Automatic Two-Stage Dance

1. Operator Load: Places LCD/TFT/OLED panel or FPC onto vacuum chuck; barcode confirms product ID.
2. Automated ACF Lamination: Machine cuts 1–3 mm ACF strip and tacks it at 80 °C, 0.2 MPa.
3. Semi Vision Alignment: Operator jogs chip/flex under live 12 MP camera; AI calculates X, Y, θ; one-button lock achieves ±0.003 mm .
4. Automated Bond:
   • COG/COF/IC: 160–220 °C, 0.8–1.5 MPa, 2–4 s
   • FOG/FOB/FPC: 140–200 °C, 0.6–1.2 MPa, 2–4 s
5. Operator Unload: Removes bonded assembly; next cycle starts.

Because the operator controls load/unload and final alignment, the machine can handle multiple display sizes, multiple bond heads, and small-batch R&D without reprogramming a robot.

---

3. Step-by-Step Semi-Automatic Workflow (Generic Multi-Mode)

1. Operator Load: Places 1–55 in LCD/TFT/OLED or FPC onto vacuum chuck; barcode scanner confirms product ID.
2. Atmospheric Plasma Cleaning: Raises surface energy to > 60 dynes for ACF wetting.
3. Semi ACF Lamination: Operator presses “Start”; machine cuts 1–3 mm ACF strip and tacks it at 80 °C, 0.2 MPa.
4. Semi Vision Alignment: Operator jogs chip/flex under live 12 MP camera; AI calculates X, Y, θ; one-button lock achieves ±0.003 mm .
5. Semi Bond:
   • COG/COF/IC: 160–220 °C, 0.8–1.5 MPa, 2–4 s
   • FOG/FOB/FPC: 140–200 °C, 0.6–1.2 MPa, 2–4 s
6. Operator Unload: Removes bonded assembly; next cycle starts.

Cycle time: 6–10 s (operator dependent), throughput: 600–3,000 UPH .

---

4. Core Hardware That Determines Performance (Semi-Auto)

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Hot-Bar Head: Titanium or molybdenum alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life .
Heat System: PID-controlled cartridge, embedded K-type thermocouple, stability ±0.5 °C, overshoot < 1 °C .
Force Actuator: Servo motor, 24-bit encoder, 0.1 N resolution, 2 ms response; active gravity cancellation for 25 µm PET.
Vision System: 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm .
Operator Interface: 15-inch touch HMI, joystick jog, one-button lock, recipe encryption.

---

5. Software & Industry 4.0 Integration (Semi-Auto)

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve .

---

6. Technical Specifications Buyers Compare (Semi-Auto)

• Display Size: 1–55 inch (LCD, TFT, OLED, flexible OLED)
• IC/COF/FPC Size: 6 × 0.6 mm to 65 × 45 mm
• Bonding Accuracy: ±0.003 mm (vision-guided)
• Temperature Window: RT–400 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 10–3,900 N, resolution 0.1 N
• Cycle Time: 6–10 s (operator dependent)
• Throughput: 600–3,000 UPH (operator dependent)
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

7. Market Trends (No Year Stated)

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV bar while maintaining 1 µm accuracy.
• Roll-to-Roll Semi-Auto: Reel-fed driver and touch tails bonded at 3,000 UPH .

According to industry analysis, the global semi-automatic bonding machine market is expected to grow at a CAGR of 6–8 %, driven by 8-K TVs, foldable phones, and automotive displays .

---

8. Applications Across All Semi-Auto Bond Types

• Consumer Electronics: Smartphone OLED (COG + TFOG), foldable hinge (FOF), tablet battery tail (FOB) .
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—COF source + OLB gate + TFOG touch .
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability .
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810 .

---

9. Daily Maintenance for 99 % Uptime (Semi-Auto)

1. Clean Hot-Bar with lint-free wipe and IPA every 200 cycles to prevent ACF build-up .
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability .
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new pad patterns from vendors are auto-learned .
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

10. SEO Keyword Integration

semi-automatic bonding machine, LCD semi-auto bonder, TFT semi-automatic bonding machine, OLED semi-auto bonder, ACF semi-auto bonding machine, COF semi-auto bonder, IC semi-auto bonding machine, FPC semi-auto bonder, semi-automatic COG bonder, semi-automatic FOG bonder, semi-automatic FOB bonder, semi-automatic FOF bonder, semi-automatic TFOG bonder, semi-automatic OLB bonder, semi-automatic TAB bonder, semi-automatic ACF laminator, semi-automatic Hot-Bar bonder, semi-automatic bonding machine 1 micron accuracy, 200 °C semi-auto temperature, 1 MPa semi-auto force, vertical conduction horizontal insulation, lead-free semi-auto bonding, ROHS compliant semi-auto bonding, foldable phone semi-auto bonder, 8-K TV semi-auto bonding machine, automotive display semi-auto bonder, medical device semi-auto bonding machine, roll-to-roll semi-auto bonder, 3,000 UPH semi-auto bonding machine

---

11. Conclusion

A semi-automatic bonding machine for LCD, TFT, OLED, ACF, COF, IC, and FPC is no longer a manual hot-plate—it is the flexible, AI-driven, cloud-connected gateway that turns operator skill into the foldable phones, 8-K TVs, and transparent medical patches that define modern electronics. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

Pulse Heat Bonding Machine

Pulse Heat Bonding Machine

A pulse heat bonding machine—often marketed as a pulse heat bonder, Hot-Bar bonder, or ACF pulse heat press—is the precision heart that welds chips, flex circuits, or touch sensors onto glass, plastic, or another flex without solder, without connectors, and without added weight. It uses controlled heat and pressure to deform microscopic conductive particles inside anisotropic conductive film (ACF), creating thousands of vertical contacts in under three seconds while keeping lateral isolation > 1 GΩ. Every smartphone OLED, foldable hinge, 8-K TV source driver, and curved automotive cluster you touch has passed through such a machine. This guide explains physics, hardware, software, specs, applications, trends, and maintenance for “pulse heat bonding machine”, “pulse heat bonder”, “Hot-Bar bonding machine”, “ACF pulse heat press”, and every high-value permutation.

---

1. Why “Pulse Heat” Matters in Modern Electronics

Traditional constant-heat presses waste energy and over-cook surrounding components. A pulse heat bonder delivers instantaneous resistance heat through a titanium or molybdenum heater chip (Hot-Bar). The current is pulsed ON/OFF at kilohertz frequency, so:

• Rise time: 200 °C/s to target (e.g., 180 °C) in < 1 s
• Dwell: programmable plateau (e.g., 2 s)
• Cool-down: forced water or ambient air to < 60 °C while pressure is maintained

The result is a cold-to-cold cycle in < 5 s with ±0.5 °C accuracy, zero overshoot, and no thermal stress on adjacent LCD, OLED, or PET substrates.

---

2. Physics: The Three-Stage Pulse Heat Cycle

1. Pressurise: Servo or pneumatic ram lowers the Hot-Bar onto the work-piece; force is measured by a load cell in real time (0.1 g resolution).
2. Pulse Heat: Low-voltage, high-current pulses (typ. 5 V, 800 A) flow through the bar; PID feedback from an embedded K-type thermocouple modulates pulse width to follow the exact profile (pre-heat, main-heat, reflow).
3. Cool Under Load: Water-cooled block or ambient air removes heat while pressure is maintained; particles solidify, ACF cures, and the bar lifts only after < 60 °C is reached.

Because the bar is local and line-contact, peripheral components on the LCD/TFT/OLED panel see < 80 °C—ideal for narrow-pitch OLED drivers or PET-based foldable displays.

---

3. Step-by-Step Fully Automatic Workflow

1. Robot Loading: 6-axis arm feeds glass, flex, or plastic reel; barcode scanner confirms product ID.
2. Atmospheric Plasma Cleaning: Raises surface energy to > 60 dynes for ACF wetting.
3. ACF Lamination: Precision cutter feeds 1–3 mm strip; heated roller tacks film at 80 °C, 0.2 MPa.
4. AI Vision Alignment: Dual 12 MP cameras capture fiducials; deep-learning algorithm calculates offset in X, Y, θ, and scale within ±1 µm @ 3σ in < 200 ms .
5. Pulse Heat Bond:
   • Rise: 200 °C/s to 160–220 °C (programmable)
   • Dwell: 1–3 s at ±0.5 °C
   • Cool: Forced water or ambient air to < 60 °C while pressure holds
6. In-Situ Kelvin Test: Four-wire probes measure contact resistance; > 30 mΩ triggers automatic rework.
7. Robot Unload: Soft-tip picker places bonded assembly onto output conveyor; next cycle starts.

---

4. Core Hardware That Determines Performance

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Hot-Bar Head: Titanium or molybdenum alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life .
Pulse Heat System: 800 W cartridge, embedded K-type thermocouple, ramp 200 °C/s, overshoot < 0.5 °C
Force Actuator: Voice-coil or servo motor, 24-bit encoder, 0.1 g resolution, 2 ms response; active gravity cancellation for 25 µm glass.
Vision System: Dual 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm .
Reel Feed Unit: Servo-driven with dancer-arm tension control, anti-static vacuum, splice sensor for uninterrupted production .

---

5. Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve .

---

6. Technical Specifications Buyers Compare

• Bar Size: 50 × 1.4 × 10 mm (standard) up to 500 × 5 × 20 mm (TV source)
• Force Range: 10–3,900 N, resolution 0.1 N
• Temperature Window: Room to 600 °C, stability ±0.5 °C, overshoot < 1 °C
• Cycle Time: < 5 s (rise + dwell + cool)
• Pitch Capability: Down to 0.15 mm (150 µm) for micro-OLED drivers
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

7. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV bar while maintaining 1 µm accuracy.
• Roll-to-Roll Pulse Heat: Reel-fed driver and touch tails bonded at 3,000 UPH .

According to industry analysis, the global pulse heat bonding machine market is expected to grow at a CAGR of 6–8 %, driven by 8-K TVs, foldable phones, and automotive displays .

---

8. Applications Across All Pulse Heat Processes

• Consumer Electronics: Smartphone OLED (COG + TFOG), foldable hinge (FOF), tablet battery tail (FOB)
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—COF source + OLB gate + TFOG touch
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810

---

9. Daily Maintenance for 99 % Uptime

1. Clean Hot-Bar with lint-free wipe and IPA every 200 cycles to prevent ACF build-up .
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability .
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new pad patterns from vendors are auto-learned .
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

10. SEO Keyword Integration

pulse heat bonding machine, pulse heat bonder, Hot-Bar bonding machine, ACF pulse heat press, pulse heat bonding machine 1 micron accuracy, 200 °C pulse heat temperature, 1 MPa pulse heat pressure, vertical conduction horizontal insulation, lead-free pulse heat bonding, foldable phone pulse heat bonder, 8-K TV pulse heat bonding machine, automotive display pulse heat bonder, medical device pulse heat bonding machine, AI predictive maintenance pulse heat bonder, remote diagnostics pulse heat bonding machine, cloud dashboard pulse heat bonder, granite base pulse heat bonding machine, servo motor pulse heat bonder, voice-coil actuator pulse heat bonding machine, telecentric lens pulse heat bonder, real-time Linux pulse heat bonding machine, laminar flow pulse heat bonding machine, ISO 6 cleanroom pulse heat bonder, copper-core ACF pulse heat bonder, cold-laser assist pulse heat bonding machine, servo-hydraulic hybrid pulse heat bonder,pulse heat bonding machine deep dive, pulse heat bonder ultimate guide.

---

11. Conclusion

A pulse heat bonding machine is no longer a niche Hot-Bar press—it is the universal, AI-driven, cloud-connected gateway that turns instantaneous resistance heat into the foldable phones, 8-K TVs, and transparent medical patches that define modern electronics. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

ACF/COG/COP/COF/FOG/FOB/FOF/TFOG/TFOF /OLB/TAB Bonding Machine

ACF/COG/COP/COF/FOG/FOB/FOF/TFOG/TFOF /OLB/TAB Bonding Machine

An ACF/COG/COP/COF/FOG/FOB/FOF/TFOG/TFOF /OLB/TAB Bonding Machine is the universal welder of modern electronics. It laminates anisotropic conductive film (ACF) and then bonds chips, flex circuits, or touch sensors onto glass, plastic, or another flex—without solder, without connectors, and without added weight. Whether you need vertical conductivity between a gold-bumped IC and an ITO panel, or a foldable flex tail that survives 200,000 bends, this multi-acronym platform delivers micron alignment, single-degree thermal control, and kilogram-level force in under three seconds. This guide explains every process, physics, hardware, software, spec, application, trend, and maintenance tip so Google instantly ranks you for “ACF bonding machine”, “COG bonder”, “COP bonding machine”, “COF bonder”, “FOG bonder”, “FOB bonding machine”, “FOF bonding machine”, “TFOG bonder”, “TFOF bonding machine”, “OLB bonding machine”, “TAB bonder”, and every high-value permutation.

---

1. Why “Multi-Acronym” Matters in Modern Electronics

Each letter pair describes a different “X-on-Y” marriage:

• ACF – Anisotropic Conductive Film (the common adhesive)
• COG – Chip-On-Glass
• COP – Chip-On-Plastic (foldable PET/PI)
• COF – Chip-On-Film (reel-fed copper tail)
• FOG – Flex-On-Glass
• FOB – Flex-On-Board (PCB)
• FOF – Flex-On-Flex
• TFOG – Touch-Flex-On-Glass
• TFOF – Touch-Flex-On-Film
• OLB – Outer Lead Bonding (generic term for tail-to-glass)
• TAB – Tape Automated Bonding (historic term for copper-on-pilm reel)

A single granite-based machine swaps jigs and recipes in < 15 s to cover all variants, sharing the same AI vision, servo force, and cloud dashboard.

---

2. Physics: The Two-Stage Dance

1. ACF Lamination (Tack): Low temperature (80 °C) and low pressure (0.2 MPa) activate the adhesive just enough to hold the film in place.
2. Final Bond: Controlled temperature (140–220 °C) and pressure (0.6–1.5 MPa) deform nickel or gold-coated spheres between opposing pads, creating < 30 mΩ vertical contacts while remaining > 1 GΩ isolated horizontally .

The machine controls temperature ramp, force profile, and dwell time to within 1 %; any drift triggers AI-based closed-loop correction.

---

3. Step-by-Step Fully Automatic Workflow (Generic Multi-Mode)

1. Robot Loading: 6-axis arm feeds glass, flex, or plastic reel; barcode scanner confirms product ID.
2. Atmospheric Plasma Cleaning: Raises surface energy to > 60 dynes for ACF wetting.
3. ACF Lamination: Precision cutter feeds 1–3 mm strip; heated roller tacks film at 80 °C, 0.2 MPa.
4. AI Vision Alignment: Dual 12 MP cameras capture fiducials; deep-learning algorithm calculates offset in X, Y, θ, and scale within ±1 µm @ 3σ in < 200 ms .
5. Controlled Bond:
   • COG/COP/COF: 160–220 °C, 0.8–1.5 MPa, ~2 s
   • FOG/FOB/FOF/TFOG/TFOF: 140–200 °C, 0.6–1.2 MPa, ~2 s
   • OLB/TAB: same as FOG
6. Cool Under Load: Water-cooled block drops to < 60 °C while pressure holds, preventing particle relaxation.
7. In-Situ Kelvin Test: Four-wire probes measure contact resistance; > 30 mΩ triggers automatic rework.
8. Robot Unload: Soft-tip picker places bonded assembly onto output conveyor; next cycle starts.

---

4. Core Hardware That Determines Performance (All Modes)

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Bonding Head: Titanium alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life
Heat System: 800 W cartridge, embedded K-type thermocouple, ramp 200 °C/s, overshoot < 0.5 °C
Force Actuator: Voice-coil or servo motor, 24-bit encoder, 0.1 g resolution, 2 ms response; active gravity cancellation for 25 µm glass.
Vision System: Dual 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm
Reel Feed Unit: Servo-driven with dancer-arm tension control, anti-static vacuum, splice sensor for uninterrupted production

---

5. Software & Industry 4.0 Integration (All Modes)

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve .

---

6. Technical Specifications Buyers Compare (All Modes)

• Substrate Range: 1″-120″ diagonal (Gen 2.5 to Gen 8.5), thickness 0.3–1.1 mm glass or 25–200 µm plastic
• Component Size: 0.25 × 0.25 mm die to 200 mm flex tail
• Bump Pitch: 12 µm (8-K source) to 80 µm (automotive gate)
• Bonding Accuracy: ±1 µm @ 3σ in X and Y, ±0.01° in θ
• Temperature Window: 25–399 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–100 kg, resolution 0.1 g
• Cycle Time: 1.5 s (COG) to 2.8 s (OLB/TAB)
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

7. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV glass while maintaining 1 µm accuracy.
• Roll-to-Roll Multi-Mode: Reel-fed driver and touch tails bonded at 3,000 UPH .

According to industry analysis, the global multi-mode bonding machine market is expected to grow at a CAGR of 6–8 %, driven by 8-K TVs, foldable phones, and automotive displays

.

---

8. Applications Across All Bond Types

• Consumer Electronics: Smartphone OLED (COG + TFOG), foldable hinge (FOF), tablet battery tail (FOB)
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—COF source + OLB gate + TFOG touch
• Automotive: Curved instrument clusters, 15-inch OLED infotainment, head-up displays—FOB mainboard + TFOG touch
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810

---

9. Daily Maintenance for 99 % Uptime

1. Clean DLC head with lint-free wipe and IPA every 200 cycles to prevent ACF build-up .
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability .
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new pad patterns from vendors are auto-learned .
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

10. Keyword Integration

ACF COG COP COF FOG FOB FOF TFOG TFOF OLB TAB bonding machine, ACF bonding machine, COG bonder, COP bonding machine, COF bonder, FOG bonder, FOB bonding machine, FOF bonding machine, TFOG bonder, TFOF bonding machine, OLB bonding machine, TAB bonder, multi-mode bonding machine, pulse heat bonding machine, constant temperature bonding machine, AI vision bonding machine, IoT bonding machine, China multi-mode bonding machine, automatic bonding machine 1 micron accuracy, 200 °C bonding temperature, 1 MPa bonding pressure, vertical conduction horizontal insulation, lead-free bonding, ROHS compliant bonding, foldable phone bonding machine, 8-K TV bonding machine, automotive display bonding machine, medical device bonding machine, ACF/COG/COP/COF/FOG/FOB/FOF/TFOG/TFOF /OLB/TAB Bonding Machine ultimate guide.

---

11. Conclusion

An ACF/COG/COP/COF/FOG/FOB/FOF/TFOG/TFOF /OLB/TAB Bonding Machine is no longer a collection of separate presses—it is the universal, AI-driven, cloud-connected gateway that turns naked silicon, floppy polyimide, and curved glass into the foldable phones, 8-K TVs, and transparent medical patches that define modern electronics. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these multi-mode platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.

IC Bonder / IC Bonding Machine

IC Bonder / IC Bonding Machine

An IC bonder—also marketed as an IC bonding machine—is the micron-level bridge between naked silicon and the outside world. It picks a bare integrated-circuit die from a diced wafer, places it on glass (COG), plastic (COP), or a continuous reel (COF), and welds gold or copper bumps into anisotropic conductive film (ACF) in under two seconds. Every smartphone OLED, foldable tablet, 8-K TV, and automotive cluster you touch has passed through such a bonder. This guide explains physics, hardware, software, specs, applications, trends, and maintenance for “IC bonder”, “IC bonding machine”, “COG IC bonder”, “COP IC bonding machine”, “COF IC bonder”, “display driver IC bonding”, and every high-value permutation.

---

1. What Exactly Is an IC Bonder / IC Bonding Machine?

An IC bonding machine is a servo-driven, vision-guided, heat-and-pressure press that bonds a bare integrated-circuit die to a substrate—glass, plastic, or flexible tape—using anisotropic conductive film (ACF). The goal is electrical contact in the Z-axis only, eliminating short circuits laterally. The same platform reworks defective assemblies by removing the old ACF and rebonding a new die, saving a $300 TV panel or a $150 phone OLED. Modern bonders achieve ±1 µm alignment, ±0.5 °C temperature stability, and 0.1 g force resolution on die sizes from 0.25 × 0.25 mm to 25 × 25 mm.

---

2. Physics Common to COG, COP, and COF

1. Bump Formation: Gold or copper bumps 5–25 µm high are plated on the IC during wafer-level bumping.
2. ACF Lamination: 25–45 µm anisotropic conductive film is tacked to the substrate at 80 °C, 0.2 MPa.
3. Vision Alignment: Dual 12 MP cameras capture fiducials on die and substrate; AI edge detection calculates offset in X, Y, θ, and scale within ±1 µm @ 3σ in < 200 ms.
4. Controlled Heat & Pressure:
   • COG: 180–220 °C, 1.0–1.5 MPa, ~2 s
   • COP: 140–180 °C, 0.6–1.0 MPa, ~2 s (PET-friendly)
   • COF: 180–220 °C, 1.0–1.5 MPa, ~2 s (includes reel index)
5. Cool Under Load to < 60 °C while pressure holds, locking conductive particles.
6. In-Situ Kelvin Test < 30 mΩ per bump; > 30 mΩ triggers automatic rework.

---

3. COG (Chip-On-Glass) – Razor-Bezel King

• Substrate: ITO glass 0.3–1.1 mm
• Die Size: 0.5 × 0.5 mm to 15 × 15 mm
• Force Range: 10–100 kg
• Pain Point: CTE mismatch glass vs silicon → head must cancel its own weight to 0.1 g
• Markets: Smartphones, tablets, smartwatches, automotive clusters
• SEO Edge: “COG IC bonder for 0.9 mm chin”, “8-K TV COG driver bonding”

---

4. COP (Chip-On-Plastic) – Foldable Champion

• Substrate: Polyimide (PI), PET, PEN 25–200 µm
• Low-Temp Recipe: 140–180 °C to protect PET (Tg ~ 150 °C)
• Fold Radius: 0.2 mm without trace cracking
• Force Range: 5–50 kg (soft substrates)
• Markets: Foldable phones, rollable tablets, curved automotive OLED, transparent medical patches
• SEO Edge: “COP IC bonding machine for foldable OLED”, “low-temp COP IC bonder”

---

5. COF (Chip-On-Film) – Reel-Fed Giant-Screen Engine

• Substrate: Continuous copper-clad polyimide reel (TAB), 8–70 mm width
• Process Flow: Die picked from waffle pack → bonded to inner leads → reel indexes → outer leads bonded later (OLB/FOG)
• Indexing Accuracy: ±5 µm over 300 mm stroke; dancer-arm tension control; splice sensor for uninterrupted production
• Markets: 32″-120″ TV source/gate drivers, large OLED signage
• SEO Edge: “COF IC bonder for 100-inch TV”, “reel-fed COF IC bonder 3,000 UPH”

---

6. Shared Hardware Core Across COG/COP/COF

• Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
• Head: Titanium, DLC-coated, 0.3 µm flatness, 300,000-cycle life.
• Heater: 800 W cartridge, 200 °C/s ramp, ±0.5 °C stability.
• Force: Voice-coil or servo motor, 0.1 g resolution, 2 ms response.
• Vision: Dual 12 MP CMOS, telecentric, 0.2 µm repeatability.
• Software: Real-time Linux, AI edge detection, OPC-UA MES link.

Change-over from COG to COP takes < 15 s: swap the low-temp recipe, load PET parameters, and let the AI retune the PID loop.

---

7. Software & Industry 4.0 Integration

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve.

---

8. Technical Specifications Buyers Compare

• Die Size: 0.25 × 0.25 mm to 25 × 25 mm
• Bump Pitch: 12 µm (8-K source) to 80 µm (automotive gate)
• Placement Accuracy: ±1 µm @ 3σ (COG/COP), ±3 µm @ 3σ (COF reel)
• Temperature Window: 25–399 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 0.1–100 kg, resolution 0.1 g
• Cycle Time: 1.5 s (COG/COP) to 2.8 s (OLB)
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

9. Market Trends

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact.
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV glass while maintaining 1 µm accuracy.
• Roll-to-Roll IC Bonding: Reel-fed driver and touch tails bonded at 3,000 UPH.

According to industry analysis, the global IC bonding machine market is expected to grow at a CAGR of 6–8 %, driven by foldable phones, automotive displays, and medical wearables

.

---

10. Daily Maintenance for 99 % Uptime

1. Clean DLC head with lint-free wipe and IPA every 200 cycles to prevent ACF build-up.
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability.
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new bump patterns from vendors are auto-learned.
7. Backup encrypted recipes to external SSD daily; blockchain hash protects IP.

---

11. SEO Keyword Integration

IC bonder, IC bonding machine, COG IC bonder, COP IC bonding machine, COF IC bonder, display driver IC bonding, pulse heat IC bonder, low-temp COP IC bonder, reel-fed COF IC bonder, 1 micron placement accuracy, 200 °C bonding temperature, 1 MPa bonding pressure, vertical conduction horizontal insulation, lead-free IC bonding, ROHS compliant bonding, foldable phone IC bonding, 8-K TV COF bonding, automotive display IC bonding, medical device IC bonding, AI vision IC bonder, IoT IC bonding machine, China IC bonding machine, automatic IC bonder, IC bonding accuracy 1 micron, IC bonding temperature 220 C, IC bonding force 1 MPa, gold bump bonding, copper bump bonding, flip-chip bonding, COG vs COP vs COF, multi-mode IC bonder, IC bonder deep dive, IC bonding machine ultimate guide.

---

12. Conclusion

An IC bonder / IC bonding machine is no longer a single-purpose press—it is the universal, AI-driven, cloud-connected gateway that turns naked silicon, floppy polyimide, and curved glass into the foldable phones, 8-K TVs, and transparent medical patches that define modern electronics. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process .
