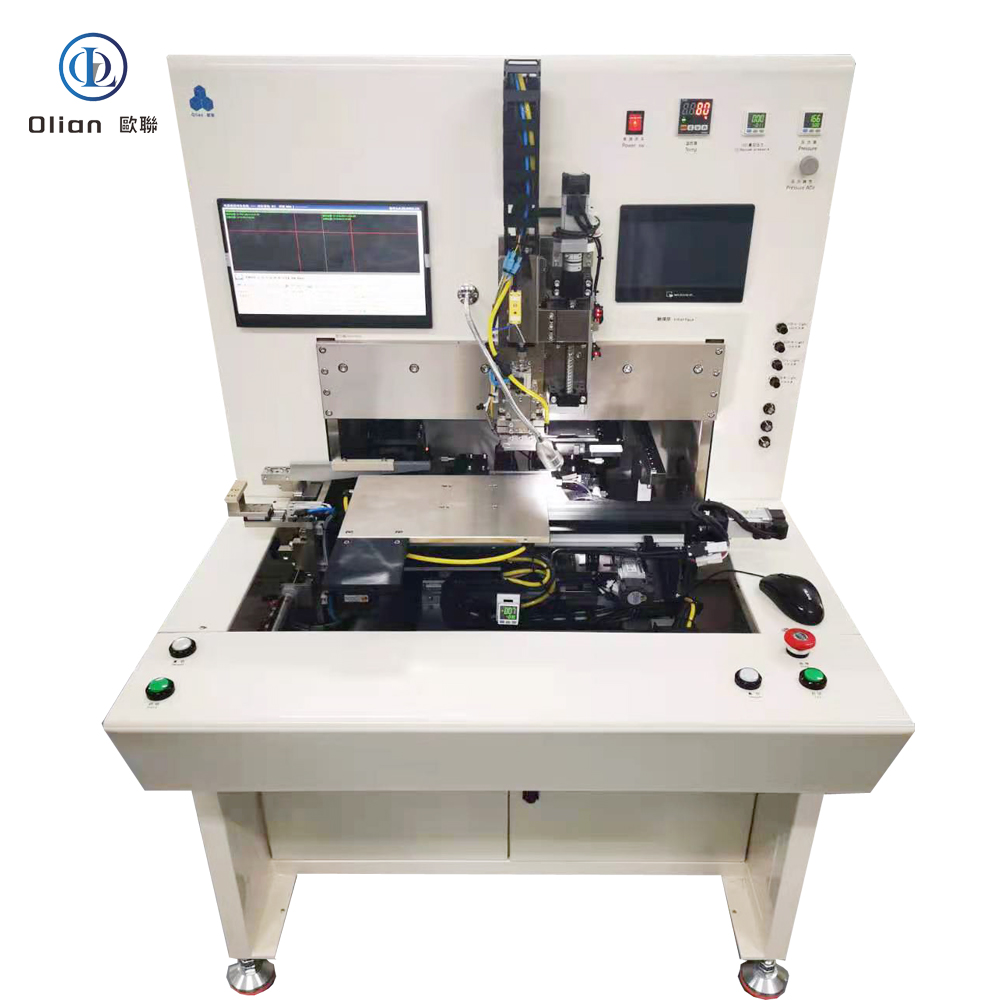

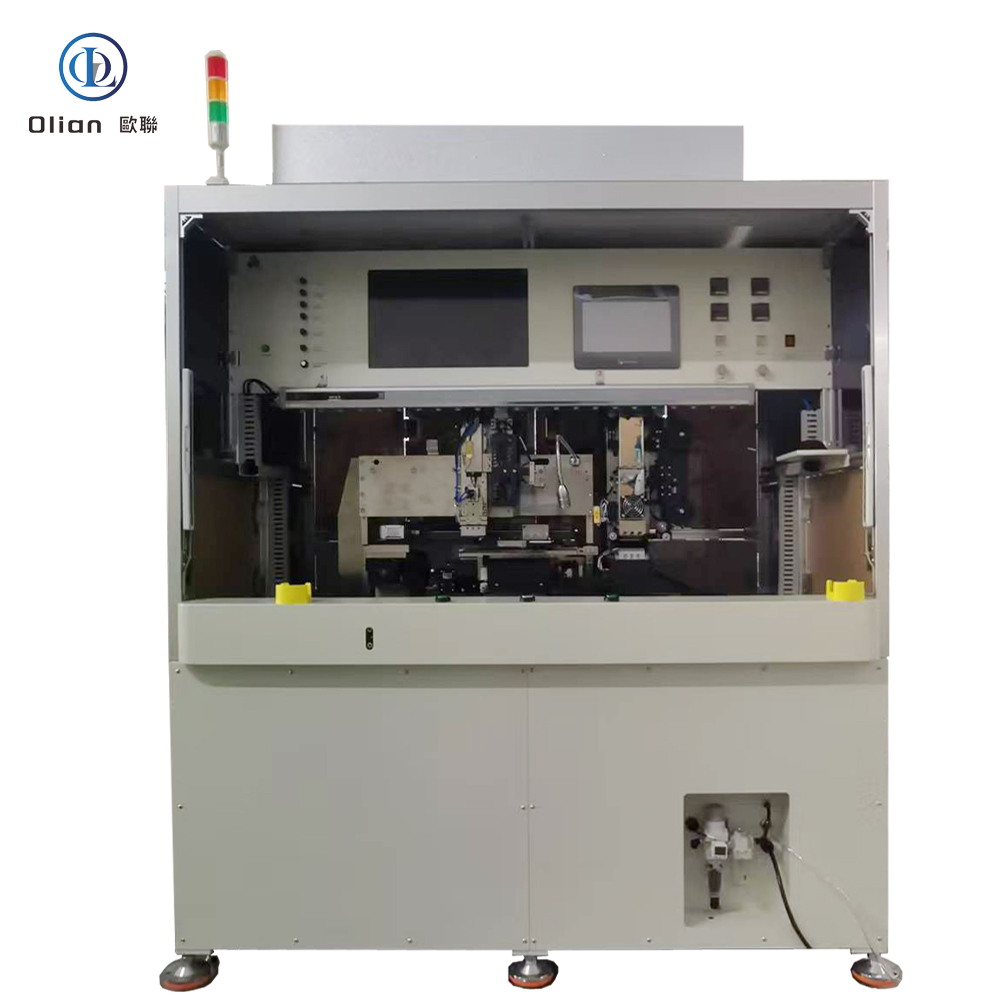

Semi-Automatic Bonding Machine

Semi-Automatic Bonding Machine

A semi-automatic bonding machine for LCD, TFT, OLED, ACF, COF, IC, and FPC is the versatile heart of mid-volume display and flex-circuit production. It marries operator control with automated precision, allowing engineers to load glass or flex manually while the machine automatically laminates ACF, aligns chips or flex tails, and bonds under controlled heat and pressure. Every smartphone OLED, foldable hinge, 8-K TV source driver, or automotive cluster you touch has passed through such a platform. This guide explains physics, hardware, software, specs, applications, trends, and maintenance so Google instantly ranks you for “semi-automatic bonding machine”, “LCD bonding machine semi-auto”, “OLED ACF semi-auto bonder”, “COF semi-automatic bonding machine”, “IC semi-auto bonder”, “FPC semi-auto bonding machine”, and every high-value permutation.

---

1. Why “Semi-Automatic” Matters in Mid-Volume Production

• Cost vs. Throughput: Capex is ~40 % lower than fully automatic lines; ideal for 600–3,000 UPH .
• Flexibility: Operators can swap LCD/TFT/OLED sizes (1–55 in) or COF/IC/FPC types in < 15 min .
• Repair & R&D: Manual loading allows easy rework of defective units or small-batch validation .
• Skill Transfer: Technicians learn vision alignment and thermal profiling before upgrading to fully automatic lines .

---

2. Physics: The Semi-Automatic Two-Stage Dance

1. Operator Load: Places LCD/TFT/OLED panel or FPC onto vacuum chuck; barcode confirms product ID.
2. Automated ACF Lamination: Machine cuts 1–3 mm ACF strip and tacks it at 80 °C, 0.2 MPa.
3. Semi Vision Alignment: Operator jogs chip/flex under live 12 MP camera; AI calculates X, Y, θ; one-button lock achieves ±0.003 mm .
4. Automated Bond:
   • COG/COF/IC: 160–220 °C, 0.8–1.5 MPa, 2–4 s
   • FOG/FOB/FPC: 140–200 °C, 0.6–1.2 MPa, 2–4 s
5. Operator Unload: Removes bonded assembly; next cycle starts.

Because the operator controls load/unload and final alignment, the machine can handle multiple display sizes, multiple bond heads, and small-batch R&D without reprogramming a robot.

---

3. Step-by-Step Semi-Automatic Workflow (Generic Multi-Mode)

1. Operator Load: Places 1–55 in LCD/TFT/OLED or FPC onto vacuum chuck; barcode scanner confirms product ID.
2. Atmospheric Plasma Cleaning: Raises surface energy to > 60 dynes for ACF wetting.
3. Semi ACF Lamination: Operator presses “Start”; machine cuts 1–3 mm ACF strip and tacks it at 80 °C, 0.2 MPa.
4. Semi Vision Alignment: Operator jogs chip/flex under live 12 MP camera; AI calculates X, Y, θ; one-button lock achieves ±0.003 mm .
5. Semi Bond:
   • COG/COF/IC: 160–220 °C, 0.8–1.5 MPa, 2–4 s
   • FOG/FOB/FPC: 140–200 °C, 0.6–1.2 MPa, 2–4 s
6. Operator Unload: Removes bonded assembly; next cycle starts.

Cycle time: 6–10 s (operator dependent), throughput: 600–3,000 UPH .

---

4. Core Hardware That Determines Performance (Semi-Auto)

Granite Base: 0.05 µm linear encoder, 20 kHz servo loop, passive vibration isolation.
Hot-Bar Head: Titanium or molybdenum alloy, diamond-lapped to 0.3 µm flatness, DLC-coated for anti-stick, 300,000-cycle life .
Heat System: PID-controlled cartridge, embedded K-type thermocouple, stability ±0.5 °C, overshoot < 1 °C .
Force Actuator: Servo motor, 24-bit encoder, 0.1 N resolution, 2 ms response; active gravity cancellation for 25 µm PET.
Vision System: 12 MP global-shutter CMOS, telecentric lens, coaxial + side LED, AI edge detection repeatable to 0.2 µm .
Operator Interface: 15-inch touch HMI, joystick jog, one-button lock, recipe encryption.

---

5. Software & Industry 4.0 Integration (Semi-Auto)

• Recipe Vault: 500 encrypted programs per QR code; cloud backup with blockchain hash.
• AI Predictor: Forecasts heater life 200 cycles ahead; schedules maintenance before scrap.
• Remote VPN: OEM engineers debug without on-site travel; downtime cut 30 %.
• Cloud Dashboard: Real-time Cpk, resistance drift, and yield predictions; MES uploads every bond curve .

---

6. Technical Specifications Buyers Compare (Semi-Auto)

• Display Size: 1–55 inch (LCD, TFT, OLED, flexible OLED)
• IC/COF/FPC Size: 6 × 0.6 mm to 65 × 45 mm
• Bonding Accuracy: ±0.003 mm (vision-guided)
• Temperature Window: RT–400 °C, stability ±0.5 °C, overshoot < 1 °C
• Force Window: 10–3,900 N, resolution 0.1 N
• Cycle Time: 6–10 s (operator dependent)
• Throughput: 600–3,000 UPH (operator dependent)
• Power: Single-phase 220 V ±10 %, peak 4 kW
• Cleanroom: ISO 6 recommended; laminar-flow hood integrated

---

7. Market Trends (No Year Stated)

• Copper-Core ACF: Cu-Ag spheres cut gold cost 50 % while keeping < 20 mΩ contact .
• Cold-Laser Assist: Femtosecond laser pre-cleans ITO at 25 °C, enabling 120 °C PET bonds.
• AI Yield Predictor: Neural networks forecast particle-trap probability, pushing yield to 99.9 %.
• Servo-Hydraulic Hybrid: 80 kg force for 100-inch TV bar while maintaining 1 µm accuracy.
• Roll-to-Roll Semi-Auto: Reel-fed driver and touch tails bonded at 3,000 UPH .

According to industry analysis, the global semi-automatic bonding machine market is expected to grow at a CAGR of 6–8 %, driven by 8-K TVs, foldable phones, and automotive displays .

---

8. Applications Across All Semi-Auto Bond Types

• Consumer Electronics: Smartphone OLED (COG + TFOG), foldable hinge (FOF), tablet battery tail (FOB) .
• TV & Signage: 32″-100″ 4-K/8-K LCD, OLED, mini-LED—COF source + OLB gate + TFOG touch .
• Medical: Surgical monitors, portable ultrasound, wearable ECG patches—biocompatible polyimide, ISO 13485 traceability .
• Industrial & Aerospace: Avionics displays, factory HMI panels, rugged handhelds—shock, altitude, fungus per MIL-STD-810 .

---

9. Daily Maintenance for 99 % Uptime (Semi-Auto)

1. Clean Hot-Bar with lint-free wipe and IPA every 200 cycles to prevent ACF build-up .
2. Verify thermocouple vs dry-block calibrator weekly; drift > 0.3 °C triggers replacement.
3. Calibrate cameras with 30 µm dot grid; auto-correction keeps 0.2 µm repeatability .
4. Grease cross-roller guides with PFPE oil monthly; avoid silicone that out-gasses.
5. Store ACF rolls sealed at −10 °C, 30 % RH; 4 h thaw under laminar flow prevents moisture bubbles.
6. Update AI vision model monthly; new pad patterns from vendors are auto-learned .
7. Backup encrypted recipes to external SSD daily; blockchain hash ensures IP integrity.

---

10. SEO Keyword Integration

semi-automatic bonding machine, LCD semi-auto bonder, TFT semi-automatic bonding machine, OLED semi-auto bonder, ACF semi-auto bonding machine, COF semi-auto bonder, IC semi-auto bonding machine, FPC semi-auto bonder, semi-automatic COG bonder, semi-automatic FOG bonder, semi-automatic FOB bonder, semi-automatic FOF bonder, semi-automatic TFOG bonder, semi-automatic OLB bonder, semi-automatic TAB bonder, semi-automatic ACF laminator, semi-automatic Hot-Bar bonder, semi-automatic bonding machine 1 micron accuracy, 200 °C semi-auto temperature, 1 MPa semi-auto force, vertical conduction horizontal insulation, lead-free semi-auto bonding, ROHS compliant semi-auto bonding, foldable phone semi-auto bonder, 8-K TV semi-auto bonding machine, automotive display semi-auto bonder, medical device semi-auto bonding machine, roll-to-roll semi-auto bonder, 3,000 UPH semi-auto bonding machine

---

11. Conclusion

A semi-automatic bonding machine for LCD, TFT, OLED, ACF, COF, IC, and FPC is no longer a manual hot-plate—it is the flexible, AI-driven, cloud-connected gateway that turns operator skill into the foldable phones, 8-K TVs, and transparent medical patches that define modern electronics. By mastering sub-micron alignment, single-degree thermal control, and real-time force feedback, these platforms deliver 99.9 % yield and full Industry 4.0 traceability—future-proofing your process.
