ACF COF Bonding Machine: Ultimate Guide to COF IC Bonding in Modern Display Manufacturing
In the world of advanced semiconductor packaging and display manufacturing, the COF Bonding Machine plays a pivotal role. COF, or Chip on Film (also known as Tape Carrier Packaging), is a technology where integrated circuits are mounted directly onto a flexible polymer film and COF(IC already bonded on Film ) on the glass or PCB or plastic or flexible film (TCP/PCB).
Unlike traditional PCB assembly, COF technology offers higher integration, smaller form factors, and better flexibility. Consequently, the COF Bonder is an indispensable piece of equipment in the production lines of smartphones, OLED/LCD displays, and high-density electronic modules.
The ACF COF bonding process is a precise thermal compression mechanism. Here is a breakdown of the standard workflow:
1. Alignment: The machine uses high-precision optical vision systems to align the bump electrodes on the COF (IC) with the traces on the glass or PCB or plastic or flexible film (TCP/PCB).
2. Thermal Compression: A specialized thermode (heating tool) applies precise pressure and heat to the chip.
3. Bonding: Under heat and pressure, anisotropic conductive film (ACF) cures, creating a permanent electrical and mechanical connection between the COF(chip on film) and Glass or PCB or Plastic or others.
4. Inspection: Modern machines often integrate AI vision for post-bond quality checks.
Pro Tip: The accuracy of a COF Bonder is often measured in microns (µm). For high-resolution displays, alignment accuracy must typically be within ±3µm to prevent display defects.
If you are searching for a COF Bonding Machine, you are likely involved in one of these industries:
● Flat Panel Displays (FPD): Connecting driver ICs(COF IC) to the edges of LCD and OLED screens.
● Smartphones & Wearables: Packaging compact sensors and RF modules where space is limited.
● Automotive Electronics: Manufacturing flexible circuits for dashboard displays and ADAS systems.
● Medical Devices: Creating compact, flexible circuitry for diagnostic equipment.
When evaluating different COF bonding machine suppliers, do not just look at the price. Focus on these technical specifications to ensure production yield:
| Parameter | Why It Matters | Industry Standard |
| Alignment Accuracy | Determines if the microscopic pins connect correctly. | ±3µm to ±5µm |
| Bonding Force | Too much force cracks the chip; too little causes poor contact. | Closed-loop control required |
| Temperature Control | Precise thermal management ensures ACF cures perfectly. | ±3°C stability |
| UPH (Units Per Hour) | Directly impacts your production capacity and ROI. | Varies by model (See below) |
It is easy to confuse COF with other packaging technologies. Here is a quick comparison to clarify:
● COG (Chip on Glass): The chip is bonded directly to the glass substrate of the display. It is cost-effective but less flexible than COF.
● COB (Chip on Board): The chip is bonded directly onto a rigid PCB. Common in lighting and simple electronics.
● COF (Chip on Film): The chip is bonded to a flexible film, which is then connected to the panel glass, or oled plastic or the main board. This allows for bending and folding, making it ideal for bezel-less smartphones and foldable screens.
The demand for COF bonding machines is surging due to the rise of high-speed data transmission and foldable electronics. Manufacturers are now seeking machines that offer “one-stop” solutions, capable of handling multiple (materials) in a single pass to reduce thermal deformation and improve yield.
Advanced machines now feature multi-station processing, allowing for simultaneous COB (Chip on Board) and COF operations, significantly reducing production time.
Investing in a COF Bonding Machine is a significant step in upgrading your manufacturing capabilities. Whether you need a manual benchtop model for R&D or a fully automated high-speed production line, it is crucial to partner with a supplier that offers robust after-sales support and spares.

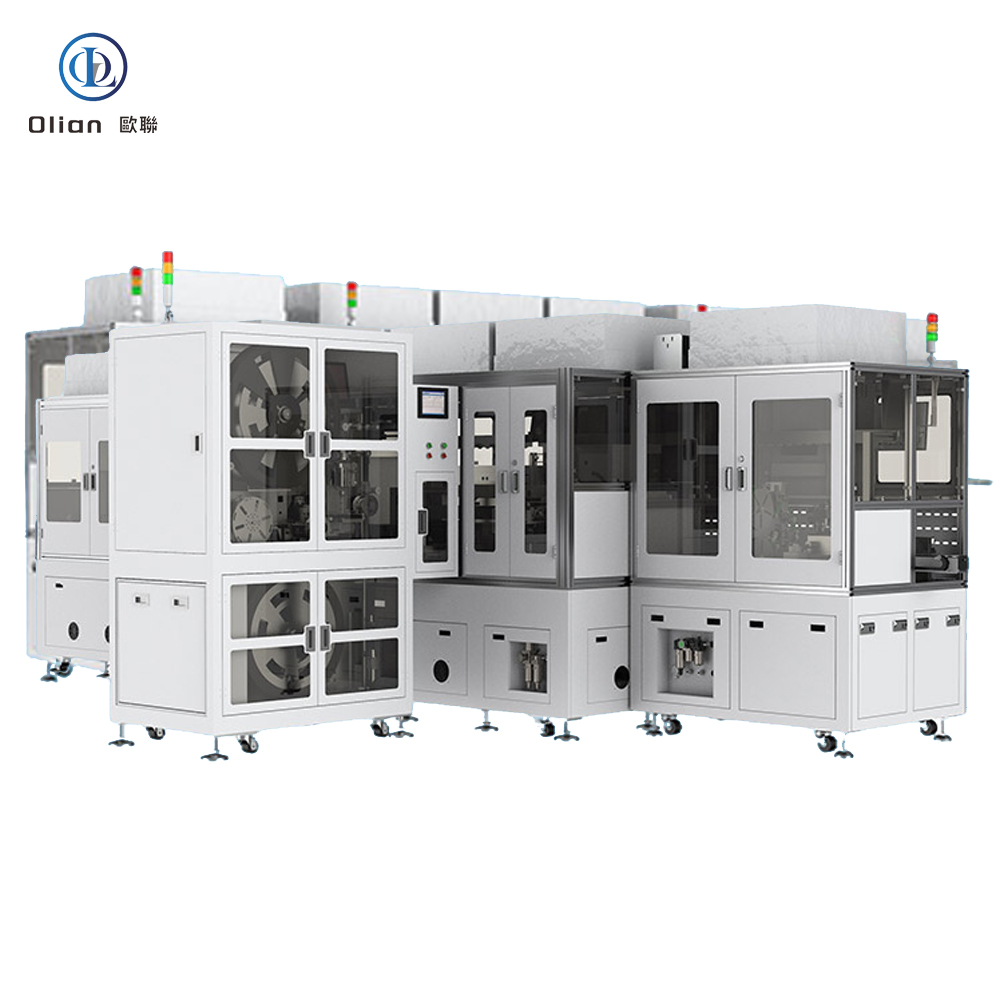

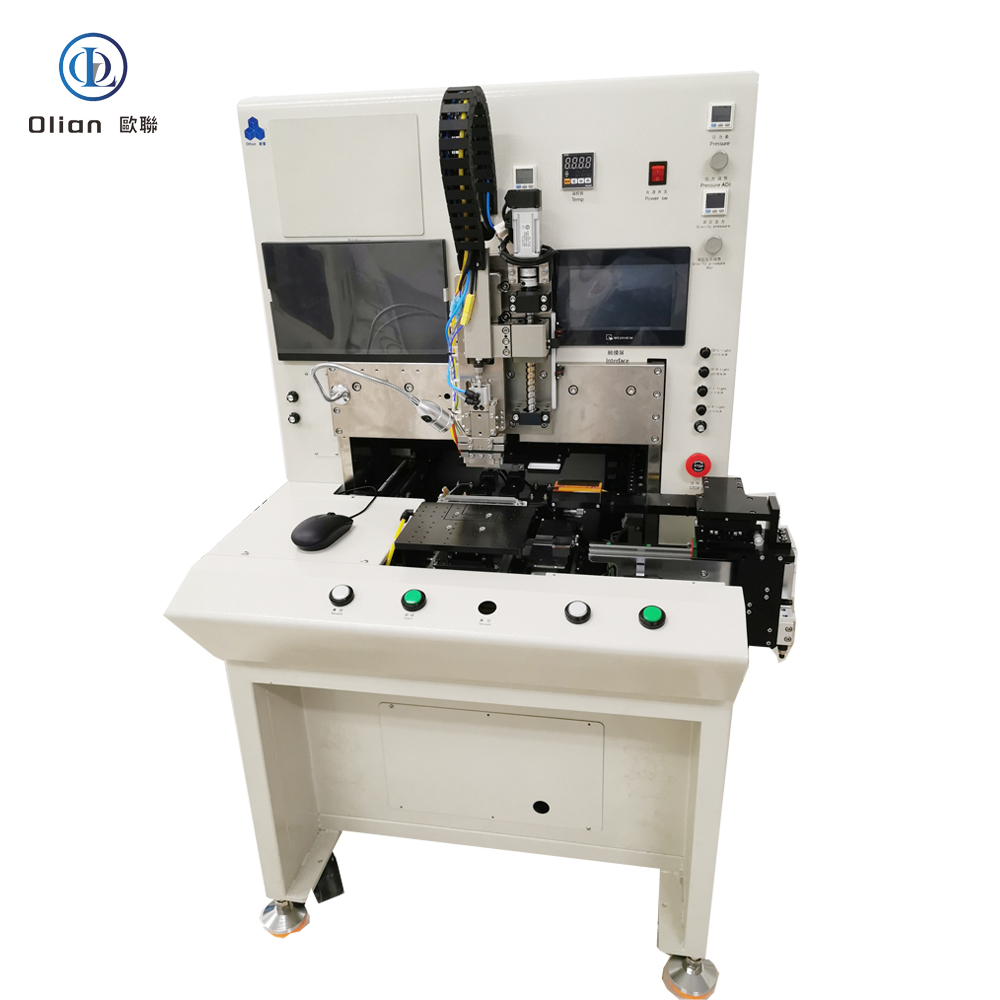

Shenzhen Olian Automatic Equipment Co.,Ltd as a professional machines factory, we have many different type COF bonding machines for different size panels, 0.8-7inch for Smartphones & Wearables,7-17inch for notebook ,laptop,Automotive Electronics,and 17-120inch for FPD and TVs..machines size and models will be differernt. and we have manual ,semi automatic and fully automatic COF bonder for your choosing..
Ready to optimize your production line? Contact us now for a customized solution tailored to your specific chip packaging needs. wechat/whatsapp:+86 18025364779, welcome to visit us for more informations.
