FPC Bonding Machine for TV Screen Repairing .
In the fast-growing TV repair industry, an FPC bonding machine for TV screen repairing is essential equipment for restoring LCD, LED, and OLED panels. Whether addressing vertical/horizontal lines, no display issues, or damaged flex cables, these precision machines deliver reliable, factory-like bonds that extend screen life and reduce replacement costs.
We provide high-quality FPC bonding machines designed specifically for professional TV screen repairing. Our equipment supports repair technicians and workshops handling everything from 32-inch to 100-inch panels with accuracy, speed, and durability.
An FPC bonding machine (Flexible Printed Circuit bonding machine) uses pulse heat or constant temperature technology combined with ACF (Anisotropic Conductive Film) to attach flexible cables (FPC/COF/TAB) to the glass panel or PCB. This process restores electrical connections in TV screens where flex cables have detached, oxidized, or been damaged.
Key benefits for TV screen repairing:
–Precise alignment (±1–5 µm) for high-resolution 4K/8K panels.
–Stable temperature and pressure control to avoid damaging delicate glass or COF.
–Support for large panels up to 100 inches.
–Reduced repair time and higher success rates compared to manual methods.
–Compatibility with LCD, LED, OLED, and mini-LED technologies.
TV manufacturers and repair centers worldwide use FPC bonding machines to fix common panel issues:
–Line problems — Vertical or horizontal lines caused by broken FPC connections.
–COF/TAB detachment — Re-bonding Chip-on-Film or Tape Automated Bonding components.
–Flex cable replacement — Installing new FPC ribbons on open-cell panels.
–Large-format displays — Repairing commercial TVs, digital signage, and hotel displays.
Our machines handle FPC, COF, COG, FOG, and TAB bonding, making them versatile for comprehensive TV panel repair workflows.
When choosing an FPC bonding machine for TV screen repairing, look for these professional-grade specifications:
–Pulse Heat or constant temperature Technology — Rapid heating and cooling cycles for strong, clean bonds.
–Vision Alignment System — CCD cameras and servo motors for micron-level precision.
–Programmable Profiles — Save multiple temperature, pressure, and time settings for different TV models.
–Wide Panel Support — Adjustable platforms for small to ultra-large screens.
–User-Friendly Interface — Touchscreen controls and easy operation for technicians.
–Robust Construction — Built for daily high-volume repair shop use.
Shenzhen olian offers models tailored for TV repair professionals, combining reliability with competitive pricing and excellent after-sales support.
As a specialized manufacturer, Shenzhen Olian Automatic Equipment Co., Ltd. (Bonding-Machine.com) focuses on display bonding technology. Our FPC bonding machines serve mobile phones, tablets, laptops, automotive displays, and especially television screen repairing.
–Proven performance in real-world TV repair environments.
–Comprehensive technical support and training.
–Custom solutions for specific repair needs.
–Global shipping and reliable spare parts availability.
Investing in a professional FPC bonding machine from shenzhen olian helps your business offer faster, more affordable TV repairs while maintaining high quality standards.
Explore our full range of FPC bonding machines and related equipment today at Bonding-Machine.com. Whether you need a single-head model for a small workshop or advanced solutions for high-volume operations, we have the right machine for your TV screen repairing needs.
Contact us for expert recommendations, quotations, or demos. Restore more TV panels efficiently and grow your repair business with precision bonding technology.
Introduction
In the era of foldable smartphones, rollable tablets, and wearable devices, flexible AMOLED (Active Matrix Organic Light-Emitting Diode) displays have become the cornerstone of innovative product design. Unlike traditional rigid panels, flexible AMOLED screens are built on polyimide (PI) (COP Chip on PI)substrates and require ultra-precise bonding processes to connect delicate components such as COF (Chip on Film), FPC (Flexible Printed Circuit), driver ICs, and polarizers while maintaining bendability and long-term reliability.
At bonding-machine.com, we engineer high-precision AMOLED flexible screen bonding equipment that delivers exceptional alignment accuracy, stable thermal control, and high throughput for mass production of curved and foldable OLED modules.
Flexible AMOLED displays demand specialized bonding technology due to their unique structure:
Ultra-thin and bendable polyimide substrate
Thin-film encapsulation (TFE) layers that must remain intact during bonding
Sensitive organic emissive materials requiring low-stress, high-accuracy processes
Multiple bonding types: ACF bonding, COF bonding, FOG (FPC on Glass), COP (Chip on PI), and FOP
Any misalignment, excessive pressure, or temperature fluctuation can cause line defects, touch failures, black spots, or reduced bending performance. Our bonding machines are optimized specifically for these challenges.
Sub-Micron Alignment Precision — Advanced CCD vision systems and high-resolution servo motors achieve alignment accuracy of ±3μm or better, essential for high-PPI flexible AMOLED panels.
Flexible Substrate Handling — Specialized platforms and gentle vacuum systems designed for thin PI films and curved/foldable panels without causing wrinkles or delamination.
Precise Temperature & Pressure Control — Pulse heat or constant temperature bonding heads with real-time monitoring ensure uniform ACF curing while protecting heat-sensitive OLED layers.
Modular & Dual-Head Design — Supports simultaneous or sequential bonding of COF, FPC, and driver ICs. Configurable for different screen sizes (from small wearables to large foldable panels).
Plasma Cleaning & ACF Pre-Bonding Integration — Optional inline plasma cleaning and automatic ACF application to improve bonding strength and yield.
Low-Stress Bonding Technology — Optimized pressing profiles minimize mechanical stress on flexible substrates, preserving excellent bending radius (as low as 3-5mm in final products).
High Throughput & Automation — Fully or semi-automatic models with robotic handling options for seamless integration into existing OLED production lines.
Data Traceability & Industry 4.0 Ready — Real-time parameter logging, defect detection, and MES system compatibility.
Our AMOLED flexible screen bonding equipment is widely used in the manufacturing of:
Foldable smartphones and tablets
Curved OLED displays for premium mobiles and automotive
Flexible wearables and smartwatches
Rollable or extendable display prototypes
High-end medical and industrial flexible panels
Technical Advantages Over Traditional Bonding Equipment
Traditional rigid LCD bonding machines often fail when handling flexible AMOLED due to substrate deformation or insufficient precision. Our dedicated flexible bonding solutions address these pain points with:
Customizable bonding heads for irregular or curved shapes
Advanced force feedback systems
Anti-static and cleanroom-compatible design
Superior yield rates for ultra-thin and high-resolution panels
Specialized Expertise in display bonding technology for both LCD and advanced OLED/AMOLED lines.
Proven Reliability — Equipment trusted by display module manufacturers worldwide.
Customization Capability — Tailor-made solutions for specific panel sizes, bonding processes, and production capacity.
Comprehensive Support — Installation, training, maintenance, and spare parts supply.
Competitive Performance at optimized cost of ownership.
AMOLED flexible screen bonding machine, flexible OLED bonding equipment, foldable display bonding machine, COF bonding for AMOLED, flexible AMOLED lamination machine, PI substrate bonding. ACF bonding machine OLED, FOG bonding flexible display, high precision flexible screen bonder,Mobile Phone Display Manufacturing,FOG/FOB Bonding Machines,TV/LCD Bonding Equipment,
AMOLED flexible screen COF bonding machine,foldable OLED display bonding.
COF Chip on FPC Bonding Machine: The Ultimate Guide to High-Precision Display Bonding.
Discover the advanced COF Chip on FPC Bonding Machine for precise ACF bonding in LCD, OLED, and flexible display manufacturing & repair. Learn key features, applications, and how to choose the best COF bonder for higher yield and reliability.
COF Chip on FPC Bonding Machine, COF bonding machine, Chip on FPC bonding, FPC bonding machine, along with secondary terms like ACF bonding, LCD/OLED panel repair, and display manufacturing.
In the fast-evolving world of display technology, achieving reliable and high-precision connections between semiconductor chips and flexible substrates is critical. The COF Chip on FPC Bonding Machine (Chip on Film on Flexible Printed Circuit) has become an essential piece of equipment for both display module manufacturers and professional repair centers.
Whether you are producing next-generation OLED panels, repairing large-size 4K/8K TVs, or assembling flexible displays for laptops and foldable devices, a high-quality COF bonding machine ensures superior electrical conductivity, strong adhesion, and minimal defects.
This comprehensive guide covers everything you need to know about COF on FPC bonding technology, its key benefits, technical features, and why it remains indispensable.

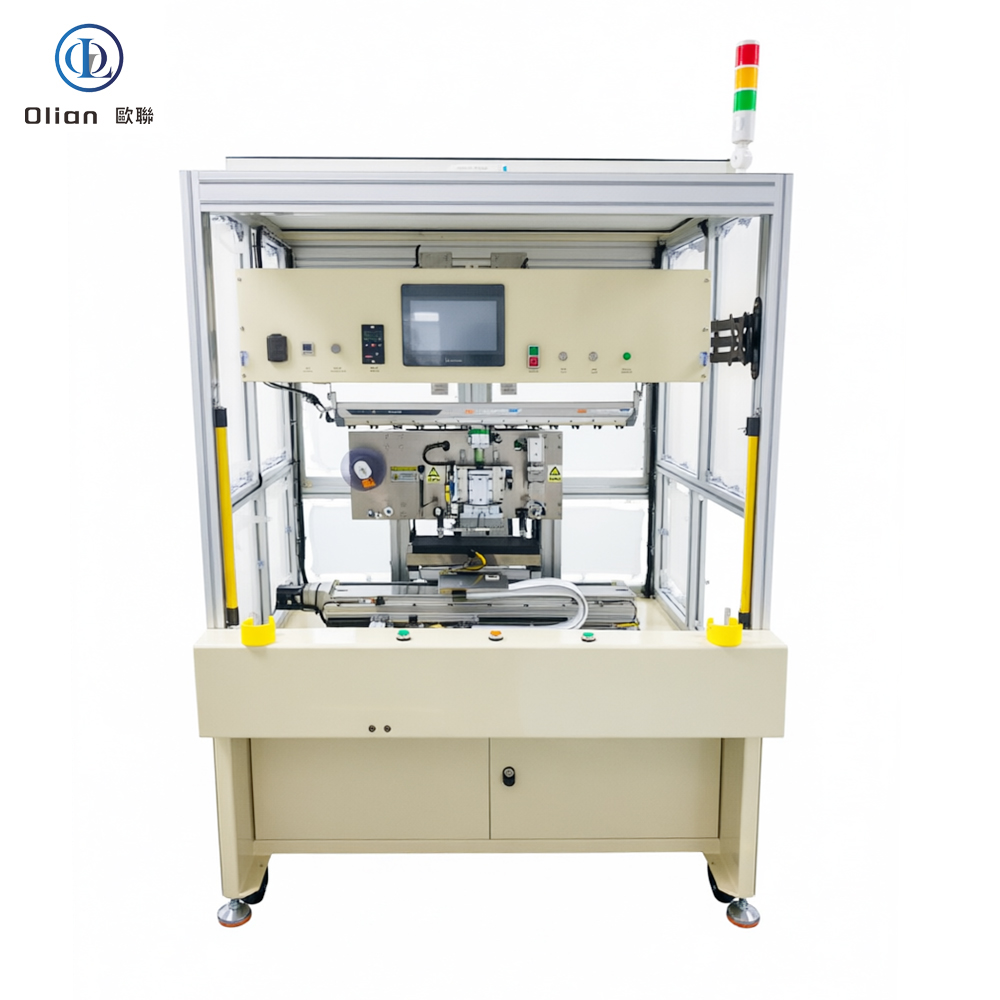

A COF bonding machine is a specialized precision equipment that bonds integrated circuit (IC) chips mounted on a flexible film (COF) directly onto a Flexible Printed Circuit (FPC) or other substrates using Anisotropic Conductive Film (ACF).
Unlike traditional soldering, the Chip on FPC bonding process uses a combination of controlled heat (pulse heating), pressure, and time to compress conductive particles in the ACF. This creates excellent vertical (Z-axis) conductivity while maintaining insulation between adjacent fine-pitch circuits.
The technology is widely applied in:
–Printer
–LCD and OLED panel module assembly
–TV, monitor, laptop, and tablet screen production
–Professional LCD/LED/OLED panel repair (especially fixing vertical lines caused by damaged COF)
Modern displays demand thinner profiles, higher resolution, faster signal transmission, and greater flexibility. COF Chip on FPC technology excels in these areas because it:
-Enables ultra-fine pitch bonding (as low as 16–30μm on the panel side)
-Supports flexible and foldable display designs
-Reduces overall module thickness and weight
-Provides excellent signal integrity for high-refresh-rate and high-resolution panels
As consumer electronics move toward more flexible, lightweight, and high-performance screens, investing in a reliable FPC bonding machine has become a competitive necessity for manufacturers and repair businesses.
When selecting a COF Chip on FPC Bonding Machine, look for these essential features:
—High-Precision CCD Vision Alignment System — Offers sub-micron or ±5–15μm alignment accuracy for fine-pitch COF bonding.
—Constant Temperature Control — Ensures uniform heating, stable bonding temperature (typically 180–200°C+), and minimal thermal stress on delicate FPC substrates.
—Programmable Pressure and Time Parameters — Allows precise control to achieve optimal ACF particle deformation and strong bonding strength.
—User-Friendly PLC + Touchscreen HMI — Simplifies operation, parameter storage, and recipe management for different panel sizes and COF types.
—Support for Multiple Bonding Modes — Including COF on FPC (FOF), COF on Glass, TAB bonding, and flexible substrate applications.
—Large Panel Compatibility — Capable of handling panels from small mobile sizes up to 85–100 inch+ TVs.
Advanced models may also include real-time temperature monitoring, data logging, and automation options for higher production throughput.
—Display Module Manufacturing
High-volume production of LCD/OLED panels for TVs, monitors, and mobile devices.
—LCD/LED/OLED Panel Repair
Repairing common issues such as vertical lines, half-screen brightness problems, or no display caused by failed COF connections. Professional repair shops worldwide rely on COF bonding machines to replace damaged COF ICs efficiently.
–Flexible Electronics Assembly
Bonding for wearable devices, foldable phones, automotive displays, and medical equipment.
–FOF (Film on Film) Bonding
Connecting COF to FPC in advanced display modules.
Significantly higher first-pass yield compared to manual bonding
Reduced rework rate and lower production costs
Consistent bonding quality with excellent long-term reliability
Faster cycle time suitable for both small-batch repair and mass production
Ability to handle increasingly fine-pitch and flexible substrates required by new-generation displays
Businesses using quality COF bonder equipment report improved customer satisfaction and stronger competitiveness in both manufacturing and after-sales repair markets.
Consider the following factors:
–Panel size range you need to handle
-Required bonding accuracy and pitch
-Production volume (manual, semi-automatic, or fully automatic)
-Budget and after-sales support
-Ease of maintenance and availability of spare parts
For repair shops in Singapore, Southeast Asia, and beyond, compact yet powerful models with pulse heat technology often provide the best balance of performance and cost-effectiveness.
The COF Chip on FPC Bonding Machine is a cornerstone technology for modern display production and repair. With the continued growth of OLED, flexible displays, and high-resolution screens, having reliable bonding equipment is more important than ever.
If you are looking to upgrade your production line, improve repair success rates, or enter the flexible electronics market, investing in a high-precision COF bonding machine will deliver long-term returns through higher yield, better quality, and reduced defects.
Contact our team today for detailed specifications, machine recommendations, quotation, or a live demonstration video of our COF Chip on FPC Bonding Machines. We provide comprehensive technical support and solutions tailored to your specific requirements.
Keywords: COF bonding machine, Chip on FPC bonding machine, FPC bonding machine, COF bonder, ACF bonding, LCD panel repair machine, OLED bonding machine, flexible display assembling.
Leave a comment below with your questions or contact us via WhatsApp/Email for a personalized consultation.
wa.me/8618025364779
olian@szolian.com
zack wu
shenzhen olian
Powering the Display Revolution: How Our Precision Bonding Technology Enables the Screens of Tomorrow
A perspective from Shenzhen Olian Automatic Equipment Co., Ltd.
The Invisible Infrastructure of Modern Electronics
Every time you unlock your smartphone, navigate your vehicle’s touchscreen dashboard, or scroll through your smartwatch, you interact with the end result of thousands of precision manufacturing processes. At Shenzhen Olian Automatic Equipment Co., Ltd., we build the machines that make those interactions possible.
Since 2012, we have specialized in the critical bonding technologies that connect the microscopic components within flat panel displays. Through our platform at bonding-machine.com, we serve as the bridge between raw semiconductor components and the seamless user experiences that define modern electronics.
Understanding the Technology Stack
Display manufacturing requires multiple specialized bonding processes, each addressing distinct engineering challenges:
ACF (Anisotropic Conductive Film) Bonding creates directional electrical pathways while maintaining insulation between adjacent circuits. This technology enables the high-density interconnects necessary for high-resolution panels without risking short circuits between closely spaced conductive traces.
COF (Chip-on-Film) Bonding attaches driver integrated circuits to flexible polyimide substrates. This approach allows circuits to bend and fold—essential for curved displays and space-constrained device designs.
COG (Chip-on-Glass) Bonding mounts driver ICs directly onto glass panels. This method reduces overall module thickness and improves thermal management compared to traditional PCB-based solutions.
COP/FOP (Chip-on-Plastic/Film-on-Plastic) Bonding represents our contribution to the next generation of flexible and foldable displays. As consumer electronics manufacturers push beyond rigid glass substrates, our COP/FOP solutions enable entirely new form factors.
Engineering for Precision and Reliability
Our equipment design philosophy centers on thermal management and positional accuracy. We employ pulse heat technology rather than conventional constant heating systems. Our titanium alloy bonding heads heat instantly upon contacting the substrate, then cool while maintaining mechanical pressure. This controlled thermal profile prevents component displacement during the critical solidification phase—a common failure mode in less sophisticated systems.
For alignment, we integrate dual high-resolution camera systems with adjustable LED backlighting. These vision systems achieve ±5–10 micrometer registration accuracy, ensuring perfect pad-to-pad matching even as display densities increase and pitch dimensions shrink.
Our programmable logic controllers allow operators to store process recipes for different panel specifications. Whether manufacturing for Samsung, LG, BOE, or custom display architectures, our systems maintain consistent quality across product generations.
Market Position and Industry Validation
The global semiconductor bonding equipment market is projected to expand from $1.5 billion in 2024 to $2.8 billion by 2033, reflecting a compound annual growth rate of 7.5%. This expansion is driven by three converging trends: increasing display resolution requirements, adoption of flexible form factors, and integration of advanced displays into automotive and industrial applications.
Our market position reflects sustained investment in research and development. We maintain 70+ dedicated R&D engineers and operate 4,000 square meters of precision CNC manufacturing facilities. Our intellectual property portfolio includes 10+ utility patents and proprietary software systems developed entirely in-house.
Industry recognition includes designation as a National High-Tech Enterprise (2022–2025) and certification as a Specialized, Refined, Unique, Innovative enterprise (2024–2027). These credentials validate our technical capabilities and commitment to advancement.
Our client relationships demonstrate real-world performance. We have delivered over 4,000 equipment units and deployed 200+ automated production lines across more than 20 regions on five continents. Our installations support manufacturing operations at BOE, CSOT, HKC, Huawei, BYD, Foxconn, and Luxshare—organizations that demand zero-defect reliability at production scale.
Service as a Competitive Advantage
In capital equipment industries, post-sale support often determines long-term success. We have structured our service organization to minimize customer downtime and maximize production continuity.
Our technical support team guarantees 30-minute response times with true 24/7 availability. Every system ships with comprehensive installation support, operator training, and documentation. We provide a one-year warranty covering all components and labor, with lifetime service support extending well beyond the initial coverage period.
Most critically, we commit to defect resolution within 30 days. If we cannot restore full functionality in that timeframe, we provide free equipment replacement or complete refund. This policy reflects our confidence in manufacturing quality and our respect for our customers’ production schedules.
Future Developments and Industry Outlook
Looking ahead, we see three technology trends shaping our product roadmap:
MicroLED Integration requires bonding equipment capable of handling increasingly small die sizes with extraordinary placement accuracy. We are developing next-generation vision and motion control systems to address sub-10 micrometer placement requirements.
Automotive-Grade Reliability demands equipment that can process larger substrates (up to 85-inch diagonal) while maintaining the same precision standards established for smartphone displays. Thermal uniformity across these expanded work areas presents significant engineering challenges we are actively solving.
Laser-Assisted Bonding offers millisecond-level thermal control with localized heating that minimizes stress on adjacent components. We are integrating laser systems into our bonding platforms to enable processing of temperature-sensitive materials and structures.
Conclusion
The display industry continues to evolve at remarkable speed. Resolution increases, form factors multiply, and application spaces expand from consumer electronics into automotive, medical, and industrial domains. Throughout these transitions, the fundamental requirement remains consistent: reliable, precise, high-throughput bonding technology.
At Shenzhen Olian, we have built our organization to meet this requirement consistently and continuously. We invite display manufacturers, equipment integrators, and technology strategists to explore our capabilities at bonding-machine.com. For specific project discussions, our engineering team is available directly at olian@szolian.com.
The screens of tomorrow are being built today. We are proud to provide the precision automation that makes them possible.
Shenzhen Olian Automatic Equipment Co., Ltd. is a specialized automation equipment manufacturer serving the global flat panel display and semiconductor packaging industries.
Screen Decomposition Layers: Understanding the Structure of a Modern Smartphone Display
A smartphone screen is a sophisticated multilayered assembly that combines advanced materials and precision engineering to deliver vibrant visuals, responsive touch input, and durability. The diagram above illustrates the screen decomposition layers of a typical LCD-based smartphone display, showing how each component stacks together from top to bottom.
if you also in the field of displays, you can contact us for our bonding machines for your factory.
wechat/whatsapp:wa.me/8618025364779
bonding-machine.com
Zack wu
Shenzhen Olian
In the rapidly evolving world of display technology, from ultra-thin 4K televisions to flexible OLED smartphones, Chip-on-Film (COF) technology has become the gold standard. However, for repair centers and manufacturers, achieving a perfect bond is a high-stakes challenge. A single micron of misalignment can result in a dead pixel line or a scrapped panel.
In this guide, we will explore the mechanics of a COF bonding machine, how to optimize your production yield, and what to look for when investing in new equipment.
COF (Chip-on-Film) is an advanced packaging technology where the drive IC is directly mounted on a flexible circuit (film). Unlike traditional COG (Chip-on-Glass), COF allows for narrower bezels and foldable designs.
The COF bonding machine uses a process called Anisotropic Conductive Film (ACF) bonding. By applying specific heat and pressure, the conductive particles within the ACF create an electrical connection between the IC and the panel electrodes while maintaining insulation between adjacent traces.
Why do so many technicians struggle with COF bonding? It usually comes down to three variables:
If you are experiencing high failure rates, check these three common “pain points”:
When browsing bonding-machine.com, prioritize these technical features to ensure a high Return on Investment (ROI):
The demand for high-quality display repair is skyrocketing. Investing in a professional-grade COF bonding machine is not just about buying a tool—it’s about guaranteeing the precision that your customers demand.
At Bonding-Machine.com, we specialize in providing industrial-grade ACF, COF, and COG bonding solutions designed for 24/7 reliability.
COF bonding machine working videos:
85inch TV COF bonding machine:
How to use single head TV Panel LCD panel acf cof tab fpc bonding machine
Shenzhen Olian (founded 2012) specializes in R&D and manufacturing of automation equipments for FPD and next-gen flexible screens—exactly the tech shaping your industry.
With 70+ R&D engineers, 4,000m² of precision CNC facilities and a full suite of patents, we deliver integrated solutions for LCM modules, touch displays, and smart factories. Our clients—like BOE, CSOT, HKC, Huawei, BYD, Foxconn,Luxshare…more than 2000 customers—trust us for quality, innovation, and efficiency.
We’re already serving partners across 20+ regions and 5 continents. I’d love to explore how we can support your goals.
Zack Wu
Shenzhen Olian
Wechat/whatsapp:
wa.me/8618025364779
olian@szolian.com
bonding-machine.com
Automated Display Assembly Line,One-Glass flexible displays modules Solution: Fully Automated Display Module Production Line for AM/PM/TFT/STN
Discover our cutting-edge, fully automated binding line technology. Engineered for 0.7″ to 7″ displays, this line features nanometer-level precision, static elimination, and 99.5%+ yield rates.
In the competitive landscape of display manufacturing, efficiency, yield, and precision are non-negotiable. We present a state-of-the-art Fully Automated Binding Line, specifically engineered to handle the complexities of modern display assembly. This integrated solution is designed to be fully compatible with One Glass Solution (OGS) and semi-flexible products, setting a new benchmark for the industry.
This production line covers the entire spectrum of display module assembly—from initial cleaning to final inspection—ensuring seamless integration and maximum throughput.
Our automated line is a turnkey solution capable of handling a wide range of product types, including AMOLED, PMOLED, TFT, and STN displays. With a production rhythm of ≤3.5 seconds for products ranging from 0.7 inches to 7 inches, this line is optimized for high-volume manufacturing.
The system is designed to handle diverse geometries, including square, round, polygonal, and irregular shapes, making it the most versatile choice for manufacturers dealing with custom display designs.
A flawless display starts with a pristine surface. Our Fully Automatic Grinding & Cleaning Machine utilizes advanced CCD panoramic cameras for glass loading and correction. The system features independent Z-axis control for grinding heads with deceleration mechanisms (pneumatic cylinder + servo motor) to ensure uniform pressure.
Complementing this, the Online Plasma Cleaner uses a “flame-type” cleaning method (PLASMA-BAR & USC-BAR) to achieve a water contact angle of ≤15°, ensuring optimal surface energy for adhesion without static damage.
The heart of the line lies in its bonding capabilities. We offer specialized machines for COG (Chip on Glass), COF (Chip on Film), FOG (Film on Glass), and TFOG/TFOF applications, all featuring ±0.1mm ACF (Anisotropic Conductive Film) placement accuracy.
Quality is not inspected in; it is built in. The line incorporates a Fully Automatic Particle AOI (Automated Optical Inspection) system that detects defects such as particles, misalignment, cracks, and scratches with a 99% detection rate and a false alarm rate of less than 2%.
Additionally, the Three-in-One Gluing Machine and Front & Back Gluing Machine utilize premium EFD喷射阀 (EFD Jet Valves) with independent proportional valve control for pressure. This ensures precise application of UV glue, TUFFY glue, and silver paste, followed by long-life LED curing (20,000+ hours).
To meet the strictest environmental standards, critical stations (Sticker, Plasma, COG/FOG, AOI, Gluing) maintain an internal particle cleanliness level of Class 100 (Dynamic). This is achieved through FFU installations and ionizers that trigger automatic alarms if static levels exceed thresholds.
Smart Factory Ready:
Every machine in the line supports MES communication protocols with reserved gateways. This allows for seamless data integration, real-time monitoring of production parameters (temperature, pressure, time), and full traceability of production logs and defect images.
Tags:Automated Display Assembly Line, COG Bonding Machine, FOG Bonding Equipment, LCD Module Production, Fully Automatic Binding Line, One Glass Solution (OGS), Display Module Tester, Plasma Cleaning Machine, Precision Gluing System, Smart Factory MES Integration.
Shenzhen Olian OL-1500 Series Fully automatic COF FOF TFOF bonding Dispensing production line :
COF, which stands for Chip On Flex or Chip On Film, is a kind of IC packaging technology. It fixes integrated circuits (IC) on flexible printed circuit boards (FPC) and connects the chip with the flexible substrate circuit through thermocompression, so as to realize the interconnection between the chip and the circuit.
The COF bonding process is the process of connecting the display driver IC chip to the soft film carrier through the COF technology. It mainly uses the flip – chip eutectic method to bond the gold bumps on the display driver IC with the inner leads on the flexible substrate. This process can realize the electrical connection and mechanical fixation between the chip and the substrate, and is a key process in the manufacturing of LCD/OLED display modules.
COF bonding machine is a special equipment used to complete the COF bonding process. It can accurately position and bond the COF and the panel or PCB to ensure the quality and reliability of the connection. The machine usually has a variety of functions, such as ACF (Anisotropic Conductive Film) feeding, cutting, pasting, and precise alignment and pressure – bonding. It can be divided into semi – automatic and fully automatic types according to the degree of automation. The fully automatic COF bonding machine can realize the automatic feeding, positioning, bonding and other operations of COF and panel, which can greatly improve the production efficiency and product quality.
ACF, whose full name is Anisotropic Conductive Film, is a kind of adhesive film with special electrical conductivity. It is composed of conductive particles evenly distributed in the adhesive matrix. The characteristic of ACF is that it has obvious differences in the electrical conductivity in the Z – axis direction and the insulation resistance in the XY plane. When the Z – axis conductivity resistance value and the XY plane insulation resistance value exceed a certain ratio, it can be called good conductive anisotropy. In the COF bonding process, ACF plays a vital role. It can not only connect the electrodes of the IC chip and the substrate to achieve electrical conduction, but also avoid the short circuit between adjacent electrodes.
● Feeding: First, the COF and the panel or PCB that need to be bonded are automatically fed into the working area of the bonding machine.
● Positioning: The machine uses high – precision visual positioning systems, such as CCD cameras, to accurately locate the position of the COF and the panel to ensure that they are aligned.
● ACF Feeding and Cutting: The ACF material is fed into the machine, and according to the required length, it is cut by the cutting device.
● ACF Sticking: The cut ACF is accurately pasted on the corresponding position of the COF or the panel.
● Preliminary Pressing: After the ACF is pasted, a preliminary pressing is carried out to make the COF and the panel preliminarily bonded and ensure that the ACF is evenly distributed between them.
● Main Pressing: Under the action of a certain temperature and pressure, the main pressing is carried out. During this process, the ACF is dissolved and solidified, and the conductive particles in it are compressed to form a conductive path, so as to realize the electrical connection between the COF and the panel.
● Inspection: After the bonding is completed, the machine will carry out an inspection to check whether the bonding position is accurate, whether the electrical connection is good, and so on.
● Cleanliness: During the bonding process, it is necessary to ensure the cleanliness of the working environment and the surface of the materials to avoid the influence of impurities and dust on the bonding quality.
● Temperature and Pressure Control: The temperature and pressure during the bonding process need to be strictly controlled according to the process requirements. Improper temperature and pressure may lead to poor bonding or damage to the materials.
● Alignment Accuracy: The alignment accuracy between the COF and the panel is very important, and any deviation may lead to electrical connection failure. Therefore, the visual positioning system needs to be regularly calibrated and maintained.
● Material Storage: COF and ACF materials need to be stored under specific conditions, such as temperature, humidity, etc., to ensure their performance is not affected.
While Olian Automatic provides a comprehensive range of equipment, their solutions for COF bonding typically fall into the following categories, often integrated into production lines:
These are the core machines used for the actual bonding process.
○ Technology: They utilize advanced PLC + HMI (Programmable Logic Controller + Human Machine Interface) control systems for stability. The machines are equipped with high-precision servo motors and CCD visual alignment systems to achieve high accuracy.
○ Precision: Their equipment is designed to achieve high alignment accuracy (often within ±3μm to ±10μm range depending on the model and application), which is critical for high-resolution displays.
○ Control: They employ sophisticated temperature and pressure control algorithms to ensure consistent bonding quality. The bonding heads are typically made of high-quality materials like tungsten steel or SUS440C to ensure thermal uniformity.
Since ACF is essential for COF bonding, Olian also manufactures equipment dedicated to the precise application of ACF onto panels or FPCs.
○ Function: These machines handle the unwinding, tension control, cutting, and precise placement of the ACF tape.
○ Integration: They are often integrated as upstream modules in a COF bonding production line.
For higher efficiency, Olian Automatic provides integrated solutions that connect multiple processes.
○ Process Integration: A typical line might include: Panel Loading → Plasma Cleaning → ACF Attachment → COF Pre-bonding → COF Main Bonding → Post-Bonding Curing (if required) → AOI (Automated Optical Inspection) → Unloading.
○ Automation: These lines utilize robotic arms or conveyor systems to transfer products between stations, minimizing human intervention and maximizing throughput.
● High Precision: Utilizing finite element analysis (FEA) for thermal and mechanical design, their machines ensure high parallelism and temperature uniformity during the bonding process, which is vital for preventing stress damage to the delicate glass panels.
● Stability and Reliability: With years of experience in FPD technology, Oulian’s equipment is known for its stable performance in mass production environments.
● Customization: As a manufacturer of non-standard automation equipment, they can customize machines and production lines based on specific customer requirements, such as different panel sizes (from small mobile phone screens to large monitors) and specific process flows.
● Intellectual Property: The company holds multiple patents and software copyrights related to automation control, alignment algorithms, and mechanical structure design, ensuring their technology remains competitive.
Shenzhen Olian Automatic Equipment Co., Ltd. provides a robust portfolio of equipment for the COF bonding process. From standalone precision bonding heads to fully automated production lines.their solutions are designed to meet the demanding requirements of the modern display manufacturing industry, emphasizing precision, stability, and automation.
