1-7 Inch Semi Automatic Bonding Machines Production Line Solution

In the dynamic field of display manufacturing, the production of small to medium-sized Liquid Crystal Displays (LCDs) for applications such as tablets, notebooks, and automotive displays requires a specialized and semi-automated bonding solution. Our 1-7 Inch Semi Automatic Bonding Machines Production Line Solution is designed to meet the demands of producing LCDs ranging from 1” to 7”, offering a comprehensive and integrated approach to ensure high efficiency, precision, and adaptability.

Key Features of the Solution

1. Plasma Cleaning (EC)
   • High-Purity Cleaning: The process begins with plasma cleaning to remove any contaminants from the substrates. This step is crucial for ensuring a high-quality bond and reducing defects.
2. ACF (Anisotropic Conductive Film) Attaching
   • Precision Application: ACF is applied to the substrates with high precision, ensuring a reliable electrical connection between the components.
3. COG/COF/COP Pre-Bonding
   • Pre-Bonding Process: The pre-bonding machine automatically peels and cuts 1 or 2 layers of ACF tape and attaches it to the LCD, PCB, FPC, or TAB. This step ensures proper alignment and adhesion before the main bonding process.
4. COG/COF/COP Main Bonding
   • Main Bonding Process: The main bonding machine performs the final bonding of ICs, cables, or COF pre-pressed on the LCD glass. This process is critical for ensuring the stability and performance of the display modules.
5. FOG/FOP/FOF/FOB Bonding
   • FPC Bonding: The FOG/FOP/FOF/FOB bonding machine bonds flexible printed circuits (FPCs) to the glass or flexible substrates. This step is essential for connecting the display module to the mainboard and other components.

Applications

Our 1-7 Inch Semi Automatic Bonding Machines Production Line Solution is ideal for a wide range of display products, including:

• Tablets: For use in consumer electronics and professional applications.
• Notebooks: High-resolution displays for laptops and notebooks.
• Automotive Displays: Center console and dashboard displays for vehicles.
• Medical Devices: Portable medical devices such as blood glucose monitors and patient monitors.
• Industrial Equipment: Control panels, data loggers, and diagnostic tools.
• Smart Home Devices: Thermostats, security cameras, and smart locks.
• Wearable Technology: Fitness trackers and smartwatches.

Key Specifications

• Product Size Range: 1” to 7”
• Main Precision:
  • ACF Attachment: X/±0.15mm, Y/±0.1mm
  • COG: X/Y ±5μm
  • FOG: X/Y ±15μm
• Tact Time:
  • 1” to 7” Displays: Whole line TT ≤ 6s
• Uptime: ≥98%

Optional Features

• Flexible Configuration: The entire line can be configured according to customer process requirements.
• Customized Solutions: Other sizes can be customized to meet specific needs.
• AOI, CIM, and Dispensing Valve: The line is equipped with optional features such as AOI inspection, CIM (Computer Integrated Manufacturing), and precision dispensing valves.

Conclusion

Our 1-7 Inch Semi Automatic Bonding Machines Production Line Solution is designed to meet the future demands of the display industry, offering a versatile, high-precision, and efficient production process. By integrating multiple advanced technologies and ensuring high-quality standards, our solution is ideal for manufacturers looking to produce a wide range of advanced display modules. Choose our solution to stay ahead in the competitive market and deliver top-quality products.

The soluction compositions of the 1-7inch Semi Automatic Bonding machines Production Line

The production line include the EC plasma cleaning machine OL-Q004+ACF tape attaching machine OL-A003+COF/COP/COG pre bonding machine OL-COF003+COF/COP/COG main bonding machine OL-C012+FOG/FOP/FOF Bonding machine OL-F003+FOB bonding machine OL-F006.

The soluction usage of the 1-7inch Semi Automatic Bonding machines Production Line

According to your requirements, you can choose different machines to make your different products..it is working for wearable smart equipments, mobilephone, 12inch below car displays, HMI,and other 1-7inch or update to 12inch displays products.

1-7inch Semi Automatic Bonding machines Production Line working videos below, for you reference,

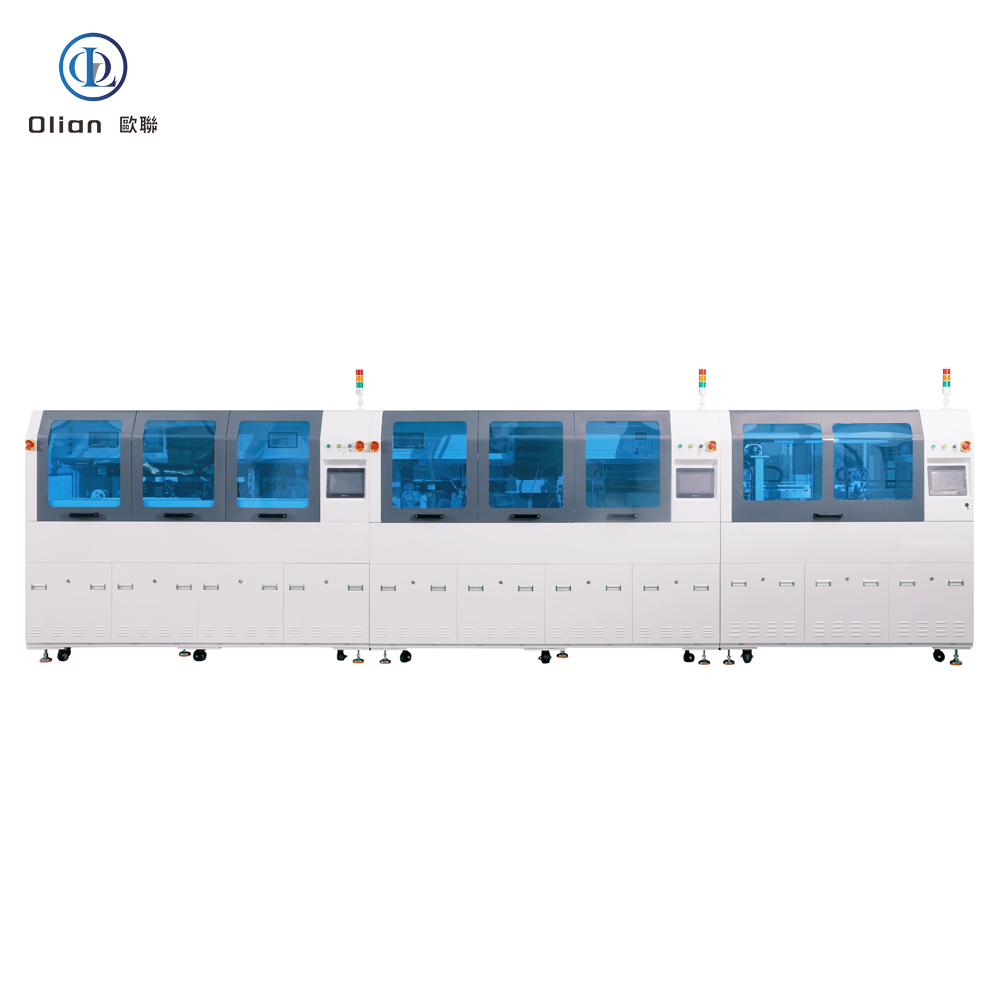

The soluction machines photos of the 1-7inch Semi Automatic Bonding machines Production Line

The soluction advantages of the Production Line

The Line is flexable line, you can add and reduce or stop any machines and workers in the middle line or any work stations when it is busy or leisure..

The Line is in good quality and long term produce experience. it is widely use in all kinds of small or middle size or big factories which make displays..

The Line is also in very good price for new start entrepreneurs. you can do the samples testing and small quantity produce. it is a small and new start for your big business.

Welcome you choos our 1-7inch Semi Automatic Bonding machines Production Line.
